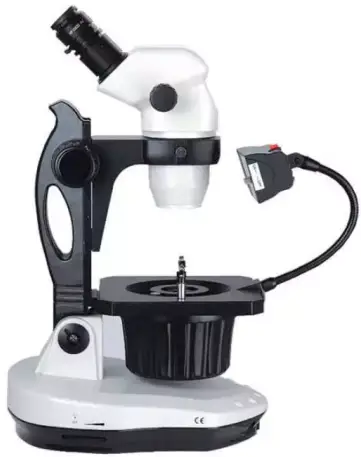

OPTO-EDU A24.0901 Gem Microscope User Manual

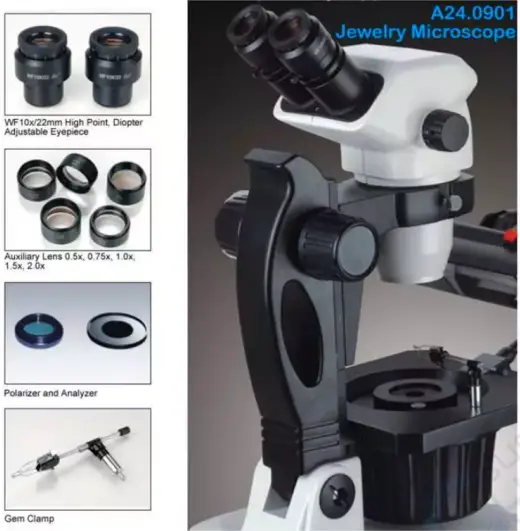

Product Details

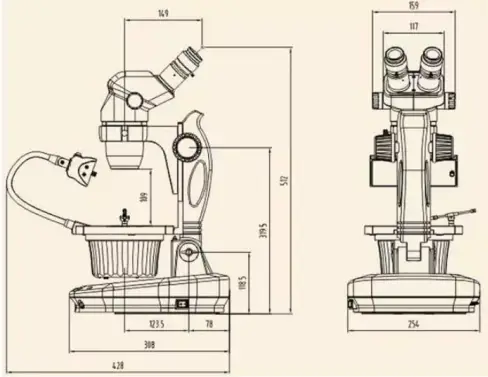

Product Size (mm)
Specification
| A24.0901 Jewelry Microscope, 0.67x-4.5x Specification | ||

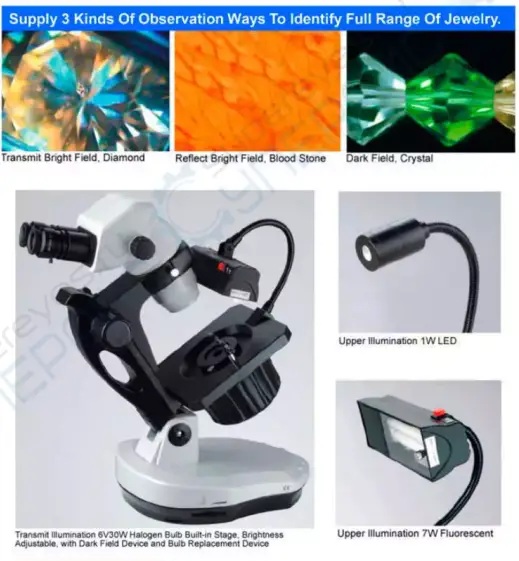

| Observation Ways | Bright Field Transmit. Reflect and Dark Field Observation | |
| Head | Bnnocular. 45° Inclined. 360′ Rotatable. +1-5° ()looter Adjustable. Interpupillary Adjustment 54-75mm | |
| Zoom Range | 0.67-4.5x | |
| Zoom Ratio | 1.6 .7 | |
| Eyepiece | WF10x/22mm, Both with Eye-cup | |
| Magnification | 6.7-45x, Up to 2-225x with Auxiliary Lens | |
| Working Distance | 100mm, With Standard lx Lens. Up to 26–287mm With Auxiliary Lens | |
| Gem Clamp | Wire Clamp For Bigger Objects, Flat Clamp For Smaller Objects | |
| Stand | Professional Jewelry Microscope Stand, With Base Rotating and Inclination Adjustable, with Built-in Dark Field | |
| Illumination | Upper Iltumniation 7W Fluorescent or 1W LED Transmit Illumination 6V30W Halogen Lam | |
| A24.0901 Jewelry Microscope, 0.67x-4.5x | Optional Accessories | |
| Eyepiece | WF15x/15mm | A51.0923-15 |
| WF20x/10mm | A51 0923-20 | |
| WF25x/9mm | A51 0923-25 | |
| Auxiliary Lens | 0.3x, W.D. 287mm | A52.0928-03 |
| 0.4x, W.D. 217mm | A52.0928-04 | |
| 0.5x, W.D. 177mm | A52.0928-05 | |
| 0.75x. W.D. 117mm | A52.0928-75 | |
| 1.5x. W D 47mm | A52 0928-15 | |
| 2.0x W.D. 26mm | A52 0928-20 | |
