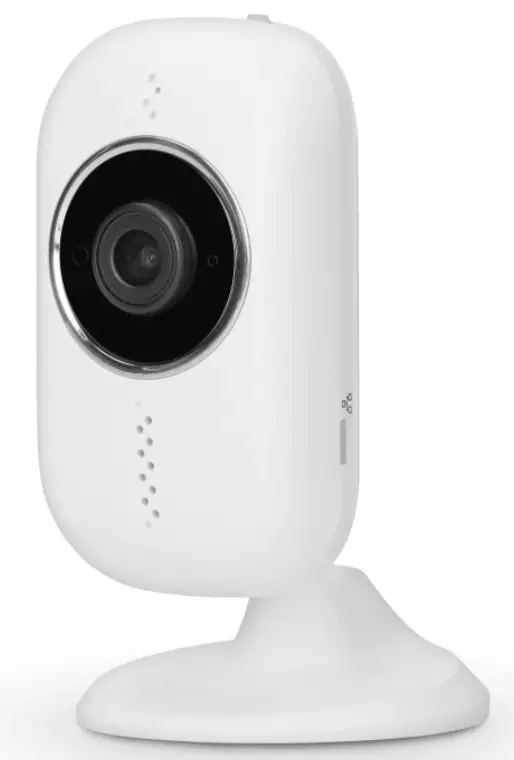

Alecto DVC126IP Surveillance Indoor WiFi Camera

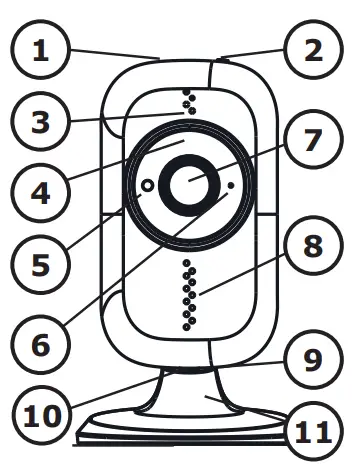

OVERVIEW.
- SD card slot
- connection key on/off
- microphone
- infrared LED
- light sensor
- indication LED
- lens
- speaker
- reset button
- power supply-connector
- feet

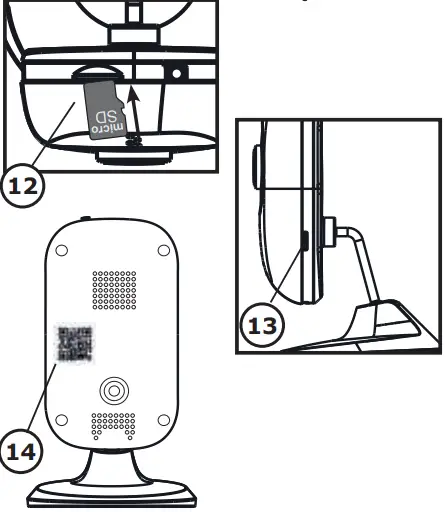

- inserting SD card
- LAN network connector
- QR-code
INSTALLATION.
Connect the LAN network if necessary, or use WiFi.
Connect the AC adapter to the power socket (5V) of the camera. Wait 2 minutes for the camera to starts up.

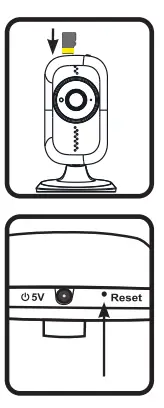

Insert a micro SD card (required for firmware updates).
Press the reset button with a paper clip until the indicator LED starts flashing and the voice
See Quick Starters Guide for registering the camera to the app. prompt is audible.

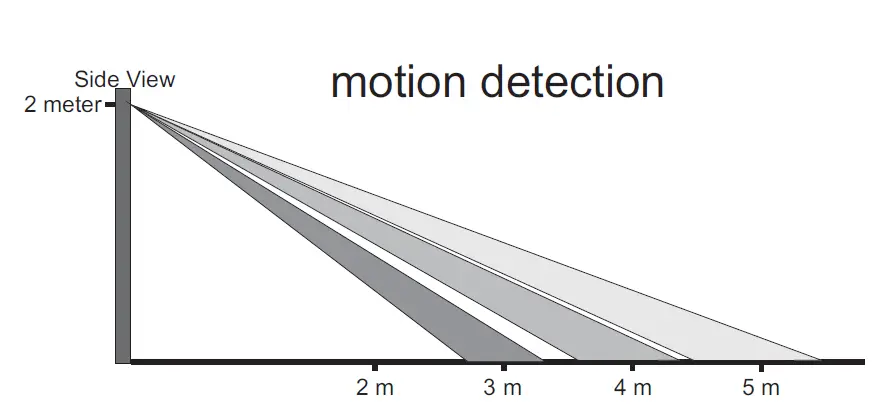

MOTION DETECTION
- Reduce detection sensitivity.
- Keeping treetop, brushes and leafs away from the 3-meter diameter detection area.
- Remove small and swaying objects that may block the viewing area
DECLARATION OF CONFORMITY
Hereby, Hesdo declares that the radio equipment type Alecto DVC126IP is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://DOC.hesdo.com/DVC126IP-DOC.pdf
Frequentie: 2407 – 2475 MHz
Maximum Vermogen : < 20 dBm
TECHNICAL SPECIFICATIONS.
- Image Sensor: CMOS Sensor
- Display Resolution: 1080P (Full HD)
- Lens : 4.1mm Glass Lens
- Mini. Illumination: 0 Lux (With IR Illuminator)
- Viewing Angle : 110º
- Input Built-in: microphone
- Output Built-in: speaker
- Audio Compressioin: PMC
- Image Compression: H.264
- Resolution: 1080P(1920×1080), VGA(640 x 480)
- Flip Mirror Images: flip and mirror adjustable by user
- Supported Protocol: TCP/IP,UDP, HTTP, HTTPS, SMTP, WPA/WPA2
- Wireless Standard: IEEE 802.11b/g/n,
Bluetooth 4.0 (For Wi-Fi Pairing Only) - Frequentie range: WiFi(H20): 2412-2472 MHz
- WiFi(H40): 2422-2462 MHz
- Transmitted power: WiFi 18 dBm EIRP
- Date Rate 802.11b: 11Mbps (max), 80211g: 54Mbps (max.), 802.11n: 150Mbps (max.)
- Wireless Securtiy: AES128, WPA & WPA2 Encryption
- Ethernet: 10/100Mbps
- Pan/tilt Angle: na
- Infrared Light: 4 IR LEDs, Night visibility up to 5
- Alarm Input / Output: na
- TF/SD card: External up to 128 GB (Kingston or Transcend)
- Power Supply: DC 5 V/1.5A (adapter)
Kuanten, KT12W050150EU
Power adapter for indoor use only
Shen Zhen Kuanten limited.
The fourth industrial zone Park, Second Building Two Floor 201#, XiTian Village, Gongming Town, GuangMing New Town, 518106 Shenzhen City, Guangdong, People’s Republic of China.
- Input voltage: 100-240Vac
- Input frequency: 50/60Hz
- Output voltage constant: 5V
- Output current constant: 1,5A
- Output power constant: 7,5W
- Average active efficiency: 81,85%
- Efficiency at low 10% load: 77,87
- Input power no load: 0,065W
- Operate Temper.: -10°C ~ 50°C (14°F ~ 122°F)
- Operating Humidity: 20% ~ 85% non-condensing
- Storage Temper.: -20°C ~ 60°C (-4°F ~ 140°F)
- Operating Humidity: 0% ~ 90% non-condensing
- Certification: CE, FCC, RoHS
