CHRONO
Instructions
CAPSOIL CHRONO Watch
Dear Customer
WE CONGRATULATE YOU ON THE PURCHASE OF THIS U-BOAT WATCH.
IN THIS BOOKLET YOU WILL FIND THE USER INSTRUCTIONS.
WE KINDLY INVITE YOU TO REGISTER YOUR WATCH ON OUR OFFICIAL WEB SITE IN THE U-CLUB AREA, DEDICATED EXCLUSIVELY TO THE U-BOAT WATCHES OWNERS, SO TO GET ACCESS TO FURTHER BENEFITS AND PREVIEWS ON OUR LATEST NEWS, EVENTS AND OFFERS.
Quartz
WATCH FUNCTIONS
A CHRONOGRAPH START/STOP PUSHER
B CHRONOGRAPH RESET PUSHER
C SCREW CROWN
D HOUR HAND
E MINUTE HAND
F CHRONOGRAPH SECONDS COUNTER
G SECONDS HAND
H CHRONOGRAPH MINUTE COUNTER
I CHRONOGRAPH HOUR COUNTER
Representative image.
Some components may be in different positions or not fitted.

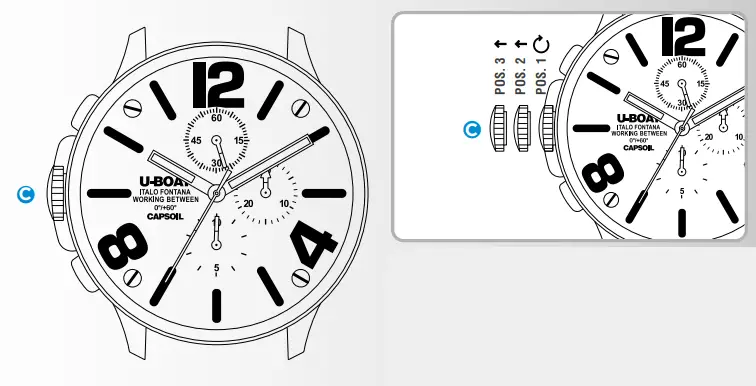

- POSITION 1
NEUTRAL POSITION - POSITION 3
SECOND CLICK
USER INSTRUCTIONS
| POSITION 1 NEUTRAL POSITION | operating position of the watch. |
| POSITION 3 SECOND CLICK | unscrew the crown C and pull it out to take it to position 3. Rotate the crown C to set the desired time. |
- Push in and screw the crown C back to position 1.
Note: it is recommended to unscrew the crown C to position 3 when the watch will not be used for a long time, to limit battery consumption.

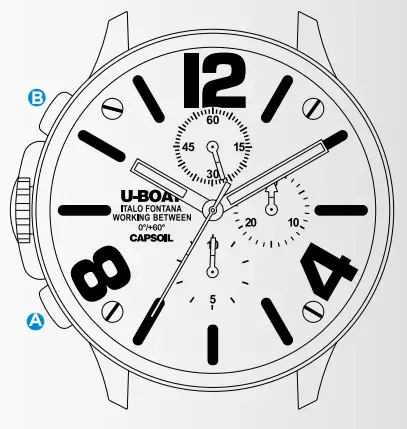

CHRONOGRAPH FUNCTIONS
Press the (on/off) pusher A to start the chronograph hand and the hours/minutes totalizer.
Press the pusher A again to stop the chronograph, which will restart by pressing it again.
After measuring the times, with the chronograph stopped, press the pusher B to reset the chronograph and totalizer hands to zero.

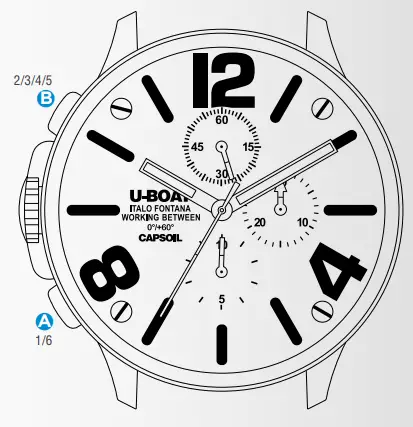

SPID TIME FUNCTION
- Press the pusher A to start the chronograph.
- Press the pusher B to stop the chronograph allowing an intermediate time to be read while timing continues. By pressing the pusher B again, the chronograph hands to “recover” the elapsed time.
3. 1* Start
2* Time reading
3* Restart
4* Time reading
5* Restart
6* Stop

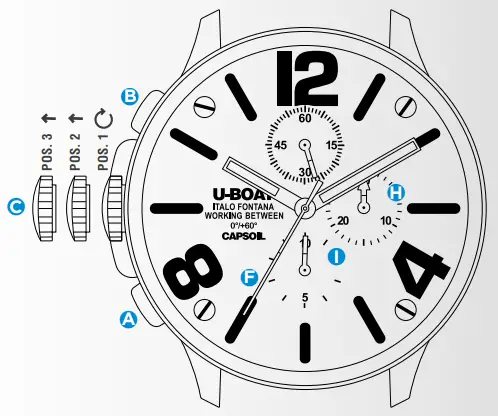

ADJUSTING CHRONOGRAPH HANDS TO CORRECT POSITION
- Unscrew the crown C and pull it out to position 3.
- Press the pushers A and B simultaneously for about 2 seconds.
The counter hand F will rotate 360°.
By pressing the pusher A , the counter hand F will return to the correct position.
Press the pusher B to activate counter hand I correction.
Press the pusher A to reposition the counter hand I in the correct position.
By pressing the pusher B again we activate the correction of the counter hand H.
Press the pusher A to reposition the counter hand H in the correct position. - Screw the crown C back in to position 1.

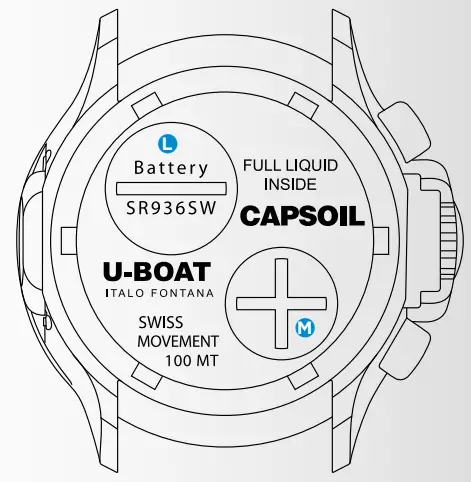

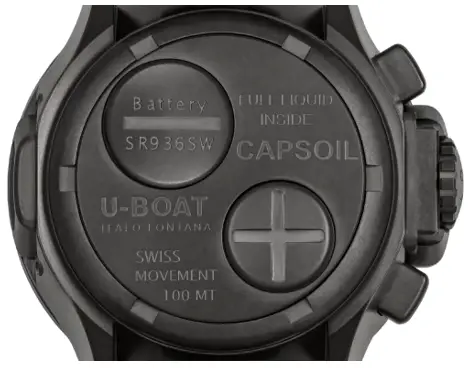

BATTERY REPLACEMENT AND OIL ADJUSTMENT
- Innovative closure system with a compartment for quick battery change L.
- Closing system and internal oil regulation, for the exclusive use of U-BOAT specialized technicians M.
Note: the oily fluid inside the case may be subject to slight changes in shade due to the natural change of the liquid.
CARE AND MAINTENANCE
- Your watch will keep its performance intact for a long time, with proper care.
- We recommend that you have your watch checked every 3-4 years at one of our Authorized Dealers/Authorised Service Centres, to carry out ordinary maintenance on all mechanical parts and water resistance.
- We also recommend contacting an Authorized Dealer/Authorised Service Center to replace the strap.
- Do not leave the watch in places exposed to extreme temperature changes, humidity, the sun and strong magnetic fields.
- Make sure the watch is suitable for use in water.
- Always rinse the watch with fresh water after contact with salt water.
- It is advisable to unscrew the crown when the watch will not be used for a long time, to limit battery consumption. We recommend that you contact an authorized center to replace the battery.
OPTIMAL OPERATING CONDITIONS: 0°/+60°C.
