U-boat Classic Doppiotempo Chrono Ss Watch 46mm Instruction Manual

U-BOAT Classic Doppiotempo Chrono SS Watch 46mm

Instruction

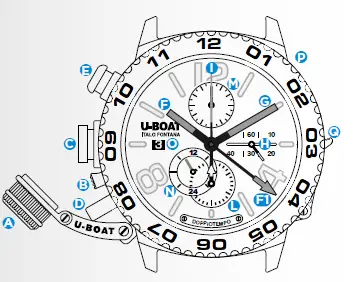

• CAP CROWN
• CROWN EXTRACTION BUTTON
• CROWN
• START/STOP CHRONOGRAPH
• CHRONO ALIGNMENT BUTTON
• HOUR HAND
  DUAL TIME HAND
• MINUTE HAND
• SECOND HAND
• CHRONOGRAPH SECONDS COUNTER
• CHRONOGRAPH MINUTE COUNTER
• CHRONOGRAPH HOUR COUNTER
• 24 HOUR INDICATOR
• DATE
• BIDIRECTIONAL DUAL TIME BEZEL
• BEZEL LOCK LEVER

INSTRUCTIONS FOR USE

INSTRUCTIONS FOR USE

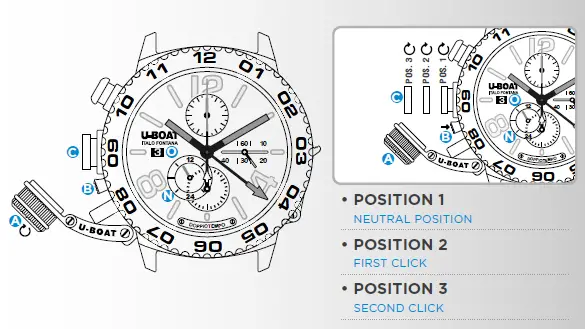

1. Unscrew the cap crown A to gain access to the crown C .
   POSITION 1
   NEUTRAL POSITION unscrew the crown C to wind and start the watch.
   POSITION 2
   FIRST CLICK
   press the button B , the crown C is positioned at the first click. Rotate the crown C clockwise to set the exact time O.
   POSITION 3
   SECOND CLICK
   press the button further B , the crown C moves to the second click, rotate the crown C to set the exact time. Use indicator N for correct date change O.
2. Press the crown C fully to return it to the neutral position. Carefully screw in the cap crown A until it is completely locked.

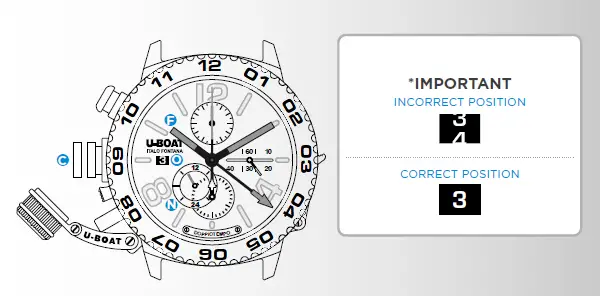

*IMPORTANT

To prevent misalignment or breakage of the date wheel when setting the date, make
sure that:

1. During manual adjustment of the date O , hour hand F is not pointing between 9 pm and 3 am (check the 24 hour hand N ).
2. The day indicated by the date indicator O is aligned with the window (see the picture next)
3. Take the crown C out to the second click, move the hand F to 3 pm, depress the crown C to the first click and move the date indicator O to the desired date and check the alignment as indicated in point 2 above.

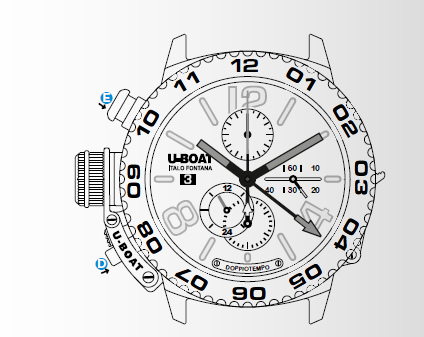

CHRONOGRAPH OPERATION INSTRUCTIONS

Press button D (start/stop) to start the chronograph and the hour/minute counters.
Press button D again to stop the chronograph and once more to restart it.
After noting the time measured, press reset button E when the chronograph is stopped to return the chronograph hand and counters to zero.

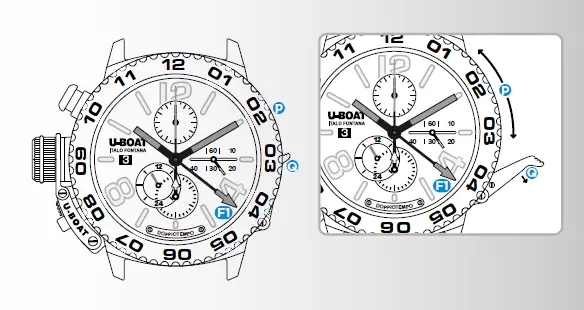

DUAL TIME FUNCTIONS

Unlock the lever Q .
Set the desired time by turning the bezel P in correspondence with the hand F1 .
Lock the lever Q .

CARE AND MAINTENANCE

• The precision mechanism in your watch will provide long-lasting performance when properly cared for.
• We recommend taking your watch to an Authorized Retailer/Authorized Service
  Centre every 3-4 years for a check-up and to perform ordinary maintenance on all mechanical parts.
• We also advise taking your watch to an Authorized Retailer/Authorized Service Centre to change the strap.
• Avoid leaving your watch where it is exposed to large temperature variations, humidity, the sun and strong magnetic fields.
• Remember to rinse the watch after it comes into contact with seawater.
  AUTOMATIC WATCHES REQUIRE MANUAL WINDING FOLLOWING A LONG PERIOD OF INACTIVITY.

U-BOAT HEAD OFFICE
Via Pesciatina 751H
Gragnano, Capannori – 55010 Lucca – Italy
Tel: +39 0583 469288 – Fax: +39 0583 462249
www.uboatwatch.com – [email protected]
