U-boat 8890 Classico Solotempo Watch Instructions

CLASSICO
SOLOTEMPO
Instructions

8890 Classico Solotempo Watch

Dear Customer
WE CONGRATULATE YOU ON THE PURCHASE OF THIS U-BOAT WATCH.
IN THIS BOOKLET YOU WILL FIND THE USER INSTRUCTIONS.
WE KINDLY INVITE YOU TO REGISTER YOUR WATCH ON OUR OFFICIAL WEB SITE IN THE U-CLUB AREA, DEDICATED EXCLUSIVELY TO THE U-BOAT WATCHES OWNERS, SO TO GET ACCESS TO FURTHER BENEFITS AND PREVIEWS ON OUR LATEST NEWS, EVENTS AND OFFERS.

Mechanical Automatic

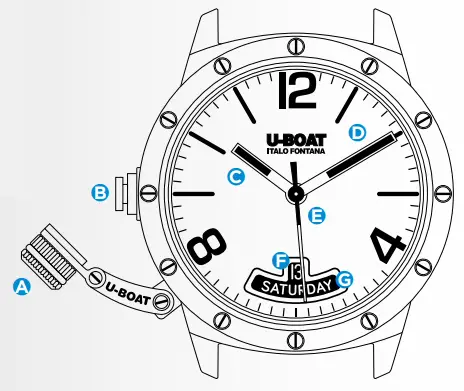

WATCH FUNCTIONS

A CROWN COVER
B CROWN
C HOUR HAND
D MINUTE HAND
E SECONDS HAND
F DATE
G DAY

Representative image.
Some components may be in different positions or not fitted.

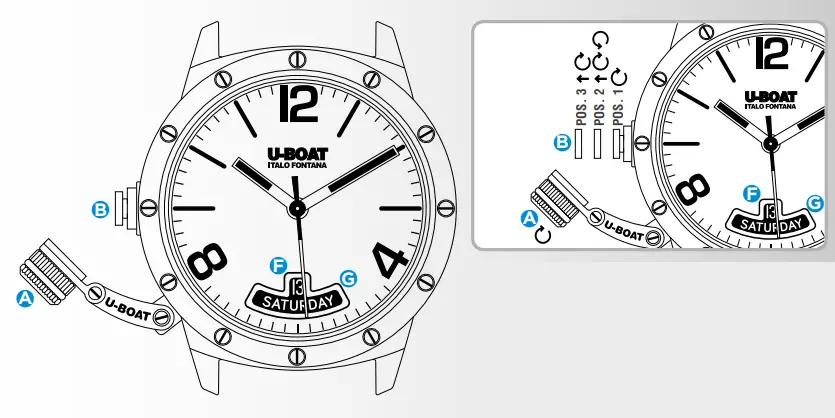

• POSITION 1
  NEUTRAL POSITION
• POSITION 2
  FIRST CLICK
• POSITION 3
  SECOND CLICK

USER INSTRUCTIONS

1. Unscrew the crown cover A to access the crown B.


   POSITION 1 NEUTRAL POSITION	to wind up and start the watch, turn the crown B  clockwise.
   POSITION 2 FIRST CLICK	pull the crown B out to position 2. Turn the crown B  clockwise to set the desired date F . Rotate the crown B counterclockwise to set the desired day G.
   POSITION 3 SECOND CLICK	pull the crown B  out further to position 3. Rotate the crown B to set the desired time.

2. Press the crown B all the way down to return it to position 1. Carefully screw down the crown cover A until it locks completely.

CARE AND MAINTENANCE

• Your watch will keep its performance intact for a long time, with proper care.
• We recommend that you have your watch checked every 3-4 years at one of our Authorized Dealers/Authorised Service Centres, to carry out ordinary maintenance on all mechanical parts and water resistance.
• We also recommend contacting an Authorized Dealer/Authorised Service Center to replace the strap.
• Do not leave the watch in places exposed to extreme temperature changes, humidity, the sun and strong magnetic fields.
• Make sure the watch is suitable for use in water.
• Always rinse the watch with fresh water after contact with salt water.
  AUTOMATIC WATCHES REQUIRE MANUAL WINDING FOLLOWING A LONG PERIOD OF INACTIVITY.

U-BOAT HEAD OFFICE
Via Pesciatina 751H
Gragnano, Capannori – 55010 Lucca – Italy
Tel: +39 0583 469288 – Fax: +39 0583 462249
www.uboatwatch.com – [email protected]
