Chrono Titanio Smartwatch

Dear Customer
WE CONGRATULATE YOU ON THE PURCHASE OF THIS U-BOAT WATCH. IN THIS BOOKLET YOU WILL FIND THE INSTRUCTIONS FOR USE.
WE KINDLY INVITE YOU TO REGISTER YOUR WATCH ON OUR OFFICIAL WEB SITE IN THE U-Club – U-Boat (uboatwatch.com), DEDICATED  EXCLUSIVELY TO THE U-BOAT WATCHES OWNERS AND GAIN ACCESS TO FURTHER BENEFITS AND PREVIEWS ON OUR LATEST NEWS, EVENTS AND OFFERS.

Quartz

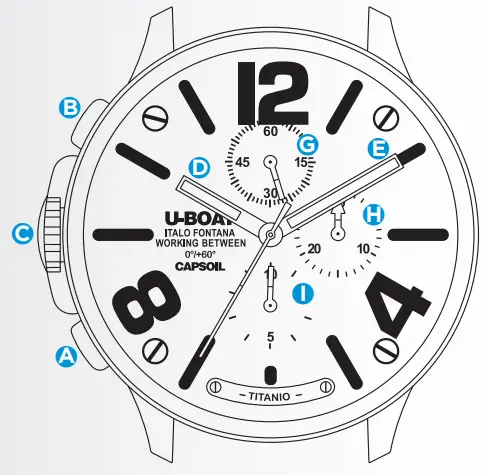

WATCH OPERATION INSTRUCTIONS

A START AND STOP CHRONOGRAPH
B RESET CHRONOGRAPH
C SCREW CROWN
D HOUR HAND
E MINUTE HAND
F CHRONOGRAPH SECOND HAND
G SECOND HAND
H CHRONOGRAPH MINUTE HAND
I CHRONOGRAPH HOUR HAND

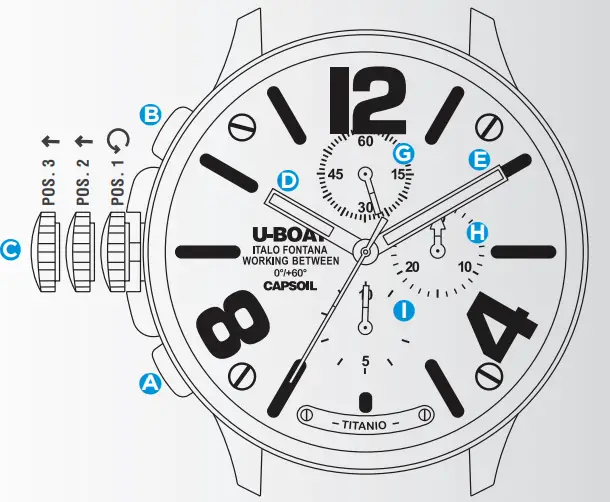

SETTING THE PRECISE TIME

1. Unscrew the crown  C and bring it into the position 3.
2. Turn crown  C to set the desired time.
3. Screw down the crown  C to put it back into position 1.

NB: we advise pulling out crown  C into position 3 when the watch isn’t being used for a long period to limit battery consumption.

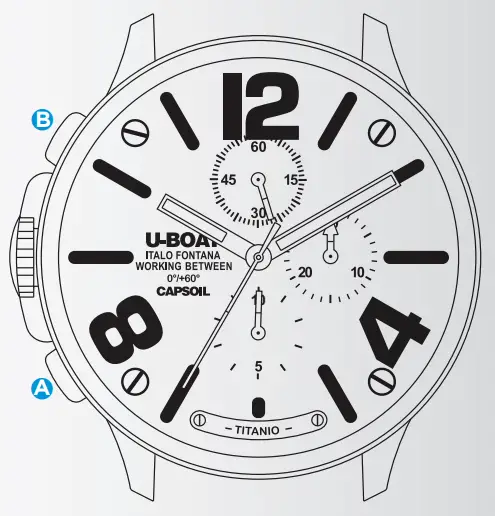

CHRONOGRAPH OPERATION INSTRUCTIONS

1. Press button  A to start the chronograph.
   Press button  A again to stop the chronograph.
2. Press button  B to reset the chronograph.

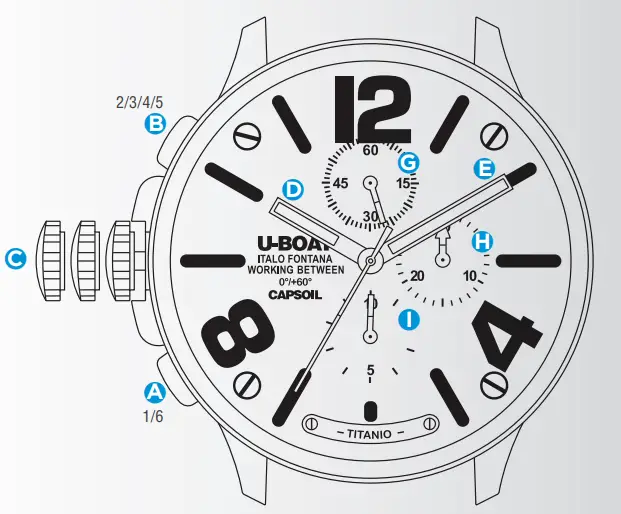

INTERMEDIATE TIME FUNCTIONS

1. Press button  A to start the chronograph.
2. Press button B to stop the chronograph and read the intermediate time while timing continues. Pressing button B lagain returns the chronograph hands to the current time recorded.
3. 1* Start
   2* Time reading
   3* Restart
   4* Time reading
   5* Restart
   6* Stop

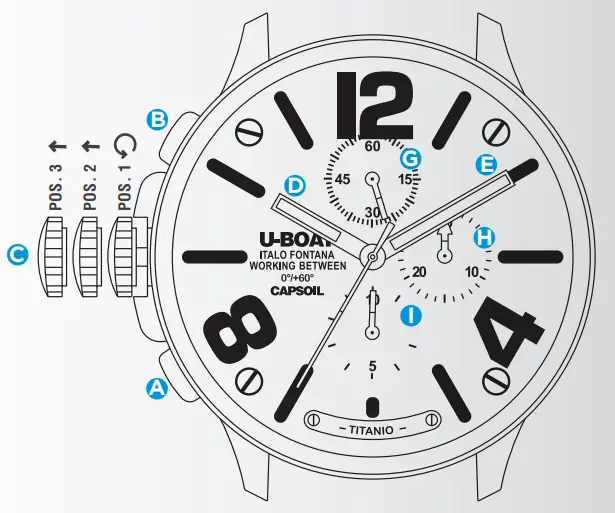

ADJUSTING CHRONOGRAPH HANDS TO CORRECT POSITION

1. Unscrew the crown  C and bring it into the position 3.
2. Press buttons  A and  B together for about 2 seconds.
   Hand  F will rotate through 360°. (IF FITTED)
   Pressing button  A returns hand  F to the correct position. (IF FITTED)
   Press button  B to activate correction of hand  I .
   Press button  A to return hand  I to the correct position.
   Pressing button B again activates correction of hand  H .
   Press button  A to return hand  H to the correct position.
3. Screw down the crown  C to put it back into position 1.

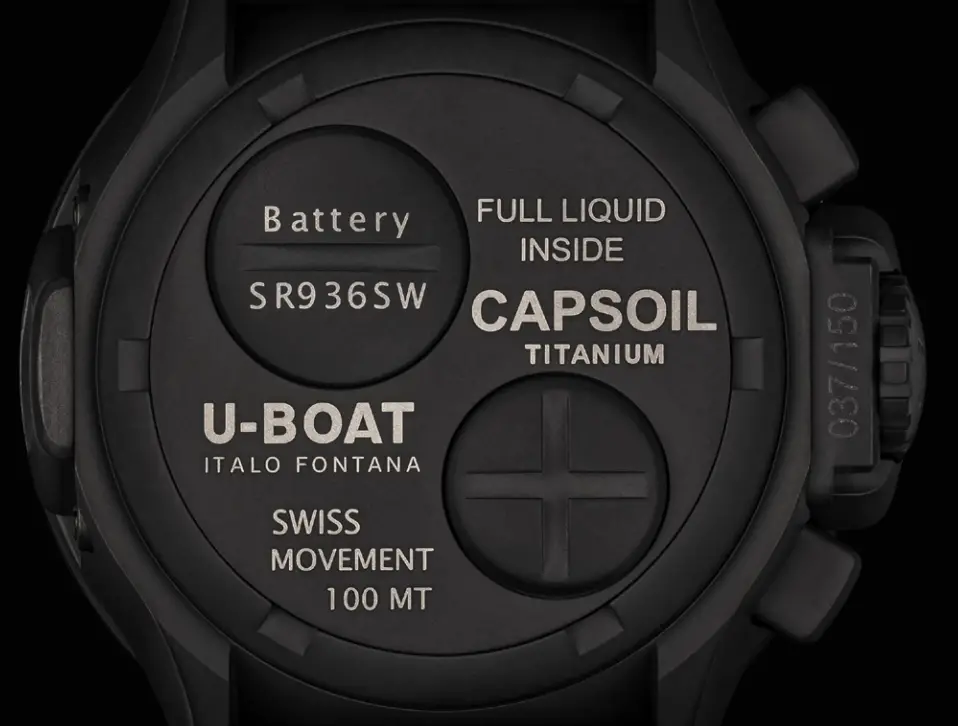

BATTERY REPLACEMENT AND OIL ADJUSTMENT

1. Innovative closure system with a compartment for quick battery change.  L
2. Closing system for oil regulation in the case, exclusively by U-BOAT specialized technicians. M

CARE AND MAINTENANCE

• The precision mechanism in your watch will provide long-lasting performance when properly cared for.
• We recommend taking your watch to an Authorised Retailer/Authorised Service Centre every year for a check-up, perform ordinary maintenance on all mechanical parts and restore of water-resistance.
• We also advise taking your watch to an Authorised Retailer/Authorised Service Centre to change the strap.
• Avoid leaving your watch where it is exposed to large temperature variations, humidity, the sun and strong magnetic fields.
• Make sure the watch is in adequate conditions for water use/activities.
• Remember to rinse the watch after it comes into contact with seawater.
• Automatic watches require manual winding following a long period of inactivity.

OPTIMAL OPERATING CONDITIONS 0°/+60°C WHEN NOT WORK.

U-BOAT HEAD OFFICE
Via Pesciatina 751H
Gragnano, Capannori – 55010 Lucca – Italy
Tel: +39 0583 469288 – Fax: +39 0583 462249
www.u-boatwatch.com – [email protected]
