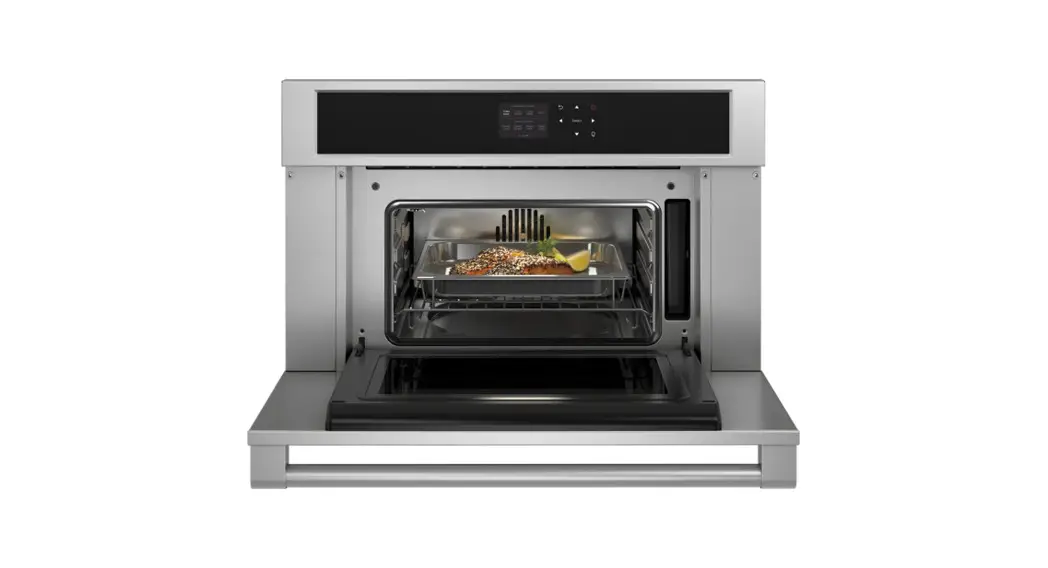

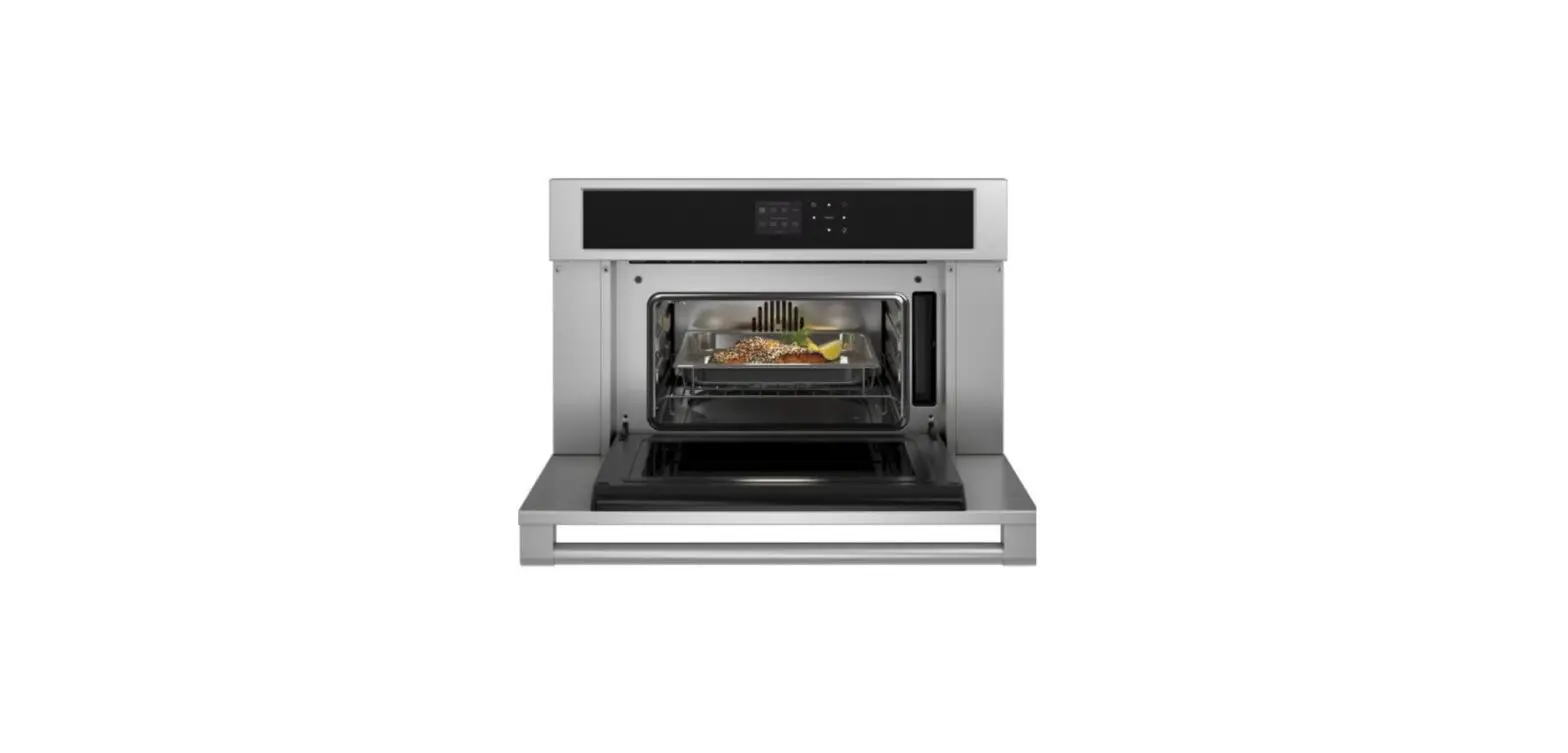

MONOGRAM ZMB9031SNSS 30 Inch Steam Self Clean Convection Wall Oven
THE MONOGRAM MINIMALIST COLLECTION
Streamlined design and precisely machined metals create a contemporary yet functional aesthetic
STEAM COOKING
This healthy method of cooking helps foods to better retain their flavor, color and nutritional value
COMBINATION COOKING
Utilizing True European convection baking, broiling and roasting with steam assist at the same time creates exceptional results
PRE-PROGRAMMED RECIPES
Select from a large number of built-in recipes to perfectly prepare vegetables, rice, grains and meat
INNOVATIVE RECIRCULATING WATER SYSTEM
An advanced feature that maximizes water use and provides continuous steam throughout the cooking process
PAN SET
These six stainless steel pans are the ideal cookware for reheating multiple food items simultaneously while also reducing odor and flavor transfer
SPECIFICATIONS
| SPECIFICATIONS | |
| Overall Width | 29 3/4″ (75.6 cm) |
| Overall Height | 18 5/8″ (47.3 cm) |
| Overall Depth | 22 7/8″ (58 cm) |
| Oven Door Clearance | 13 1/4″ (33.6 cm) |
| Overall Oven Interior Capacity | 1.3 cu. ft. |
| Oven Interior Dimensions (W x H x D) | 16″ x 8″ x 13″ (40 cm x 20 cm x 33 cm) |
| Minimum Cabinet Width | 30″ (76.2 cm) |
| Minimum Cabinet Depth | 21 1/2″ (54.6 cm) |
| Minimum Base Support | 130 lbs (59 kg) |
| Cutout Width | 25 1/4″ (64.1 cm) |
| Cutout Height* | 17 3/4″ (45 cm) |
| Cutout Depth | 21 1/2″ (54.6 cm) Min |
| Voltz/Hertz/Amps | 240 VAC, 60 Hz, 20Amps |
| Conduit Length | 53″ (134.6 cm) |
| Electrical Rating | 2.25 kW at 208V 3 kW at 240V |
| Total Amps | 20 amps |
| Shipping Weight | 122 lbs (55.3 kg) |
| OPTIONAL ACCESSORY | ||
|
ZSTEAM1 | 1-15/32″ from platform to bottom of trim. Additional 1/8″ clearance to any other cabinet or product | |
ATTENTION ELECTRICIAN: A 240V, 60Hz, 20 Amp circuit is required. An individual properly grounded branch circuit or circuit breaker is required. Hardware junction box is required for built-in product
OVERALL DIMENSIONS

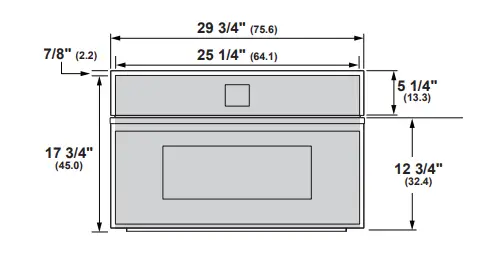

FRONT VIEW (SHOWING CUTOUT OVERLAP

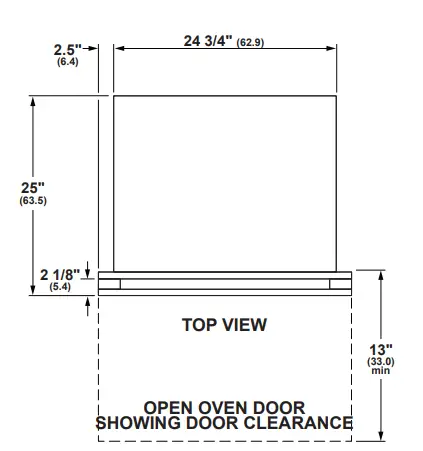

SIDE VIEW
Dimensions in parentheses are in centimeters unless otherwise noted. Actual product dimensions may vary due to manufacturing tolerances.

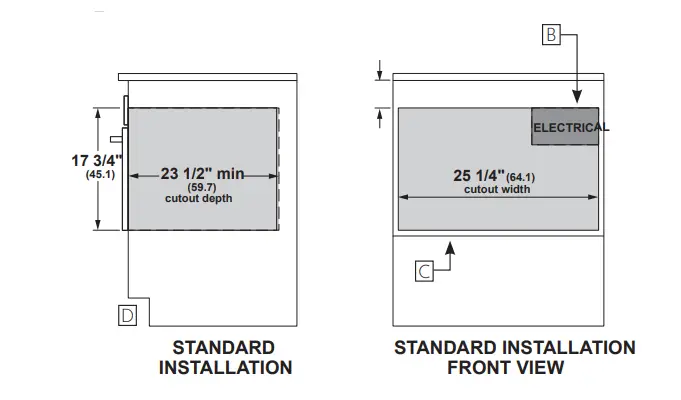

WALL INSTALLATION
UNDERCOUNTER INSTALLATION
For more details, refer to the installation instructions for this product on Monogram.com. Dimensions in parentheses are in centimeters unless otherwise noted.
For questions about your appliance, please call 1-800-626-2000. PAGE 3 OF 3 Product Specification Revised 2/22
