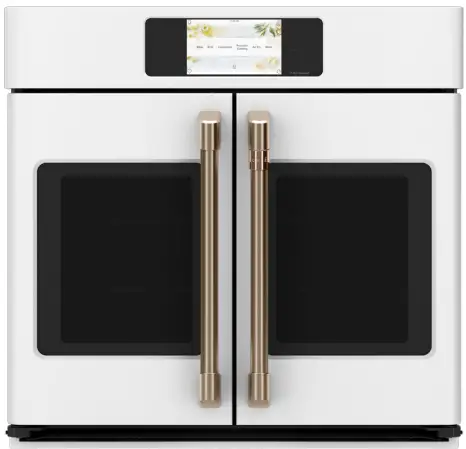

CTS90FP2NS1 Professional Series 30Inch Built In Convection French Door Single Wall Oven
Owner’s Manual
CTS90FP2NS1 Professional Series 30Inch Built In Convection French Door Single Wall Oven
ALSO
AVAILABLE IN
CTS90FP3ND1
Matte Black with Brushed Stainless handles
CTS90FP2NS1
Stainless Steel with Brushed Stainless handles
FEATURES & BENEFITS
Professional design brought to life – Bring unparalleled sophistication to your kitchen with a French-door wall oven that exudes professional style and allows you to personalize the look with customizable handles and finishes
French door design for more approachable access – Bake with ease thanks to the purposeful French-door design, which allows you to open both doors using a single hand, and easily place food inside
Precision is the name of your cooking game – Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times
Brighten up life in the kitchen – Easily navigate wall oven settings using a stunning full color display that adds an unexpected touch of style to your kitchen
The perfect bake is now perfectly easy – Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more No preheat, no hassle – Save time with a variety of precision cooking modes that eliminate the need for preheating
Fried taste. Crisp texture. Less oil. – Make your favorite “fried” foods healthy, thanks to a mode that crisps without using oil for frying
Create a look that matches your personal style – Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
Enjoy convenient temperature control from anywhere – Preheat while running errands or change oven temperatures while doing yard work with the Cafe Appliances Kitchen app
The oven rack that handles it all – Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly and stay in the oven during the self-clean cycle, so you never have to handle cumbersome racks again
The perfect fit you’ve always dreamed of – When you’re updating your kitchen, attention to detail is a priority. That’s why Café wall ovens are guaranteed for an exact fit or Café Appliances will pay up to $300 toward modifications.
APPEARANCE
| Handle | Café Pro Style; Customizable |
| Installation | Above Warming Drawer; Side-by-Side; Under Built-In Advantium; Under Built-In Microwave |
| FEATURES | |
| Configuration | French Door |
| Cooking System | True European Convection with Direct Air |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cleaning Time | Variable with Delay Clean Option |
| Oven Cooking Modes | Convection Bake Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Hot-Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo Warm Mode |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | 7″ Full-Color Touch LCD Screen |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Oven Rack Features | 2 Never-Scrub Roller Racks 6 Embossed Rack Positions |
| Product Type | Wall Oven Single |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Sabbath Mode Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Remote Enabled Scan-to-cook Temperature Probe |
| WiFi Connect | Built-In |
| Connected Capabilities | Amazon Alexa Drop IFTTT Innit Nest The Google Assistant |
| Cooking Technology | Convection |
| Oven Interior | 2 Halogen Interior Oven Lights Black Gloss Finish Hidden Bake |
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| POWER / RATINGS | |
| Amp Rating at 208V | 20 |
| Amp Rating at 240V | 20 |
| Bake Wattage | 2850W |
| Broiler Wattage | 4300W |
| Convection Wattage | 2400W |
| KW Rating at 208V | 3.4 |
| KW Rating at 240V | 4.5 |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 208 |
| Net Weight | 190 |
| Overall Height | 28-5/8 |
| Overall Width | 29-3/4 |
| Overall Depth | 26-3/4 |
| Cabinet Width | 30 |
| Cutout Dimensions (W x H x D) (in.) | 28-5/8 x 27-5/16 x 23-1/2 |
| Oven Interior Dimensions (W x H x D) (in.) | 25 x 17-3/8 x 20-1/4 |
Café™ Professional Series 30″ Built-In
Convection French-Door Single Wall Oven
CTS90FP4NW2 / CTS90FP3ND1 / CTS90FP2NS1
OPTIONAL ACCESSORIES
| 30″ Never-Scrub Roller Rack | UXWORXR30 |
| Large Broiler Pan | WB48X10056 |
| 72″ Replacement Electrical Conduit | WB18T10580 |
WARRANTY
| Parts warranty | Limited 1-year entire appliance |
| Labor warranty | Limited 1-year entire appliance |
| Warranty notes | See written warranty for full details |

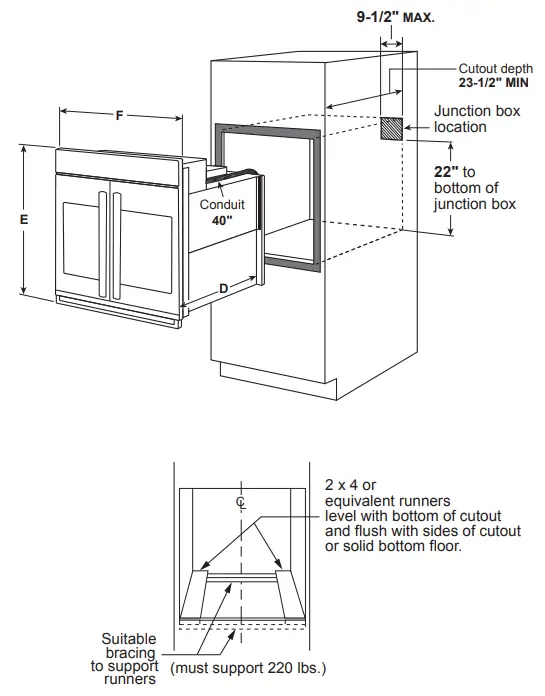

DIMENSIONS AND INSTALLATION (IN INCHES)
Most 30″ Wall Cabinets can be used with this unit.
Note: These ovens are not approved for stackable installations.Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.
Door handle protrudes 2-1/2″ from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data and for alternate installation options.
Note: This model is not approved for installation below a countertop or in combination with a separate cooktop. The minimum installation height from the floor is 16-1/4″.
A minimum gap of 14″ from either side of the wall oven to an adjacent 45 or 90 cabinet, drawer or was is required to avoid interference with the opening of the doors. The handles protrude 2-1/2″ from the door face.
Countertops may need to be notched on either side of the wall oven to avoid interference with the opening of the doors.
THIS MODEL IS NOT APPROVED FOR FLUSH-MOUNT INSTALLATION

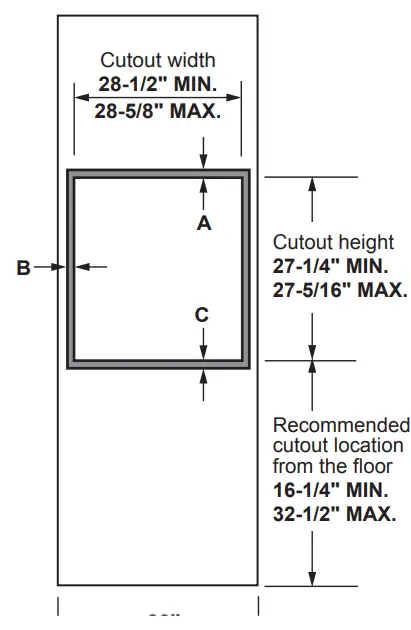

| Cabinet | 30″ |
| A – Overlap of oven at top of cutout | 1-1/4″ |
| B – Overlap of oven other side of edge of cutout | 3/4″ |
| C – Overlap of oven at bottom of cutout | 1-1/4″ |
| Oven | |
| D – Install depth | 23-1/2″ |
| E – Overall height with trim | 28-5/8″ |
| F – Overall width | 29-3/4″ |
DIMENSIONS AND INSTALLATION (IN INCHES)
Note: This model is not approved for installation below a countertop or in combination with a separate cooktop. The minimum installation height from the floor is 16-1/4″.
Note: A minimum gap of 14″ from either side of the wall oven to an adjacent 45 or 90 cabinet, drawer or was is required to avoid interference with the opening of the doors. The handles protrude 2-1/2″ from the door face.
Note: Countertops may need to be notched on either side of the wall oven to avoid interference with the opening of the doors.
Installation information: Before installing, consult installation instructions packed with products for current dimensional data and for alternate installation options.
THIS MODEL IS NOT APPROVED FORFLUSH-MOUNT INSTALLATION

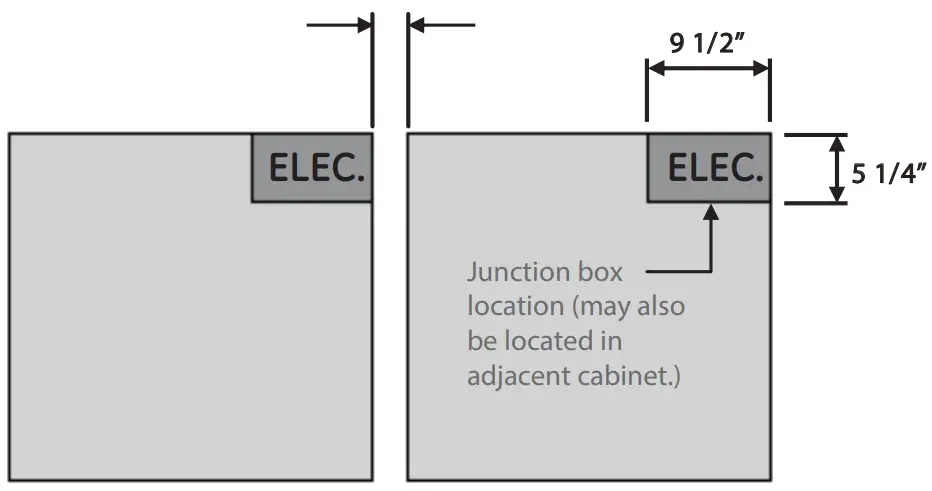

SIDE BY SIDE INSTALLATION FRONT VIEW OF CUTOUTS
If both ovens are French Door models, then 30” min.
If the second oven is a drop down door model, then 14” min.

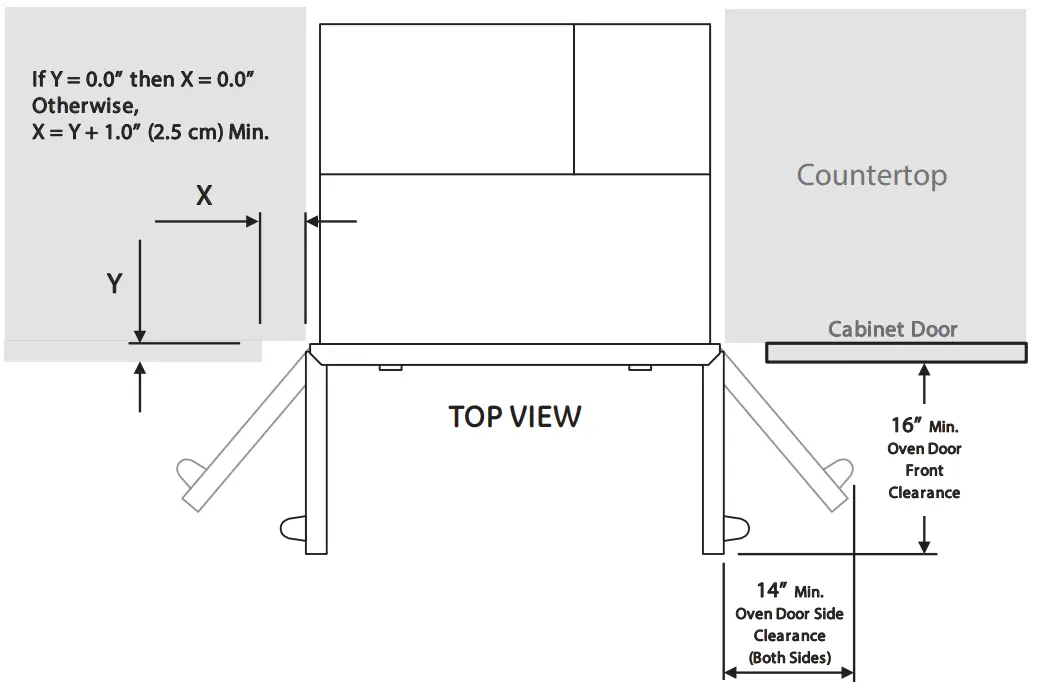

NSTALLATION TO ADJACENT COUNTERTOP AND CABINET DOORS
DIMENSIONS AND INSTALLATION INSTRUCTIONS ARE SHOWN IN INCHES
ADDITIONAL ACCESSORIES
 | CXWSFHKMNBZ Brushed Bronze 2 handles (standard on Matte White) |

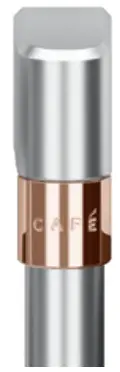

 | CXWSFHKMNSS Brushed Stainless 2 handles (standard on Matte Black) |

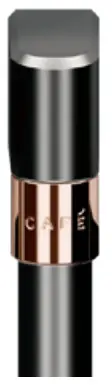

 | CXWSFHKMNBT Brushed Black 2 handles |

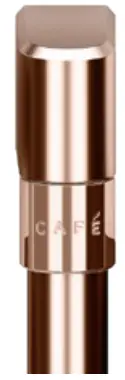

 | CXWSFHKMNCU Brushed Copper 2 handles |
For answers to your Café™ product questions
visit our website at cafeappliances.com.
© 2022 GE Appliances
PC96509 1/22
