WELDING HELMET WITH POWERED AIR
PURIFYING RESPIRATOR (PAPR)
MODEL NO: PWH616

PWH616 Welding Helmet with Powered Air Purifying Respirator

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble-free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT IS CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

SAFETY

1.1. ELECTRICAL SAFETY
‰ WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before use. Inspect power supply leads, plugs and all electrical connections for wear and damage. Sealey recommends that an RCD (Residual Current Device) is used with all electrical products. You may obtain an RCD by contacting your local Sealey stockist.  If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
For electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse – see fuse rating in these instructions.
DO NOT pull or carry the appliance by the power cable.
DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a firm grip on the plug.
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a qualified electrician.

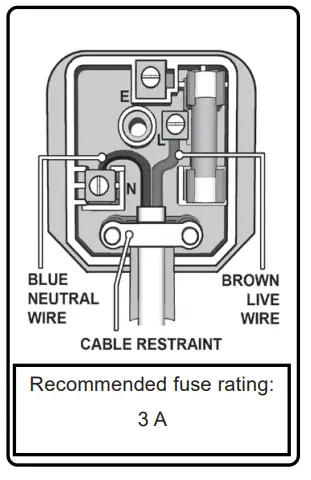

1.1.4. This product is fitted with a BS1363/A 13 Amp 3-pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove it from use.
Replace a damaged plug with a BS1363/A 13 Amp 3-pin plug. If in doubt contact a qualified electrician.

Class II products are wired with live (brown) and neutral (blue) only are marked with the Class II symbol;

A) Connect the BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the neutral terminal ‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
DO NOT connect either wire to the earth terminal. Sealey recommends that repairs are carried out by a qualified electrician.

1.2. GENERAL SAFETY
WARNING! This helmet is not suitable for use with laser welding or CUTTING or for overhead welding applications.
Ensure all workshop safety rules, regulations, and conditions are complied with when using welding equipment. The helmet will not offer protection against misuse of workshop tools, equipment, or accessories.
Maintain the helmet in good condition and protect the cartridge from liquid and dirt contact. Regularly replace the protective lens and replace any damaged or worn parts. Use genuine parts only. Unauthorized parts may be dangerous and will invalidate the warranty.
Ensure the front cover window is securely in place before use.
Fit the helmet and adjust the headband so the helmet will sit as low and near to your face as possible.
Use a helmet only in temperatures ranging from -5°C to 55°C.
Remove ill-fitting clothing and remove ties, watches, rings, and other loose jewelry.
Maintain correct balance and footing.
Ensure the floor is clear from obstructions, and not slippery, and wear non-slip protective shoes.
Keep children and unauthorized persons away from the working area.
‰ WARNING! The helmet will only protect the eyes and face from radiation and sparks. It will not protect against explosive devices or corrosive liquids.
DO NOT use the helmet for any purpose for which it is not designed.
DO NOT use a helmet unless you have been instructed in its use by a qualified person.
DO NOT open or tamper with the shade cartridge.
DO NOT get the helmet wet or use in damp or wet locations.
DO NOT leave the workplace with the helmet in the lowered position, as a bright light source may darken the cartridge unexpectedly.
DO NOT place the helmet on a hot surface.
DO NOT use helmet without front cover window fitted. To do so will invalidate your warranty.
Clean helmet (see section 5.5) and store the helmet in a safe, dry, childproof location.
‰ WARNING! Before welding always inspect the cartridge filter to ensure that it is not damaged. To test the filter prior to welding, direct the front of the cartridge filter to a bright light source which will cause the lens to darken. Then using your hand rapidly cover and uncover the sensor. The filter should lighten momentarily then return to a dark state.
‰ WARNING! DO NOT use the helmet if damaged or you suspect it may be faulty. (Contact Sealey Stockist).
▲ DANGER! DO NOT use if, at any time, the face plate in the cartridge FAILS to darken when exposed to a welding spark. Remove cartridge and return to your Sealey stockist for checking.
Continued use of the product knowing that the auto darkening feature is NOT FUNCTIONING may DAMAGE YOUR EYES and CAUSE BLINDNESS.
▲ DANGER! DO NOT wear this respirator system to enter areas where:

1. Atmospheres are oxygen deficient.
2. Contaminant concentrations are unknown.
3. Contaminant concentrations are Immediately Dangerous to Life or Health.
4. Contaminant concentrations exceed the maximum use concentration determined using the assigned Protection Factor for the specific respirator system.

‰ WARNING! The Particle filter cannot be cleaned. DO NOT attempt to remove contamination using for example compressed air as this will destroy the filters, the equipment will not give the expected protection and the warranty will be invalidated.
If ventilation is poor, wear an approved air-supplied respirator.
Read and understand the Material Safety Data Sheets and the manufacturer’s instructions for metals, consumables, coatings,  cleaners, and degreasers.
Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Always have a trained watch person nearby. Welding fumes and gases can displace air and lower the oxygen level causing injury or death. Be sure the breathing air is safe.
DO NOT weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can react with vapors to form highly toxic and irritating gases.
DO NOT weld on coated metals, such as galvanized, lead, or cadmium-plated steel unless the coating is removed from the weld area, the area is well-ventilated, and while wearing an air-supplied respirator. The coatings and any metals containing these elements can give off toxic fumes if welded. RESPIRATOR (PAPR) MISUSE can be hazardous. Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health.
Read and follow these instructions and the safety labels carefully. The powered air purifying respirator (PAPR) helps protect the user from specific airborne contaminants but must be used correctly to be fully effective. Have an industrial hygienist test the air in your facility to ensure the PAPR provides adequate protection from contaminants in your environment. If you have questions about the respirator, see the equipment warning label and consult your Safety Director and a Certified Industrial Hygienist.
Follow all applicable EN/ANSI/CSA/AS&NZS, and other regulatory guidelines pertaining to the use of respirators.
DO NOT use the powered air purifying respirator where there is a danger of fire or explosion.
DO NOT use the powered air purifying respirator in windy conditions or negative pressure inside the hood may draw in contaminants from the outside air.
DO NOT use the powered air purifying respirator without a properly installed spark guard cover. Without the spark guard cover, welding sparks may ignite the filter, or damage the filter and allow unfiltered air into the helmet.
The powered air-purifying respirator does not supply oxygen. Use the respirator only in atmospheres for which it is EN/ANSI/CSA/ AS&NZS approved. DO NOT use the respirator where oxygen levels are 19.5% or lower, where contaminant levels are unknown or are immediately dangerous to life or health, or where the contaminant levels exceed the respirator specifications.
DO NOT enter a hazardous area until you are sure the respirator equipment is correctly assembled, working properly, and properly worn.
Before each use, inspect the respirator equipment for damage and verify it operates properly, Before using the respirator, test airflow to verify it is providing an adequate volume of air.
DO NOT use the powered air purifying respirator without all filter components or with the blower turned off, as hazardous levels of oxygen and carbon dioxide may accumulate in the helmet.
Always wear the powered air purifying respirator when entering a contaminated area. DO NOT remove the respirator until outside the contaminated area.
Dangerous contaminants may not smell or be visible. Leave the area immediately if you notice the following:
– Breathing becomes difficult.
– You experience dizziness, impaired vision, or eye, nose, or mouth irritation.
– The powered air purifying respirator alarm sounds.
– The equipment is damaged.
– Airflow decreases or stops.
– If you think the equipment is not supplying adequate protection.
DO NOT remove the equipment until you are in a safe area.
DO NOT repair, modify, or disassemble the powered air purifying respirator or use it with parts or accessories not supplied by the manufacturer. Use only those components that are part of the approved assembly.
Replace damaged or clogged filters. DO NOT wash or reuse filters. DO NOT clean filters by tapping or with compressed air or filter elements may be damaged. Dispose of used filter elements according to local, state, and federal requirements.
The powered air-purifying respirator must be used with the helmet, hood, and filters recommended by the manufacturer to provide a respirator system. See the label on the blower for information on the required equipment.
DO NOT use the powered air purifying respirator belt or shoulder straps(if equipped) as a safety harness.

INTRODUCTION

PAPR (Powered Air Purifying Respirator) system with an auto-darkening welding helmet. Lithium battery-powered respirator unit provides the user a constant filtered stream of air to their head and faces for up to approx. 8 hours. The filter is designed to reduce or remove dust and particles but not vapors and gases. The kit meets performance class TH1 according to EN 12941:1998/A2:2008. Adjustable airflow settings of 150/180/210L/ min. Features an audible alarm to alert users of low battery/low airflow. The inner hood has a protective clear visor to BS EN166 standards. The welding helmet has adjustable shade control from 9-13 & 5-8. Fully automatic switching from light to dark on striking arc @ 1/25,000s. Solar panel power supply to welding helmet. Contoured design helmet with adjustable headband for added comfort. Suitable for MIG, TIG, and ARC welding. Complies with BS EN379, EN175, EN166, EN12941, and DIN standards.

SPECIFICATION

Model No:………………………………………………………………………………………… PWH616
HELMET:
Shade Active: ………………………………………………………………………5-8 & 9-13 Variable
Shade Inactive: ……………………………………………………………………………………………. 4
Grinding Function: …………………………………………………………………………………….. Yes
Viewing Area: ………………………………………………………………………………….98 x 62mm
Operating Time Light / Dark: ……………………………………………………………….1/25,000s
Operating Temperature: ………………………………………………………………. -5°C to +55°C

POWERED AIR PURIFYING RESPIRATOR:
PAPR Air Flow Settings: ………………………………………………………….150/180/210L/min
PAPR Lithium Battery Charging Time:…………………………………………….. 2.5hr approx.
PAPR Filter Classification: ……………………………………………………………… TH1 P R SL

PAPR REPLACEMENT PARTS:
Filter cartridge: ………………………………………………………………………………..PWH616.F
Lithium battery: ……………………………………………………………………………. PWH616.BP
Blower hose: ……………………………………………………………………………….. PWH616.BH

HELMET REPLACEMENT PARTS:
Block nut …………………………………………………………………………………….PWH616.H01
Front Cover Lens …………………………………………………………………………PWH616.H02
Auto-Darkening Filter Cartridge ……………………………………………………..PWH616.H03
Headband …………………………………………………………………………………..PWH616.H04
Sweat Band…………………………………………………………………………………PWH616.H05
Safety visor (visor only) …………………………………………………………………….PWH616.V

HELMET

4.1. HELMET ADJUSTMENT (fig.1)
4.1.1. To adjust the fit-to-head, use the handwheel (fig.1.1) on the back of the strap to increase or decrease the headband circumference.
4.1.2. Further adjustment for fit-to-head can be achieved by increasing or decreasing the length of webbing straps fig.1.2 and fig.1.3.
4.1.3. To adjust the distance between the user’s face and the front of the mask, loosen the side thumbwheels and depress the spring-loaded pin on the hinge points (fig.1.4, fig.1.5). Slide the helmet to the desired position and release the pin. There are three locations into which the spring-loaded pin may be seated. Re-tighten the thumbwheels. This should be done one side at a time and both sides should be located at the same position for proper auto-darkening filter operation.
4.1.4. To adjust the viewing angle loosen the side thumbwheels. Depress the tab on item fig.1.6 to disengage it from the rotation lock (fig.1.7) and set the angle to suit. There are several locations on the rotation lock into which the tab may be engaged. Re-tighten the thumbwheels.

4.2. SHADE GUIDE TABLE

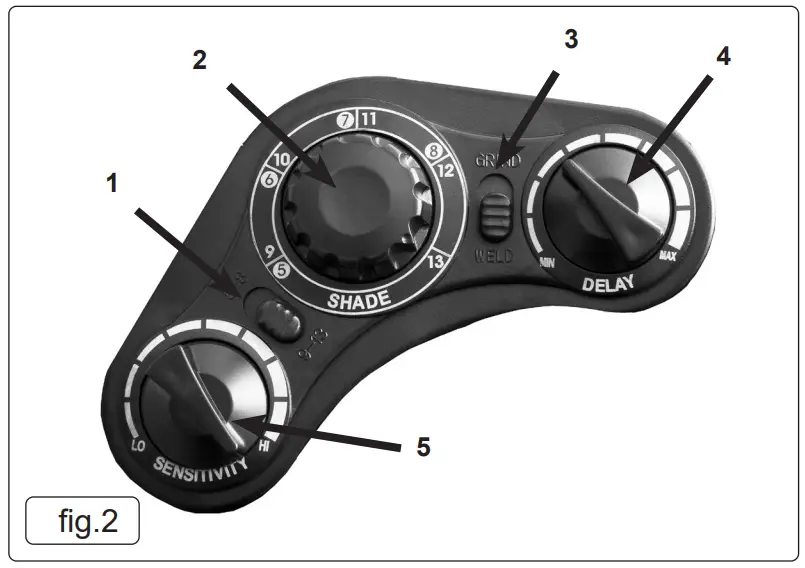

4.3. CONTROLS (fig.2)

4.4. SHADE VALUE
4.4.1. The shade value ranges are divided into two sections ( 5-8 or 9-13). The shade range can be set to either 5 – 8 or 9 – 13 using the selector switch (fig.2.1).
4.4.2. The shade value can be set using the control dial (fig.2.2). Check the shade guide table (above) to determine the proper shade number for your application. The shade goes darker from 5 to 8 or from 9 to13.
4.5. SENSITIVITY CONTROL
4.5.1. The sensitivity can be set from LOW to HIGH by using the sensitivity control dial (fig.2.5). The LOW setting suits excess ambient light or with another welding machine close by. The HIGH setting suits low amperage welding and welding in areas with low light conditions, especially low amperage argon arc welding. Selections between LOW and HIGH are suitable for most of indoor and outdoor welding operations.
4.6. DELAY CONTROL
4.6.1. When welding ceases, the viewing window automatically changes from dark back to light but with a pre-set delay to compensate. The delay time can be set from MIN (0.2 sec) to MAX (1.0 sec), by shade delay control (fig.2.4). The minimum delay suits spot or short welds. The maximum delay suits heavy current welding and reduces eye fatigue from the arc. Selections between MIN and MAX are suitable for most of indoor and outdoor welding operations.
4.7. GRINDING
4.7.1. To select between grinding and welding, set the Grind/Weld select switch (fig.2.3) to “GRIND”.
NOTE: It is important to return this switch to the WELD position when the grinding operation is completed.

RESPIRATOR

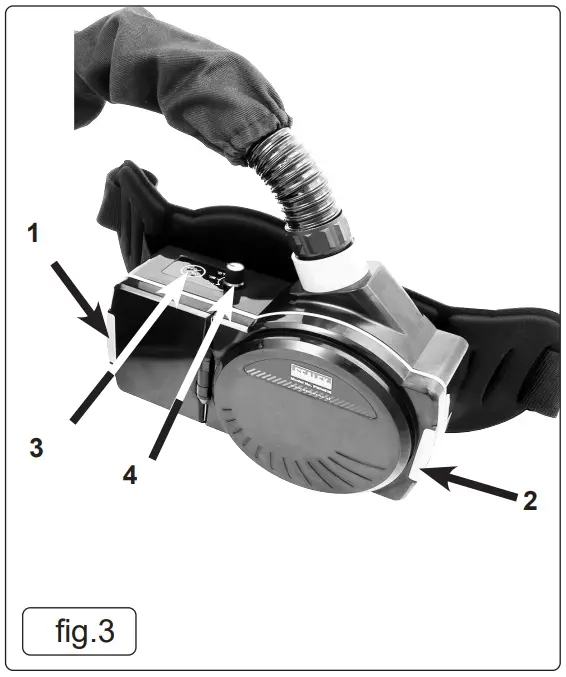

5.1. BATTERY
5.1.1. To remove battery, unclip the latch (fig.3.1) and lift out the battery.
‰ ALLOW THE BATTERY TO COOL BEFORE CHARGING
5.2 FILTER
5.2.1. To remove the filter, unclip the latch (fig.3.2) and lift out the filter.
5.3. CONTROLS
5.3.1. Turn the unit on or off using the button (fig.3.3).
5.3.2. To set the air volume delivered, use the control dial (fig.3.4.)
NOTE: When the battery charge level is low, the unit will beep twice quickly repeatedly. Leave the area immediately.
NOTE: If the filter or air flow is compromised, the unit will beep once repeatedly. Leave the area immediately.

OPERATION

6.1. CHECKING THE UNIT BEFORE USE
Before using the respirator, check the following items:
Face seal; Inspect the face seal and replace if damaged.
Check the front cover lens for scratches/damage and replace if necessary.
Correct and comfortable fitting for the user.
Air Filter Assembly; Verify the air filter is suitable for the application. Also, be sure the filter is undamaged, and securely located.
Breathing Tube; Be sure the tube is undamaged and properly connected to the blower assembly and hood.
Battery; Ensure the battery is fully charged and securely connected within the blower assembly. The charger shows a red LED when charging which turns to green when the battery is fully charged. A fully charged battery can work for up to 6 hours.
Air Flow Alarm; Turn on the blower assembly and check for audible alarms indicating poor/restricted airflow.
Hood; Inspect the hood and replace if damaged.
6.2. HELMET SETTINGS
6.2.1. Set shade, sensitivity and delay options to suit operational and environmental conditions (See section 4).
NOTE: If the unit is used in a grinding role, ensure that the Grind / Weld select switch (fig.2.3) is returned to the Weld option after use.
NOTE: If the helmet does not darken upon striking an arc, stop welding immediately and refer to the troubleshooting section.

MAINTENANCE

7.1. HELMET FRONT COVER LENS REPLACEMENT
7.1.1. Replace the front cover lens if it is damaged (cracked, scratched, pitted or dirty). Remove the old front cover lens by sliding screw driver blade or similar into the relief under the lens at the bottom of the retaining frame and pull the lens out. and replace it with a new lens. Remove any protective film before installing the new one.

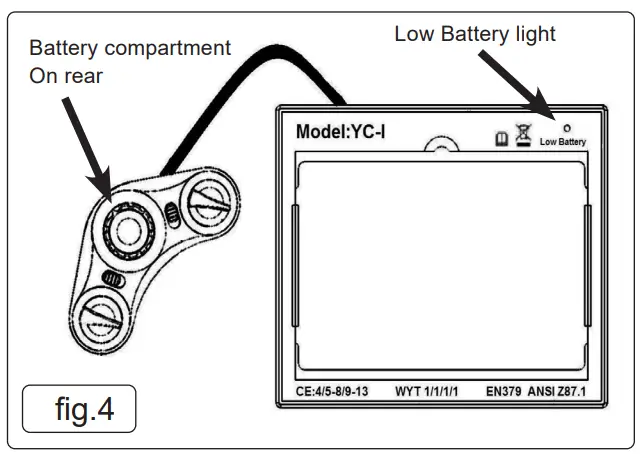

7.2. HELMET AUTO-DARKENING FILTER CARTRIDGE (FIG.4)

7.2.1. Carefully remove the headband and face mask from the helmet.
7.2.2. When the Low Battery light (fig.4) is lit you will need to replace the cartridges’ batteries. The batteries are housed in a covered compartment on the inside face of the control panel accessed from the inside of the helmet. Slide the battery compartment cover off and replace the batteries.
7.2.3. To replace the inside cover lens if it is damaged (cracked, scratched, pitted, or dirty), slide a screwdriver blade or similar under the lens, flex it, and remove it from the unit.
7.3. REPLACING WELDING HELMET ADF FILTER CARTRIDGE
7.3.1. Remove the three control knobs and two slide controls by prising them carefully from the unit.
7.3.2. From inside the helmet remove the five cross-head screws.
7.3.3. Unclip the holding frame from the helmet by pushing the two rear clips away from the unit.
7.4. REPLACING PAPR FILTER CARTRIDGE
7.4.1. Open the filter compartment (fig.3.2) and remove the filter.
7.4.2. Handle the soiled filter carefully and use suitable PPE i.e. gloves and face mask.
7.5. CLEANING AND DISINFECTING
7.5.1. Detach the breathing tube and respirator. Inspect all parts for damage. Replace all damaged parts prior to storage or next use. Clean the outer surfaces of the PAPR assembly with a soft cloth dampened in a solution of water and mild, pH-neutral detergent.
DO NOT immerse the respirator or any element in water.
DO NOT use solvents or abrasive cleaners. DO NOT attempt to clean the interior of the blower with compressed air or vacuum. Ensure the electrical contacts of the blower and battery pack are dry.
Filter: Open the filter cover (fig.3.2) and inspect the filter. Replace if excessively dirty.
7.6. STORAGE:
If the blower will not be used for an extended period, remove the filter and battery and store them in a clean, dry, cool place free of solvent-based vapours.

TROUBLESHOOTING

8.1. WELDING SHIELD;

8.2. FILTER AND HOOD;

Parts support is available for this product. Please email [email protected] or telephone 01284 757500
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories, and packaging should be sorted, taken to a recycling center, and disposed of in a manner that is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.

WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.
