CleanAIR CA-40 AerGO Welding Helmet

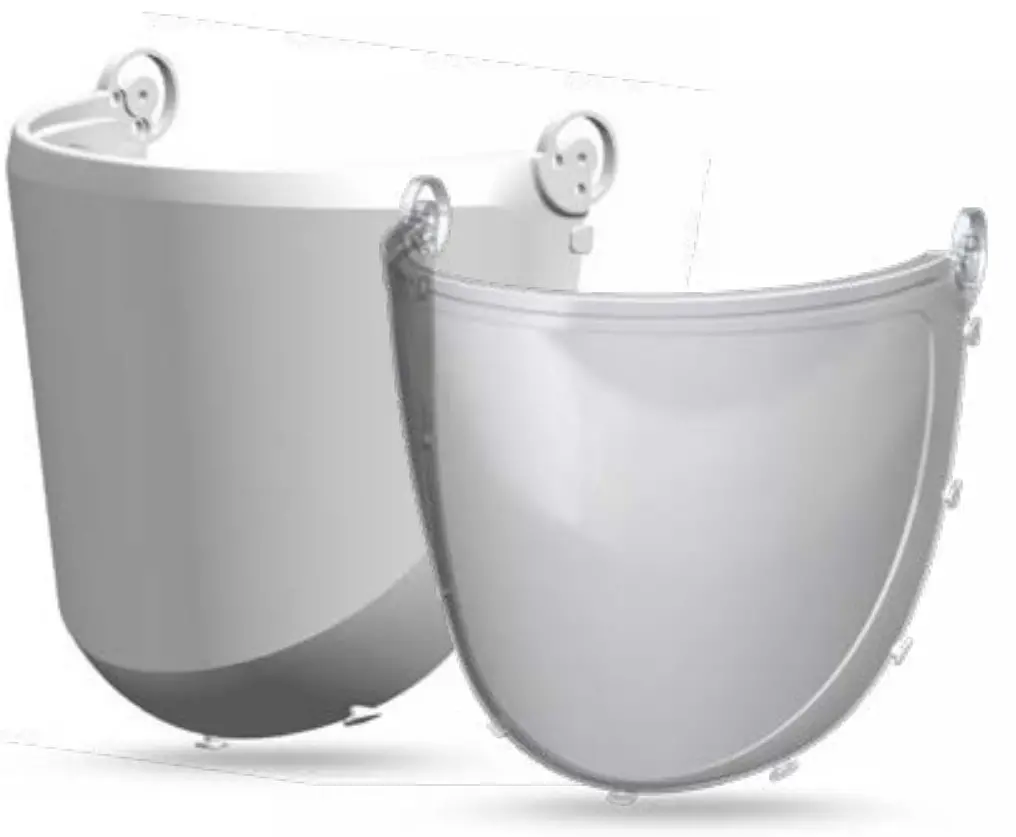

Replacing The Visor
Loosen the lock nuts and remove them entirely. Detach the face seal from the grinding visor‘s knobs. Remove the used visor and replace it with a new one. Insert and tighten the lock nuts. Hook the face seal onto the visor‘s knobs thoroughly.
Product Description
| Product | Product description | Marking |
| 70 41 02 | Spare visor CA-40, cylindrical, clear PC | MS 166 2 A |
| 70 41 03 | Spare visor CA-40, toric, clear PC | 166 MS 1 A 9 K N |
| 70 41 04 | Spare visor CA-40, toric, yellow PC | 166 MS 1 A 9 K N |
| 70 41 05 | Spare visor CA-40, toric, shade 4 PC | 166 4/2-4 MS 1 A 9 K N |
| 70 41 06 | Spare visor CA-40, toric, shade 5 PC | 166 5/2-5 MS 1 A 9 K N |
Conditions, Maintenance And Aging
Always consult a user manual of the compatible headpiece! Storage and operation conditions, cleaning and maintenance are governed by the headpiece‘s user manual. Plastics may be subject to ageing when exposed to intense ultraviolet radiation.
Warnings
A scratched or damaged visor must be replaced. In any case, the visor shall not be used for more than two years. Materials that may come into contact with the skin may cause an allergic reaction in sensitive individuals. If the visor is used over eyeglasses, the user may be at risk due to impact transmission.
This product is approved to be in accordance with the Regulation (EU) 2016/425 on PPE and as was tested meet requirements of the following standards:
EN 166:2001
EN 169:2002 – only 70 41 05, 70 41 06
EN 170:2002 – only 70 41 05, 70 41 06
Notified body for the CE approval:
Institute for testing and certification, a.s. Třída Tomáše Bati 299, 764 21 Zlín, Czech Republic Notified body 1023
Declaration of Conformity is available at: https://www.clean-air.cz/doc
Marking Description
| 166 | EN 166 standard number |
| MS | Manufacturer (MALINA – Safety s.r.o.) |
| 4; 5 | Shade – welding filter (EN 169) |
| 2 | Code number for filters against UV (EN 170) |
| 4; 5 | Shade – protection against UV (EN 170) |
| 1; 2 | Optical class |
| A | Mechanical strength – high energy impact (195 m/s) |
| 9 | Protection against splashes of molten metal and penetration of hot solids |
| K | Resistance to surface damage by fine particles |
| N | Resistance to fogging of oculars |
Customer Support
MALINA – Safety s.r.o.
Luční 11,
466 01 Jablonec n. Nisou
Czech Republic
Tel. +420 483 356 600
[email protected]
www.malina-safety.com
