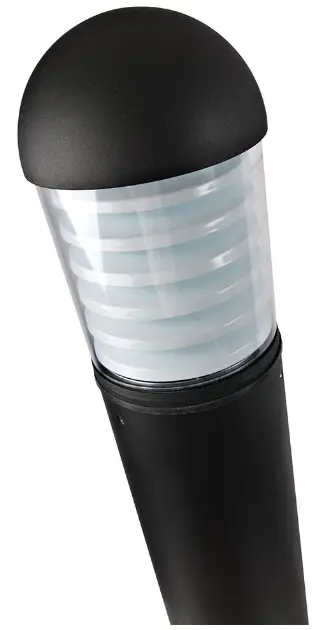

Lights Orpington 30w Penshurst Commercial Bollard Black Die-Cast Aluminium
Instruction Manual

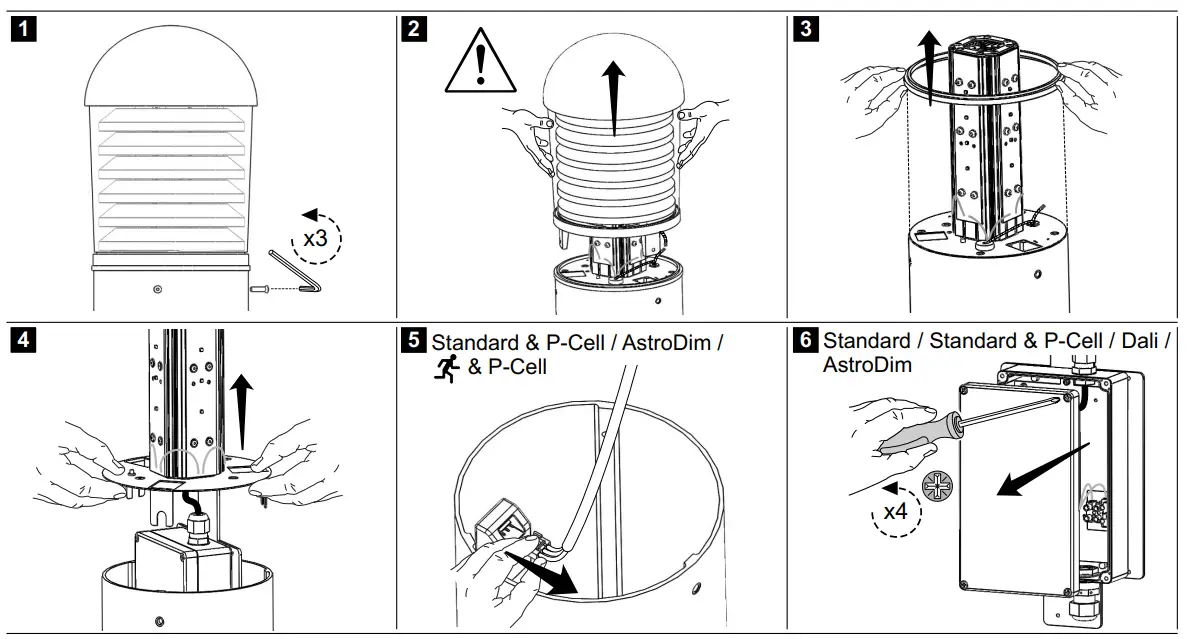

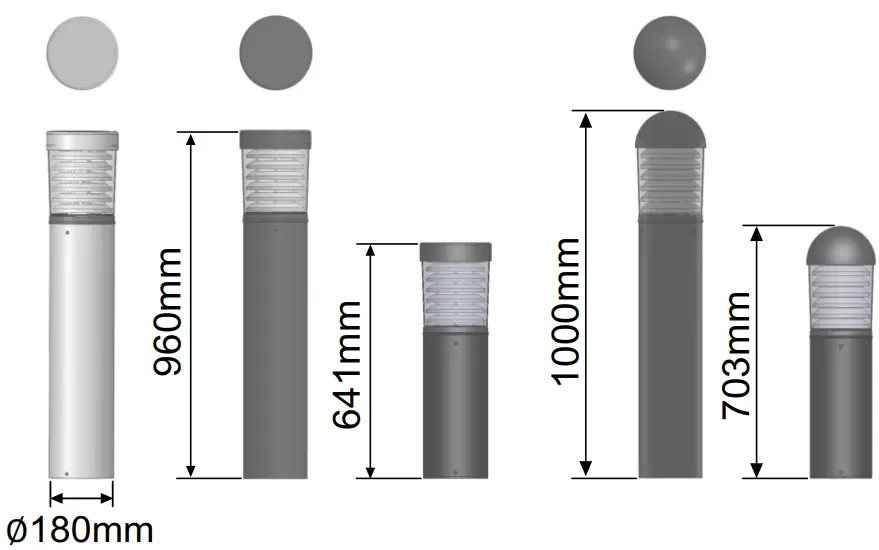

Orpington 30w Penshurst Commercial Bollard Black Die-Cast Aluminium
AB / HB / NB (30W – 40W)
220-240V
50/60Hz

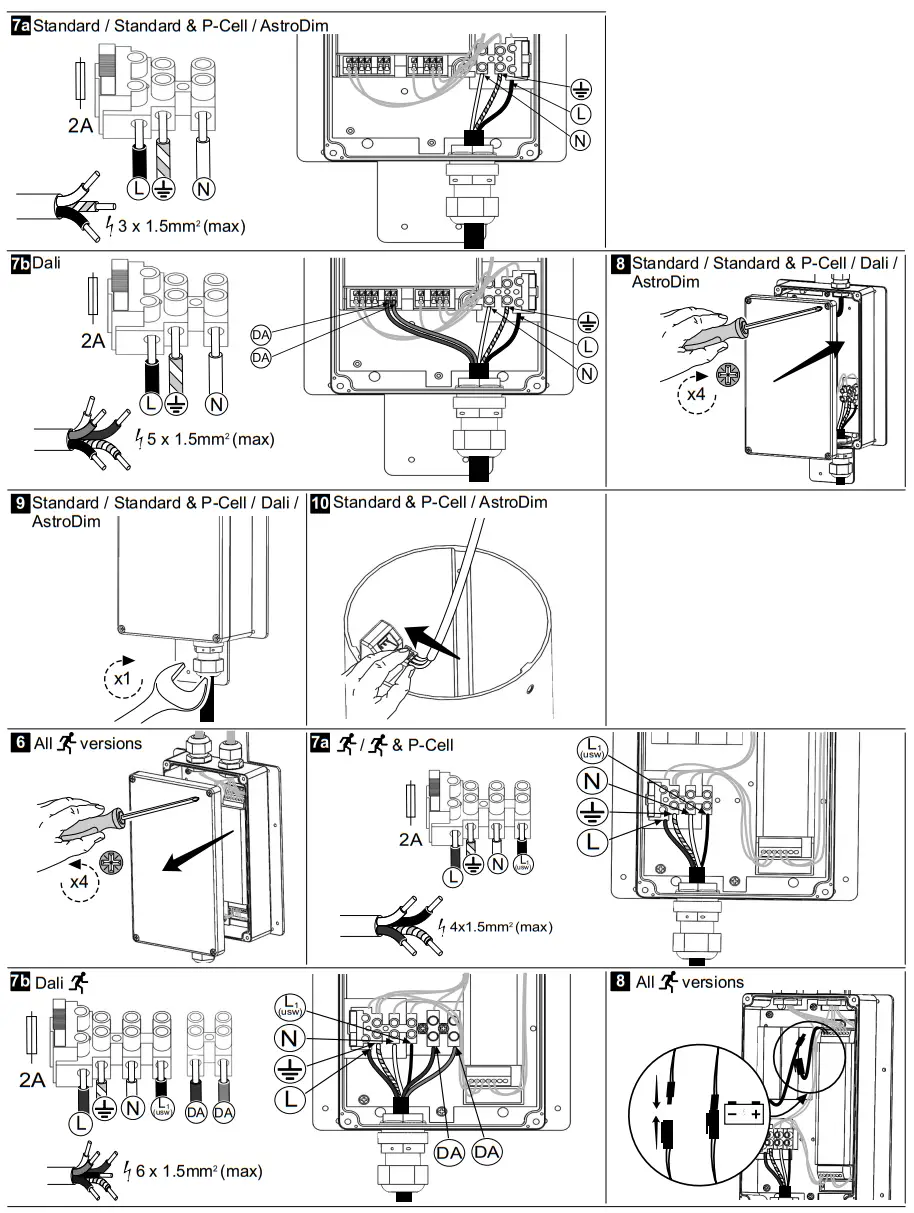

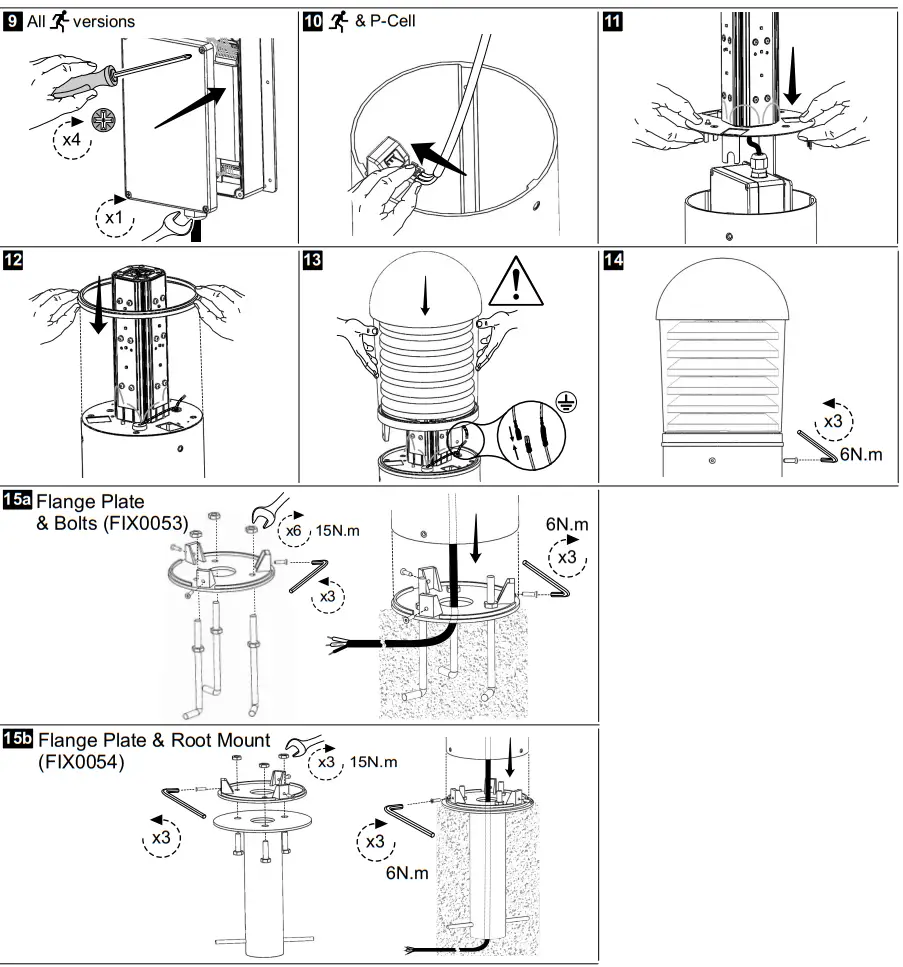

Optional mounting

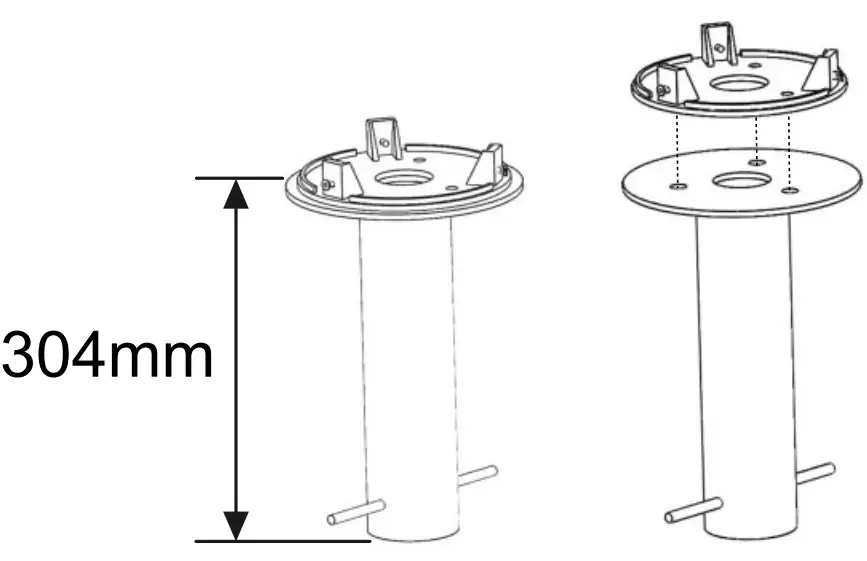

Flange Plate & Bolts (FIX0053):
Flange Plate & Root Mount (FIX0054):
| Product Range | Power (W) | Standard | Standard & P-Cell | Dali | Astrodim | Emergency | Emergency & P-Cell | Dali Emergency |
Orpington (AB) | 30 | 8.5 | 8.5 | 8.5 | 8.5 | 9.5 | 9.5 | 9.5 |
| 40 | ||||||||
Chilham (HB) | 30 | 6.25 | 6.25 | 6.25 | 6.25 | 7.25 | 7.25 | 7.25 |
| 40 | ||||||||
| Small Chilham (HBS) | 30 | 5.25 | 5.25 | 5.25 | 5.25 | – | – | – |
| 40 | ||||||||
Penshurst (NB) | 30 | 7 | 7 | 7 | 7 | 8 | 8 | 8 |
| 40 | ||||||||
| Small Penshurst (NBS) | 30 | 6 | 6 | 6 | 6 | – | – | – |
| 40 |
Ensure no cables / wires are trapped during bollard assembly.- Care must be taken when removing / fitting bollard head to prevent LED damage.
- Any alterations to the luminaire, will need to the confirmed with Gemma Lighting. If alterations have been carried out to the luminaire without confirmation the luminaires safety & warranty will be at risk.
Operation & Maintenance
Failed light source should be replaced promptly or the circuit switched off to avoid possible damage to control gear.
Important – Safety
Before carrying out any servicing on these luminaires, ensure that the mains supply is fully isolated. Disconnect the luminaire before insulation testing of the installation.
| Circuit Breaker Type | 10 A(B) | 16 A(B) | 25 A(B) |
| Luminaire | 18 | 28 | 43 |
Tested to BS EN 60598 For All Standard / All Dali / All AstroDim: ta -20°C … 25°C For All : ta 0°C … 25°C Between the control conductor and low voltage supply the maintained insulation level is basic.
The light source contained in this luminaire shall only be replaced by the manufacturer or a service agent or a similar qualified person.
Do not stare at the operating light source
www.exteriorlights.co.uk
FM57330
Exterior Lights UK 09.19
