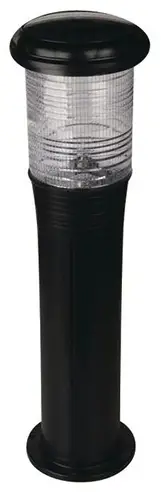

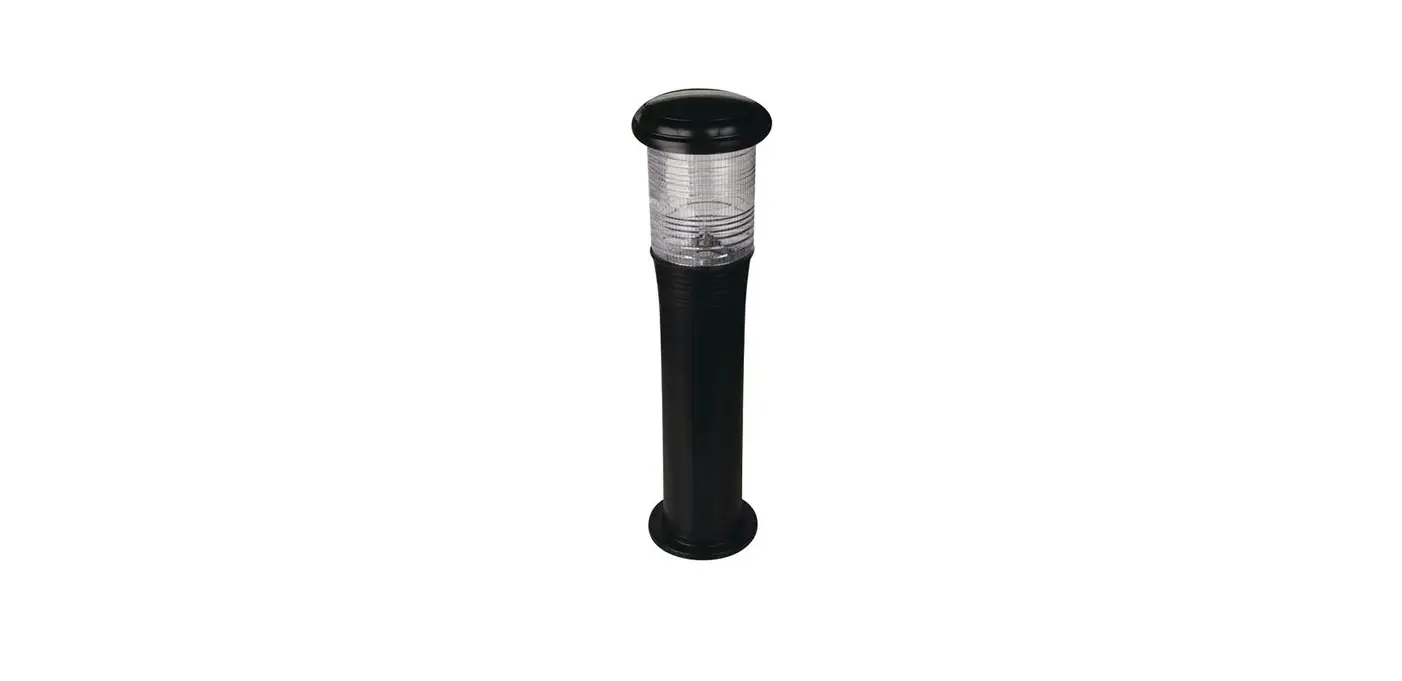

Exterior Lights Chilham AB-HB-NB Commercial Bollard Black Die-Cast Aluminium

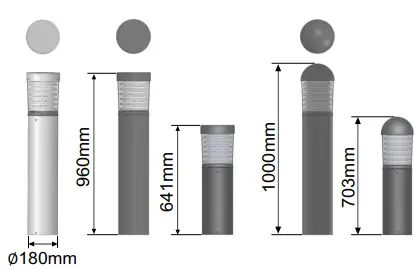

DIMENSION

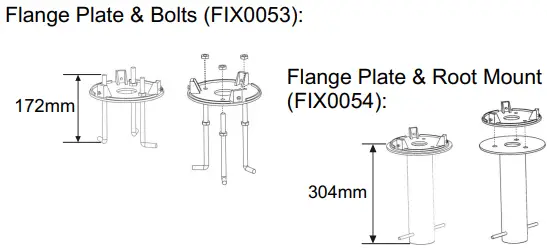

Optional mounting

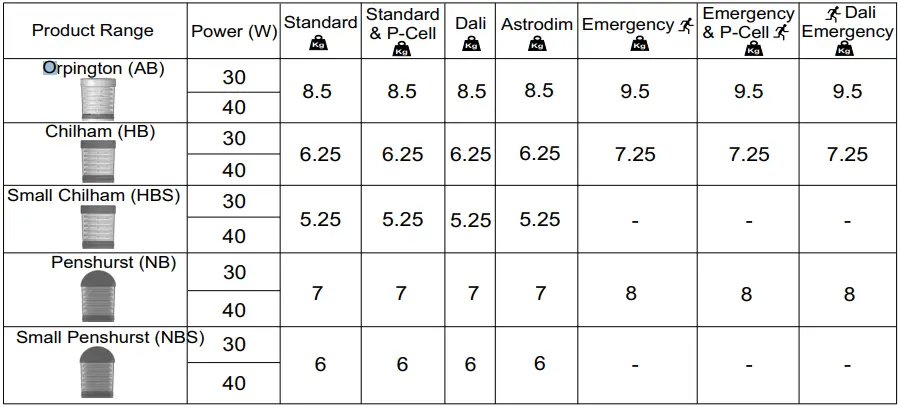

WEIGHT

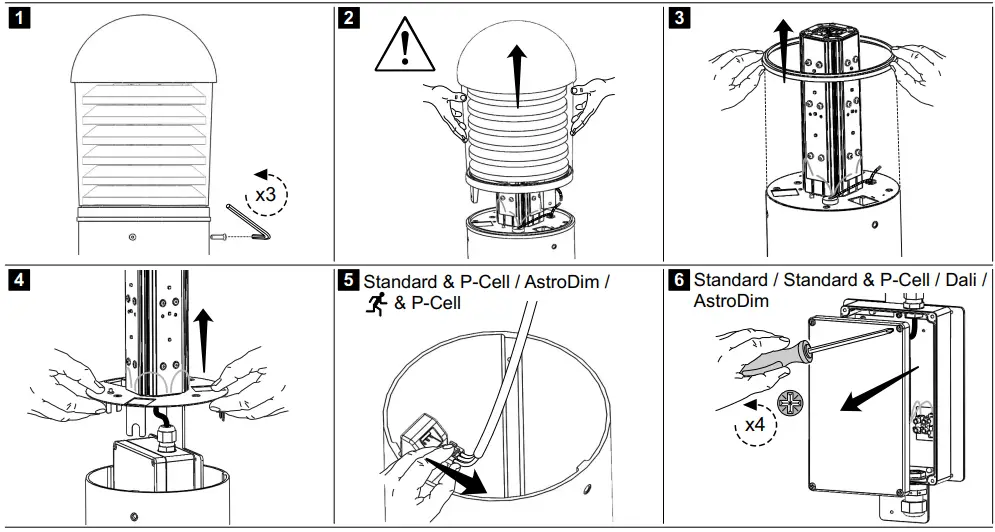

INSTALLATION

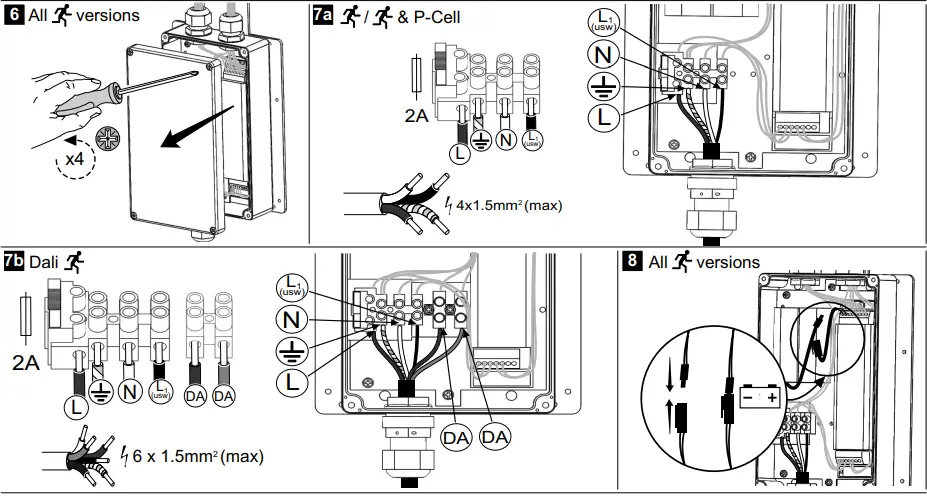

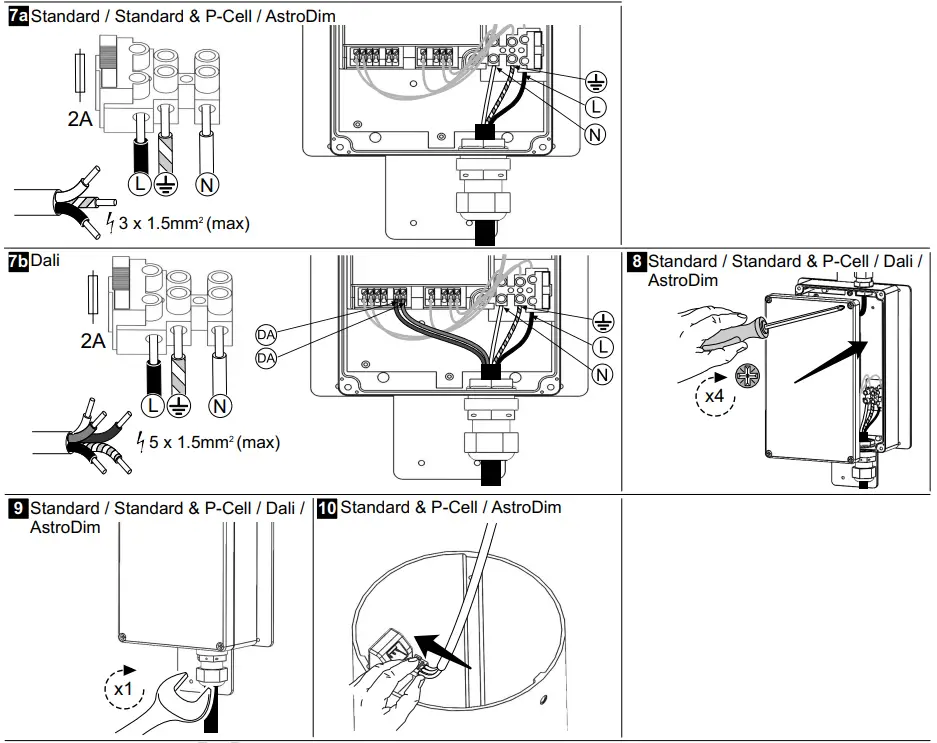

WIRING

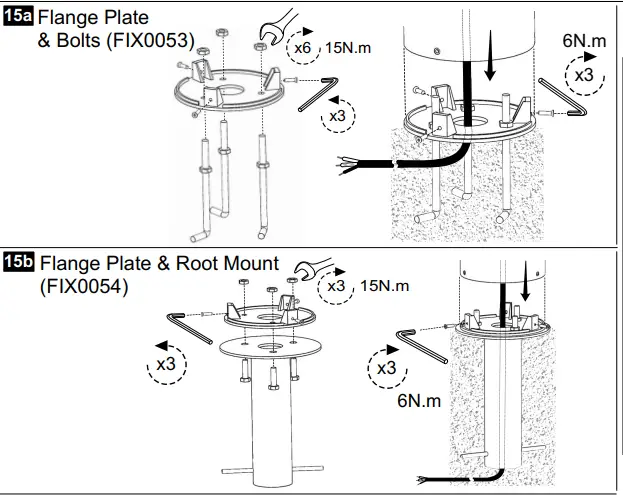

MOUNTING
Operation & Maintenance
Failed light source should be replaced promptly or the circuit switched off to avoid possible damage to control gear.
Important – Safety
Before carrying out any servicing on these luminaires, ensure that the mains supply is fully isolated.
Disconnect the luminaire before insulation testing of the installation.
Ensure no cables / wires are trapped during bollard assembly.
- Care must be taken when removing / fitting bollard head to prevent LED damage.
- Any alterations to the luminaire, will need to the confirmed with Gemma Lighting. If alterations have been carried out to the luminaire without confirmation the luminaires safety & warranty will be at risk.
- Tested to BS EN 60598
- For All Standard / All Dali / All AstroDim: ta -20OC … 25OC For All : ta 0OC … 25OC
- Between the control conductor and low voltage supply, the maintained insulation level is basic.
CAUTION: The light source contained in this luminaire shall only be replaced by the manufacturer or a service agent or a similar qualified person.
Do not stare at the operating light source
