B-TECH BT8390-EXT Rail Extension Kit

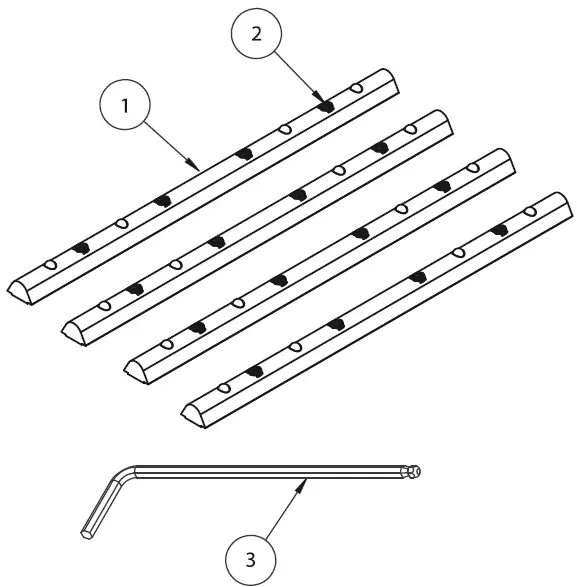

PARTS LIST
| ITEM | PART NAME | QTY |
| 1 | CONNECTOR BAR | 6 |
| 2 | M6 x 8mm GRUB SCREW | 24 |
| 3 | 3AF HEX KEY | 1 |

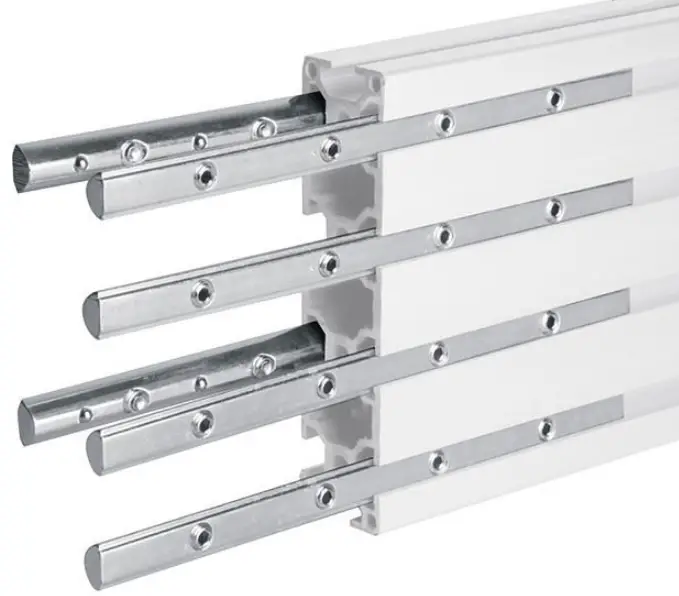

RAIL EXTENSION KIT
DESIGNED TO CONNECT TWO BT8390 MOUNTING RAILS TOGETHER

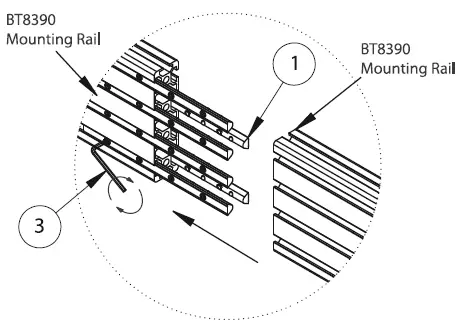

- Insert halfway 4x item 1 into the front side of the rail and 2x item 1 into the back side, tighten item 2 with item 3.

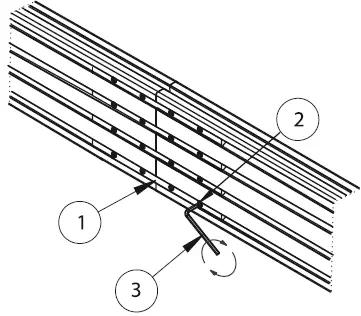

- Slide the other rail onto item 1 and tighten item 2.

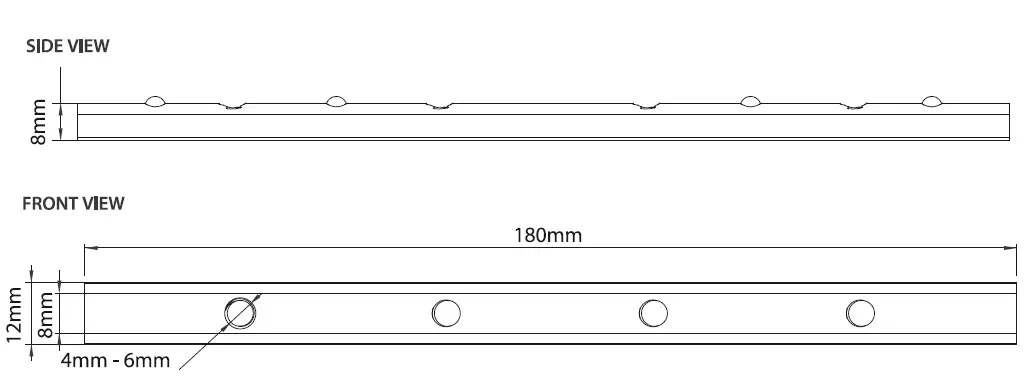

PRODUCT DIMENSIONS
CONTACT
©2021 B-Tech International Design & Manufacturing Ltd. All rights reserved.
B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd.
B-Tech AV Mounts and the B-Tech logo are registered trademarks.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
AMA-BT8390-EXT-V2.1-0921-104 MADE IN VIETNAM
