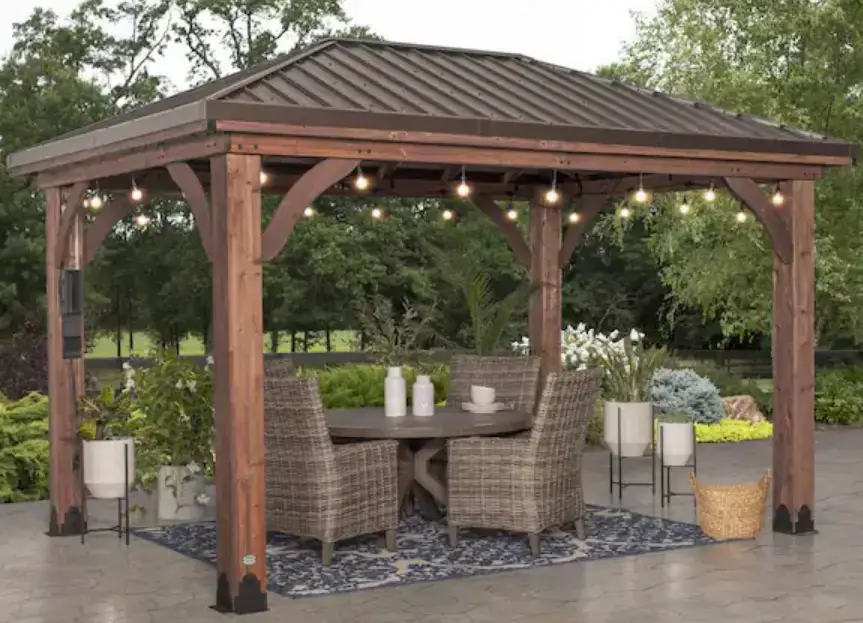

Backyard Discovery 2306042COM Light Brown Wooden Gazebo

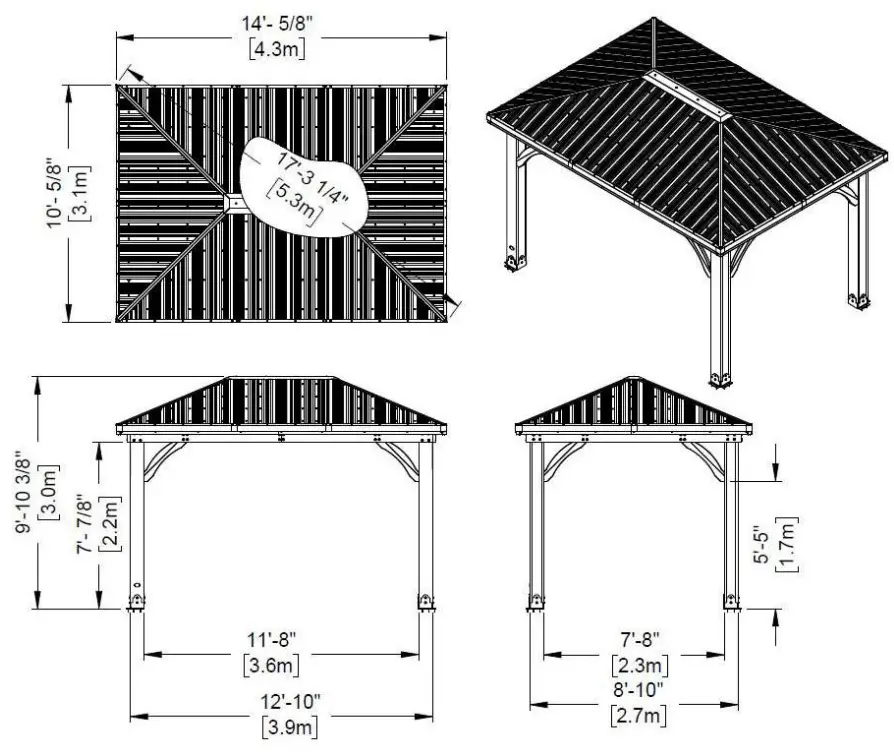

DIMENSIONS & ASSEMBLY
BASIC SETUP DIMENSIONS & ASSEMBLY NOTES
It is critically important that you start with square and level footings, concrete pad or deck to attach your structure
- Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.
- Using incorrect hardware may result in improper assembly
- Remember to double-check for underground utilities and overhead electrical lines
Post mounts are provided with your structure which allows you to permanently install your structure to a pre-existing or new wood or concrete surface. See Anchor Instructions for further details and recommendations.
- The hardware to attach the post mounts to the structure is included.
- The hardware to mount the structure permanently to a concrete surface is included.
- The hardware to mount the structure permanently to a wood deck is NOT included and will need to be purchased separately. You must ensure there is ample structural support under the deck before permanently attaching.

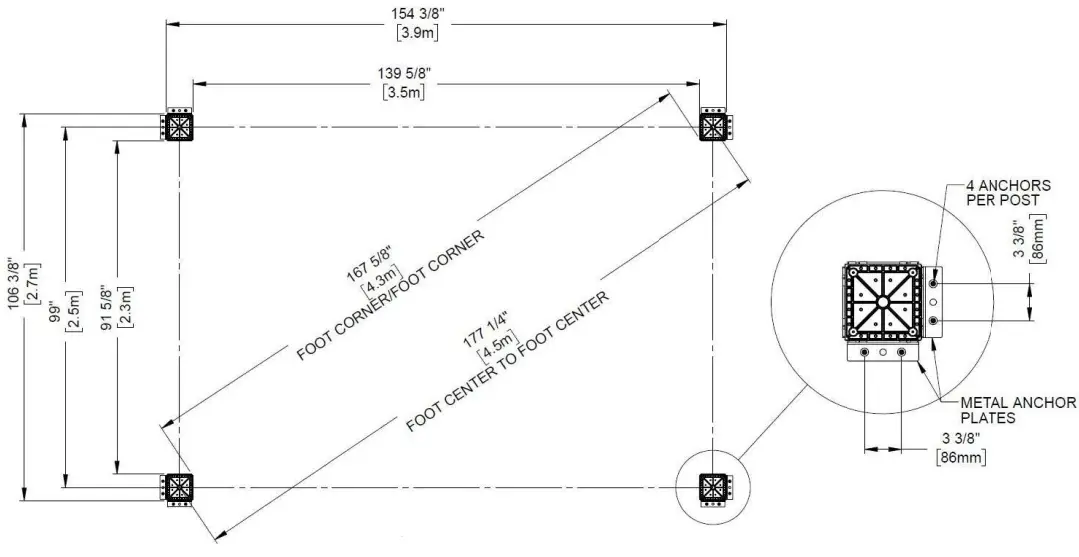

ANCHORING LAYOUT
NOTE: DIMS ARE TO ANCHOR PLATES MOUNTED TO POST EXCEPT WHERE NOTED.
