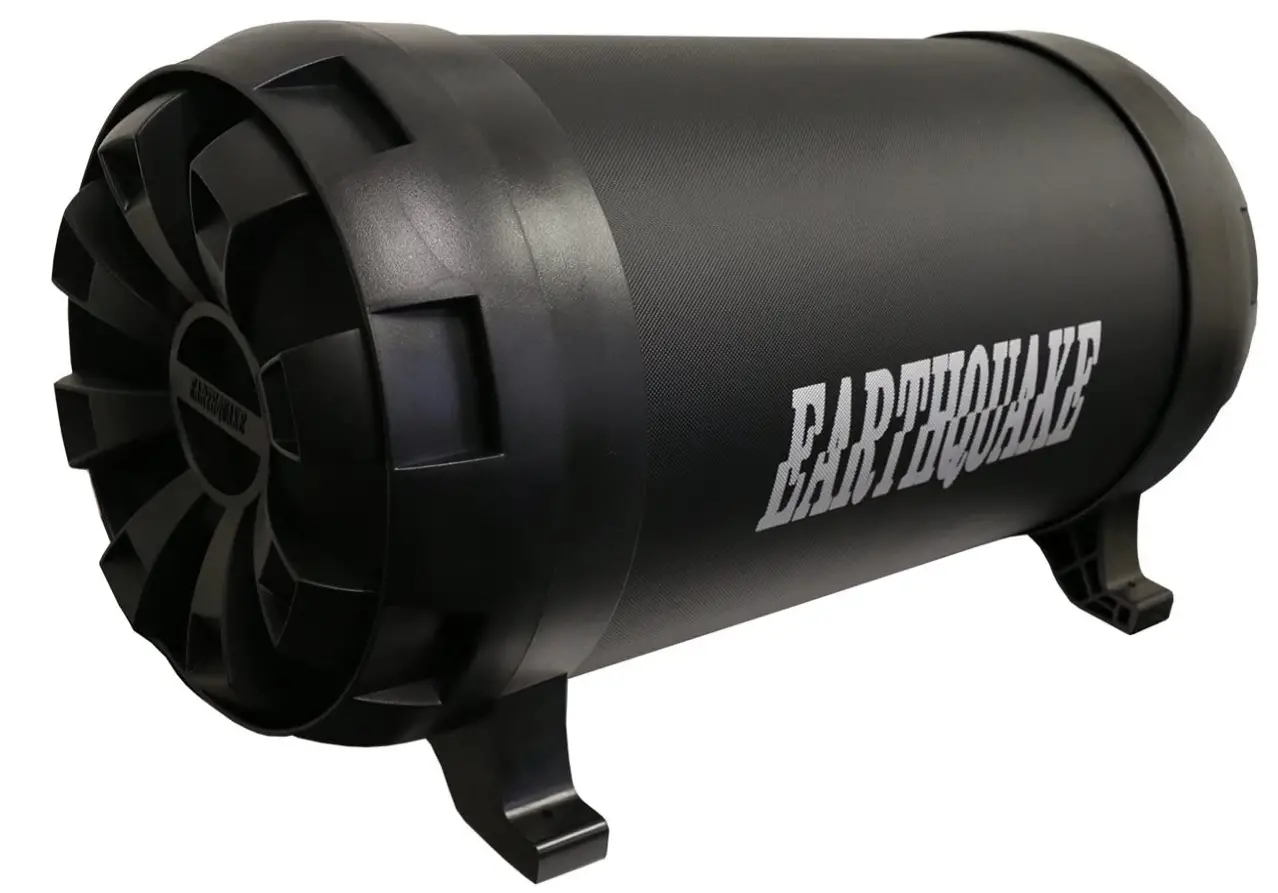

Earthquake Sound K-10 Kompressor Subwoofer

Specifications

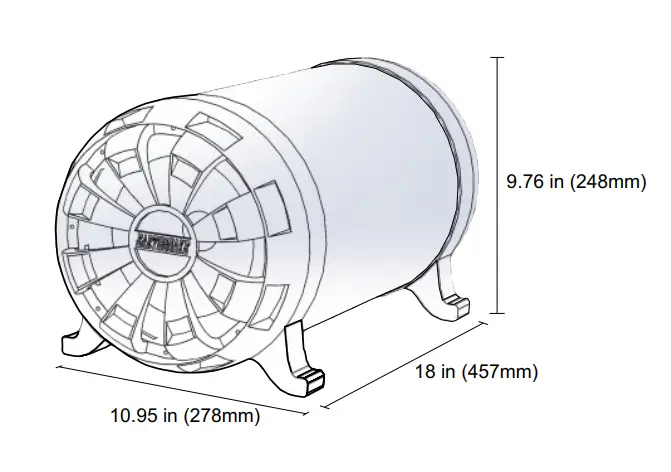

• Product Dimensions
  18 x 10.95 x 9.76 inches
• Item Weight
  23.1 pounds
• Other display features
  Wireless
• Included Components
  K-10 Subwoofer Tube
• Speaker Type
  Subwoofer
• Speaker Maximum Output Power
  800 Watts
• Brand
  Earthquake Sound

Introduction

The Earthquake Sound K-10 receives a new grille per popular demand. Earthquake’s Joseph Sahyoun developed the “KOMPRESSOR” after growing weary of the “just me” style of subwoofer tube. This was accomplished by integrating the proprietary SLAPS technology into the smallest, most compact tube. The subwoofer tube can be tuned to absurdly low frequencies while still producing a significant amount of SPL in the subharmonic range thanks to the patented SLAPS technology. The KOMPRESSOR is among the most cutting-edge tubes on the market today in terms of technology. The compact package takes care of appearance and performance. The drivers move over 3 inches, which is significantly above average for all other drivers. At Earthquake, we think that good bass music should not be pricey or take up a lot of space in your trunk.

Thanks for purchasing Earthquake Sound’s K10.

Getting tired of the “just me” type of subwoofer tube, Joseph Sahyoun (President of Earthquake Sound Corporation) integrated the patented SLAPS (Symmetrically Loaded Passive System) into the smallest most compact tube; thus creating the “KOMPRESSOR”. The latest and most advanced bass cylinder to ever exist.

The patented SLAPS allows the subwoofer tube to be tuned to ridiculously low frequencies while getting a massive amount of SPL in the sub-harmonic range. The KOMPRESSOR is technologically the most advanced tube available on the market today. The small package addresses looks and performance: the drivers move over 3 inches, clearly beyond the norms of any other drivers. The KOMPRESSOR is guaranteed to shake loose the trunk of your car and its contents.

Here at Earthquake, we believe that good bass does not have to be expensive, it does not have to eat up your trunk space either. Earthquake engineers wrote the book on deep bass extension. First, they molded tube enclosures from high-density material; next they developed new drivers optimized specifically for use in these tubes… Hence, the “K” subwoofer tube: the easiest and the most economical way to add deep, clean, all around bass to your existing car audio system.

The tube construction is rugged, with durable moldings designed to blend with any car interior. All hardware needed to securely mount the tube is included in the package. The “K” subwoofer tubes are passive tuned with the “SLAPS” for optimum bass response and long-lasting performance. The drivers feature 4-wound flat wire voice coils (2-inch diameter) for deeper low-frequency response and smooth high-frequency roll-off; thus eliminating the need for an external crossover. The Long Throw piston assembly provides an excellent subharmonic extension.

IMPORTANT SAFETY INSTRUCTION – READ FIRST

Before you begin:

1. Locate an area in the rear of the vehicle where you would like to install your tube subwoofer.
2. Orient the subwoofer so that the active driver- front of the tube- fires into a corner, about 2 to 4 inches away.
3. Inspect the mounting area to ensure that the mounting screws will not damage the gas tank, electrical wiring, fuel lines, spare tire, or any other parts of the vehicle.
4. Ensure that the chosen surface is solid enough to withstand the stress of subwoofer mounting.

In a hatchback
 the tube should lay parallel to the rear of the vehicle, firing into the corners.

In a sedan
 the tube should be secured against the sides of the trunk, firing toward the rear of the vehicle.

In a trunk
 the tube should be mounted behind the seat, firing outward.

RULE OF THUMB
Position the tube so the active driver is facing a hard reflective surface (3-5 inches away). This adds a 3dB gain to the total system response.

Mounting instructions

1. Place the tube subwoofer in the desired mounting location and mark the correct place on your vehicle to drill the required mounting holes.
2. Mount the tube subwoofer by screwing or bolting to the vehicle through both holes in each leg. Be sure that your tube subwoofer is securely fastened to your vehicle!

Note
 Due to the shifting and jarring that will occur in a vehicle, the mounting legs should be checked periodically to ensure that they are fastened securely in place.

INSTALLATION AND OPERATION

Wiring instructions
Locate the terminal cup on the rear of the tube subwoofer. Insert the positive speaker output lead from your amplifier into the gold-plated red terminal on your subwoofer tube. Repeat the process with the negative amplifier leads and black terminal.

Wiring multiple tubes
Care should be taken to wire all speakers in proper relative phase. However, if your bass response does not increase after wiring an additional tube, you must reverse its polarity. To accomplish this, turn off your system, then reverse the leads on the second tube subwoofer. If the bass response improves, your phasing is correct.

WARRANTY INFORMATION

Limited Warranty (USA only)
Earthquake Sound warrants to the original purchaser that all factory Sealed New Audio Products to be free from defects in material and workmanship under normal and proper use for a period of one (1) year from the date of purchase (as shown on the original sales receipt with a serial number affixed/ written on it.) The one (1) year warranty period is valid only if an authorized Earthquake dealer properly installs the product and the warranty registration card is properly filled out and sent to Earthquake Sound Corporation. if a non-authorized party installs the product, a ninety (90) day warranty period will be applied

One (1) year limited warranty plan coverage guidelines:
Earthquake pays for labor, parts, and ground freight (only in the US mainland, not including Alaska and Hawaii. Shipping to us is not covered).

Warning
Products (sent for repair) that are tested by Earthquake technicians and deemed to have no problem(s)
will not be covered by the one (1) year limited warranty. Customers will be charged a minimum of one (1)
hour of labor (at the ongoing rates) plus shipping charges back to the customer.

The earthquake will repair or replace at our option all defective products/parts subject to the following provisions

• Defective products/parts have not been altered or repaired by other than Earthquake factory-approved technicians.
• Products/parts are not subjected to negligence, misuse, improper use or accident, damaged by improper line voltage, used with incompatible products or have its serial number or any part of it altered, defaced or removed, or have been used in any way that is contrary to Earthquake’s written instructions.

Warranty Limitations

Warranty does not cover products that have been modified or abused, including but not limited to the
following:

• Damages to cabinet/casing finish due to misuse, abuse or improper use of cleaning materials/methods.
• Fading and or deterioration of speaker components & finish due to improper exposure to elements.
• Bent amplifier casing, damaged finish on the casing due to abuse, misuse or improper use of cleaning material.
• Burnt tracers on PCB.
• Product/part damaged due to poor packaging or abusive shipping conditions.
• Subsequent damage to other products

A warranty claim will not be valid if the warranty registration card is not properly filled & returned to Earthquake with a copy of the sales receipt.

Service Request

To receive product service, contact Earthquake Service Department at (510) 732-1000 and request an RMA number (Return Material Authorization). Items shipped without a valid RMA number will be refused. Make sure you provide us with your complete/correct shipping address, a valid phone number, and a brief description of the problem you are experiencing with the product. In most cases, our technicians might be able to resolve the problem over the phone, thus eliminating the need to ship the product.

Shipping Instructions

Product(s) must be packaged in its original protective box(es) to minimize transport damage and prevent repackaging costs (at the ongoing rates). Shipper claims regarding items damaged in transit must be presented to the carrier. Earthquake Sound Corporation reserves the right to refuse an improperly packed product. A copy of the original sales receipt must accompany the product returned to service. We encourage you to include with the package a written description of the problem. Ship product to:

Earthquake Sound Corp.
2727 McCone Avenue, Hayward, CA 94545.
Tel: (510) 732-1000.

You are responsible for the cost of shipping the product to Earthquake Sound Corporation

Disputes Resolution
All disputes between clients and Earthquake Sound Corporation resulting from the one (1) year limited warranty policy must be resolved according to the laws & registration of the county of Alameda California.

Product Registration
This K-10 can be registered by returning the Product Registration card attached to this manual. Please also retain the sales receipt which represents proof of purchase and helps expedite warranty issues
