GVISION D10ZJ-O2-K5P0 Desktop Projected Capacitive
GVision manufactures a variety of desktop and point of sale (POS) monitors. This 10.1″ touch screen monitors are available with 10-point multi touch technology of projected capacitive (PCAP) screen.
FEATURES
- 10.1-Inch Screen Size
- 1280 x 800 Screen Resolution
- Video Signal Inputs: HDMI / VGA (15 Pin D-Sub) IP5X on the Front (Optional)
- Zero Pressure Touch Activation
- LED Backlight Unit
- Metal Enclosure Material
- Water and Dust Resistant
- 3-Year Warranty
INPUT INTERFACE
Multi Inputs
GVision’s D10ZJ 10.1-inch monitor supports both digital and analog inputs to use as normal office desktop monitor with VGA, HDMI input or USB-Type B to use touch function as well.
SPECIFICATIONS
| DISPLAY | D10ZJ-O2-K5P0 |
| Screen Size | 10.1 In |
| Resolution | 1280 x 800 |
| Backlight | LED |
| Aspect Ratio | 16 : 10 |
| Viewing Angle | 170° / 170° |
| Response Time | 25ms |
| Brightness | 350cd/m² |
| Contrast Ratio | 800 : 1 |
| Color Depth | 262K (6 bits) |
| Display Area (mm) | 216.96 (W) x 135.6 (H) |
| INTERFACE | |
| HDMI | 1 |
| VGA (15 Pin D-Sub) | 1 |
| TOUCH TECHNOLOGY | |
| Glass | 2mm Tempered Glass |
| Type | 10 Points Projective Capacitance Touch |
| Support OS | Windows / Linux |
| AUDIO | |
| Speakers | Option |
| CABINET | |
| Material | Plastic Frame / Metal Housing |
| Black | Black |
| POWER | |
| Consumption | < 10W |
| Electrical Ratings | 12V DC ± 5% (AC 100V ~ 240V, 50/60Hz) |
| TEMPERATURE | |
| Operating | 32° F ~ 104° F (0° C ~ 40° C) |
| DIMENSIONS (WxHxD) | |
| Inch (in) w/o Stand | 9.83 x 6.62 x 1.14 |
| Millimeter (mm) w/o Stand | 249.77 x 168.37 x 29.00 |
| WEIGHT | |
| Net Weight (w/ Stand) | 5.8 lbs (3.2kg) |
| COMPLIANT | |
| Certification | CE / FCC |
| VESATM | |
| Mount Size (mm) | 75 x 75 |
Specifications subject to change without any notice

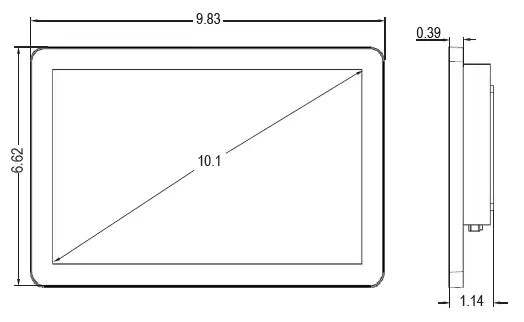

DIMENSION
