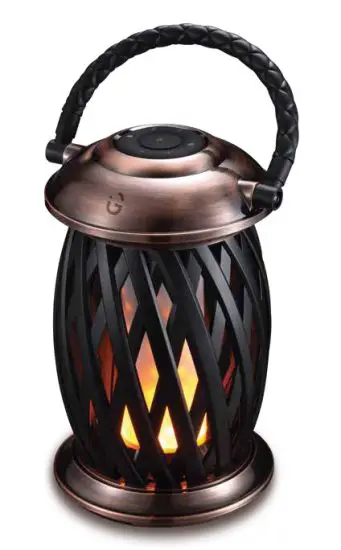

iG-1023 Cosmic Ambient Light & Speaker
User Manual
Operation Method
Light Mode
 | Flame lamp On/Off switch, quick press to Start or Stop the lamp. |
Bluetooth Speaker Mode
 | Power On/Off Button: Long press for 3 seconds to start the speaker, the white indicator light will start blinking and you will hear the indication tune. Search for iGear Cosmic in your Bluetooth menu. Once the speaker is paired with your device, you will hear a beeping sound, and the white indicator light will stay on continuously. Short press the button to Play/Pause. |
 | Next Track: Short press the button to go to the next track. |
 | Previous Track: Short press the button to go to the previous track. |
 | Volume Increase Button: Long press to increase the volume (when reaching maximum volume, the speaker will say “di di”). |
 | Volume Decrease Button: Long Press to decrease the volume. |
Timer Mode
 | Timer Mode: Long press the button to turn on or off the timer function. The indicator light will stay on when the timer function is started. In the timer function mode, the flame lamp will stay on for 5 hours and then stay off for 19 hours and start again for 5 hours on a rotation basis till the battery is discharged. |

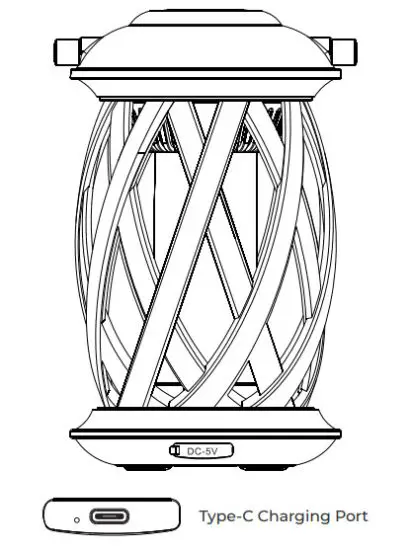

Charging Instruction
Power Input:
Insert the USB cable into the port, when the product is charging, the red LED will stay on. Once the charging is completed the LED will go off.
Attention
- Please charge the product in ambient temperatures ranging from 0°C-40°C.
- Not recommended for charging while using.
- Please pull off the USB cable after a full charge.
- Please do not charge the product in a high humidity environment.
- The rechargeable lithium battery is built into the product and cannot be removed or replaced.
- Please charge the product once every month when not in use.
- Please do not damage the mainframe.
- Please do not use benzene, diluent, and other chemicals to clean the surface.
- Please do not place it close to magnetic and electric field.
- Please avoid keeping it under direct sunlight or near heating appliances.
- Please do not repair, disassemble, or transform the product by yourself.
Technical Parameters
| Bluetooth Version | V4.2 |
| Bluetooth Name | iGear Cosmic |
| Bluetooth Transmission Distance | ≤10M |
| Output Power | 10W |
| Speaker Parameters | Φ 52MM 4Ω8W |
| Number of leds | 120pcs |
| Distortion Rate | ≤10% |
| SNR | >75dB |
| Power Supply | 5V 1A |
| Built-in High Efficiency Lithium Battery | 3.7V 3600mAh |
