Marine 98133QG Pulsar Bi-Color 2-Pin Stowaway Light
5090 Series
User Guide

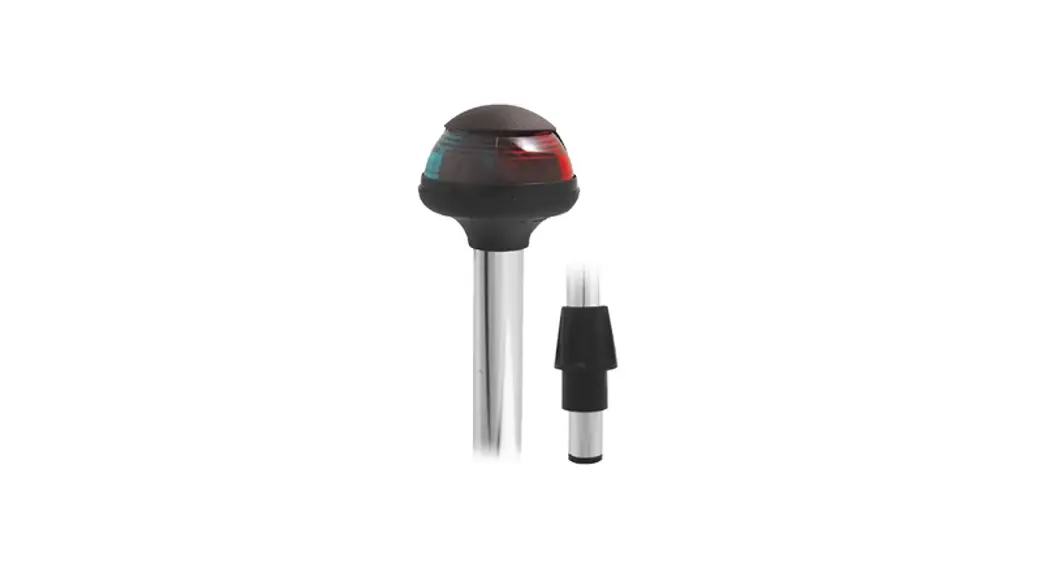

98133QG Pulsar Bi-Color 2-Pin Stowaway Light
1-Mile Sidelights
Attwood offers a variety of durable, stowaway, combination pole-mounted sidelights for bow mounting. Each features an anodized aluminum pole that raises the light head for visibility above trolling motors, anchors, or other equipment on the bow. When not in use, lights can be removed from base and stowed, so they won’t interfere with fishing or anchoring.
Incandescent Bi-Color Stowaway

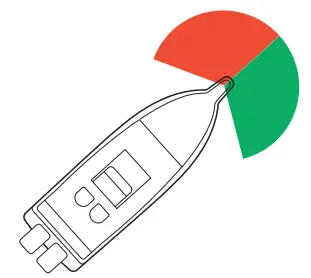

1-mile, 225° light visibility for boats up to 39.4 ft. (12 m). Includes 9W wedge base lamp.

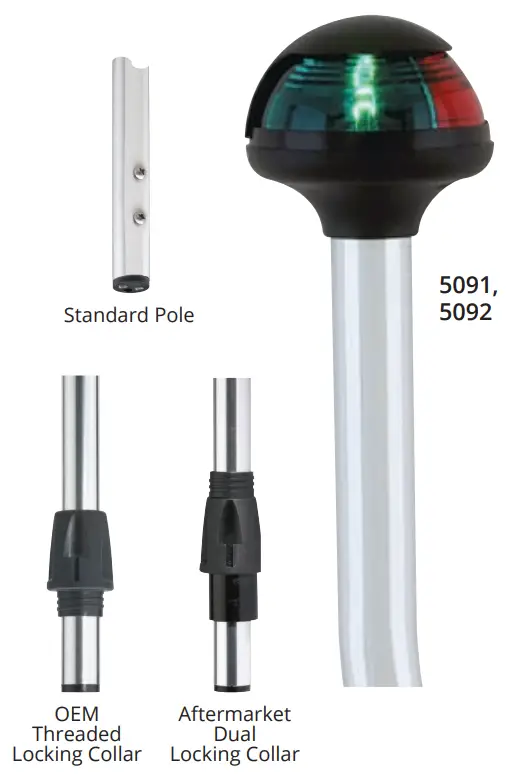

| Series | Use with Light Base |
| 5091, 5092 | 910R2, 901V2, 910T2, 2520‡, 911339*, 911370* |
‡When locking collar is removed.
| Description | Pole Length | OEM Part # | Part# |
| 2-Pin Locking-Collar Pole
| 10″ Straight | 5092-10T1 | 5092-10-7 |
| 12″ Straight | 5092-12T1 | ||
| 12″ Straight, Black | 5092-12TB1 | ||
| 14″ Strai • ht | 5092-14T1 | 5092-14-7 | |
| 16″ Straight | 5092-16T1 | ||
| 20″ Straight | 5092-20T1 | ||
| 2-Pin Standard Pole | 10″ An led | 5091-10-1 | 5091-10-7 |
|
| 12″ Angled | 5091-12-1 | |
| 14″ Angled | 5091-14-1 | 5091-14-7 |

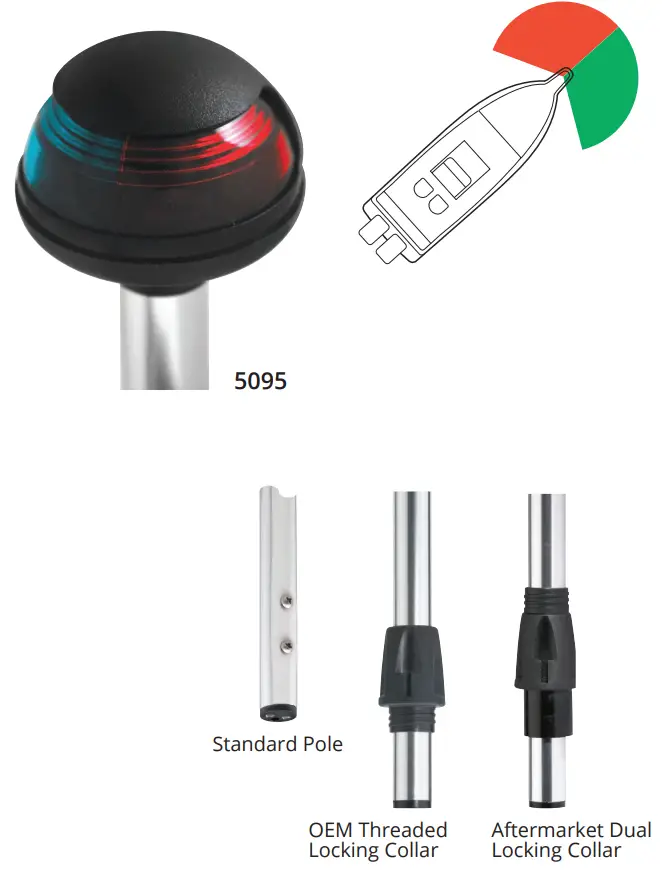

Incandescent Bi-Color Stowaway with Task Light

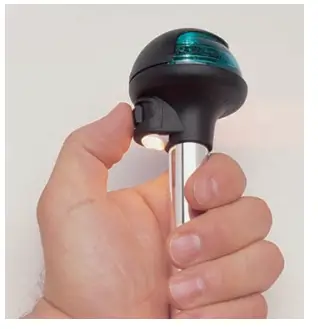

Based on the same great design of the original Pulsar™ Bi-Color Pole Light, the Task Light also gives you a narrow beam work light. It features a durable rubber “push-on” switch and a micro bulb. Attwood’s Task Light output is ten times brighter than competitive models, giving today’s fishermen the tools they need for serious nighttime fishing.
| Series | Use with Light Base |
| 5095 | 910R3, 901V3, 910T3, 2530* |
* When locking collar is removed.
| Description | Pole Length | OEM Part # | Part # |
| 3-Pin Locking-Collar Pole | 10″ Straight | 5095-10T1 | 5095-10-7 |
| 3-Pin Standard Pole | 10″ Straight | 5098-10-1 | — |
