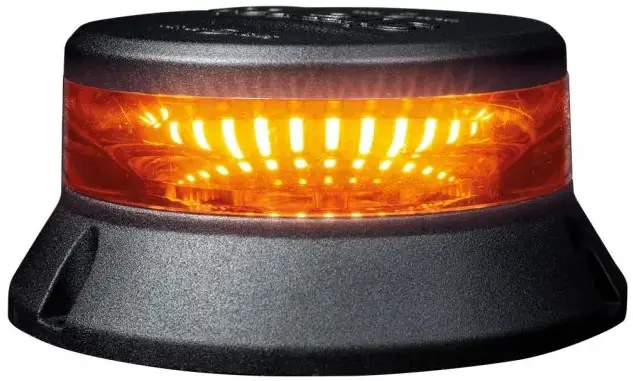

strands 850933 Cruise Light Beacon LED Instruction Manual

RED = +VDC
WHITE = – TO CHASSIS GROUND
BROWN = PATTERN SWITCH

Contents hide

1 READ THIS BEFORE INSTALLATION

2 TAKE CARE OF YOUR PRODUCT

3 INSTALLATION

4 Support

5 Documents / Resources

5.1 References

6 Related Posts

READ THIS BEFORE INSTALLATION

READ ALL INSTRUCTIONS AND STUDY DIAGRAMS BEFORE INSTALLING YOUR NEW LIGHTS!

LEGAL MOUNTING
Check with state or local authorities for laws governing usage and proper mounting of your new lights.

PATTERN	PATTERN DESCRIPTION	FLASH RATE
1	Single Flash,ECE R65 Class 1 (by night)	125FPN1
2	Single Flash	75FPFA
3	Double Flash	125FPN1
4	Triple Flash	125FPM
5	Quadruple Flash	125FPN1
6	Quintuple Rash	125FPN1
7	Rotating	WA
8	Combination Single / Triple Flash	N/A
9	Combination Single / Qunit Flash	WA
10	Strobe	600 FHA
11	Cruise	WA

TAKE CARE OF YOUR PRODUCT

Keep the product clean. Dirt may shorten the products lifetime.

We recommend using lukewarm water and alkaline degreasing.
Follow the degreasing instructions carefully and rinse off gently with cold or lukewarm water on low pressure.

WARNING!
Strong chemicals should not be used on the product. If you accidently get strong chemicals on the product, rinse off immediately, use plenty of water so that no chemicals remain in any joint.
Some chemicals have a small amount of solvent in them, this can dissolve sealing adhesives and compromise the product’s waterproofness.
Some chemicals pull out liquid from plastic and rubber-based components, which makes the plastic or rubber brittle and bursts more easily.
Be careful not to use high water pressure close up on the product.
If you use high water pressure at short distances, most products find it difficult to close out the water.

INSTALLATION

If there is a contact/connector on the product, it should not be cutted. If the connector is cut, the warranty is not valid.

If the product has loose cable and no connector. If the cable is shorter than 50 cm, the cable must not be cutted. If the cable is cut, the warranty is not valid.
If the cable is longer than 50 cm, it is ok to shorten the cable, but not shorter than 50 cm.
If the cable is cut shorter than 50 cm, the warranty is not valid.

WARNING!
Do not use higher volts than the product description states.
This light becomes hot under continuous use. Don´t remove or touch the casing for at least 30 minutes after turning the lamp off.
