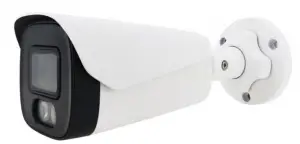

WIZARD 2MP HD Warm Light Metal Bullet Camera
Product Features
- 2MP HD Analog Out put( AHD/TVI/CVI )
- 1/2.9” High-Performance Progressive Scan COMS
- No Delay, Lossless, Long Distance transmission Up to 400 meters
- Support 4mm Lens
- Support DNR /DWDR
- Support low illumination, warm light day night full color
- Support ICR switch, realize day & night monitor
- Support OSD Menu/DIP Switch /circulation button switch(Optional)
- Applicable to the Financial Departments, Telecommunications, Government, schools, airports, factory, Hotels , Museum, Public transportation and Other places.
Parameter Classification | Parameter Name | Parameter Value |
| Camera | Image Sensor | 1/2.9” 2MP Progressive Scan COMS V30H+SC2237 |
| Resolution | 1920*1080 | |
| Image System | PAL/NTSC | |
| Light ON | 0.1 lux @ (F2.1, AGC ON) | |
| Electronic shutter | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Lens | 3.6mm | |
| LEDs | 2 PCS 3500K soft warm light | |
| SNR | >52dB（AGC off） | |
| Full color distance | 15m | |
| Video Frame Rate | 1080P@25fps, 1080P@30fps | |
| Video Output | TVI/AHD/CVI/CVBS | |
| Menu | D&N | Support Color/ BW |
| DNR | Support 2D 3D NR | |
| WDR | DWDR | |
| Smart LED | Support Auto/Manual Model、1-10 level adjust | |
| White Balance | ATW / MWB/GRAY WORLD | |
| BLC | Support | |
| Image set | contrast、sharpness、saturate、3DNR、2DNR、DWDR | |
| Language | English, Chinese | |
| General | Power Supply | 12VDC ± 10 %; |
| Operating Conditions | (-20° C to 60° C), Humidity 90% or less (non- condensing) | |
| Protection level | IP66 | |
| Power Consumption | Max. 3W (Max. 3W with LED ON) | |
| Dimensions | 195.5mm*69.6mm*69.6mm |
