Puig 3837 Beak Extender
BEAK OVERVIEW
DESCRIPTION
| ID. | PART | DESCRIPTION | QTY. | REF.: |
|
1 |  |
Beak |
1 |
3837JM3 |
| 2 |  | Support | 1 | SOPOR1P6—3837 |
| 3 |  | Ø3,7-3,8 x 3,2mm bumper foot | 3 | TOPE–POF-40022 |
| 4 |  | Ø13x Ø8 x15mm arrowhead | 2 | CASQUI-M—– 614 |
| 5 |  | M5x30 Ø11 ISO 7380 allen screw | 2 | TORNI-I7380-767 |
| 6 |  | Ø4,5x Ø11x 2 mm Rubber washer | 2 | ARAND-EPDM–722 |
| 7 |  | M5x1 Nylon washer | 2 | ARNV00000000245 |
| 8 |  | M5x11 Ø11 ISO7380 allen screw | 2 | TORNI-AI—- 520 |
| 9 |  | M5 ISO 7380 screw cap | 2 | TAPON——– 85 |

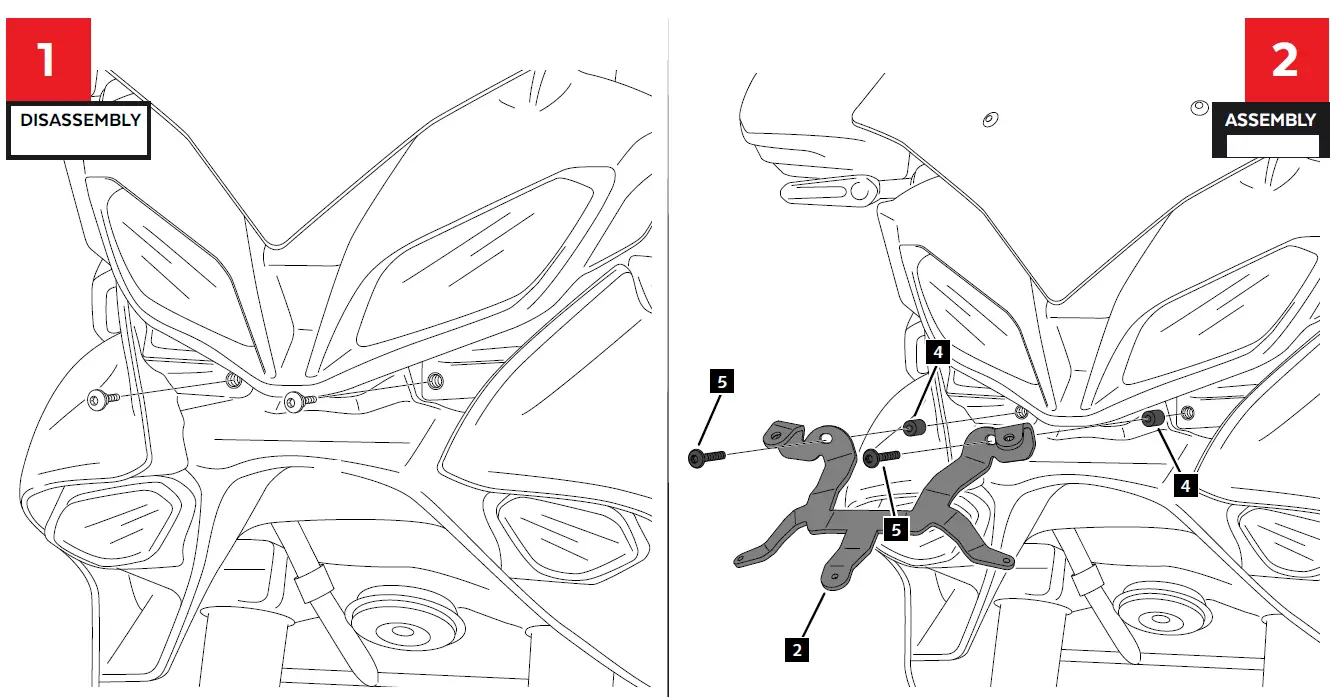

MOUNTING INSTRUCTIONS
