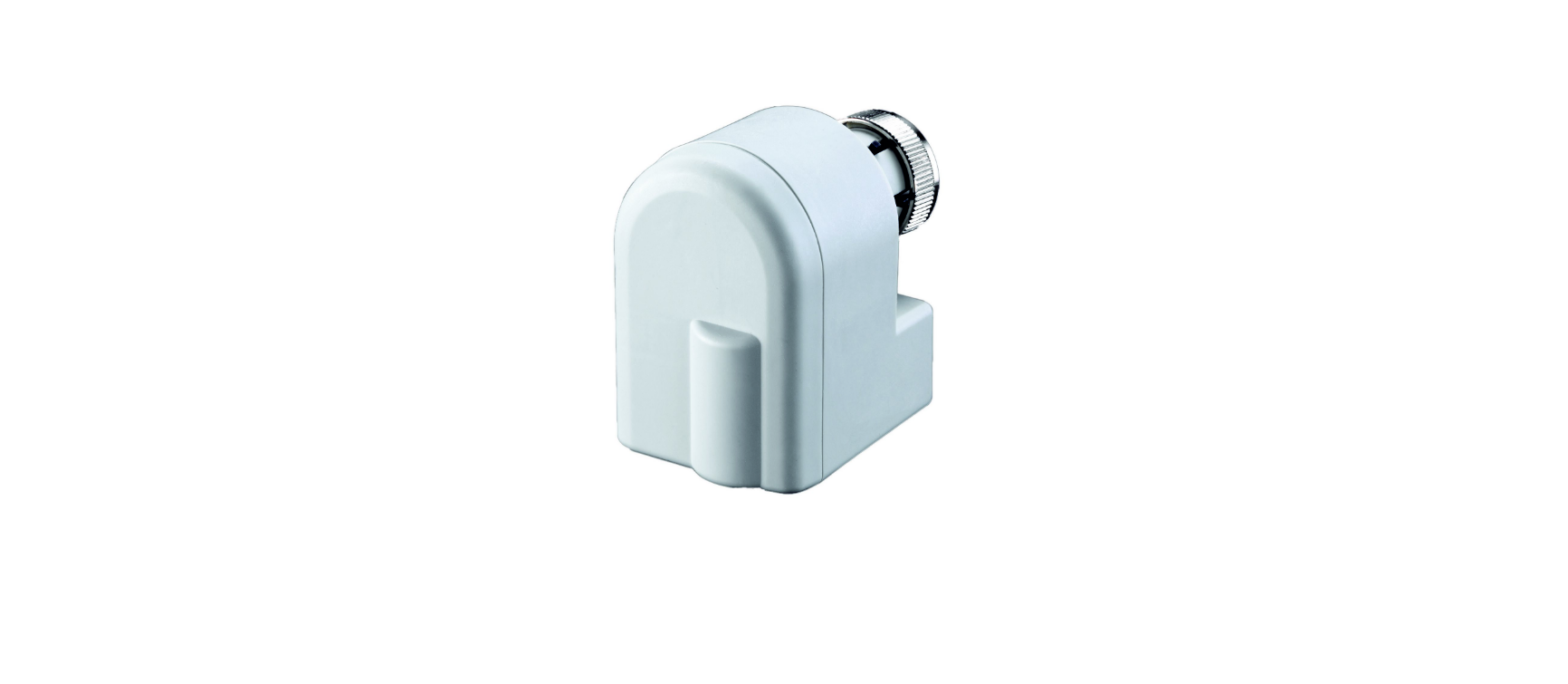

oventrop Aktor M 2P

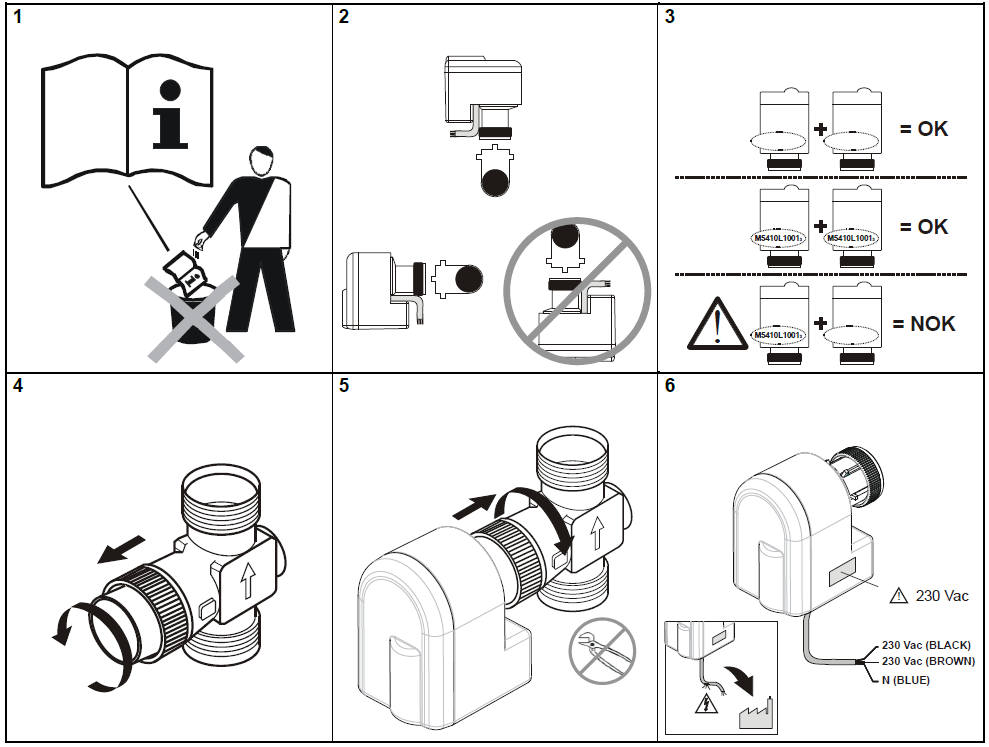

Installation instructions
Technical Specifications
- Operating voltage: 100-230 V AC +10 % 50/60 Hz
- Power consumption: 8.5 W in operation 0.5 W at ends of stroke

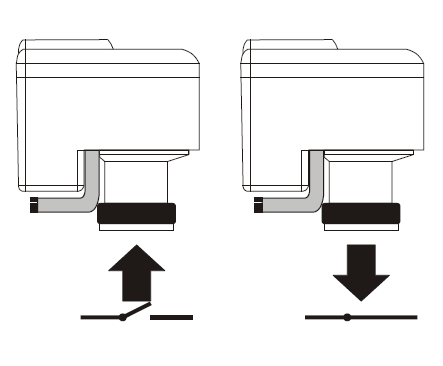

- Control: 2-position (normallyopen contact)
- Max. stroke: 6.5 mm
- Actuating force: > 90 N
- Ingress protection: IP54
- Protection class: II according to EN 60730 Temp. of medium: max. +95 °C (130 °C < 10 min.)
- Ambient temperature: 0 … +60 °C, non-
- Connection cable: condensing 3-prong cable (1.5-m long)
- Input current: 1 mA
For an overview of our global presence, visit www.oventrop.com. Subject to technical modification without notice
Importer:
OVENTROP UK LTD Hatch Industrial Park Greywell Road, Hatch GB – Basingstoke RG24 7NG OVENTROP GmbH & Co. KG Paul-Oventrop-Straße 1 59939 Olsberg, Deutschland
- Telefon +49 (0) 29 62 82-0
- Telefax +49 (0) 29 62 82-400
- E-Mail: [email protected]
- Internet: www.oventrop.com
- 101271080 V03.03.2022
