Hoftronic Led Module 230v Ac Wiring Diagram Instructions

HOFTRONIC LED Module 230V AC Wiring Diagram

INSTALLATION INSTRUCTION

• STEP 1:
  Drill a hole in your ceiling. The packaging of the fixture lists the size of the recommended recess.
• STEP2:

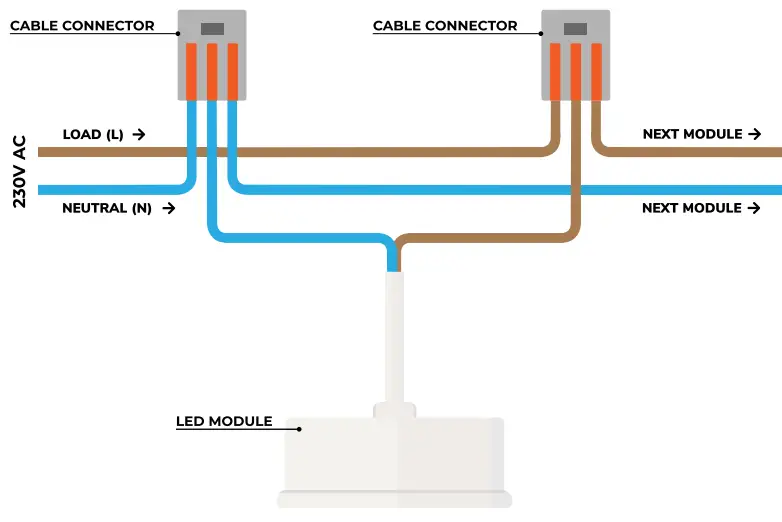

  Connect the LED module to the power according to the diagram on the front of this card.
• STEP3:
  Mount the module into the recessed downlight’s fixture. Turn the power back on.
