EASTON WALLPACK
INSTALLATION GUIDE
NET-51-11-41

KEY DATA

SUPPLY/EARTH CLASS

Driver 220-240V AC 50/60 Hz
Fig.1 Mains Input Termination

Installation procedure: Carefully read the installation instructions and ensure the mains supply is isolated before installation. Please read the safety information overleaf before carrying out any installation. Please retain the leaflet for future reference.
LED Wallpack Installation:

	Replaceable (LED only)  light source by professional
	Replaceable control   gear by professional

Step 1: Isolate the main power supply before connecting. Unpack the luminaire and check that you have all the tools to install the luminaire safely and in compliance with current electrical standards. Ensure there are no obstructions or services in the way.

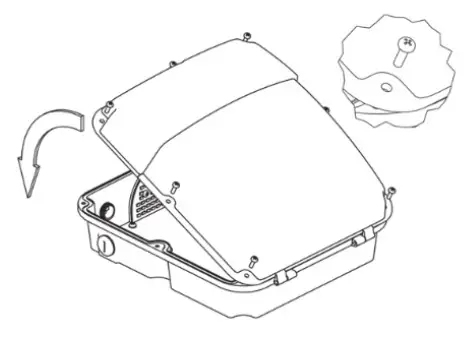

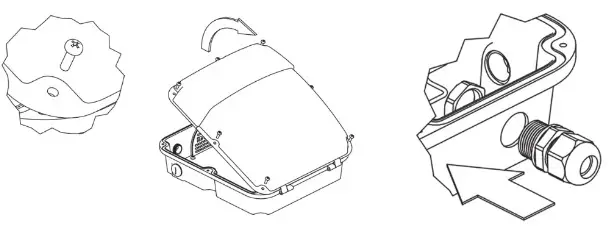

Step 2: Remove the diffuser fixings and open the diffuser cover. Then fit the cable gland in the desired cable entry point, supplied.

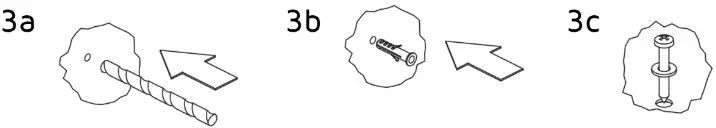

Step 3: (a) Drill fixing holes through the base tray of the fitting and into the fixing surface. (b) Install wall plugs into holes. (c) Secure bulkhead to the wall using fixings. Do not install this fitting on damp or newly plastered surfaces. Rubber washers must be placed between the wall and bulkhead to prevent any moisture from entering the casing.
Replaceable (LED only) Replaceable control light source by professional gear by professional

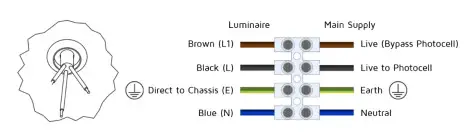

Step 4: Feed mains cable through cable gland installed in STEP 2. Terminate the cables into the terminal block mounted on the base tray ensuring the correct polarity is observed. Connect the switched live supply to 11′ to bypass the photocell, or 11: to keep the photocell in a circuit.

Step 5: Select Colour Temperature.

Colour temperature DIP Switch settings on PCB:

Step 6: Re-secure the diffuser cover and insert fixings. Step 7: Restore mains power and check

Step 8: If you purchased an Emergency variant, ensure that illumination. the Emergency Test Record is completed when required.

Safety Information

>All electrical work must be undertaken by a qualified contractor to ensure compliance with the latest edition BS 7671 and IEE/IET wiring regulations.
>Before installing a Wallpack or doing any maintenance, ensure the power supply is turned off at the circuit breaker or fuse box.
>This product is designed for permanent connection to fixed wiring; the circuit should be protected with the appropriate MCB or fuse.

Environment

>Please DO NOT dispose of electrical items or packaging as unsorted waste, use the recycling facilities provided by your local authorities.

Non-replaceable light source

>The light source of this luminaire is not replaceable.
When the light source reaches its end of life the whole luminaire shall be replaced.

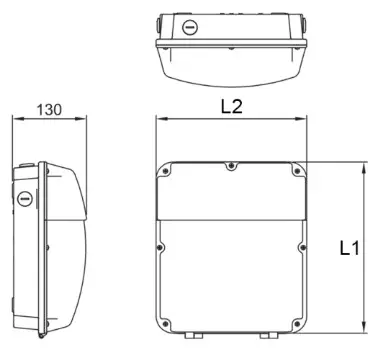

PRODUCT DIMENSIONS

All units are in mm

Important Warranty Information

The Easton Wallpack has a 3-year warranty, which can be extended free of charge to 5 years by registering online via the website address below. The registrant must provide the product art number and date of manufacture, which can be found on the label attached to the luminaire housing.

NET LED Ltd.
Buckingway Business Park 300 Anderson Road Cambridge
CB24 4UQ
[email protected]
www.netled.co.uk
Technical Helpline: 01223 851505
Email: [email protected]
www.netled.co.uk/downloads
