USER GUIDE

BYRON COFFEE TABLE
SLBYRONCFTA

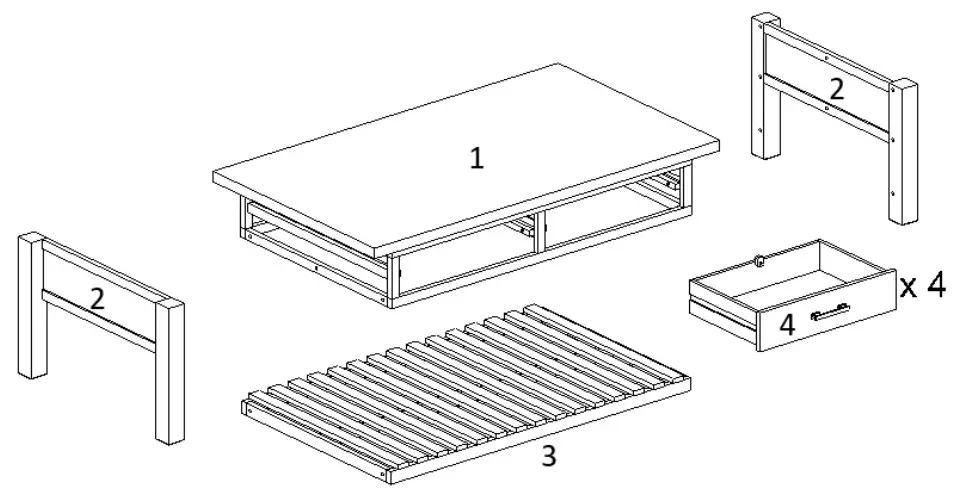

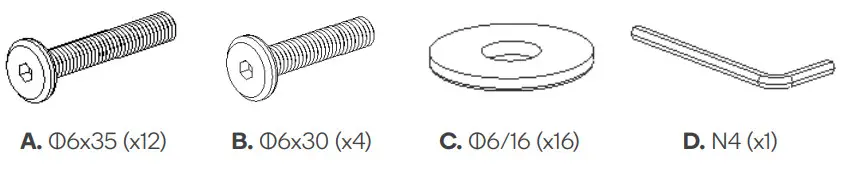

COMPONENTS

| No. | Dimensions (mm) | Qty |
| 1 | 1300 x 750 x 225 | x1 |
| 2 | 700 x 435 x 60 | x2 |
| 3 | 1130 x 694 x 55 | x1 |
| 4 | 514 x 340 x 124 | x4 |

ASSEMBLY
Step 1:

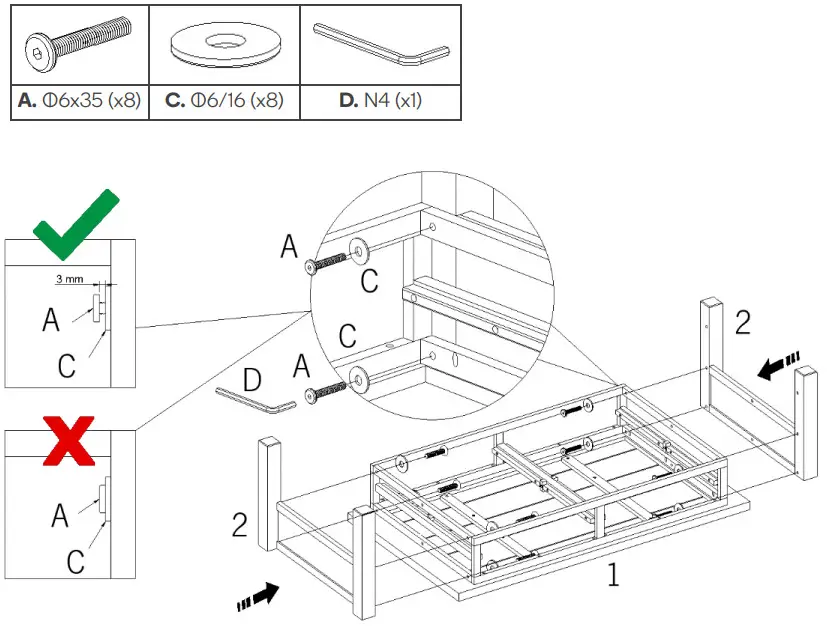

Step 2:

Do not tighten fully.
Ensure 3mm space between 35mm bolt (A) and washer (C); do not overtighten.

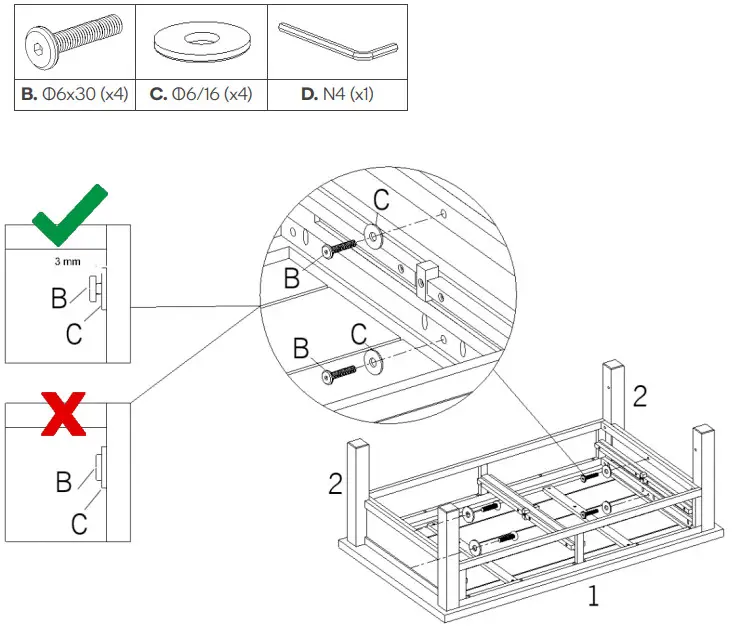

Step 3:

Do not tighten fully.
Ensure 3mm space between 30mm bolt (B) and washer (C); do not overtighten.
Step 4:

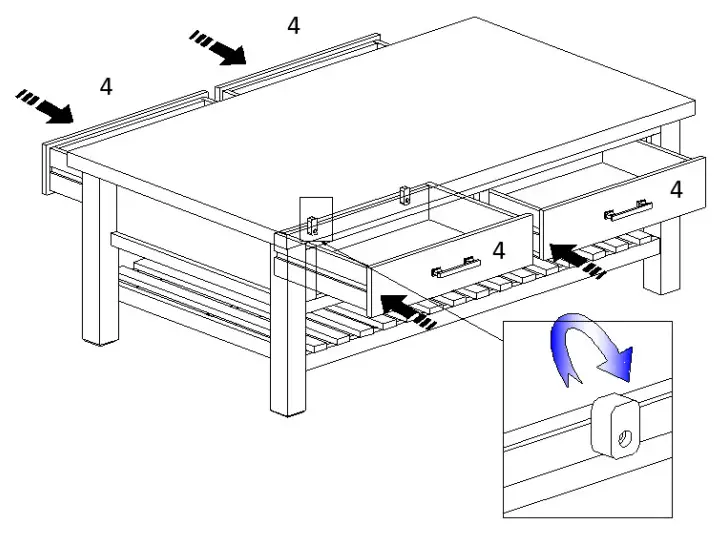

Step 5:

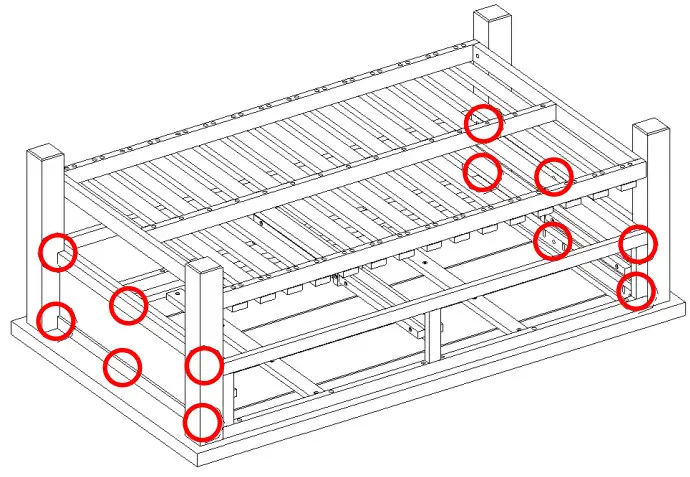

Return to the bolts from steps 2 and 3 to tighten fully.


Assembly complete.
NOTES
__________________________
__________________________
__________________________
__________________________
