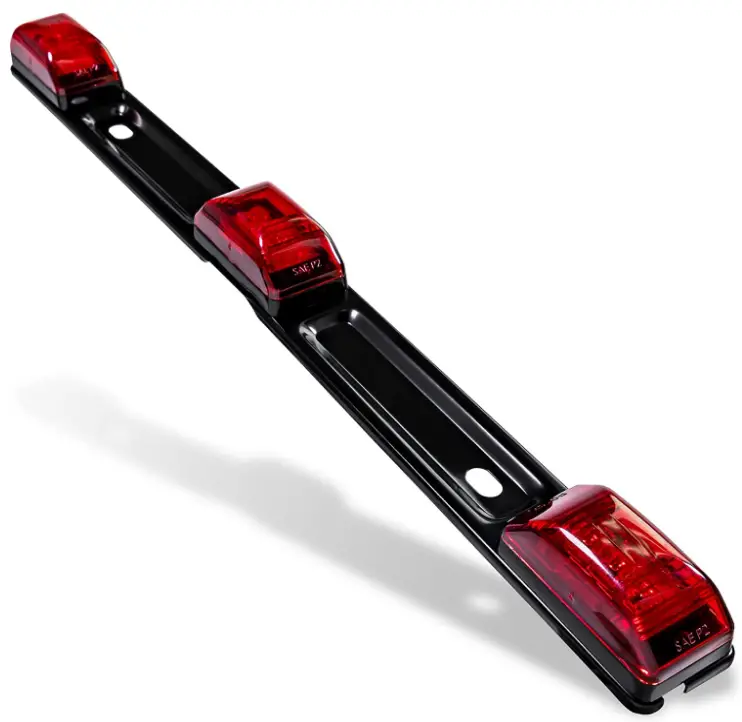

True Mods TBL1515-RD 15-Inch 9 LED 3 Red Trailer Light Bar
Specification
- Brand True Mods
- Model TBL1515-RD
- Color Black
- Specific Uses For Product Rear Lights
- Light Source Type LED
- Vehicle Service Type Utility Vehicles, Trailers
- Special Feature Waterproof, Submersible
- Voltage 16 Volts
- Position Rear
- Lens Color Red
- Lens Material Plastic
What’s In the Box
- 15-Inch Trailer Identification Light Bar
- Pack of Screws
- User Guide
Defends against Weather Abuse
For unmatched all-weather usability, the mounting bracket is waterproof and completely submersible; a water drainage slot is included for enhanced safety.
Essential for 80 ” Larger Trailers
trailers 80 feet long “or bigger require identity lights for increased visibility; put this clearance light bar between the taillights of your vehicle or on the roof of your truck to call further attention to your broad trailer for increased road safety.
Mirror with DOT-Certified Lens
This product offers a DOT FMVSS-108-approved reflective lens design that complies with all applicable laws and regulations, unlike cheaper, poorer-quality ID bars.
Straight Forward Installation
Product Description
Improve Your 80″ or Wider Trailer’s Visibility and Safety
Our 15″ trailer ID bar, which comes with a DOT FMVSS-108 certification, is an easy-to-install, feature-rich option to increase visibility for your 80″ or larger trailer. Its premium-quality reflective red lens is made to inform other drivers of your presence and improve on-road safety while in use, whether you put this sturdy device on the top of your truck or trailer or in between the tail lights.
Weathers the Elements with a Waterproof, Submersible Design
This ID bar has an IP67 waterproof and totally submersible design to resist water and dust incursion for exceptional endurance that less expensive ID bars can only dream about. For added weather protection, we even built a water drainage slot into our mounting bracket.

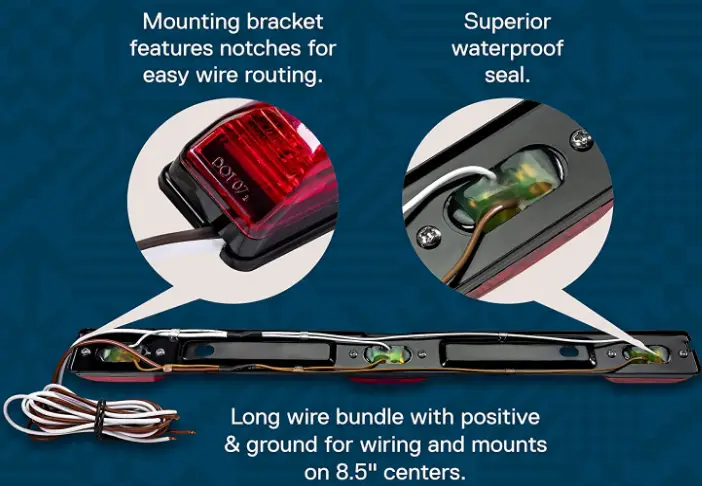

Practical Features Simplify Installation & Operation
For easy installation, the bar has a Positive input wire and a Ground wire attached. The mounting bracket also features notches for simple cable routing and installation.

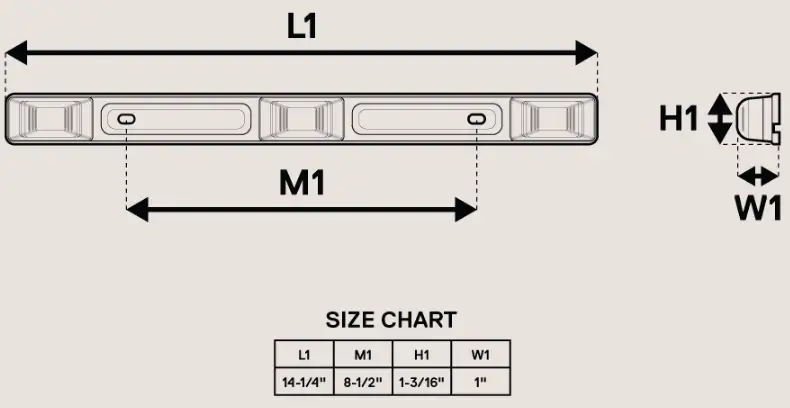

Dimension
Features
- ESSENTIAL FOR 80″ LARGER TRAILERS
Trailers 80 feet long “or bigger require identity lights for increased visibility; put this clearance light bar between the taillights of your vehicle or on the roof of your truck to call further attention to your broad trailer for increased road safety. - REVERSE LENSES WITH DOT CERTIFICATION
This product offers a DOT FMVSS-108-approved reflective lens design that complies with all applicable laws and regulations, unlike cheaper, poorer-quality ID bars. - SUBMERSIBLE IP67 RATING
For unmatched all-weather usability, the mounting bracket is waterproof and completely submersible; a water drainage slot is included for enhanced safety. - CONSTRUCTION, SOLID
Other light bar brackets are made of inferior plastic, however, the black bracket is constructed of durable stainless steel. includes stainless steel hardware.
FAQs
This product has a one-year warranty.
Shipping costs vary based on your location.
Yes, please contact our customer service to request a quote.
Yes, we welcome sample order to test and check quality.
After you pay the sample charge and send us confirmed files, samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
If lights need to be checked and replaced, that may be all that is needed; otherwise, you’ll need to examine the wiring. Poor grounding connections, which are typically made by the white wire exiting the trailer plug, are to blame for many trailer issues. Poor ground might cause lights to operate sporadically or not at all.
In California, reflectors, tail, brake, and licence plate lights are necessities for trailers. If the tow vehicle’s lights are obscured, signal lights are further necessary. Lights for clearance are required on trailers wider than 80 inches.
The sixth wire in six-way wiring, which is normally red, is used for a fuse block or fused battery lead. Often, this cable will go to a battery charger, inside trailer lights, or a fuse block breakaway kit. It can be applied to electronic brakes as well.
The Function of Your Trailer Lights. A plug attached to the lighting circuits of the tow vehicle, a connection that matches on the trailer, a wire harness that spans the length of the trailer frame, and various stop, tail, turn signal, and side marker lights around the trailer’s perimeter make up the trailer wiring.
If the turn signals were the issue, then simply check for and replace the trailer RT or LT fuse as necessary. Since that they share the same fuse, this will also address the issue with the brake lights.
According to studies, an LED has a lifespan of 100,000 hours, which is six times longer than that of a typical incandescent bulb. As LED trailer tail lights are brighter, other cars will be able to see your brake lights more clearly during the day.
Set your multicenter to DC voltage and verify connections at the trailer light plug to test the strength of your trailer lights. The multicenter detects approximately 12 volts at the plug when a 12-volt battery is used.
