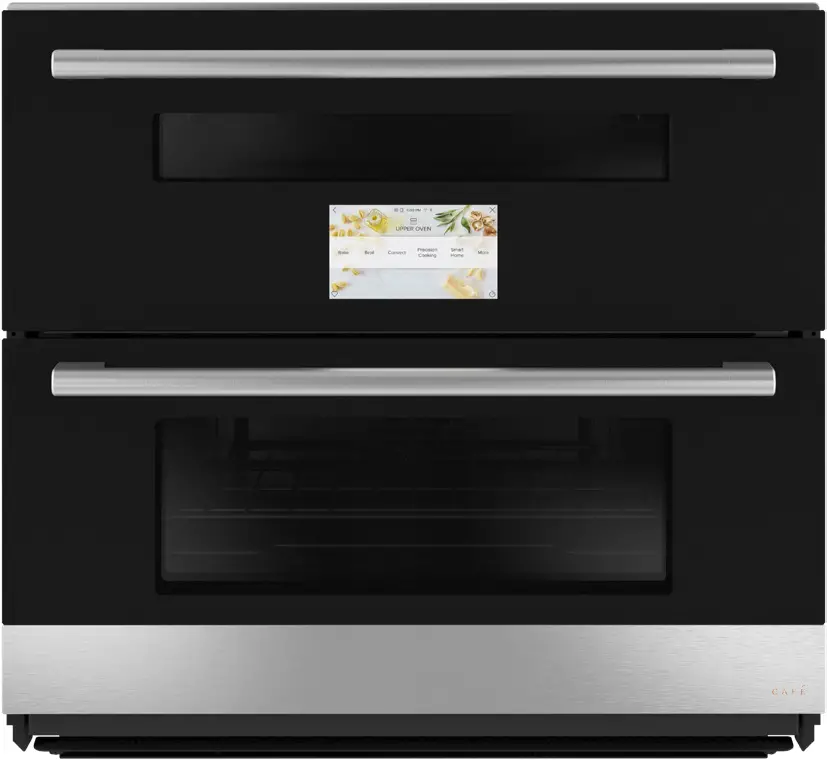

Café Minimal Series 30″ Smart Built-In
Twin Flex Single Wall Oven in Platinum Glass
CTS92DM2NS5
FEATURES & BENEFITS
Create an easy-to-clean, contemporary look for your kitchen with the striking reflective glass finish.
Cook two things in the oven at once, at two different temperatures, so that your entire meal will be done on time.
This smart oven features built-in WiFi so you can control oven functions with the SmartHQ app on your smart device.
Preheat the oven quickly and cut down on preheat time with a speedy preheat feature.
Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes.
This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation.
This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300.
Easily navigate wall oven settings thanks to a 7″ touchscreen display.
This smooth-gliding oven rack can be left in the oven during the self-clean cycle so you never have to scrub.
APPEARANCE | |
| Color Appearance | Platinum Glass |
| Handle | Café Minimal Style; Brushed Stainless |
| Installation | Above Warming Drawer; Side-by-Side; Under Built-In Advantium; Under Built-In Microwave; Under Cooktop; Undercounter |
FEATURES
Configuration | Double Oven |
| Cooking System | True European Convection with Precise Air (Lower) |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cleaning Time | Variable with Delay Clean Option |
| Oven Cooking Modes | Convection Bake; Convection Bake Multi-Rack: Convection Roast Precision Cooking Modes: Thermal Bake: Thermal Broil |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | T Full-Color Touch LCD Screen |
| Oven Features | 6-Pass Dual Broil Element (Upper): 8-Pass Bake Element (Both Ovens); 8-Pass Dual Broil Element (Lower); Closed Door Broiling |
| Oven Rack Features | 1 Self-Clean Heavy-Duty Offset Oven Rack 2 Embossed Rack Positions (Upper): 2 Self-Clean Roller Racks; 3 Embossed Rack Positions (Lower) |
| Oven Control Features | 12-Hour Shut-Off Capability. Audible Preheat Signal: Auto Recipe Conversion: Certified Sabbath Mode: Control Lock Capability; Cook Time: C or F° Programmable: Delay Time: Electronic Clock & Kitchen Timer Mis-Wire Detection: Proof Mode: Remote Enabled: Scan-to-cook: Temperature Probe: Warm Mode |
| WiFi Connect | Built-In |
| Connected Capabilities | Amazon Alexa; The Google Assistant; IFTTT: Nest Drop: Innit |
| Cooking Technology | Traditional Upper. Convection Lower |
| Oven Interior | 2 Halogen Interior Oven Lights (Both Ovens); Black Gloss Finish: Hidden Bake |
| CAPACITY | |
| Capacity (Cu. Ft.) | 2.2 Upper / 2.8 Lower |
| Total Capacity (cubic feet) | 5.0 cu ft |
| POWER / RATINGS | |
| Amp Rating at 208V | 20 |
| Amp Rating at 240V | 20 |
| Bake Wattage | 1700W Upper / 2200W Lower |
| Broiler Wattage | 2750W Upper / 2950W Lower |
| Convection Wattage | 1300W |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 212 lb |
| Net Weight | 190 lb |
| Overall Height | 28-1/8 in |
| Overall Width | 29-3/4 in |
| Overall Depth | 26-3/4 in |
| Cabinet Width | 30 in |

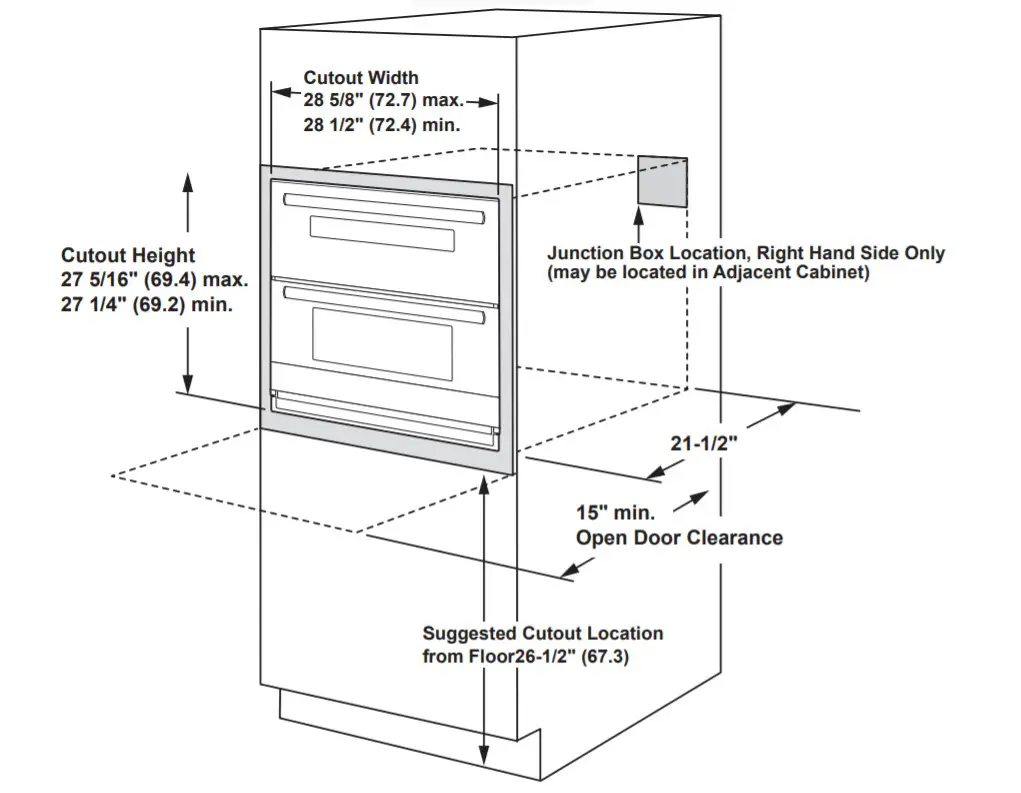

| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 27-5/16 x 23-1/2 |
| Oven Interior Dimensions (lower) | 24 x 12-1/2 x 16 |
| Oven Interior Dimensions (upper) | 24 x 8-3/4 x 17 7/8 |
WARRANTY | |
| Parts warranty | The limited 1-year entire appliance |
| Labor warranty | The limited 1-year entire appliance |
| Warranty notes | See written warranty for full details |

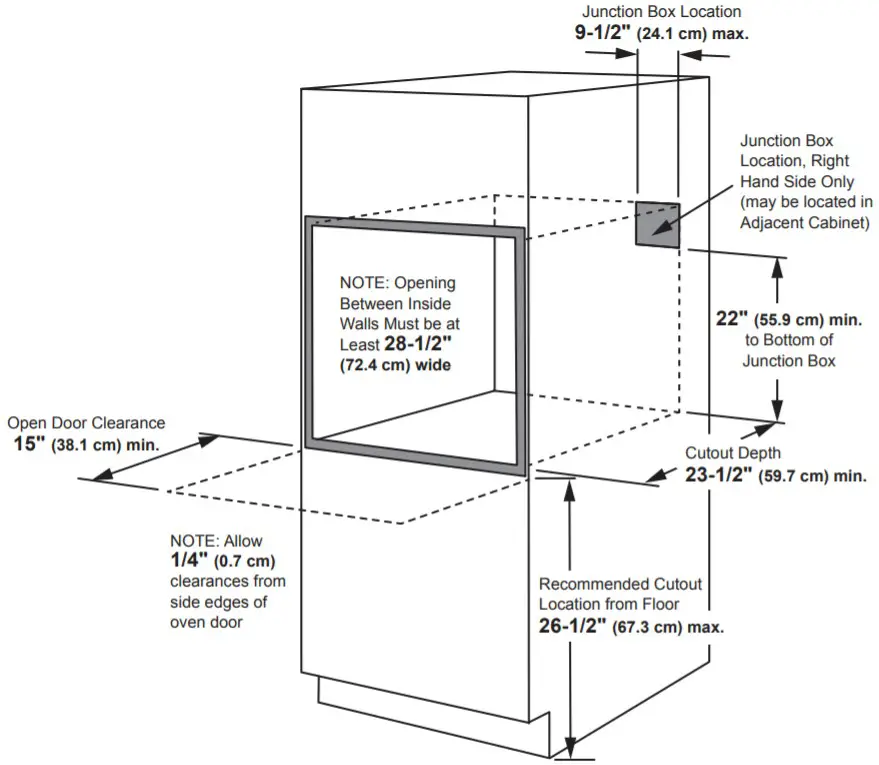

MOST 30″ WALL CABINETS CAN BE USED WITH THIS UNIT.
 |  |
 |  |
NOTE: Allow 1/4″ (0.7) clearances from side edges of oven door Cutout Width 11/16″ (1.8) min.
Clearance for Wall Oven Beyond Cutout, Both Sides 1″ (2.4) min.
Top Clearance
APPROVED INSTALLATIONS:
Above Warming Drawer, Below Built-in Microwave or Advantium®, Side-by Side, and Under Counter
NOTE: These ovens are not approved for stacking one single wall oven over another single wall oven.
Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.
Door handle protrudes 3″ from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.

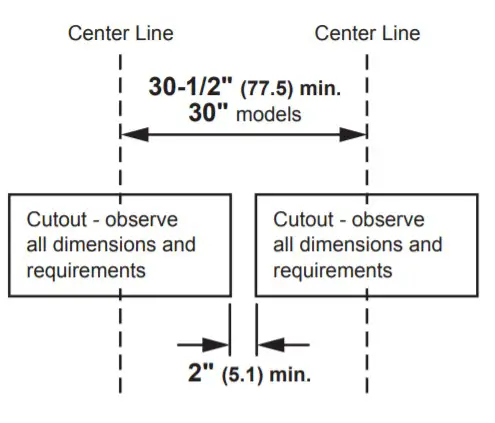

Side-by-side installations rerquire at least 2″ between cutouts.
Approved cooktops for installation above this wall oven: CHP9536, PHP9036, CHP9530, PHP9030, JP3536, JP3036, JP3530, JP3030
IMPORTANT: Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard-wired in accordance with installation instructions.
IMPORTANT: Before installing, consult installation instructions packed with product for MOST 30″ WALL CABINETS CAN BE
USED WITH THIS UNIT.
APPROVED INSTALLATIONS: Above Warming Drawer, Below Builtin Microwave or Advantium®, Side-by-Side, and Under Counter
NOTE: These ovens are not approved for stacking one single wall oven over another single wall oven.
Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 200°F temperature rating.
The door handle protrudes 3″ from the door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Side-by-side installations require at least 2″ between cutouts.
Approved cooktops for installation above this wall oven: CHP9536, PHP9036, CHP9530, PHP9030, JP3536, JP3036, JP3530, JP3030
IMPORTANT: Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard-wired in accordance with installation instructions.
IMPORTANT: Before installing, consult installation instructions packed with product for current dimensional data.
| Cabinet | 30″ |
| A – Overlap of the oven at top of the cutout | 1″ |
| B – Overlap of oven another side of the edge of the cutout | 3/4″ |
| C – Overlap of the oven at bottom of the cutout | 1-1/4″ |
Oven | |
| D – Install depth | 23-1/2″ |
| E – Overall height with trim | 53″ |
| F – Overall width | 29-3/4″. |
Dimension and installation information are shown in inches.
For answers to your Café™ product questions,
visit our website at cafeappliances.com.
© 2020 GE Appliances PC94987 09/20
