Gledopto Tuinspot Zigbee3.0 12w Led Garden Lamp Plus Instruction Manual

GLEDOPTO TUINSPOT Zigbee3.0 12W LED Garden Lamp Plus

Thanks for buying our products

In this manual we will explain the connection of wires and the connection with a ZigBee Light Link Gateway.
These devices works with many ZigBee Light Link Gateways* like Philips Hue, Amazon Echo Plus.

Installation

1. Turn off the Power.
2. Plug in the Light.
3. Now you can connect it with the gateway.

Connection with Gateway

1. Start the device searching on the ZigBee Light Link Gateway, switch on the led light, it could take some time. If the Gateway does not find the device, plug power off/on or make a reset and swich off/on the hue bridge once.
2. The Gateway found your device and you can assign it to the different brooms/zones/groups.
3. Now you can use the device.

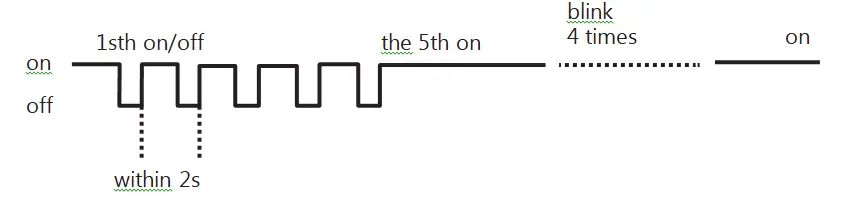

Reset

1.  Switch on your device.
2. Now switch off and on within 2 seconds.
3.  Repeat off/on four times.
4. Reset is done when the device is switched on in the fifth time and the light stays on after blinking 4 times.

LED Garden lamp Technical data

Picture	Power	Input voltage	Color	Size(mm)	GW(g)	Protection	Warranty
	9W	AC100-240V	RGB+CCT	105*400	1250	IP65	3years
	12W	AC100-240V	RGB+CCT	120*300	1000	IP65	3years

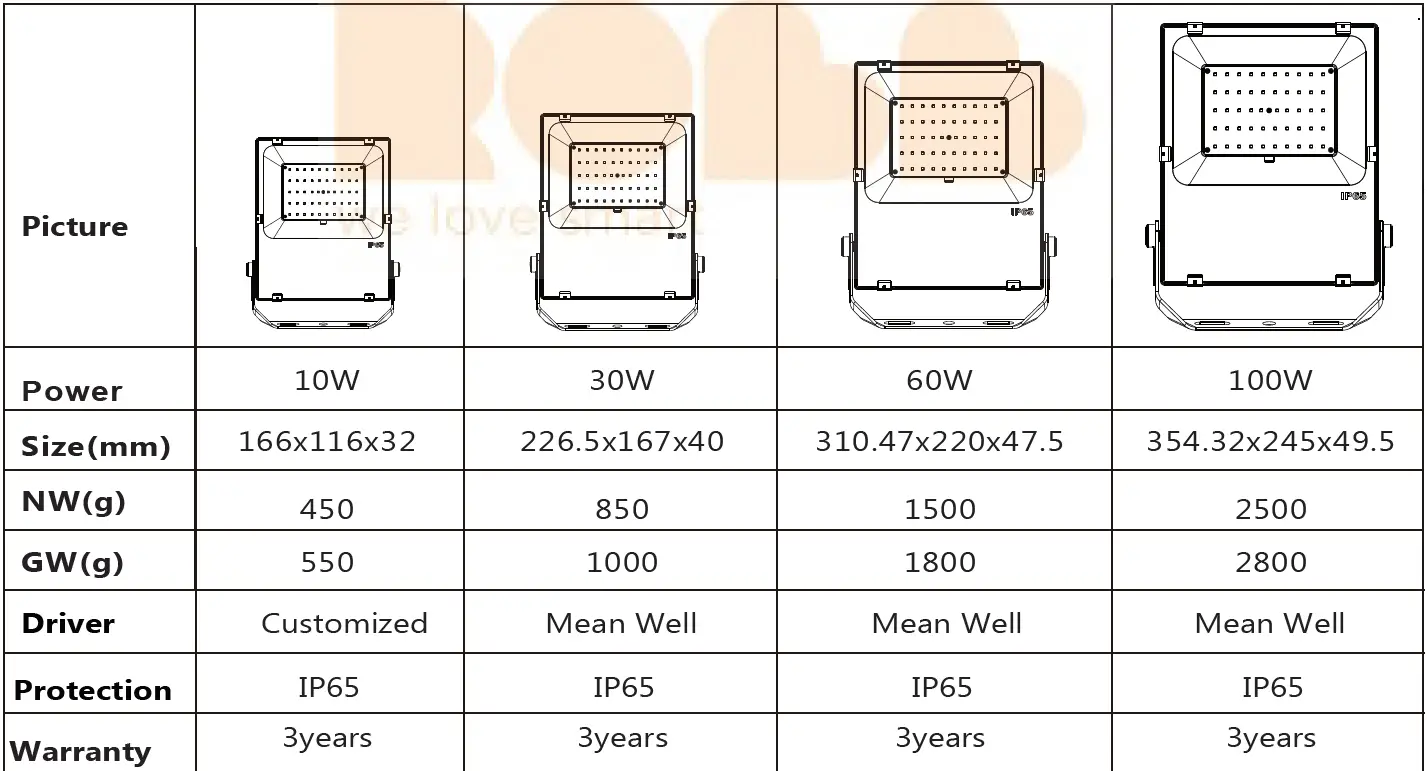

LED Flood Light Technical data
