SDR1-M Smoke Control Damper
Instructions

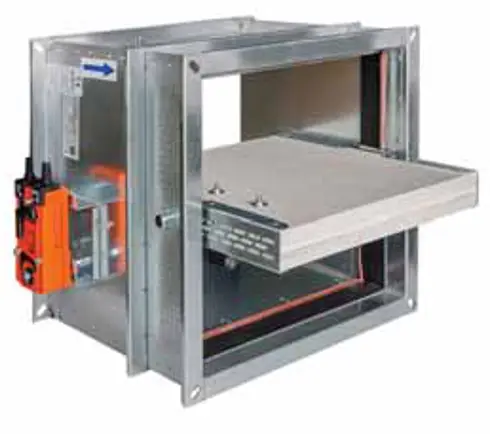

Smoke Control Damper
Description
Rectangular smoke control damper for smoke and heat evacuation systems for multi-compartment. The body is made of galvanized steel.
In the event of a fire, the smoke and heat will be extracted throughout the smoke control system and this damper is designed to either open or close depending on the scenario, to be able to extract the smoke and heat out of the building.
This damper is equipped with an actuator, either 24V or 230V, and can be used as an automatic (AA) or manual activation (MA) damper.
It is CE marked and certified according to EN12101-8, tested according to EN1366-10, and classified according to EN13501-4.
The damper is suitable for installation with horizontal blade axes in multi-compartment smoke duct evacuation systems according to EN1366-8 with smoke leakage class S at 1000Pa negative pressure.

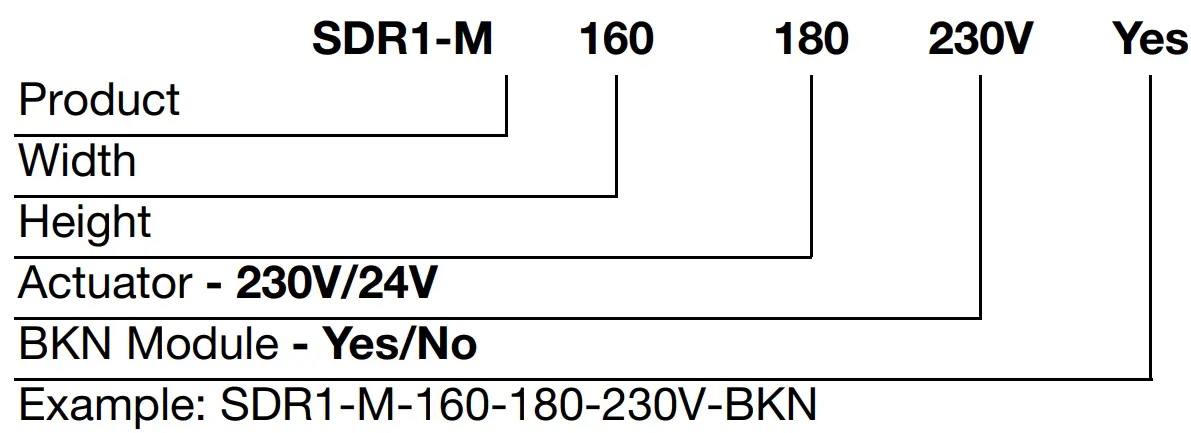

Ordering example
Dimensions
Min. 160×180
Max. 1500×800
Technical data for the actuators
See the technical manual.
Classifications (EN13501-4) SDR1-M
EI120 (vew how io)S 1500 C10000 AA multi
In construction with Weichschott:
EI90 (how view io)S 1500 C10000 HOT400/30 AA multi
On duct with grille:
EI120 (hod ved io)S 1500 C10000 HOT400/30 AA multi
On duct without grille:
EI90 (hod ved io)S 1500 C10000 HOT400/30 AA multi
Lindab reserves the right to make changes without prior notice
