ZEAPON PD-E1 Motorised Pan and Tilt Head

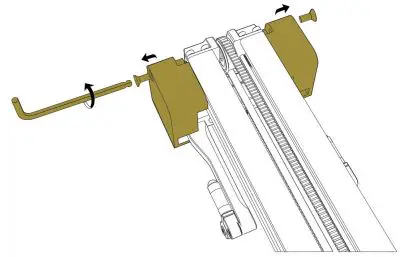

Please unlock and remove the fixed block before the initial use!
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line.
- www.alza.co.uk/kontakt
- +44 (0)203 514 4411
- Importer : Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

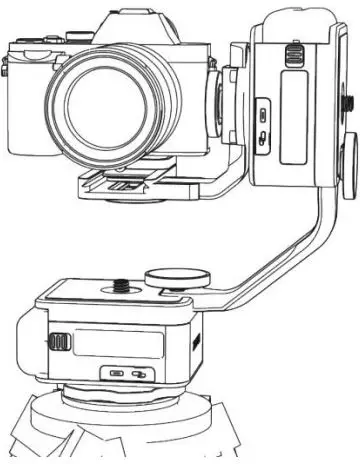

Illustrate: 1 PONS PT Motorized Pan Head is composed of 2 PONS Motorized Pan Head (PS-E1) and 1 PONS Tilt Arm Kit (AP-H1)
Instruction for Use

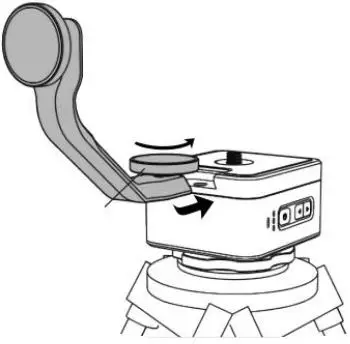

Loosen the two-axis knob counterclockwise until the connecting arm can be smoothly inserted into the slot on the single axis. Do not insert the arm forcibly, or it will easily cause abrasion between connecting arm and the single axis. Tighten the knob after the arm is clipped.

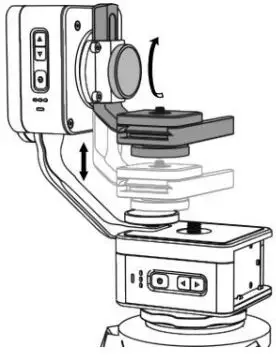

Adjust the knob to move the connecting arm up and down according to the need of shooting.

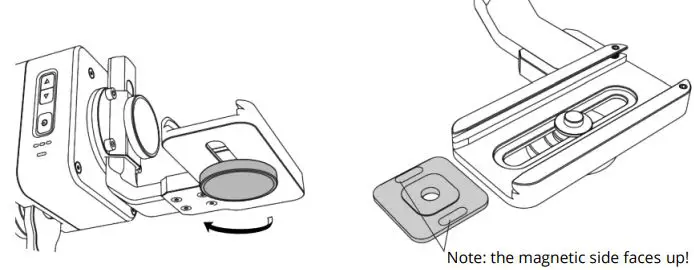

Loosen the adjusting knob and take out the quick-mount plate.

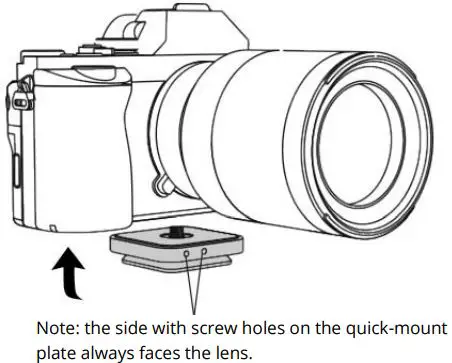

Install the quick-mount plate to the bottom of the camera.

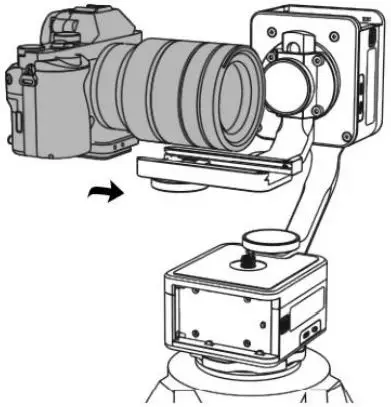

Install the camera with the quick-mount plate into the quick-mount plate mount.
Once the camera is completely pushed into the quick-mount plate mount, you will hear a snap due to the magnetic force generated by the built-in magnet device, which indicates that the quick-mount plate has been completely fitted to the mount.

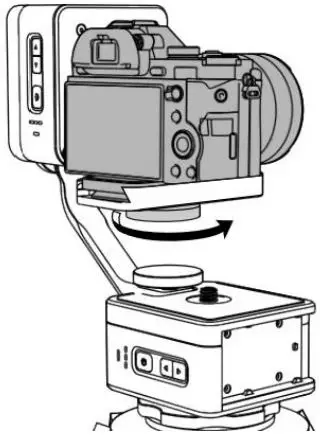

Tighten the knob to fix the camera.
After removing the connecting arm, you can use the PT head as two pan heads separately.

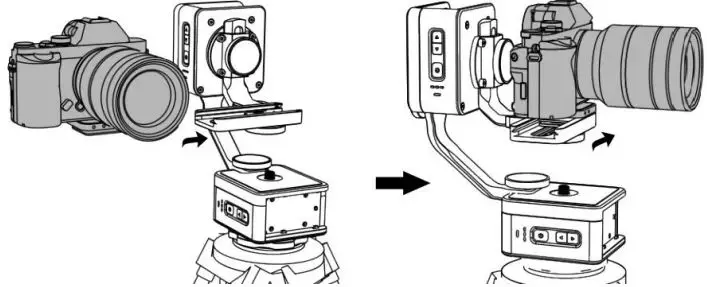

Inception Mode
When shooting in the inception mode, push the camera to the end of the quick-mount plate mount as shown the figure, and tighten the top knob. After that, the camera is aligned with the Y axis, indicating that the axis of the camera and that of the uniaxial pan heard are on the same line.
Notes
When the knob is loosened clockwise to a certain extent, the top plate in the quick mount plate is prone to fall out. It is falls out, just reinstall it.
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized:
- Using the product for any purpose other than that for which the product is intended or failing to follow the instructions for maintenance, operation, and service of the product.
- Damage to the product by a natural disaster, the intervention of an unauthorized person or mechanically through the fault of the buyer (e.g., during transport, cleaning by inappropriate means, etc.).
- Natural wear and aging of consumables or components during use (such as batteries, etc.).
- Exposure to adverse external influences, such as sunlight and other radiation or electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity of this voltage, chemical processes such as used power supplies, etc.
- If anyone has made modifications, modifications, alterations to the design or adaptation to change or extend the functions of the product compared to the purchased design or use of non-original components.
EU Declaration of Conformity
Identification data of the manufacturer’s / importer’s authorized representative: Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
CIN: 27082440
Subject of the declaration:
Title: Camera accessories
Model / Type: PD-E1
The above product has been tested in accordance with the standard(s) used to demonstrate compliance with the essential requirements laid down in the Directive(s):
Directive No. 2014/53/EU
Directive No. 2011/65/EU as amended 2015/863/EU
Prague
WEEE
This product must not be disposed of as normal household waste in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE – 2012/19 / EU). Instead, it shall be returned to the place of purchase or handed over to a public collection point for the recyclable waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Contact your local authority or the nearest collection point for further details. Improper disposal of this type of waste may result in fines in accordance with national regulations.
