ECHOMASTER CL-FTC Wiring Harness for Cargo Lighting

WHAT’S INCLUDED

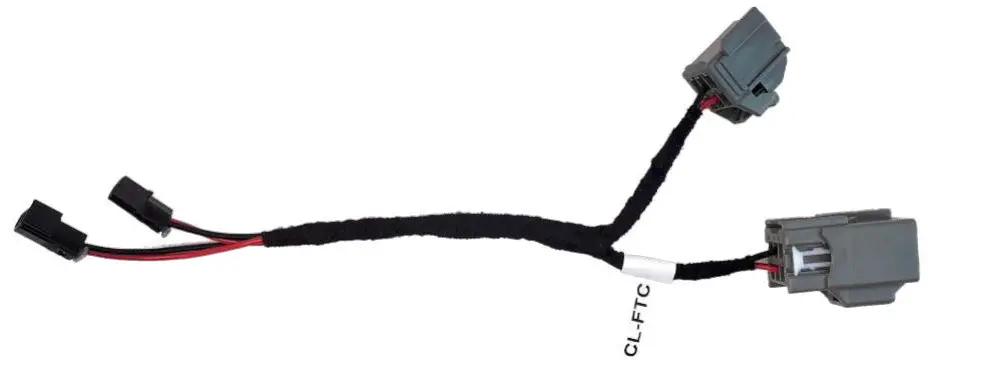

• Vehicle Specific Wire Harness (CL-FTC)

COMPATIBLE ACCESSORIES

• LED Dome Lamp (STL40489-2)
• 2570mm Roof Bow Harness (P-HARRB3)
• 3470mm Roof Bow Harness (P-HARRB4)

TOOLS REQUIRED

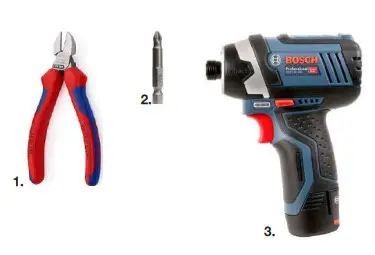

1. Diagonal Cutters
2. Phillips #2 Drill Bit
3.  Drill

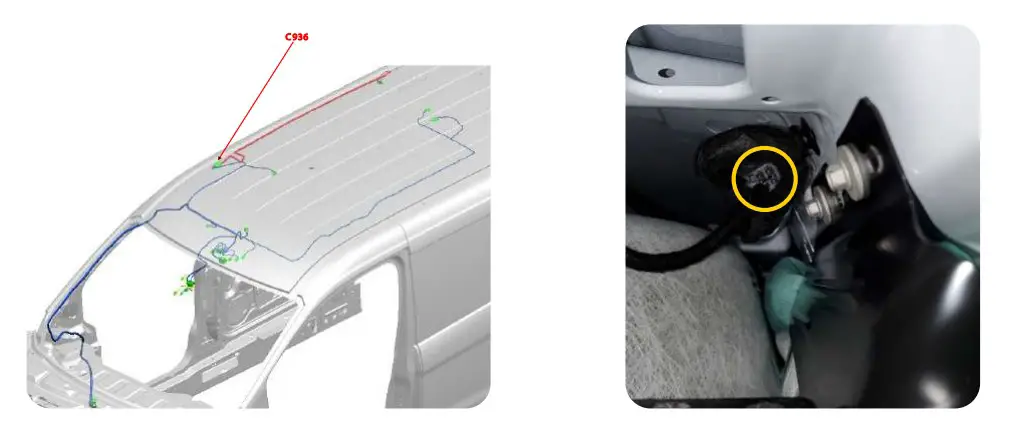

STEP 1: Locate the OEM Cargo Lamp connection that is above the headliner on the passenger side of the vehicle. Note: Easiest to access from back edge of headliner.

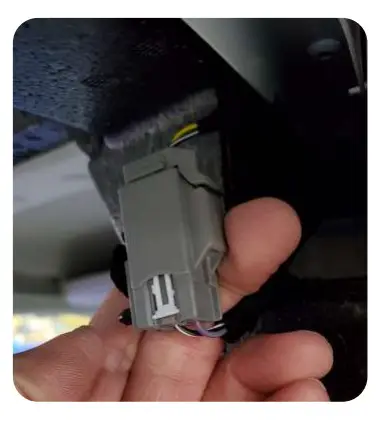

STEP 2: Unplug the OEM Cargo Lamp connectors and install the CL-FTC harness between the two connectors.

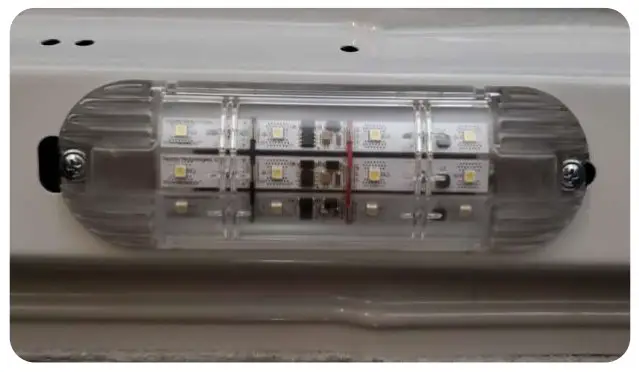

STEP 3: Install the STL40489-2 lights onto the center of the vehicle’s roof bow; leave the light connector exposed

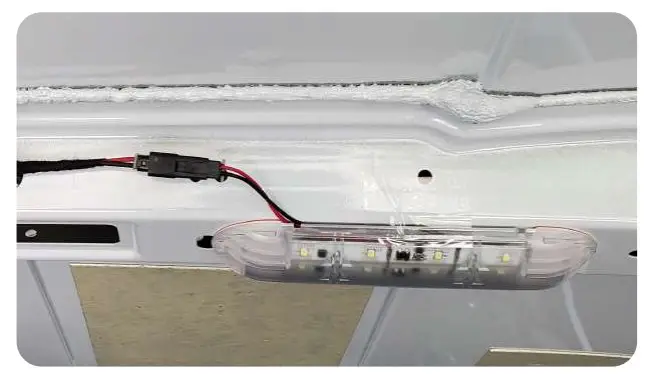

• Peel the red adhesive liners off of the STL40489-2 and stick the light in place
• Use the provided 3/4” screws to secure the light to the roof rib

STEP 4: Connect the appropriate P-HARRBx roof bow harness to each installed STL40489-2 light.

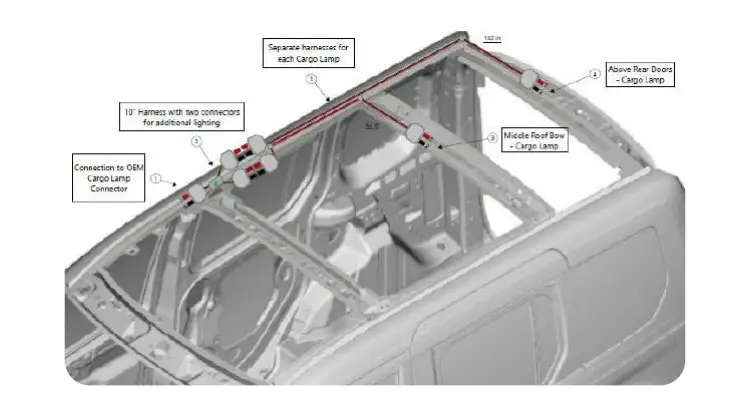

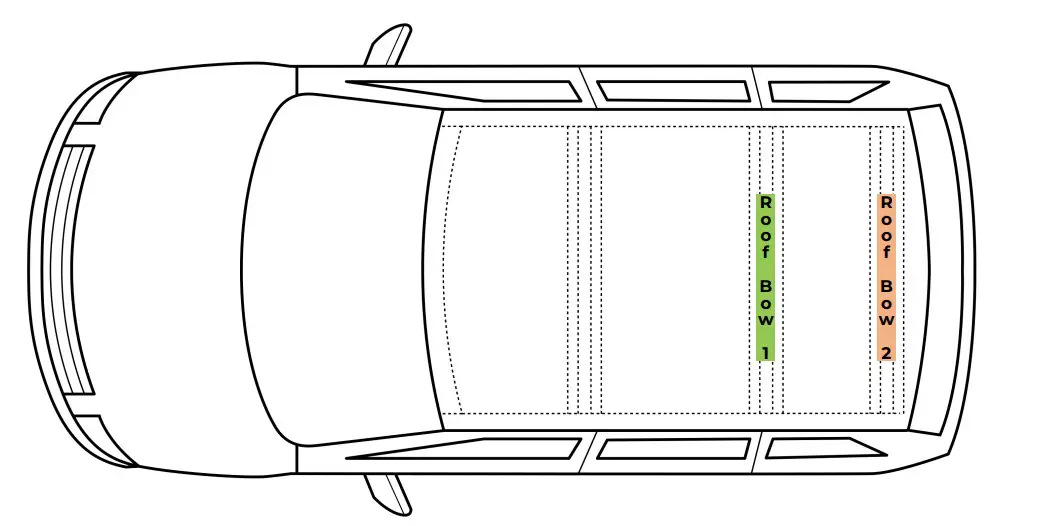

• Refer to the diagram on page 8 to confirm proper P-HARRBx for each roof bow

STEP 5: Use the fir tree cable ties that are packaged with each P-HARRBx to secure the harness to the vehicle’s roof bow. Trim off excess cable tie material with diagonal cutters after harness is secure. (Photo below is for reference only)

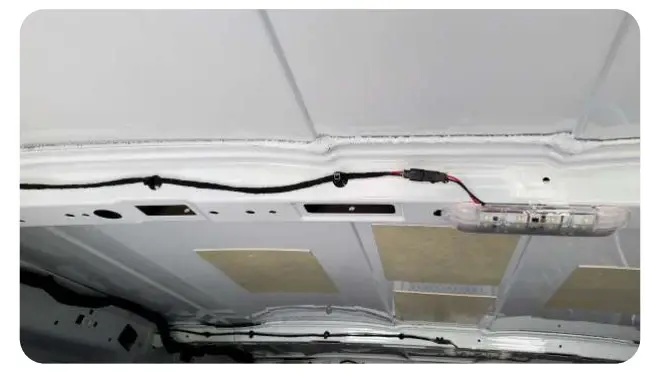

STEP 6: Route all P-HARRBx roof bow harnesses inside the channel that runs along the passenger/ curbside roof line

• Trim off excess cable tie material with diagonal cutters

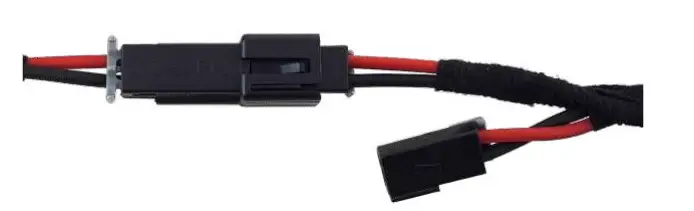

STEP 7: Plug all installed P-HARRBx harnesses into the mating connectors on the CL-FTC harness.

STEP 8: Confirm all installed STL40489-2 lights are operational
