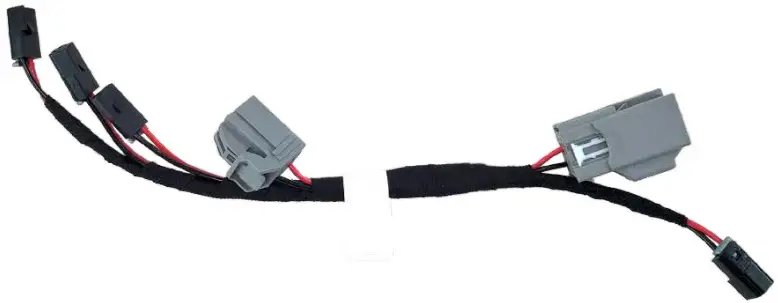

Thank you for purchasing the CL-FT2.

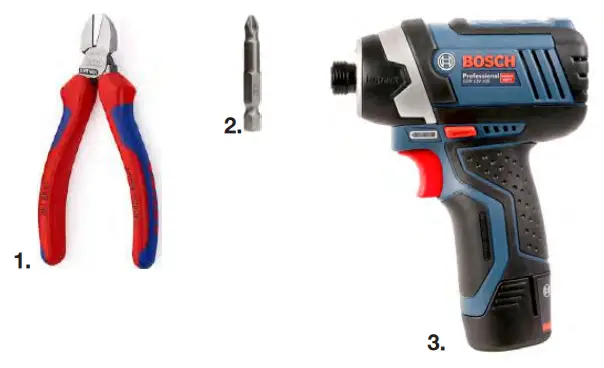

COMPATIBLE ACCESSORIES

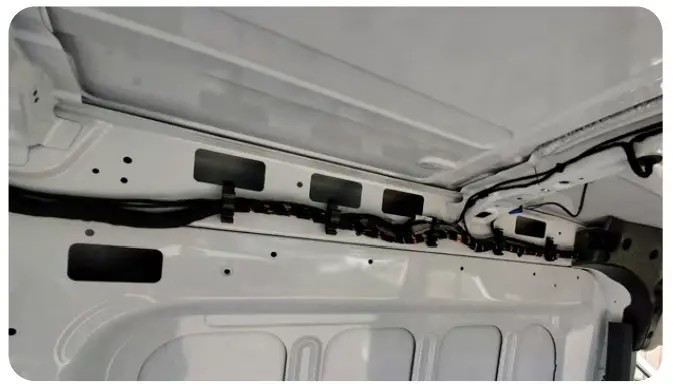

STEP 1: Remove the plastic covers that cover the OEM wire harnesses on the driver’s side of the vehicle.
- Note: The recommended method for removing the covers is to slide them off.

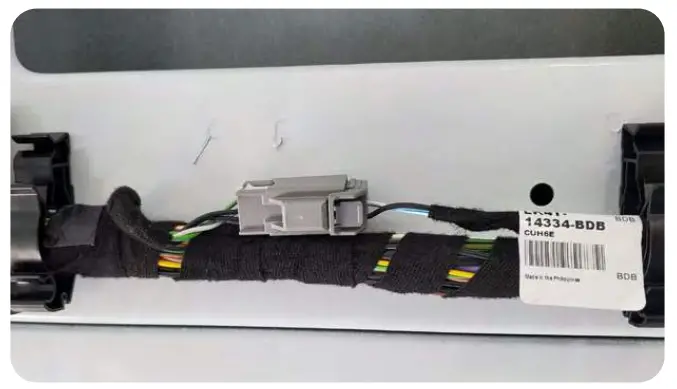

STEP 2: Locate the OEM Cargo Lamp connection that is behind the vehicle’s first roof bow on the driver’s side of the vehicle.

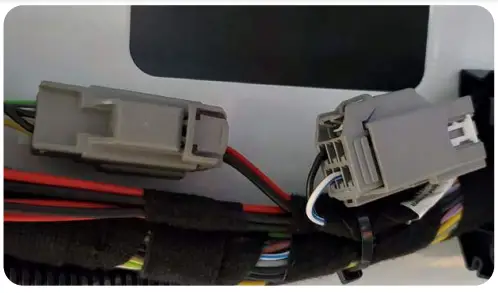

STEP 3: Unplug the OEM Cargo Lamp connectors and install the CL-FT2 harness between the two connectors.

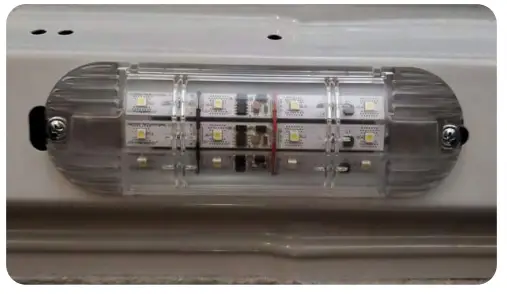

STEP 4: Install the STL40489-2 lights onto the center of each roof bow; leave the light connector exposed
- Peel the red adhesive liners off of the STL40489-2 and stick the light in place
- Use the provided 3/4” screws to secure the light to the roof rib

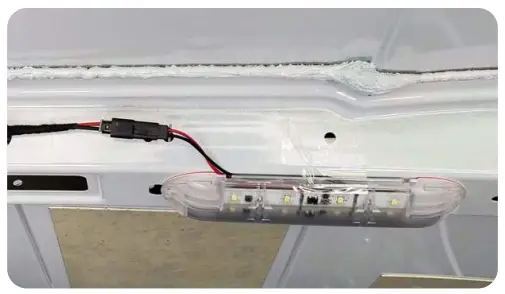

STEP 5: Connect the appropriate P-HARRBx roof bow harness to each installed STL40489-2 light.
- Refer to the diagram on page 8 to confirm proper P-HARRBx for each roof bow.
STEP 6: Use the fir tree cable ties that are packaged with each P-HARRBx to secure the harness to the vehicle’s roof bow. Trim off excess cable tie material after harness is secure.

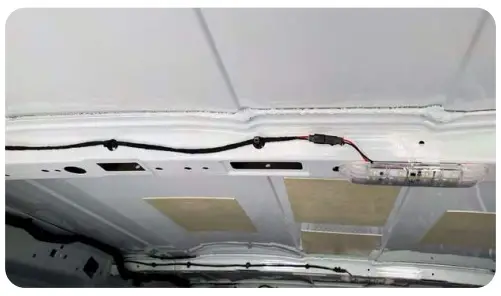

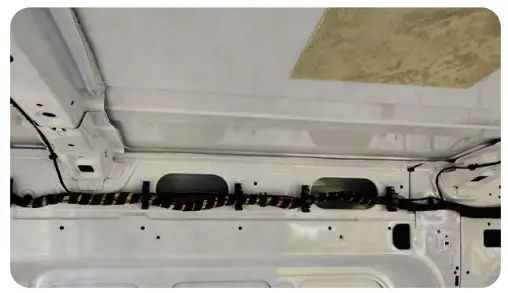

STEP 7: Route all P-HARRBx roof bow harnesses alongside the OEM wire harnesses.

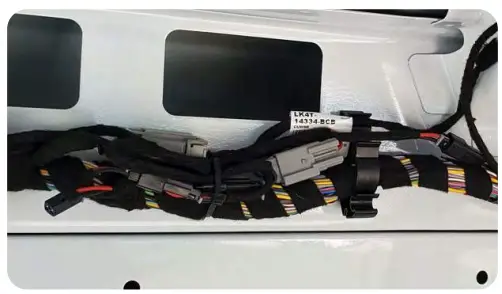

- Tuck the harnesses into place; behind the black plastic clips
STEP 8: Plug all installed P-HARRBx harnesses into the mating connectors on the CL-FT2 harness.
- Confirm all installed STL40489-2 lights are operational
- Re-install the plastic covers that go over the OEM wire harnesses
