ECHOMASTER CL-FT1 Wiring Harness for Cargo Lighting 2020-2021 Ford Transit Van

WHAT’S INCLUDED

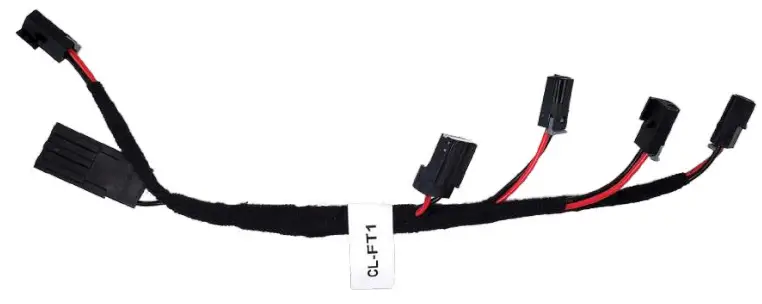

• Vehicle Specific Wire Harness (CL-FT1)
• 6” Cable Ties (25)

COMPATIBLE ACCESSORIES

• LED Dome Lamp (STL40489-2)
• 1100mm Roof Bow Harness (P-HARRB1)
• 1570mm Roof Bow Harness (P-HARRB2)
• 2570mm Roof Bow Harness (P-HARRB3)
• 3470mm Roof Bow Harness (P-HARRB4)

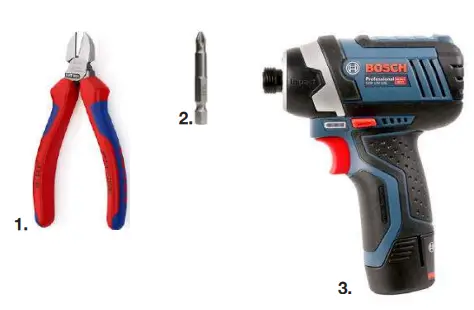

TOOLS REQUIRED

1. Diagonal Cutters
2. Phillips #2 Drill Bit
3. Drill

STEP 1:

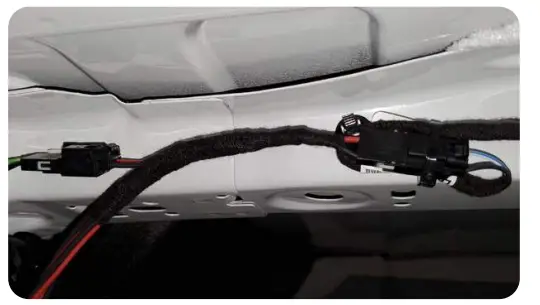

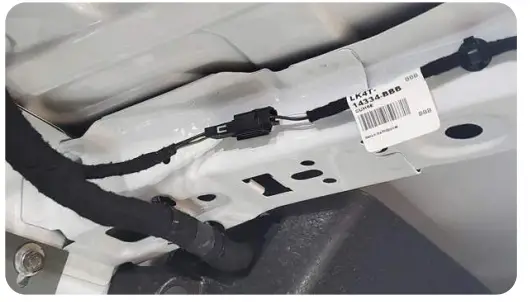

• Locate the OEM Cargo Lamp connection that is behind the vehicle’s first roof bow on the driver’s side of the vehicle.

STEP 2:

• Unplug the OEM Cargo Lamp connectors and install the CL-FT1 harness between the two connectors.

STEP 3:

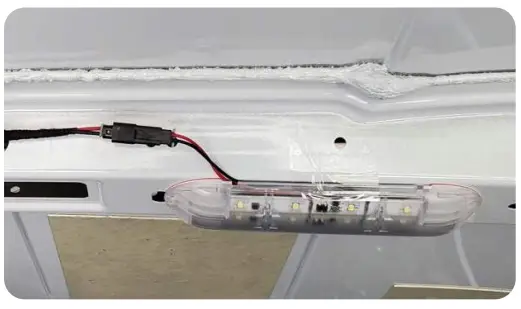

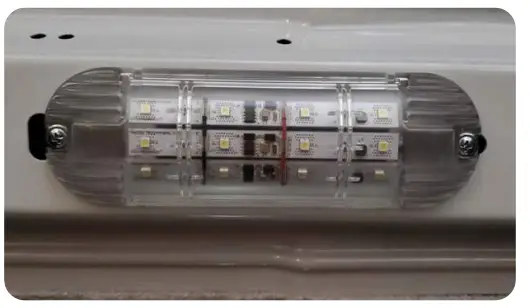

• Install the STL40489-2 lights onto the center of each roof bow; leave the light connector exposed
• Peel the red adhesive liners off of the STL40489-2 and stick the light in place
• Use the provided 3/4” screws to secure the light to the roof rib

STEP 4:

• Connect the appropriate P-HARRBx roof bow harness to each installed STL40489-2 light.

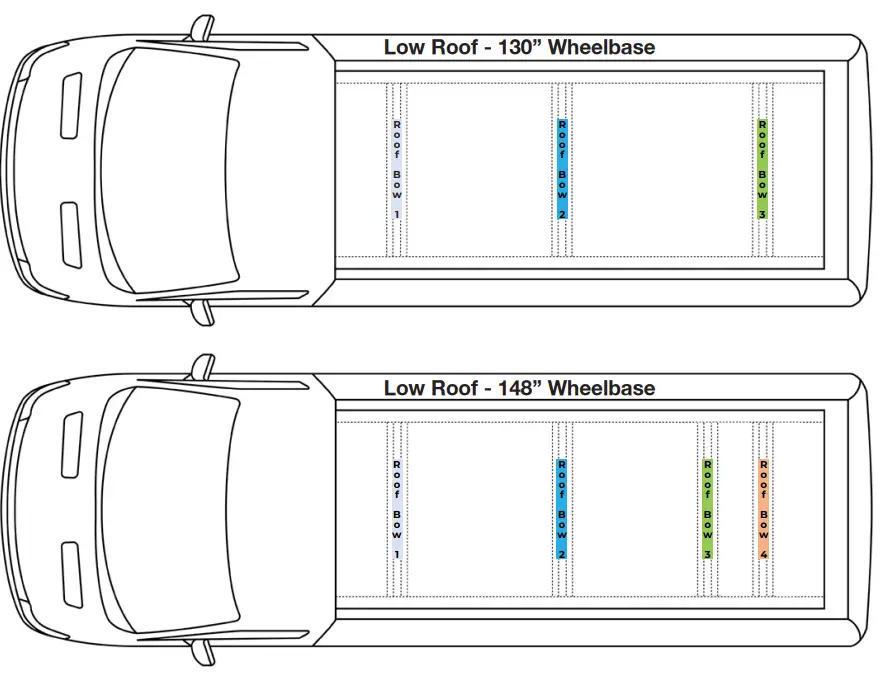

• Refer to the diagram on page 8 to confirm proper P-HARRBx for each roof bow

STEP 5:

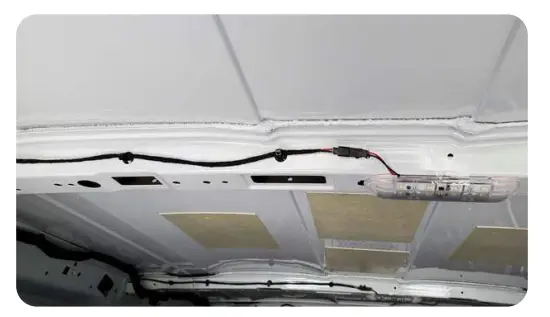

• Use the fir tree cable ties that are packaged with each P-HARRBx to secure the harness to the vehicle’s roof bow. Trim off excess cable tie material with diagonal cutters after harness is secure.

STEP 6:

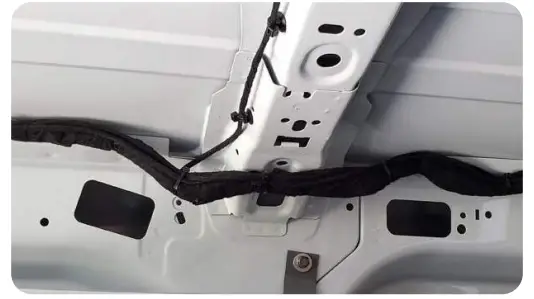

• Route all P-HARRBx roof bow harnesses alongside the OEM wire harnesses.
• Use the provided 6” cable ties to secure the harness
• Trim off excess cable tie material with diagonal cutters

STEP 7:

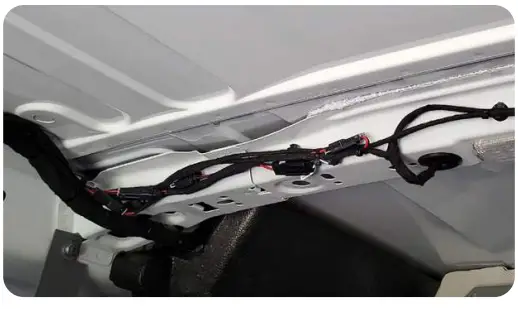

• Plug all installed P-HARRBx harnesses into the mating connectors on the CL-FT1 harness.
• Use the provided 6” cable ties to secure all harnesses
• Trim off excess cable tie material with diagonal cutters

STEP 8:

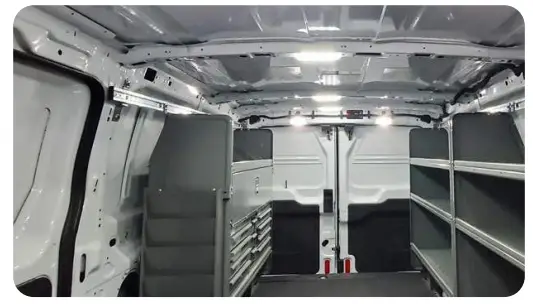

• Confirm all installed STL40489-2 lights are operational
