ECHOMASTER P-BUA-PROMASTER CITY Wiring Harness for Backup Alarm 2015-2020 Ram Promaster City

Thank you for purchasing the P-BUA-PROMASTER CITY

WHAT’S INCLUDED

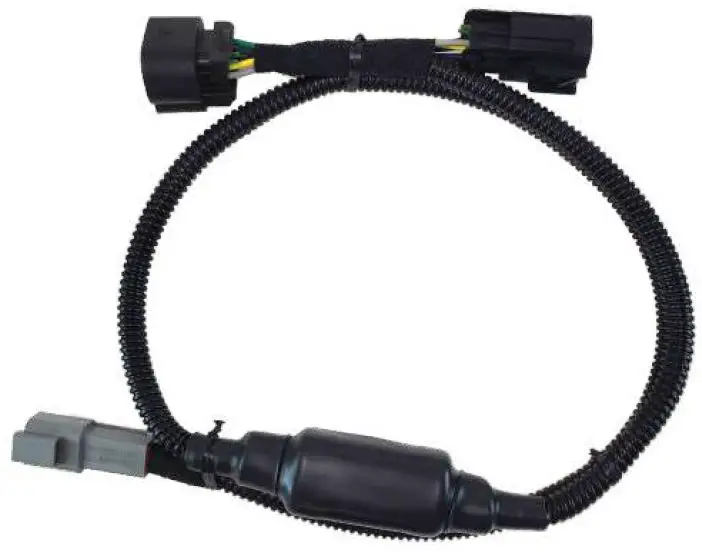

• Vehicle Specific Wire Harness (P-BUA-PROMASTER CITY)

COMPATIBLE ACCESSORIES

• 97dB Backup Alarm (BUA-97C)
• 97dB White Noise Backup Alarm (BUA-97WNC)

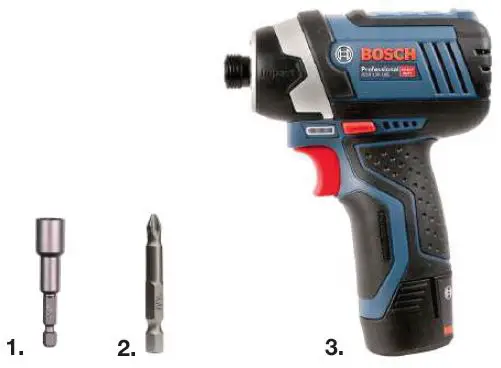

TOOLS REQUIRED

1. 10mm Nut-setter
2. #3 Phillips Bit
3. Impact Drill

INSTALLATION

STEP 1:
Use an impact drill and #3 Phillips bit to remove the driver-side tail lamp assembly

STEP 2:

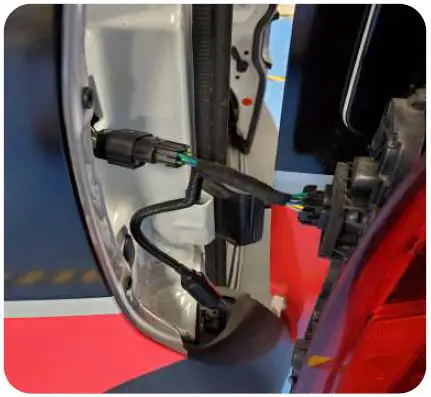

Unplug the OEM tail lamp connector and install the P-BUA-PROMASTER CITY harness between the OEM connectors

STEP 3:

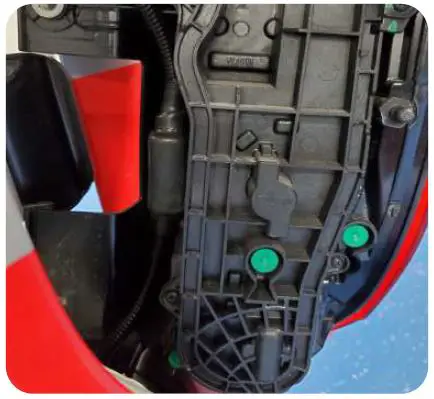

Route the harness down the tail lamp cavity and re-install the driver-side tail lamp

Note: Make sure the in-line filter on the harness is tucked into the lamp housing as shown or the lamp will not fit back into place

STEP 4:

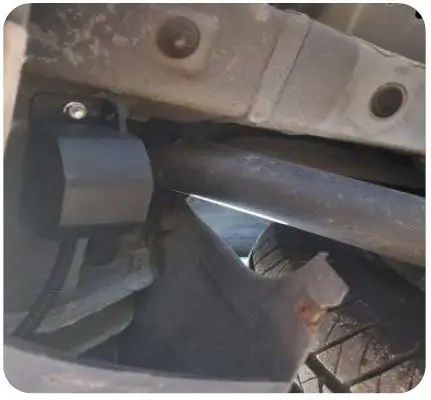

Use an impact drill and 10mm nut-setter to install a compatible backup alarm on the underside of the vehicle

Note: (2) 10mm TEK screws are provided with the compatible backup alarm

STEP 5:
Plug the backup alarm connector into the mating connector on the P-BUA-PROMASTER CITY harness.

STEP 6:
Test the backup alarm

Contact Information

Phone – 866-766-2267
E-Mail – [email protected].
