AAMP P-BUA-RANGER Wiring Harness for Backup Alarm 2019-2022 Ford Ranger Instruction Manual
Thank you for purchasing the
P-BUA-RANGER
Page 3 – Tools Required For Installation
WHAT’S INCLUDED

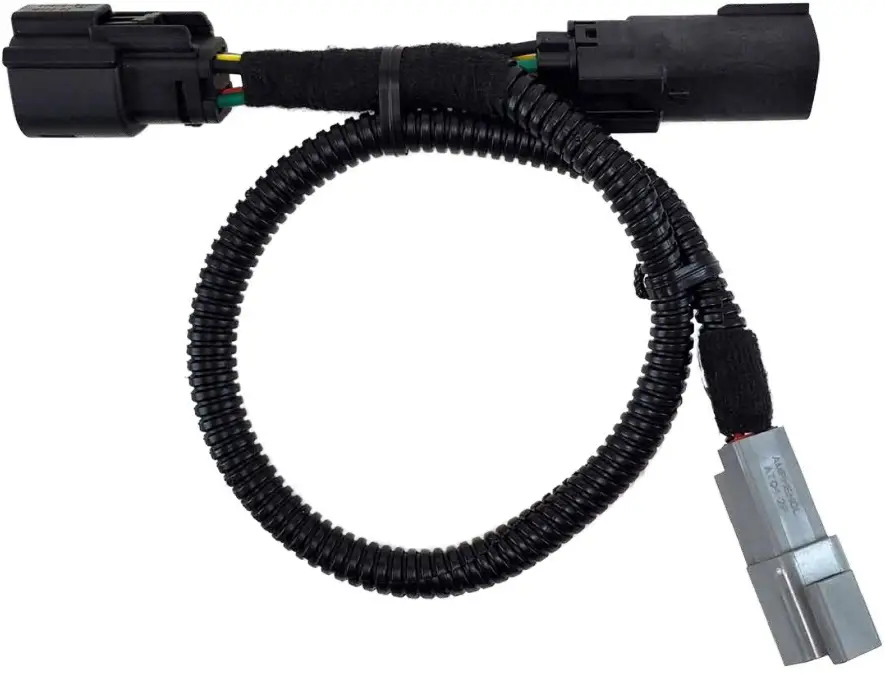

- Vehicle Specific Wire Harness (P-BUA-RANGER)
COMPATIBLE ACCESSORIES
- 97dB Backup Alarm (BUA-97C)
TOOLS REQUIRED

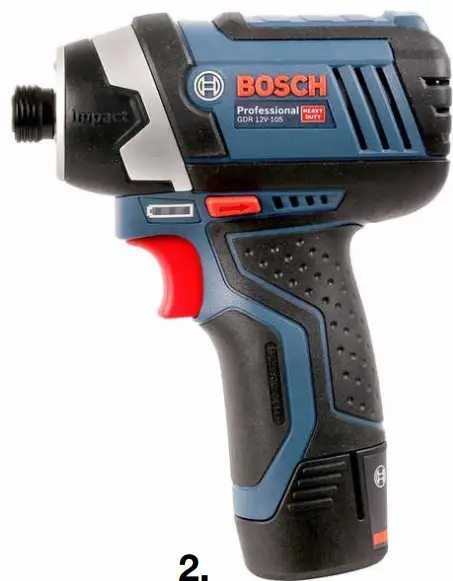

- 10mm Nut-setter
- Impact Drill

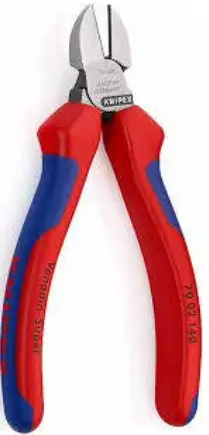

- Diagonal Cutters
Instruction
STEP 1:

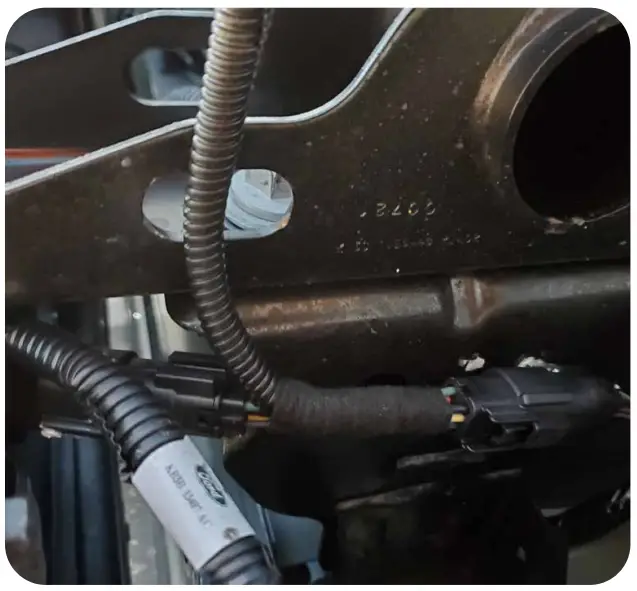

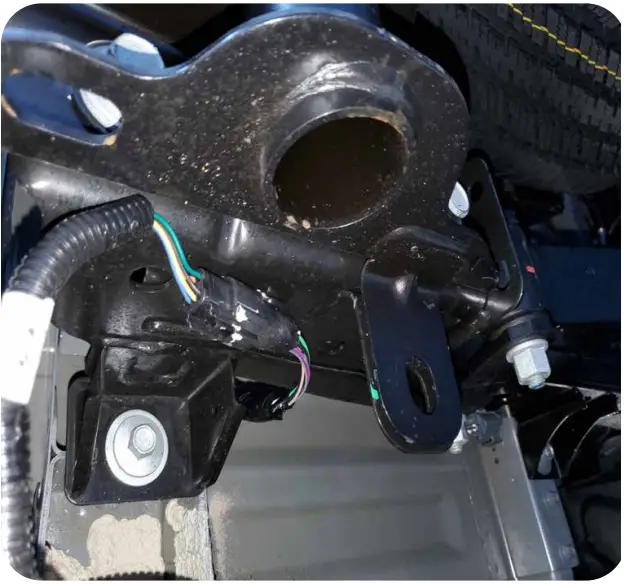

Locate the OEM tail lamp connector that is on the outside of the driver side frame rail 4 5
STEP 2:
Unplug the OEM connector and install the P-BUA-RANGER harness between the OEM connectors
STEP 3:
Route the harness over the top side of the frame rail, toward the center of the truck
STEP 4:
Use an impact drill and 10mm nut-setter to install a compatible backup alarm on the underside of the vehicle
Note: (2) 10mm TEK screws are provided with the compatible backup alarm
STEP 5:
Plug the backup alarm connector into the mating connector on the P-BUA-RANGER harness. Secure any excess wiring with cable ties. Use diagonal cutters to remove excess cable tie material.
STEP 6:
Test the backup alarm
