Bose Acoustimass 6 Series V Stereo Speaker System Owners Manual

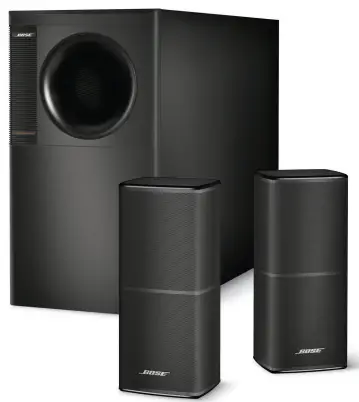

Bose Acoustimass 6 Series V Stereo Speaker System

Important Safety Instructions

• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in a way, such as power-supply cord or plug

Introduction

We appreciate your choice of the Bose® Acoustimass® 6 series V or Acoustimass 10 series V home theater speaker system. The Acoustimass 6 features five small cube speakers, while the Acoustimass 10 system features four cube speaker arrays and a center front speaker. These speakers, together with the Acoustimass module, produce a powerful and realistic home theater experience.

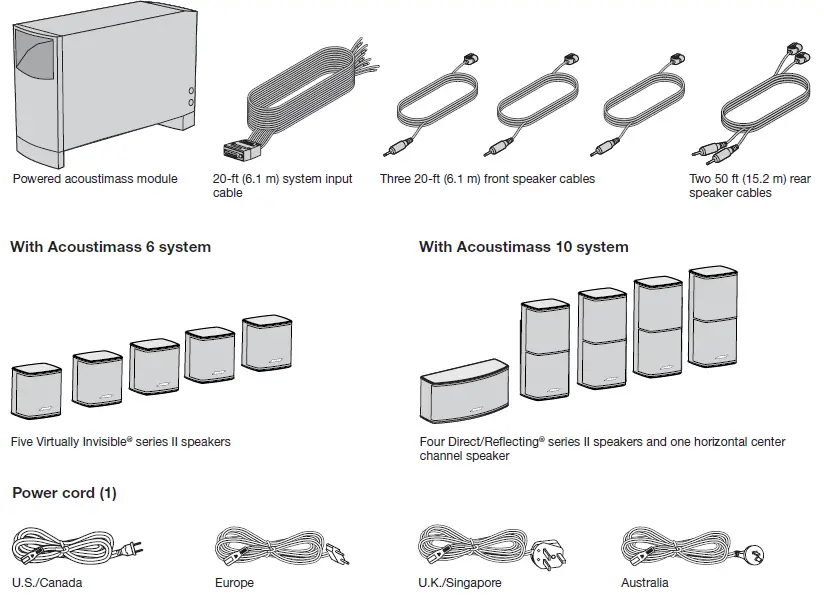

Unpacking the carton

Placing your speakers to achieve realistic home theater sound

• The Acoustimass® module should be at least 2 feet (.6 m) from your TV set to prevent interference.
• Select a stable and level surface for each of the speakers.
• In an Acoustimass 10 system, the center channel speaker is for use at the front of the room and near the center of your TV. The other speakers are identical and can be placed interchangeably around the room.
• In the Acoustimass 6 system, all five speakers are identical and can be placed interchangeably around the room.

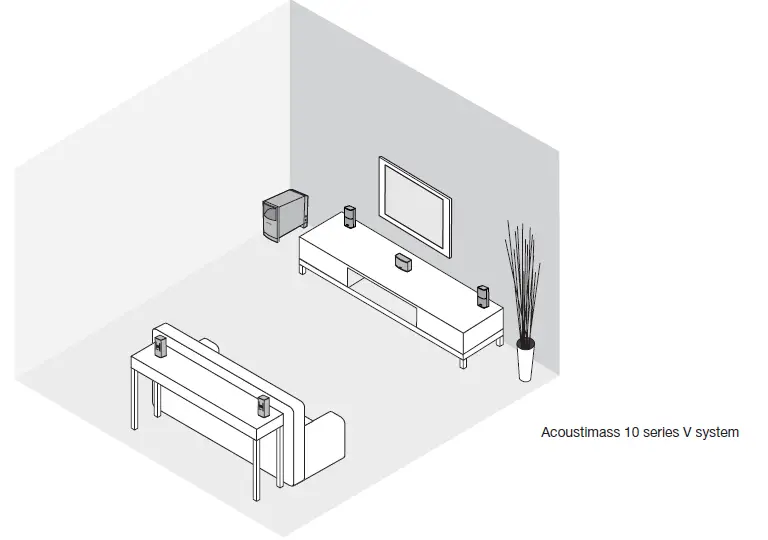

• The shape and size of your room and location of the furniture in it will affect your choice of speaker locations. Use the example below as a guideline for your home theater setup.

Setting Up

Front left and right speakers

• The goal for these is to create a sound image wider than the screen that seems natural to viewers sitting anywhere in the room.
• Place these two front speakers on either side of your TV.
• Keep them 6 feet (2 m) to 15 feet (5 m) apart and at least 6 inches (15 cm) away from any CRT (picture tube) TV.

Center speaker

• Sound from the center speaker should seem to come from within the picture to give the most realistic performance of on-screen action and dialogue.
• Place the center speaker above, on top of, or below your TV. Do NOT rest the weight of the TV on the speaker.
• Keep the speaker in line with the vertical center of the screen, if possible, for the most accurate reproduction of dialogue.
• Keep the speaker at least 6 inches (15 cm) away from any CRT (picture tube) TV.

Rear speakers

• While the rear (surround) speakers may deliver some dialogue, they serve primarily to deliver discrete sounds and special effects that expand the visual image. They help bring the viewer into the center of the action.
• Choose locations that are practical and convenient, while considering these recommended guidelines:
• Position the left and right rear speakers so they can deliver sound on both sides of the viewer, rather than from directly behind.
• Place these speakers at the same height as the ears of a seated viewer or higher.

Powered Acoustimass® module

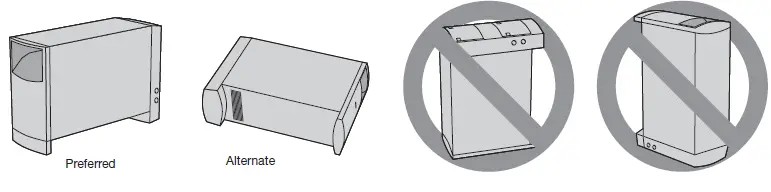

• Acoustimass speaker technology makes it difficult to locate the source of low-frequency sound from this module. So feel free to hide it from view. Place the module according to the following guidelines:
• At the same end of the room as the TV screen.
• At least 2 feet (.6 m) from your TV set to prevent interference.
• To increase bass effects, turn the front opening toward a wall; turn it away from the wall to decrease bass effects.
• Keep both the front opening and the ventilation grille on the bottom of the module at least 2 inches (5 cm) from any other surface.
• Do not block the ventilation grilles located on the bottom of the module. Impeding ventilation can cause a reduction in the  bass-frequency output from the module.

Setting Up

Making the connections

Only the Acoustimass® module connects to your receiver. The speakers all connect directly to the Acoustimass module.

Connecting speakers to the Acoustimass module

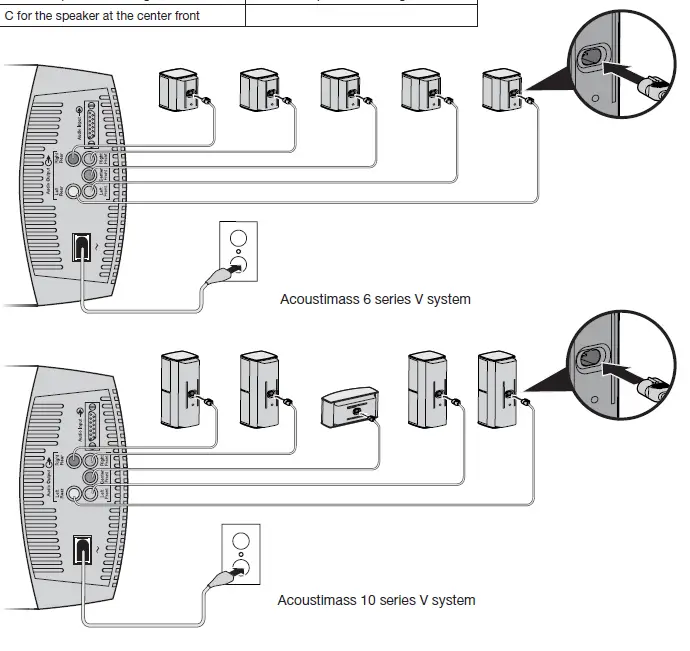

• Insert the plug on each speaker cable into the connector on the module. Match the label on the plug to the proper connector.
• Use the supplied 20-ft (6.1 m) speaker cables for the three front speakers.
• Insert the R plug into the connector labeled Right Front.
• Insert the C plug into the connector labeled Center Front.
• Insert the L plug into the connector labeled Left Front.
• Use the supplied 50-ft (15.2 m) speaker cables for the speakers at the rear of your room.
• Insert the RR plug into the connector labeled Right Rear.
• Insert the LR plug into the connector labeled Left Rear.
• Insert the other end of each cable into the connector on each speaker, with the label facing down.

Connecting the Acoustimass® module to the receiver

The system input cable is 20 feet (6.1 m) long and connects to your surround receiver. Unlike the speaker cables, this input cable has a multi-pin connector that inserts into the Audio Input connector on the module.

The single RCA plug at that end is for use ONLY with a receiver that handles low-frequency effects and provides an LFE/SUBWOOFER connector.

To make the connections:

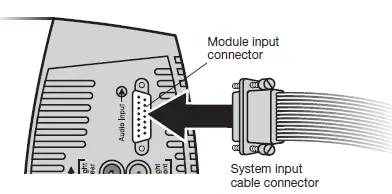

• Insert the multi-pin connector on the system input cable into the input connector on the Acoustimass® module. Tighten the two thumbscrews to secure the connection.

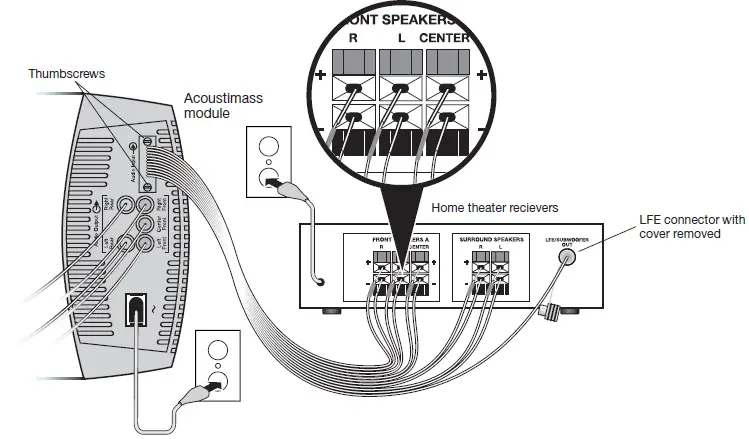

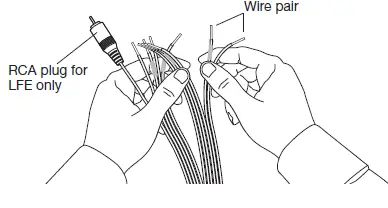

• Connect each wire pair on the other end of the system input cable to your surround receiver, which should have audio output terminals labeled:
• Right, Left, and Center for the front audio channels.
• Right Surround and Left Surround for the rear channels. The specific labels on your receiver may differ slightly.
• Do not allow exposed wires to brush against each other; this could damage your receiver.
• Carefully match the polarity of the connections (+ to + and – to –).
• Attach each red-collared wire (+) to the appropriate + terminal.
• Attach each plain wire (–) to the appropriate – terminal.
• If applicable to your receiver, insert the RCA plug marked LFE on the system input cable into the LFE/SUBWOOFER OUT connector on your surround receiver. Remove the cover first.

Checking the connections

• Make sure all speakers are connected to the proper terminals according to their position in your room.
• Check to be sure all wires are connected to your surround receiver with the proper polarity (+ to + and – to – wires). Incorrect wiring can result in a total loss of module output.
• Correct any wiring problems before you plug in your receiver and turn it on.
• When all the connections check out, plug the power cord from the Acoustimass module into an AC (mains) outlet. Plug in the receiver also.

Using Your System

Getting the most from your home theater speakers

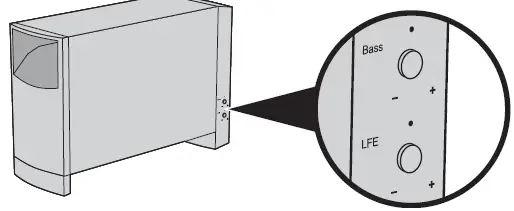

With system connections completed and the module plugged in, your Acoustimass® system is now ready for use. Familiarize yourself with the controls and built-in protections that adjust the audio of this system. They offer options to suit your particular  tyle of use and preferences.

Setting your digital surround sound receiver

Speakers in your Acoustimass® 6 series V or Acoustimass 10 series V system are fully compatible with the audio output of digital surround receivers. The system’s integrated signal processing supports full low-frequency reproduction from all channels. To gain complete advantage of these system capabilities, you may want to adjust some settings on your receiver. To make changes, use the digital display menu on the receiver and refer to the list of recommended settings below

Receiving a digital audio signal

• For the digital audio signal from additonal sources (Blu-ray™ or DVD player, CBL/SAT box, gaming system, etc.) to reach your surround receiver, you need a digital audio connection between the additonal source and receiver.

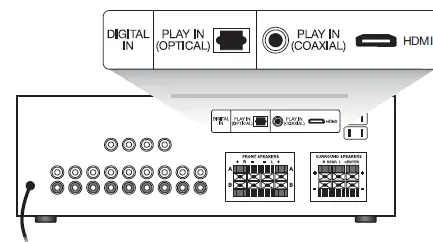

• Use either the HDMI™, Optical or Coaxial input on the receiver to connect to the digital output from the additional source. Do not use more than one connection.
• Be sure to select the digital output in the setup menu of your additional source.
• For additional setup and operating information, please refer to the owner’s guide that came with your surround receiver.

Setting your analog surround sound receiver

For analog (non-digital) surround sound applications, we recommend that you set the surround sound center mode of your receiver to Wide. For instructions on how to change this setting, refer to the owner’s guide provided with your surround receiver.

Troubleshooting

Customer service

For additional help in solving problems, contact the Bose® Customer Service office appropriate to your area. See the contact sheet in the carton.

Cleaning

The cabinets of your Acoustimass® speaker system may be cleaned only with a soft dry cloth. Do not use any sprays near the system or allow liquids to spill into any openings. Also, do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives. The grille assemblies on the speakers may be carefully vacuumed, if necessary. Please note that the drivers are located directly behind the grille and are easily damaged if reasonable care is not taken.

Limited warranty information

Your Acoustimass® speaker system is covered by a limited warranty. Details of the warranty are provided on the warranty card that came with your system. Please fill out the information section on the card and mail it to Bose. Failure to do so, however, does not affect your rights. The warranty information provided with this product does not apply in Australia or New Zealand. See our website at www.bose.com.au/warranty or www.bose.com.nz/warranty for details of the Australia and New Zealand warranty.

Accessories

You can place system speakers on wall brackets, table stands or floor stands. To purchase these accessories, contact your local Bose® dealer or visit www.Bose.com.
For the following accessories:

• Input cable adapter for use with in-wall wiring from the Acoustimass module to the receiver
• 20-ft (6.1 m) extension cable for use between the Acoustimass module and the receiver
• Speaker cable adapters for use with in-wall wiring
• Contact your authorized Bose dealer. Or to contact Bose directly, refer to the contact sheet in the carton.

Technical Information

Acoustimass® 10 system:

• Cube speaker arrays and center front speaker:
• Two 2.5″ (6.35 cm) Twiddler™ speakers
• Powered Acoustimass module:
• Two 5.25″ (13 cm) woofers

Acoustimass 6 system:

•  Cube speakers:
• One 2.5″ (6.35 cm) Twiddler™ speaker
• Powered Acoustimass module:
• One 5.25″ (13 cm) woofers

System power rating

Acoustimass 10 system:

• U.S./Canada: 100-127V 50/60 Hz 270W
• Europe/Australia: 220-240V 50/60 Hz 270W

Acoustimass 6 system:

• U.S./Canada: 100-127V 50/60 Hz 135W
• Europe/Australia: 220-240V 50/60 Hz 135W

Connectivity

Acoustimass 10 system:

• Compatible with A/V receivers and amplifiers rated from 10 to 200 watts per channel, rated from 4 to 8 ohms

Acoustimass 6 system:

• Compatible with A/V receivers and amplifiers rated from 10 to150 watts per channel, rated from 4 to 8 ohms

Acoustimass 10 system:

• Cube speaker array and center front speaker: 2.2 lb (1kg) each
• cube speaker array: 7.4″H x 3.2″W x 3.3″D (15.7 cm x 7.9 cm x 10.2 cm)
• center front speaker: 3.4″H x 7.3″W x 3.2″D (15.7 cm x 7.9 cm x 10.2 cm)
• Module: 35 lb (15.8 kg)
• 16.3″H x 8.1″W x 25.3″D (41.4 cm x 20.6 cm x 64.3 cm)

Acoustimass 6 system:

• Cube speaker: 1.18 lb (0.45 kg) each
• 3.7″H x 3.2″W x 3.3″D (9.5 cm x 8.3 cm x 8.4 cm)
• Module: 27 lb (12.2 kg)
• 16.3″H x 8.1″W x 22.3″D (41.4 cm x 20.6 cm x 56.6 cm)
