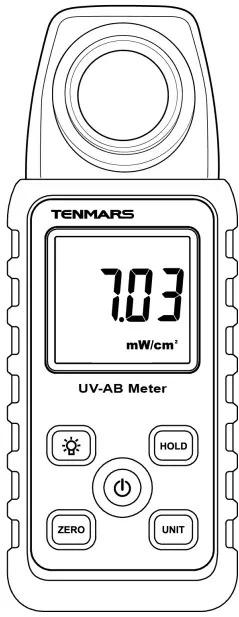

TENMARS TM-223 Mini Pocket UVAB Light Meter

Introduction

Please, read the operating instructions in details before you use this UVAB optics meter, so you will operate the meter correctly. This meter can be used in industry and home.

Application:

Monitoring blue light radiation hazards in welding.
UV sterilization.
Graphic arts.
Photochemical matching.
UV EPROM erasure.
Photos resist exposure.
Curing of inks, adhesives and coatings.
Convenient, no need to adjust, data displayed clearly.
Weathering “degradation studies”.
UV sterilization.
Virology.
Microbial genetics.
DNA research.
Biologic hoods.
General laboratory use.

Accessories

1 Meter
1 Carrying case
1 User’s Manual
2 Battery 1.5V( AAA MN2400 LR03 AM4)

Safety Precaution

	Caution! Please refer to this manual. Improper use may damage the meter and its components.
	Complies with European Directive.

Do not operate in environments with flammable gas or humid environments.
Operating altitude: up to 2000M.
Operating environment: Indoor use; Pollution degree 2.
Clean with soft cloth when dirty, such as glasses cloth.
Do not clean with chemicals and other solvents.
EMC: EN61326-1:CISPR 11:Group 1, Class B
Class B – Equipment for use in all establishments other than domestic.
Group 1 – RF energy generated is needed for internal functioning.

Instrument Description

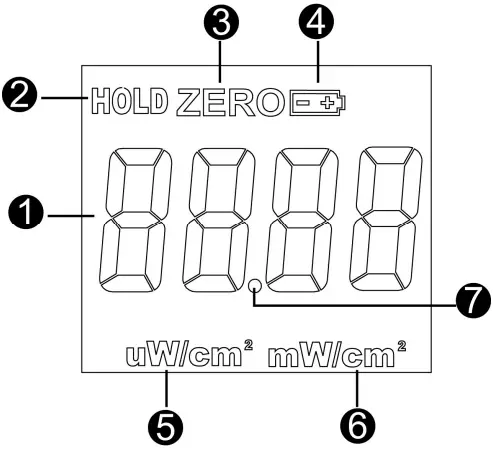

The LCD display SHOWS

Main display
Reading lock.
ZERO display.
Low power reminder display.
uW/cm2 unit display.
mW/cm2 unit display.
Decimal point display.

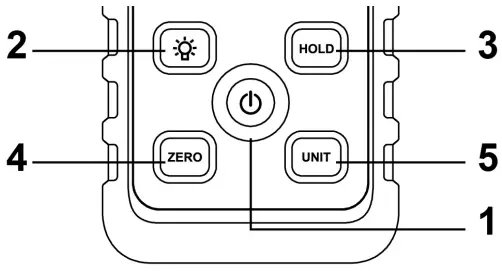

Buttons:

Power button.
Backlight button.
Data hold button.
Zero button.
UNIT buttons

General Specifications:

Zero function.
1uW/cm2 or 1.00mW/cm2 unit selection.
Data hold.
Back light: it will turn off automatically after turned on for 15 seconds .
Low battery indication
Overload display: “OL”.
Low battery indication” “:
Auto power off of 15 minutes.
Operating : Temperature 5℃~40℃, below 80%RH.
Storage temp. & RH : -10℃~60℃, below 70%RH.
Sensor: UV light sensor

Electrical Specifications

DISPLAY	3-3/4 digits LCD with maximum reading 4000
Measuring range	4000μW/cm2 ,20mW/cm2
Resolution	1μw/cm2 ,0.01mW/cm2
Accuracy	± 4(%FS + 2dgt) FS: full scale 15%:sunlight ultraviolet.
Spectrum Range	290~390nm
Calibration Point	365nm
Sample Time	Approx. 3 sec.
Power Supply	2 batteries 1.5V
Battery life	approx. 50 hr
Weight	approx. 90g..
Size	133(L) x 48(W) x 23 (H)mm

Operation

Power button

Press the “ ” button to turn ON or turn off.

Button

Press the “ “button for the zero adjustment if any digits are appearing. When the lid of the light receiving part is not opened, if it is found that it is not zeroed

Button

Press“ ”key backlight light on.
Backlight light turns off automatically after 15 seconds.

button

Press the “ ” button to switch from uW/cm2 to mW/cm2 .

Data hold button

Press to enable or disable the data hold function.

Maintenance or Repair

When the When “ ” symbol is displayed on the LCD, it means that there is insufficient power; please
change the battery immediately in order to ensure its accuracy.
Do not place the meter in locations that have high temperature, humidity or that are exposed to direct sunlight.
Remember to turn off the power after usage; remove the battery if not used for a long period of time in order to prevent battery leakage and causing damages to internal components.
When the instrument failure, only by the authorized service provider or return the original repair.

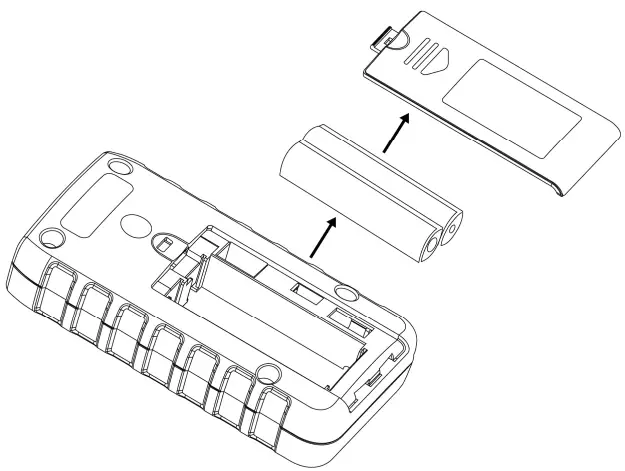

Battery Replacement

Turn off the power.
Open the battery cover at the back of the meter, remove the batteries.
Please insert new 1.5V x 2 batteries according to the polarities.
Put the battery cover back in place.

Product Disposal

Note: This symbol indicates that the meter and its accessories must be separated and processed properly.
