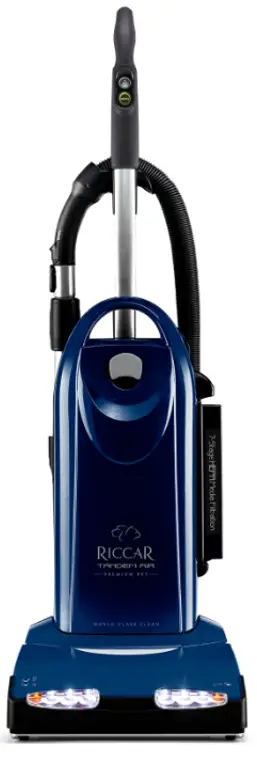

Riccar R40p Tandem Air Radiance Upright Vacuum Cleaner Owner's Manual

Owner’s Manual
R40P & R30D

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT: The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended.
WARNING: To reduce the risk of fire, electric shock, damage, or injury:

• Do not leave the appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only the manufacturer’s recommended attachments.
• Do not use a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Riccar Retailer for service.
• Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without a vacuum bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not attempt to service the unit while appliance is plugged in.

2-WIRE POLARIZED POWER CORD

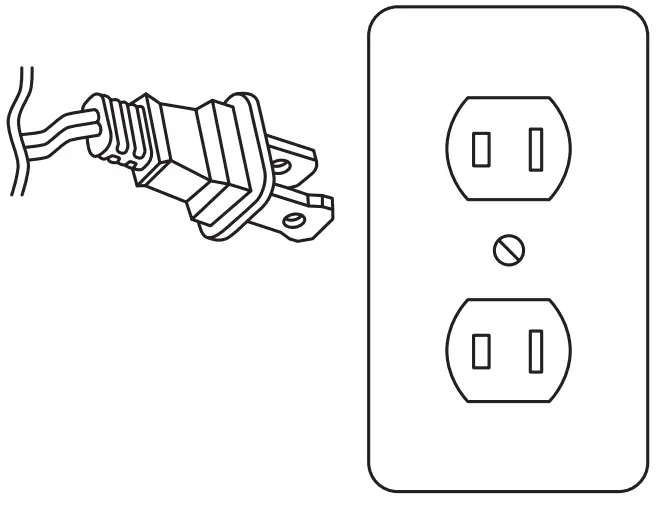

To reduce the risk of electric shock, the charger is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

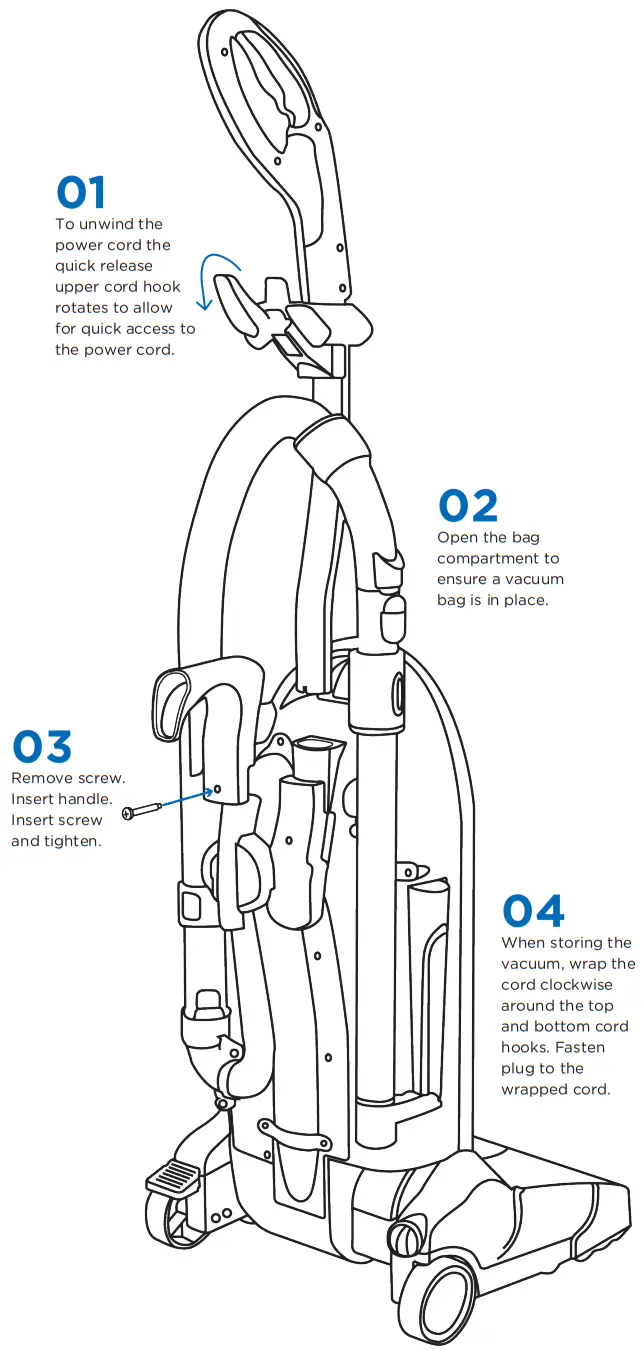

ASSEMBLY

OPERATING

TIP
When the vacuum is turned on and in an upright position, the brush roll will not spin. Brushroll will spin when the handle is lowered and the carpet button illuminated.

TIP

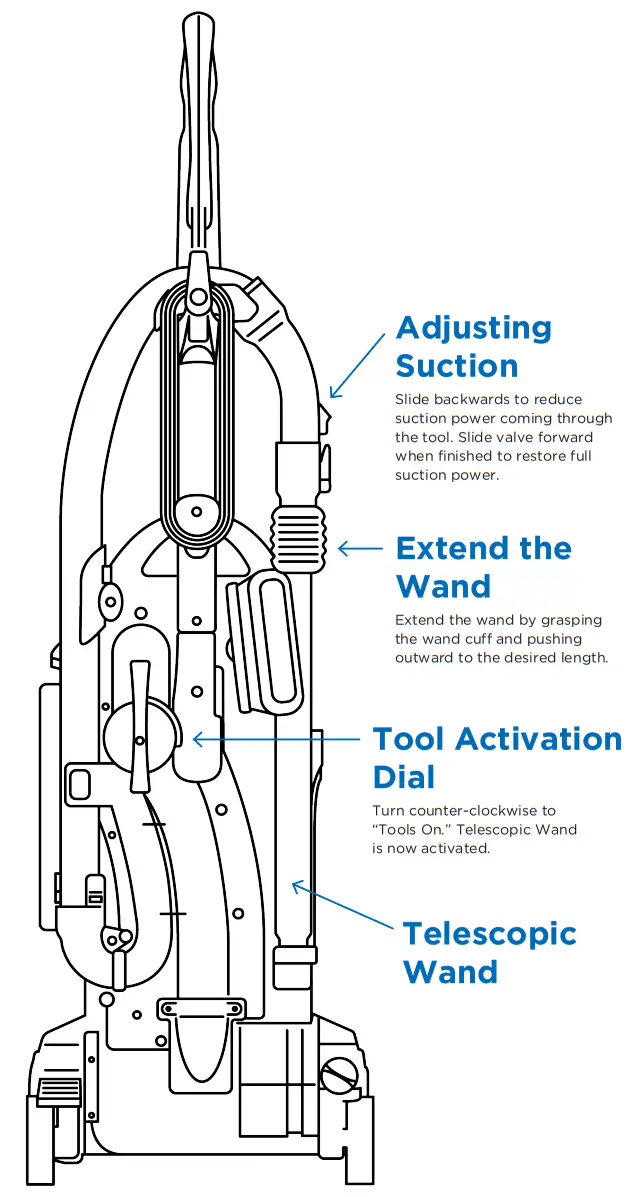

Attach any of the tools to the end of the Telescopic Wand. Dusting brush, upholstery tool, crevice tool, and pet tool (R40P model).

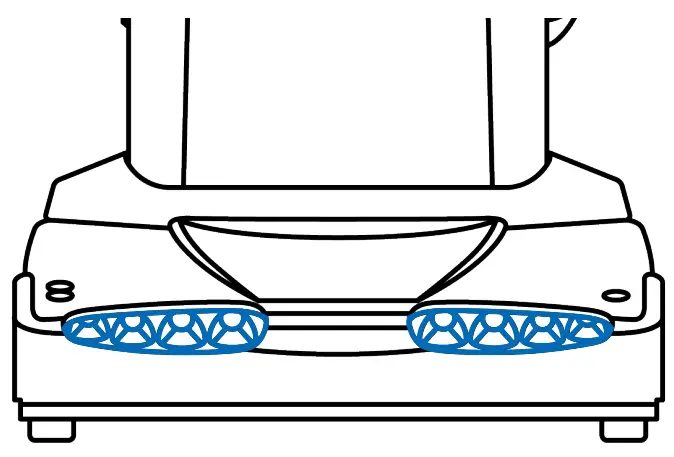

Amber Lights
Illuminate the edges of the cleaning path when your vacuum detects dirt is being picked up (carpet cleaning mode only). When vacuum has removed all of the deeply embedded dirt the amber lights no longer illuminate.

Carpet Height Adjustment
MAX …..Shag/Frieze
X-Hi….Plush carpet
Hi …….Medium pile carpet
Auto ……General setting
Floor …..Bare Floor
Lo …..Low pile carpet

TIP
If it becomes difficult to push the vacuum across the carpet, adjust the dial to a higher carpet setting.

Attachment Cleaning

Fur-Get-It!
Pet Hair Remover Tool (R40P model)
Ideal for removing pet hair from upholstery, stairs, and vehicles.

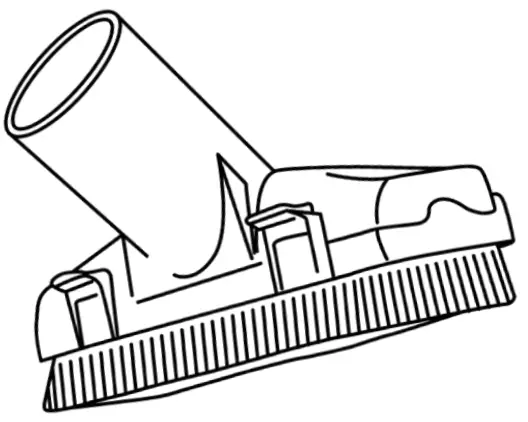

Dusting Brush
Ideal for tabletops, shelves, and blinds.

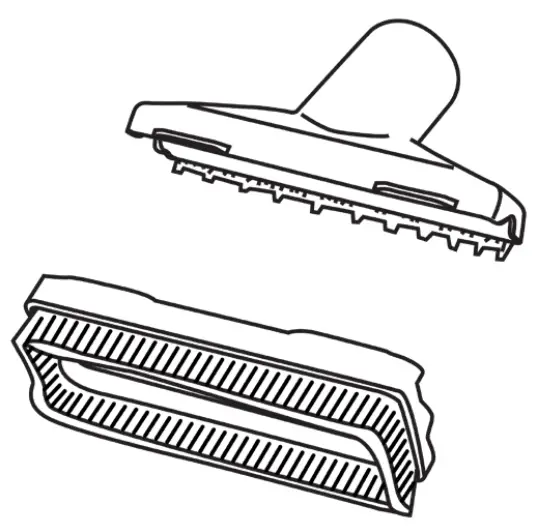

Upholstery Tool
Remove the dusting brush clip for upholstery cleaning. Ideal for soft surfaces like chairs and couches.

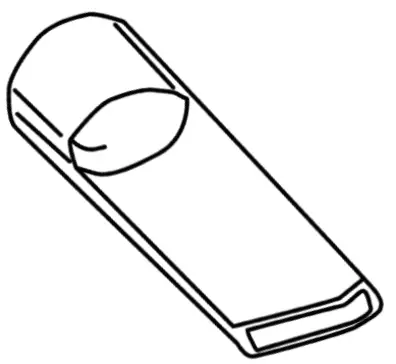

Crevice Tool
Ideal for tight places like between seat cushions or corners.

TIP
You can also connect tools directly to the curved handle for tasks where a wand is not needed.

MAINTENANCE

SAFETY FIRST
Unplug the Vacuum before performing any maintenance on your vacuum.

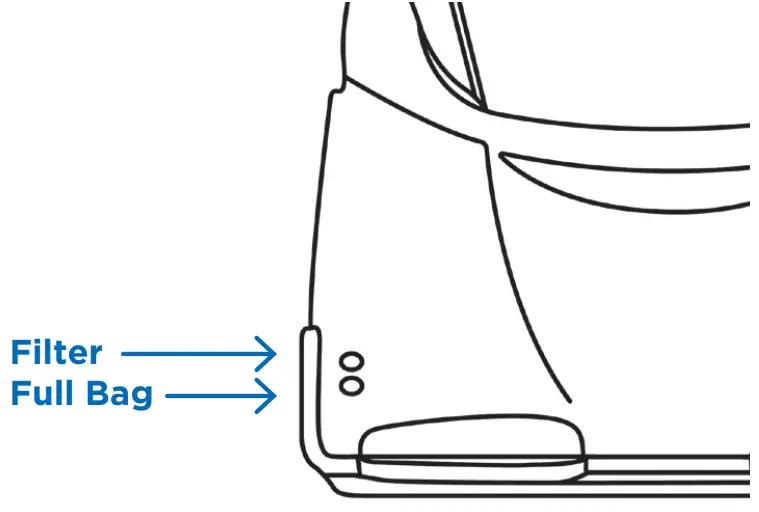

Full Bag Indicator Light

• Shows when the bag is full or when there is a clog in the vacuum.
• Certain materials like fine powders such as flour or drywall dust could cause the light to come on. They can block the bag pores. The vacuum bag should be changed.

TIP
The vacuum bags are disposable and intended to only be used once.

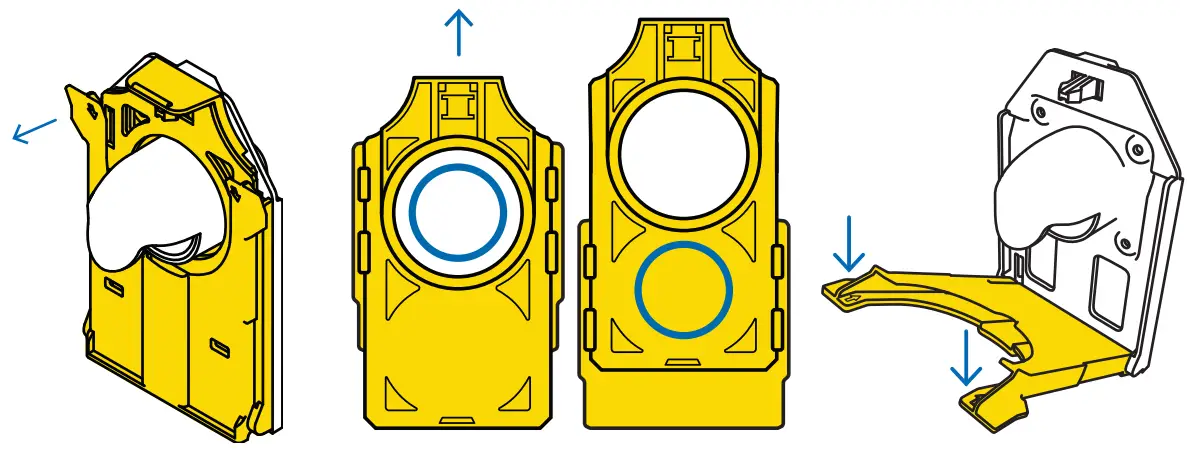

Changing Bags

01 Unzip Bag Compartment
02 Pull Tab Outward
03 Seal the bag and remove
04 Insert new bag in grooves and snap into place

NOTE
Model R30D has a blue bag collar.
Model R40P has a yellow bag collar.

When to Change the Filters

R40P Model

• Replace after 25 hours of operation.

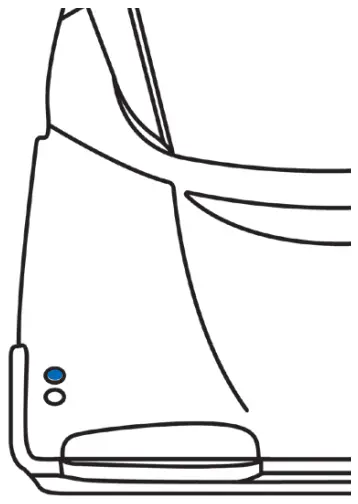

• The filter light will illuminate on the nozzle of your vacuum when 25 hours of operation have elapsed.

R30D Model

• Replace the filters once a year or after using 12 vacuum bags.
• If someone in your household is sensitive to airborne allergens, it is recommended to change the filters after every six vacuum bags.

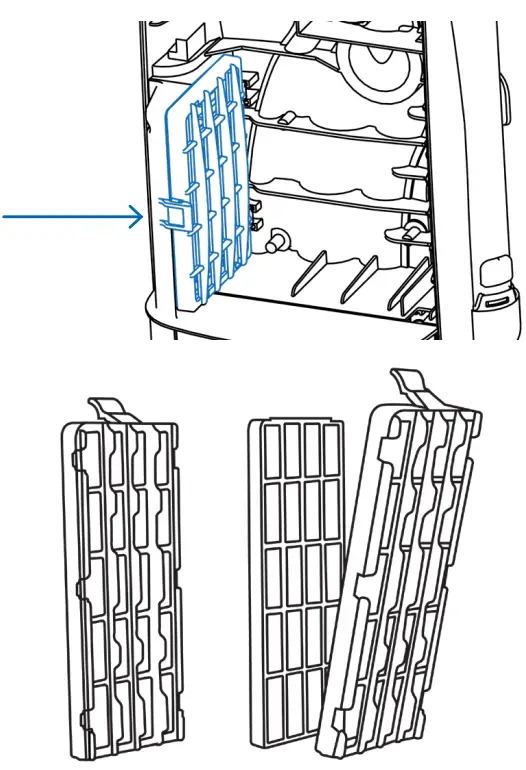

Replacing Granulated Charcoal Filter

01 Open the bag compartment lid and locate the filter on the left side of the bag compartment.
02 Use the latch on the side to remove and discard the entire filter cartridge.
03 Insert a new granulated charcoal filter cartridge and snap it into place behind the tab.

04 Replace the bag compartment cover and press down on the latch to secure it into place.

TIP
Filters cannot be washed and reused.

Replacing HEPA Media Filter

R40P Model

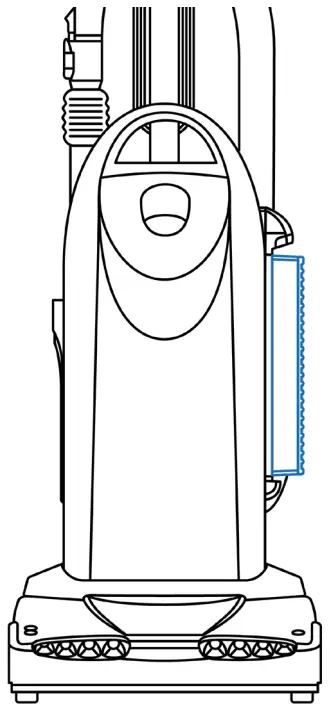

01 Locate the HEPA Media Filter on the side of the vacuum.
02 Push down on the tab on the top to remove the used filter and discard it.
03 To insert a new filter, position the tabs on the bottom of the filter cartridge into the vacuum. Then snap it into place.
R30D Model
01 Remove the bag compartment cover and locate the HEPA Media Filter on the front of the vacuum.
02   Grasp the tab on the left to remove the used filter and discard it.
03 To insert a new filter, position the tabs on the right side of the cartridge into the vacuum. Then snap it into place.
04 Replace the bag compartment cover and press down on the latch to secure it into place.

Replacing Direct Air Motor Filter

01 Press the handle release pedal with your foot and tilt the handle back until it stops. Press the pedal again to lower the handle to the floor.
02 Pull the black filter cover latch to remove the filter cartridge.
03 Discard the used filter cartridge.
04 Insert a new direct air motor filter cartridge and snap it into place.
05 Return vacuum handle to its upright position.

Thermal Reset

If the Thermal Motor Protection System shuts off your vacuum, follow these steps.
01 Unplug the vacuum.
02 Inspect the vacuum for a full bag condition or a hose clog and correct the problem.
03 Locate the Thermal Motor Protection Reset Button on the back of the vacuum. Press the button and resume vacuuming.

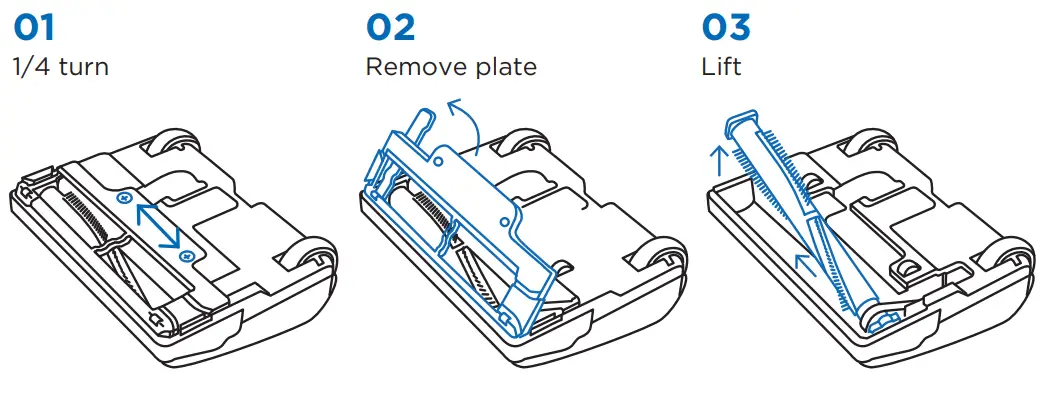

Jammed Brushroll

TIP
After freeing obstruction and the red light is still on, it’s likely the clog is located in the vacuum motor fan. If so, please take your vacuum to an Authorized Riccar Retailer for service.

Power Cord Care

• If the cord or plug has any apparent damage, refrain from using the vacuum.
  Please visit an Authorized Riccar Retailer for a new cord or plug.
• When the vacuum is in use, hold the cord to keep it from running over it.
• Avoid obstructions and do not pull the cord around sharp edges or corners.
• Always keep the cord away from heated surfaces and never close doors on it as this may cause damage to the wiring.
• To unplug, always grasp the plug, not the cord.

TROUBLESHOOTING

Any other service should be performed by an Authorized Riccar Vacuum Retailer.
To locate your nearest Authorized Retailer, visit our website at
Riccar.com or call 888-674-2227.

Key Replacement Parts

R40P: Genuine HEPA Media Vacuum Bags: RPH-6 Charcoal-Infused Odor-Fighting HEPA Media Vacuum Bags: RPHC-6 Genuine Filter Set: RF40G (HEPA media and granulated charcoal)

R30D: Genuine HEPA Media Vacuum Bags: RNH-6 Charcoal-Infused Odor-Fighting HEPA Media Vacuum Bags: RNHC-6 Genuine Filter Set: RF30P (HEPA media and granulated charcoal)

For Best Performance

• Keep your vacuum cleaner in good operating condition.
• Change the vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance.
• Always use genuine Riccar vacuum bags and replacement parts for maximum cleaning performance.
• Have your vacuum checked annually by your Authorized Riccar Retailer.
• Store your vacuum carefully in a dry area.

LEAVE A REVIEW

We want to hear from you!
Please let us know what you think of your new vacuum
by leaving a product review on Riccar.com.

WARRANTY

Thank You for your purchase!
Register Online Today.
Riccar.com/register-warranty
For Warranty Information visit
Riccar.com/warranty-information

RICCAR.COM
888-674-2227
1760 GILSINN LANE
FENTON, MO 63026
B503-8000C
