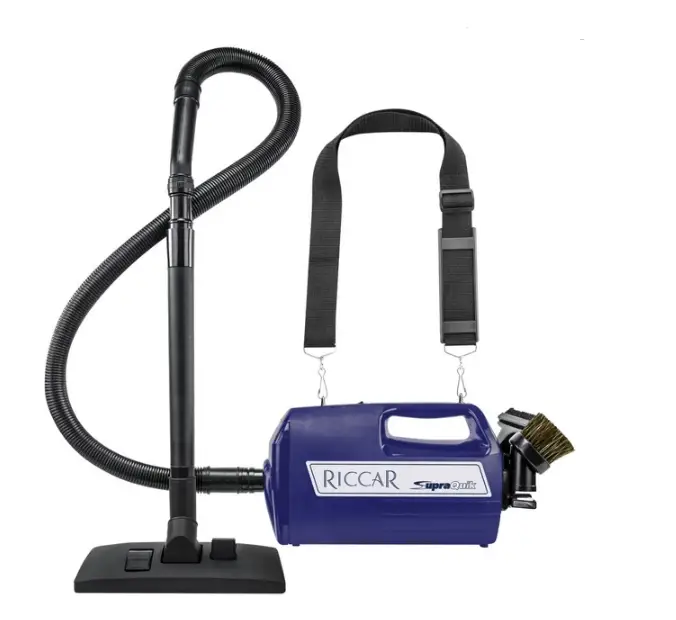

RICCAR RSQ1.6 SupraQuik Vacuum Cleaner

RICCAR-RSQ1-6 -Vacuum-Cleaner-PRODUCT

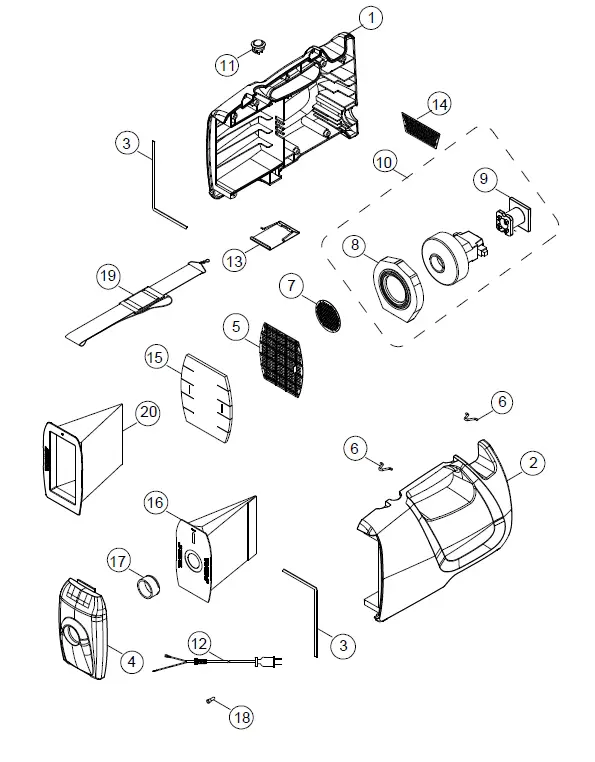

MAIN BODY

RICCAR-RSQ1-6 -Vacuum-Cleaner-FIG-1

KEYPART NUMBERDESCRIPTION
1Not AvailableVacuum Housing (Left)
2Not AvailableVacuum Housing (Right)
3BB00071BGasket (2 Required)
4BA00551BVacuum Housing (Front)
5Not AvailableBaffle
6BF00051V-Hook Tri Ring
7Not AvailableRound Mesh Screen
8Not AvailableFront Motor Mount
9BB00031Rear Mount
10C345-0800BMotor with Improved Mounts (Includes #8 and #9)
11DB00011BSwitch
12DG00011BPower Cord
13BD00261Front Cover Clamp
14Not AvailableMesh Screen
15FA00011Motor Filter
16RSQ-6Paper Bag (6 Pack)
17BB00051Hose Inlet Cover
18Not AvailableWire Joints
19FC00011Strap
20AA00551Reusable Cloth Bag

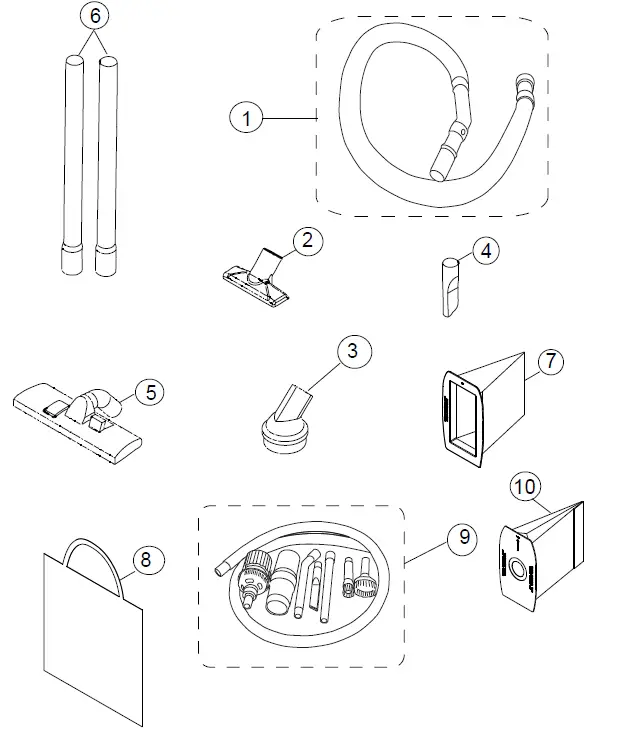

ACCESSORIES

RICCAR-RSQ1-6 -Vacuum-Cleaner-FIG-2

KEYPART NUMBERDESCRIPTION
1FB00081Hose Assembly
2BA00391BUpholstery Tool With Brush
3BA00411BDusting Brush
4BA00371BCrevice Tool
5BA00401Carpet Floor Tool
6BA00381Extension Wand
7AA00551Reusable Cloth Bag
8BA00372Mesh Bag






9





Included in Mini Vacuum Attachment Kit FB-05081

Hose Adapter
Mini Blow Hose Assembly
Mini Round Brush
Mini Oval Brush
Mini Straight Wand
Mini Curve Wand
Mini Crevice Tool
10RSQ-6Paper Bag (6 Pack)
