RICCAR PARTS BOOK
PRIMA MODEL ALL VERSIONS
PRIMA.2 PRIMAP.2 PRIMA.4SS PRIMA.CPN
PRIMAL.FSN PRIMAP.TAD PRIMAL.TAP
R50SS, R50FSN, R50TA
Rev 18 05/02/2022

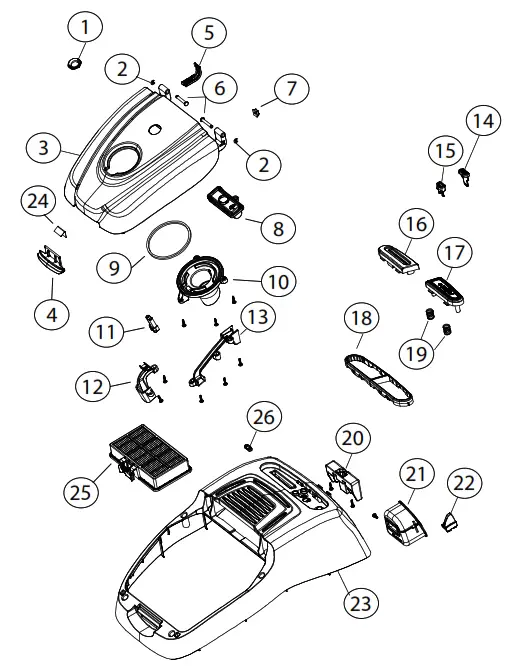

UPPER BODY
Riccar Model PRIMA All Versions
| KEY | PART NUMBER | DESCRIPTION |
| 1 | B338-24SV | FBI Bezel |
| 2 | B338-8300 | Lid Hinge E-Clip |
|
3 | B338-03PB | Light Blue Bag Door Lid (PRIMA.2, PRIMA.4SS) |
| B338-03MB | Dark Blue Bag Door Lid (PRIMAP.2, PRIMAP.CPN, PRIMAP. FSN) | |
| B338-9600 | Matte Black Bag Door Lid (PRIMAP.TAD, PRIMAP.TAP, R50SS, R50FSN, R50TAP) | |
| 4 | B338-10SV | Bag Lid Latch |
| 5 | B338-2914 | Lid Hinge Cover |
| 6 | B338-4600 | Lid Hinge Pin |
| 7 | B338-3000 | Hinge Seal Grommet |
| 8 | C338-0300 | FBI Assembly |
| 9 | B338-2600 | Main Inlet Seal |
| 10 | B338-1614 | Main Suction Inlet (Straight Suction version) |
| B338-9100 | Main Suction Inlet (Powered version) | |
| 11 | Not Available | Wiring Harness (Powered versions only) |
| 12 | Not Available | Lid Wiring Cover Small |
| 13 | Not Available | Lid Wiring Cover Large |
| 14 | B338-3200 | Variable Speed Slide |
| 15 | B338-8100 | Variable Slide Bushing |
| 16 | B338-14SV | Variable Speed Slide Cover |
| 17 | B338-1314 | On/Off Foot Pedal |
| 18 | Not Available | Control Panel Bezel |
| 19 | B338-6600 | Spring On/Off Foot Pedal |
| 20 | Not Available | Back Docking |
| 21 | Not Available | Cord Reel Plug Pocket |
| 22 | B338-1214 | Cord Strain Relief |
|
23 | B338-02PB | Light Blue Top Housing (PRIMA.2, PRIMA.4SS) |
| Not Available | Dark Blue Top Housing (PRIMAP.2, PRIMAP.CPN, PRIMAP. FSN) | |
| Not Available | Matte Black Top Housing (PRIMAP.TAD, PRIMA.TAP, R50SS, R50FSN, R50TAP) | |
| 24 | B338-2500 | Lid Latch Flat Spring |
| 25 | B338-52B4 | HEPA Filter Bulk |
| RF19 | HEPA Filter Set (Includes Secondary Foam Filter) | |
| RF19G | HEPA and Granulated Charcoal Secondary Filter Set | |
| 26 | Not Available | Wire Strain Relief |

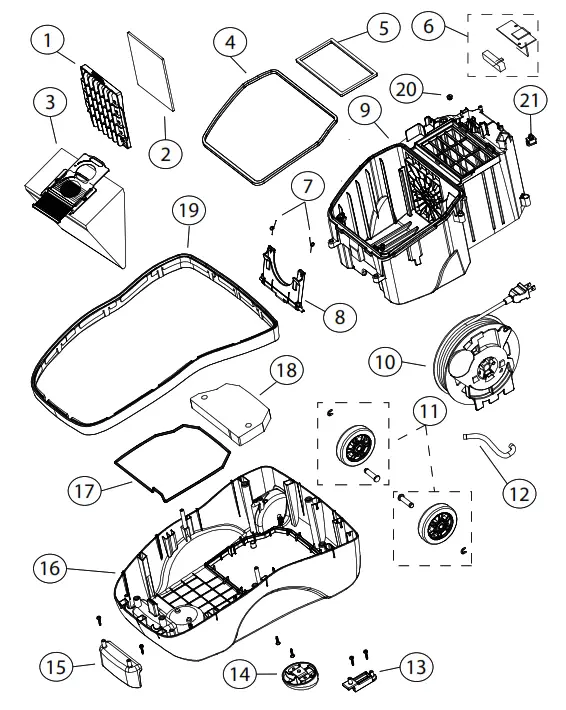

LOWER BODY
| KEY | PART NUMBER | DESCRIPTION |
| 1 | B338-23B4 | Bag Compartment Filter Frame |
| 2 | B338-8000 | Foam Secondary Filter Bulk |
| Not Available | Granulated Charcoal Secondary Filter Bulk | |
| RF19 | HEPA and Foam Secondary Filter Set | |
| RF19G | HEPA and Granulated Charcoal Secondary Filter Set | |
| 3 | RCH-6 | HEPA Bag (6 Pack) |
| RCHC-6 | Charcoal/HEPA Bag (6 Pack) | |
| 4 | B338-1700 | Bag Compartment Seal |
| 5 | B338-4700 | HEPA Filter Seal |
| 6 | B338-3300 | Main PCB w/Variable Speed Control (Straight Suction) |
| B338-9000 | Main PCB w/Variable Speed Control (Powered version) | |
| 7 | B338-6500 | Spring Bag Holder |
| 8 | B338-50B4 | Bag Holder |
| 9 | B338-0414 | Bag Compartment Insert/Motor Cover |
| 10 | B338-0600 | Cord Reel |
| 11 | C338-0200 | Wheel Assembly (Includes bearing, axle, e-clip) |
| 12 | B338-4800 | Cord Reel Cooling Tube |
| 13 | B338-0914 | Back Docking |
| 14 | C338-0614 | Front Caster Assembly |
| 15 | B338-0714 | Handle Grip |
| 16 | B338-0114 | Bottom Housing |
| 17 | B338-4400 | Motor Compartment Seal |
| 18 | B338-4500 | Motor Compartment Sound Dampener |
| 19 | Not Available | Bumper |
| 20 | B338-5100 | Motor Compartment Wire Grommet |
| 21 | B338-3100 | On/Off Switch |

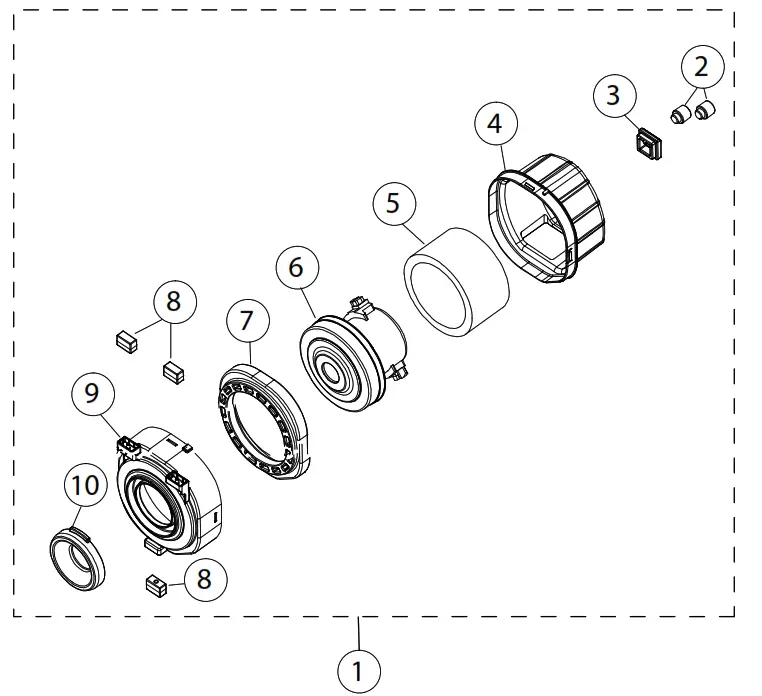

MOTOR ASSEMBLY
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C338-0500 | Motor Assembly |
| 2 | B338-4100 | Motor Cocoon Back Vibration Rubber |
| 3 | Not Available | Motor Back Square Rubber Mount |
| 4 | B338-3700 | Motor Rear Cocoon |
| 5 | Not Available | Motor Sound Reduction Foam |
| 6 | Not Available | Motor |
| 7 | Not Available | Motor Cocoon Internal Foam Seal |
| 8 | Not Available | Motor Cocoon Vibration Isolation Pad |
| 9 | B338-3600 | Motor Front Cocoon |
| 10 | Not Available | Motor Cocoon Front Face Seal |

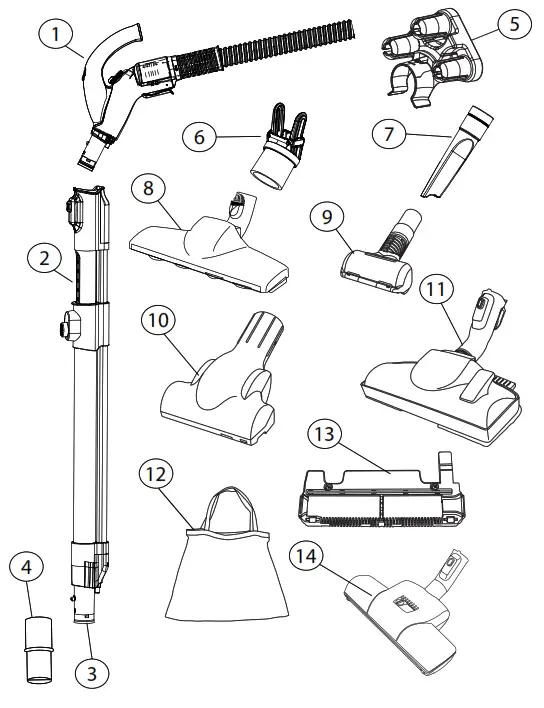

TOOLS AND ACCESSORIES
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C338-0700 | Straight Suction Hose Assembly |
| D338-0600 | Powered Hose Assembly | |
| 2 | C338-1100 | Straight Suction Wand Assembly |
| C338-1000 | Powered Wand Assembly | |
| 3 | B338-8800 | Replaceable Wand Tip |
| 4 | B226-1149 | Tool Adapter |
| 5 | B338-6900 | Tool Caddy |
| 6 | B338-7614 | 2 in 1 Tool |
| 7 | B338-5414 | Crevice Tool |
| 8 | B338-7800B | Microfiber Bare Floor Tool |
| MFP-3 | Floor Tool Microfiber Pad (Package of 3) | |
| 9 | RPET-TOOL | Fur Get It Pet Tool (PRIMA.TAD, PRIMA.TAP, R50TAP) |
| 10 | TB2-RP | Hand Held Turbo Brush (PRIMA.TAP, R50TAP) |
|
11 | B338-7900 | Rug Floor Combo Tool (PRIMAP.TAP, R50TAP Only ) |
| B226-1000 | Snap on Base | |
| BFP-3 | Rug/Floor Combo Tool Blue Mopping Pads (Package of 3) | |
| WFP-3 | Rug/Floor Combo Tool White Polishing Pads (Package of 3) | |
| 12 | KIT-BAG | Tool Bag (PRIMA.TAD, PRIMA.TAP, R50TAP) |
| 13 | D220-1414 | Soft Carpet Baseplate (PRIMA.TAD, PRIMA. TAP, R50TAP) |
| 14 | CTB4 | Floor Turbo Brush Slide Knob Unbranded Bulk (PRIMA.2SS, PRIMA.4SS, PRIMA.6SS, R50SS.2) |

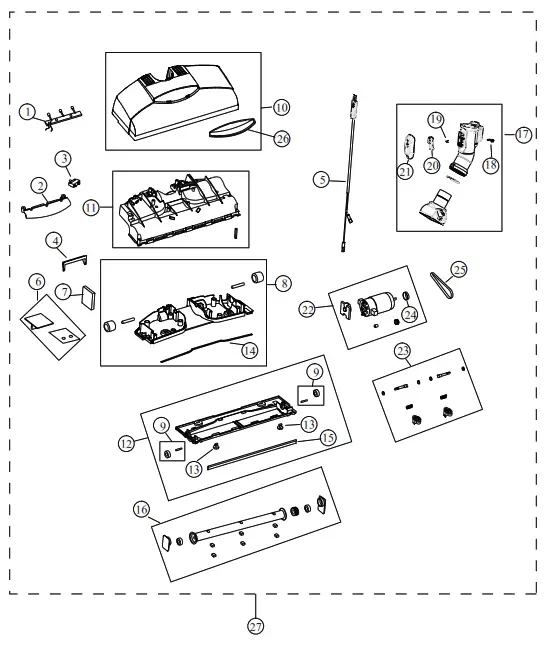

COMPACT POWER NOZZLE
Riccar Model PRIMAP.CPN
| KEY | PART NUMBER | DESCRIPTION |
| 1 | B354-4900 | LED Board |
| 2 | B354-0300 | LED Reflector |
| 3 | B354-0400 | Circuit Breaker |
| 4 | B354-0500 | Motor Lead Cover |
| 5 | B351-7700 | Cord Assembly |
| 6 | D354-1500 | PC Board Assembly |
| 7 | B354-0600 | Balance Weight |
| 8 | D354-0300 | Bottom Housing Assembly |
| 9 | D354-0400 | Small Wheel Assembly |
| 10 | D354-0800 | Nozzle Cover w/Lens |
| 11 | B354-2300B | Basetray Cover |
| 12 | D354-0700 | Baseplate Assembly |
| 13 | B354-0700 | Baseplate Locking Screws |
| 14 | B354-0800 | Baseplate Seal |
| 15 | B354-0900 | Squeegee |
| 16 | C354-1300 | Agitator Assembly |
| 17 | D338-0300 | Neck Assembly |
| 18 | B351-7914 | Retainer Nozzle Plug |
| 19 | B351-8300 | Spring for Button |
| 20 | B351-8124 | Button for Wand |
| 21 | B351-8214 | Button Cover for Wand |
| 22 | D354-1100 | Motor Assembly |
| 23 | D354-1200 | Neck Lock Assembly |
| 24 | B354-1300 | Motor Gasket |
| 25 | B354-5200 | Belt |
| 26 | B354-1200 | Lens Cover |
| 27 | RCPN | Compact Power Nozzle Assembly |

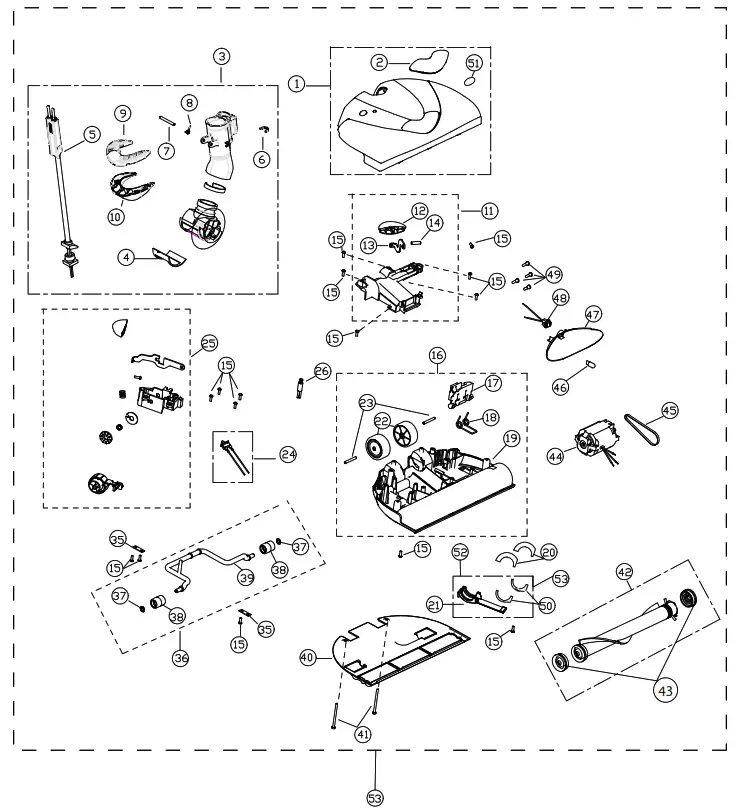

Full Size Power Nozzle
Nozzle RICCAR Model PRIMAP.FSN, R50FSN
| KEY | PART NUMBER | DESCRIPTION |
| 1 | D350-1200 | Top Housing Assembly |
| 2 | 8350-1515 | Headlight Lens |
| 3 | 1)338-0200 | Neck Assembly |
| 4 | 8350-4714C | Teflon Seal |
| 5 | 13351-7600 | Pigtail Plug |
| 6 | 8351-7914 | Plug Retainer |
| 7 | 13350-7700 | Wand Release Axle |
| 8 | 8350-760013 | Wand Release Spring |
| 9 | 8351-7314 | Wand Release Upper Pedal |
| 10 | 13351-7414 | Wand Release Lower Pedal |
| 11 | 1)350-5100 | Hidden Raceway Assembly |
| 12 | C350-5900 | Pedal |
| 13 | 13350-2601 | lilt Lock Lever |
| 14 | 13350-2801 | Tilt Lock Pin |
| 15 | A732-8414 | Screws Hi/Lo #8 |
| 16 | 1)350-9900 | Bottom Housing Assembly |
| 17 | 8350-3400 | Tilt Lock Link |
| 18 | 8350-3500 | Tilt Lock Torsion Spring |
| 19 | 8350-2214B | Bottom Housing |
| 20 | 8350-8701B | Felt Seal for Bottom Housing |
| 21 | 13350-8414 | Belt Housing |
| 22 | C350-6731B | Rear Wheel Assembly |
| 23 | 13010-0210C | Back Wheel Pin 5mm x 38mm |
| 24 | 1)350-1100 | 2.5A Switch |
| 25 | C350-9700 | Height Adjust Assembly |
| 26 | C350-4300 | LED Assembly |
| 35 | C351-5700 | Axle Stamping Assembly |
| 36 | C350-9800 | Height Adjust Bar Assembly |
| 37 | 8350-40008 | External Retaining Ring 5/16″ |
| 38 | 8350-3942 | Axle Height Wheel |
| 39 | Not Available | Height Adjust Bar |
| 40 | C351-5800 | Bottom Plate w/seals Assembly |
| 41 | A430-0205 | Screw #8 16 x2 .5 |
| 42 | D351-2100 | Steel Agitator Assembly |
| 43 | B351-4400 | End Cap Cover |
| 44 | A113-2200 | Motor |
| 45 | B350-2514 | Poly V Belt |
| 46 | A350-0000 | Light Bulb I2v |
| 47 | B350-6197B | Reflector |
| 48 | A350-0100E1 | Snap In Light Socket |
| 49 | B 123-2700 | Wire Connectors Lg |
| 50 | B350-8601E1 | Felt Seal for Belt Housing |
| 51 | B350-1815 | Height Adjust/LED Lens |
| 52 | D350-33I4 | Belt Housing With Seals |
| 53 | RFSN | Full Size Power Nozzle |

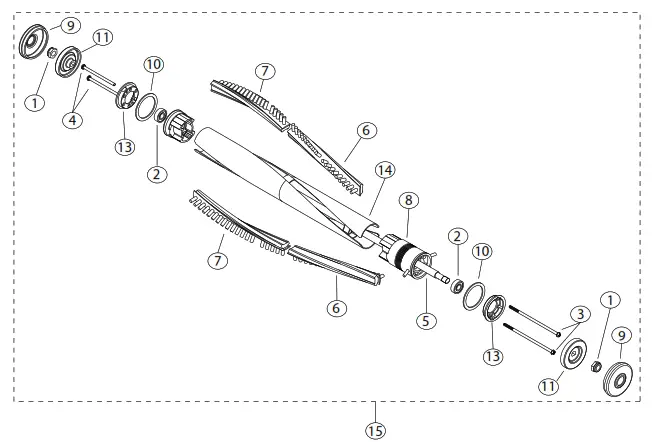

Full-Size Nozzle Agitator
RICCAR Model PRIMAP.FSN, R50FSN
| KEY | PART NUMBER | DESCRIPTION |
| 1 | A375-0100 | Locking Hex Nut |
| 2 | A375-0200 | Bearing |
| 3 | A733-1810 | Clamped Agitator Screw 80mm |
| 4 | A733-1800 | Clamped Agitator Screw 40mm |
| 5 | Not Available | Agitator Shaft |
| 6 | B351-2000 | Nylon Brush Strip Short (Standard) |
| Not Available | White Brush Strip Short | |
| B351-1800 | Natural Brush Strip Short | |
|
7 | B351-2100 | Nylon Brush Strip Long (Standard) |
| Not Available | White Brush Strip Long | |
| Not Available | White Brush Strip 4 pk (Includes long and short) | |
| B351-1900 | Natural Brush Strip Long | |
| Not Available | Natural Brush Strip 4 pk (Includes long and short) | |
| 8 | Not Available | Pulley |
| 9 | B351-4400 | End Cap Cover |
| 10 | B375-3900 | Felt Seal |
| 11 | B375-3600 | Metal End Cap |
| 12 | B475-1800 | Bearing Cartridge |
| 13 | B475-1900 | Retainer Ring |
| 14 | Not Available | Agitator Core |
| 15 | D351-2100 | Power Nozzle Agitator Assembly |

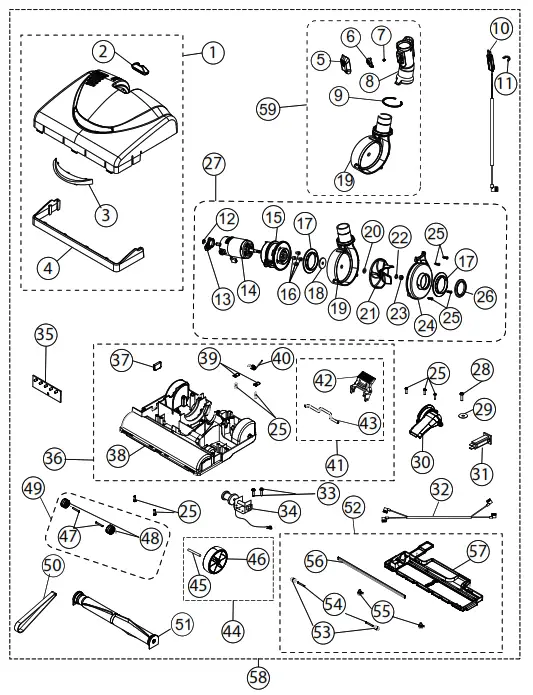

TANDEM AIR POWER NOZZLE
RICCAR Model PRIMAP.TAD/TAP, R50TAP
| KEY | PART NUMBER | DESCRIPTION |
| I | D220-2450 | Nozzle Cover (RTAPN.D) |
| D220-2470 | Nozzle Cover (RTAPN.P) | |
| 2 | 8220-7814 | Park |
| 3 | 8018-0415 | Lens |
| 4 | B220-26I4 | Furniture Guard |
| 5 | B35I-8214 | Neck Button Cover |
| 6 | B351-8124 | Neck Button |
| 7 | 8351-8300 | Spring |
| 8 | 8220-7914 | Neck |
| 9 | B354-2800 | Neck Lock Ring |
| 10 | B351-8400 | Pigtail Cord |
| 11 | B351-7914 | Pigtail Plug Retainer |
| 12 | A732-3000 | E Clip (RTAPN.D) |
| 13 | 13223-2814C | Motor Support Boss |
| 14 | See #27 | Flat Belt Motor |
| See #27 | V Belt Motor | |
| 15 | 13223-0114 | Motor Housing |
| 16 | A733-5000 | Screw M5 X 6mm Socket |
| 17 | 8220-4414 | Pivot Bushing |
| 18 | B220-4500 | Felt Pivot Seal |
| 19 | See N58 | Scroll Housing Right See #58 For Replacment |
| 20 | A733-3300 | Washer (Behind Fan) |
| 21 | 8220-4314 | Motor Fan |
| 22 | A733-2200 | Washer |
| 23 | A432-0605 | Hex Nut |
| 24 | 13220-4114 | Scroll Housing Left |
| 25 | A732-8314 | Pan Head Screw #8 X 5/8 |
| 26 | 8480-4514 | Motor Inlet Seal |
| 27 | D223-19I4 | Flat Belt Motor Assembly (RTAPN.D) |
| D223-2500 | V Belt Belt Motor Assembly (RTAPN.P) | |
| 28 | A732-2500 | Screw M4x12 |
| 29 | B034-0100 | Strain Relief Washer |
| 30 | B220-0214 | Inlet Duct Cover |
| 31 | A350-0500 | 2 Amp Circuit Breaker (RTAPN.D) |
| 32 | 8223-1700 | Circuit Breaker Harness (RTAPN.D) |
| 33 | A732-84I4 | Screw Hi Lo N8 x 7/16″ |
| 34 | 0475-0310 | Hall Sensor Assembly (RTAPN.P) |
| 8317-1400K | LED Board (RTAPN.D) | |
| 35 | 8317-1600K | LED Board (RTAPN.P) |
| 36 | D220-0114 | Basetray Assembly |
| 37 | 8016-1914 | Basetray Plug (RTAPN.D) |
| 38 | B220-01 I4D | Basetray |
| 39 | 54. | Rear Axle Clamp |
| 40 | 8220-0900 | Upright Stop Spring |
| 41 | 0220-0714 | Pedal Assembly |
| 42 | 8220-0714 | Upright Stop Pedal |
| 43 | 8220-0800 | Upright Stop Pedal Pivet |
| 44 | D220-0631 | Rear Wheel with Axle |
| 45 | 13010-2800C | Large Wheel Axle |
| 46 | C220-0531C | Rear Wheel |
| 47 | B010-0001E | Small Wheel Axle |
| 48 | C010-2714B | Small Wheel |
| 49 | D010-2631 | Front Wheel Assembly Includes 847 & #48 |
| 50 | 8014-0814B | Flat Belt Single (RTAPN.D) |
| 13014-1200 | Lifetime Belt (RTAPN.P) | |
| 51 | D012-2300 | Flat Belt Agitator Assembly (RTAPN.D) |
| 0013-0400 | V Belt Agitator Assembly (RTAPN.P) | |
| 52 | 0220-0414 | Baseplate Assembly |
| 53 | 13370-1843 | Front Wheel Assembly with Bushing |
| 54 | 13370-1700 | Bottom Plate Axle |
| 55 | 8220-0414 | Baseplate Cover Screw |
| 56 | 8015-3000B | Squeegee |
| 57 | 8220-0314 | Baseplate |
| 58 | RTAPN.D | Delux Tandem Air Power Nozzle (Flat Belt) |
| RTAPN.P | PremiumTandem Air Nozzle (w/ Belt Protection) | |
| 59 | 0220-7914 | Tandem Air Power Nozzle Neck Assembly Order For Replacement 010/19 |

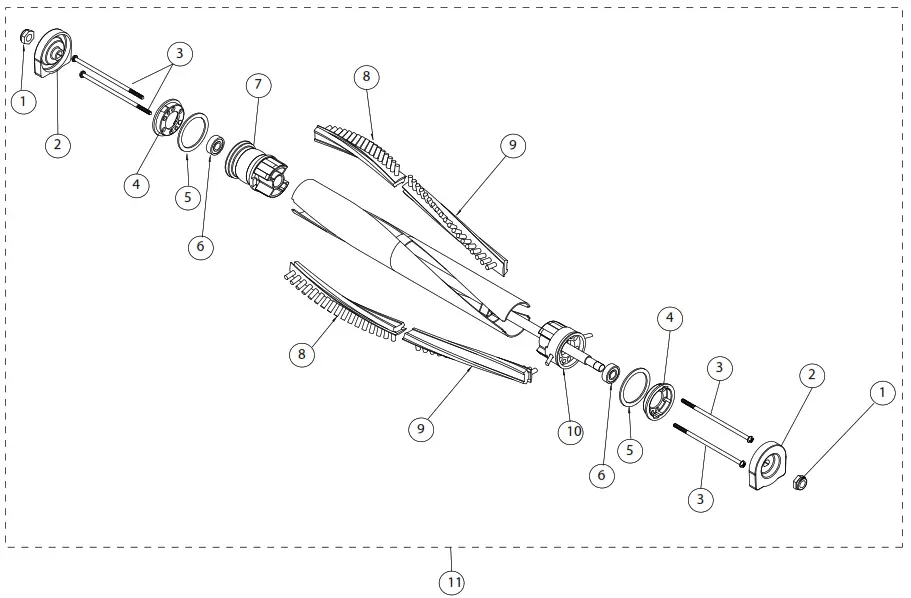

Tandem Air Agitator
RICCAR Model PRIMAP.TAD/TAP, R50TAP
| KEY | PART NUMBER | DESCRIPTION |
| 1 | A375-0100 | 1/4-28 Locking Hex Nut |
| 2 | B013-1600 | Metal End Cap |
| 3 | A733-1810 | Agitator Screw 80mm |
| 4 | B475-1900 | Retainer Ring |
| 5 | B375-3900 | Felt Seal |
| 6 | A375-0200 | Bearing |
| 7 | B220-1200 | Pulley for Flat Belt (RTAPN.D) |
| B013-1400 | Pulley for Lifetime Belt (RTAPN.P) | |
| 8 | B013-0301 | White Brush Strip Short |
| 9 | B013-0401B | White Brush Strip Long (Not Currently Available) |
| 10 | B013-1500 | Edge Brush Bearing Holder with Bearing |
| 11 | D012-2300 | Flat Belt Agitator (RTAPN.D) |
| D013-0400 | Lifetime Belt Agitator (RTAPN.P) |
