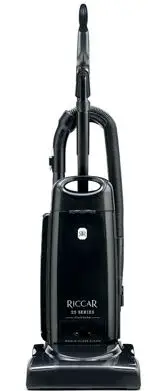

eVacuumStore R25S Clean Air Upright Vacuum
HANDLE AND ACCESSORIES
| KEY | PART NUMBER | DESCRIPTION |
| 1 | A328-1299 | On/Off Switch (R25D, R25P) |
| 2 | C602-0114 | Handle Grip Assembly (R25S) |
| C602-2114 | Handle Grip Assembly (R25D, R25P) | |
| 3 | C603-3000 | Power Cord 35’ (R25D, R25P) |
| 4 | B602-1366 | Upper Cord Hook |
| 5 | C602-1000 | Handle Assembly Non-Powered (R25S) |
| C602-2000 | Handle Assembly Powered (R25D, R25P) | |
| 6 | A732-8700 | Handle Mount Screw #8 x 1.75 |
| 7 | C602-3000 | Tool Holder Assembly With Screw |
| 8 | C600-2614 | Hose and Cord Reel Storage Assembly (R25S, R25D, R25P) |
| 9 | B600-2700 | Handle circuit board components (R25D, R25P) |
| 10 | B600-0300 | Handle Harness # 9 B600-2700 Not Included (R25D, R25P) |
| Not Shown | D602-0001 | R25 Handle Shim Kit |
MAIN BODY
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C600-3000 | Bag Door Assembly (R25S) |
| C600-3100 | Bag Door Assembly (R25D, R25P) | |
| 2 | B600-6000 | Seal Kit (Includes Bag Door Seal, Hose Cuff Seal, Hose Cuff Pivot Seal, Airpath Top Seal) |
| 3 | B603-2600 | On/Off Switch (R25S) |
| B603-3100 | Full Bag Light (R25D, R25P) | |
| 4 | B603-2800 | Pressure Sensor (R25D, R25P) |
| 5 | B600-6500 | Post Filter Seal |
| 6 | R25S-F | Filter Set Electrostatic Post and Secondary (R25S) |
| R25D-F | Filter Set HEPA and Foam Charcoal (R25D) | |
| R25P-F | Filter Set HEPA and Granulated Charcoal (R25P) | |
| 7 | B600-2514 | Post Filter Mount |
| 8 | B600-2714 | Secondary Filter Drawer Assembly |
| 9 | C601-3000 | Spring Assist Assembly |
| 10 | C603-1000 | Clean Air Motor (R25D, R25P, R25S) |
| 11 | B600-6314 | Motor Plate Seal |
| 12 | B603-2200 | Wire Harness Kit- Includes #19 (R25S) |
| B603-1200 | Wire Harness Kit- Includes #19 (R25D, R25P) | |
| 13 | B603-2500 | Thermal Reset (R25S) |
| B603-3300 | Thermal Reset (R25D, R25P) | |
| 14 | B603-0600 | PC Board (R25S) |
| B603-1600 | PC Board (R25D, R25P) | |
| 15 | B600-4514 | Cord Clamp |
| 16 | B600-4466 | Crevice Tool Mount |
| 17 | B600-1866 | Lower Cord Hook |
| 18 | B600-2414 | Hose Guide |
| 19 | B603-2200 | Wire Harness Kit- Includes #12 (R25S) |
| B603-1200 | Wire Harness Kit- Includes #12 (R25D, R25P) | |
| 20 | Not Available | HEPA Bag (6 Pack) |
| R25HC-6 | Charcoal-Lined HEPA Bag 6pk | |
| 21 | C601-2266 | Pedal Assembly |
| 22 | C601-2100 | Wheel and Axle Assembly |
| 23 | C603-2000 | 35’ Power Cord (R25S) |
| 24 | C600-2714 | Air duct cover plate components (R25S, R25D, R25P) |
| 25 | Not Available | Front Body Cover (R25D, S25S) |
| B600-0214 | Front Body Cover (R25P) |
NOZZLE ASSEMBLY
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C601-1144 | Nozzle Cover Assembly (R25S) |
| C601-9114 | Nozzle Cover Assembly (R25D, R25P) | |
| 2 | B603-3400 | Upright Kill Switch |
| 3 | B600-4514 | Cord Clamp |
| 4 | C603-1400 | Brushroll Motor Assembly |
| 5 | B601-2200 | Belt |
| 6 | C601-3000 | Spring Assist Assembly |
| 7 | C601-5300 | Felt Seal Set |
| 8 | B601-1214 | Baseplate |
| 9 | C601-4000 | Caster Wheel Assembly |
| 10 | C601-1900 | Baseplate Wheel Assembly |
| 11 | B601-1300 | Baseplate Strip |
| 12 | B603-3500 | Dirt Sensor Assembly (R25P) |
| 13 | B601-6914 | Brushroll Motor Clamp |
| 14 | B603-1500 | LED Board Assembly (R25D, R25P) |
| 15 | C601-6000 | Wood Agitator Assembly (R25S) |
| D601-8000 | Steel Agitator Assembly (R25D, R25P) | |
| 16 | C600-4400 | Nozzle Hose Assembly (R25D, R25S) |
| C600-4500 | Nozzle Hose Assembly (R25P) | |
| 17 | A603-3100 | Circuit Breaker (R25S) |

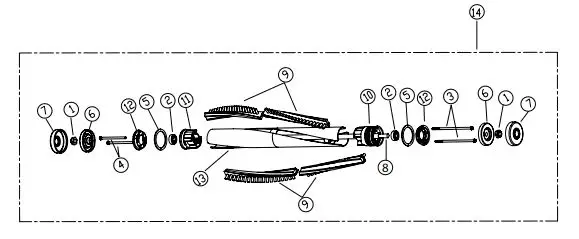

STEEL AGITATOR
| KEY | PART NUMBER | DESCRIPTION |
| 1 | A375-0100 | Hex Nut |
| 2 | A375-0200 | Bearing |
| 3 | A733-1810 | Screw 80mm |
| 4 | A733-1800 | Screw 40mm |
| 5 | B375-3900 | Felt Seal |
| 6 | B375-3600 | End Cap |
| 7 | B375-3700 | End Cap Cover |
| 8 | B375-1600 | Shaft (N/A) |
| 9 | B601-8000 | Single Brush Strip White |
| 10 | B475-1700 | Agitator Pulley |
| 11 | B475-1800 | Agitator Bearing Cartridge |
| 12 | B475-1900 | Agitator Felt Retainer |
| 13 | C475-0600 | Agitator Steel Core (N/A) |
| 14 | D601-8000 | Agitator Assembly (R25D, R25P) |

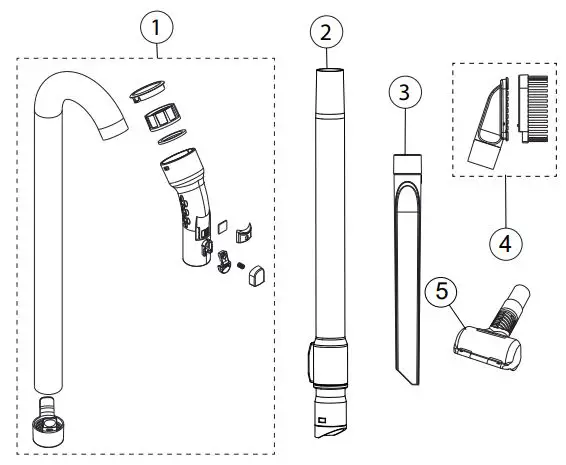

HOSE AND ACCESSORIES
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C604-2000 | Hose Assembly 6:1 (R25P) |
| C604-1000 | Hose Assembly 4:1 (R25S, R25D) | |
| 2 | C283-3400 | Plastic Wand Assembly (R25S) |
| B434-5400B | Metal Wand Assembly (R25D, R25P) | |
| 3 | B604-2314 | Crevice Tool |
| 4 | B604-5114 | Upholstery Tool with Nylon Bristle Dust Brush (R25S) |
| B604-5214 | Upholstery Tool with Natural Bristle Dust Brush (R25D, R25P) | |
| 5 | RPET-TOOL | Pet Tool “FUR GET IT” Pet Hair Remove Upholstery |
