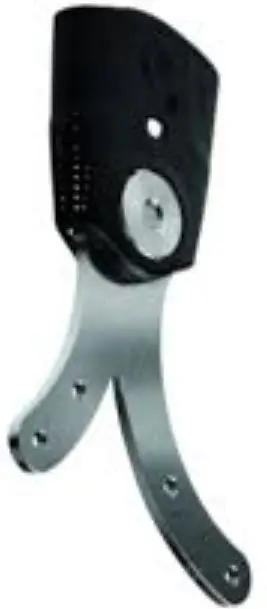

ottobock 17PA1 Ankle Joint System Instruction Manual

Foreword

INFORMATION

Date of last update: 2022-02-03

Please read this document carefully before using the product and observe the safety notices.
Instruct the user in the safe use of the product.
Please contact the manufacturer if you have questions about the product or in case of problems.
Report each serious incident related to the product to the manufacturer and to the relevant authority in your country. This is particularly important when there is a decline in the health state.
Please keep this document for your records.

These instructions for use provide you with important information on the processing of the 17PA1=* orthotic ankle joints made of plastic.

Product description

Available sizes

Reference number	Size	Insertion zone in mm	Material
17PA1*	*=14	14	Plastic
17PA1*	*=20	20	Plastic

Components/design

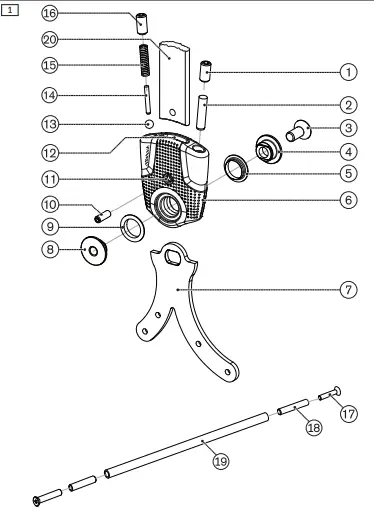

Scope of delivery (see fig. 1)
Item	Quantity [Piece (s)]	Designation	Article number
Item	Quantity [Piece (s)]	Designation	17PA1=14	17PA1=20
1	2	Set screw	506G21=M6 x14,	506G3=M6x 14
2	2	Cylinder pin	506A5=5xM 6×6	506A8=5×20
3	1	Joint screw	29PA1=14	29PA1
4	1	Joint bolt
5	1	Bushing
6	1	Ankle joint
8	1	Joint nut	29PA1=14	29PA1
9	1	Bushing	29PA1=14	29PA1
10	1	Set screw	506G21=M4x12
11	1	Bore hole for set screw
12	1	Insertion zone for bar
13	2	Ball	509Y1=5.0
14	2	Cylinder pin	506A8=2×16	506A8=2.5x 18
15	2	Compression spring	513D87=0.7 5×2.95×2	513D18=4.7 x31-1
16	2	Set screw	30Y289	506G3=M6x 14
17	2	Screw	501S84=M4 x25	501T28=M6 x35
18	2	Adapter for parallel alignment tube	29PK4=14
19	1	Parallel alignment tube	30Y216

Figure: 1

Not included in the scope of delivery (see fig. 1)
Item	Quantity [Piece (s)]	Designation	Reference number
7	1	Foot stirrup	17PF1*
20	1	Bar	651P4, 605P8

Intended use

Indications for use

The orthotic ankle joints are to be used exclusively in pairs to provide orthotic treatment for a patient’s lower limbs.

Article number	Max. body weight
17PA1=14	45 kg
17PA1=20	100 kg

Indications

Partial or total paralysis of the leg muscles.
Indications must be determined by the physician.

Further Usage Restrictions

The product is not suitable for use in sports.

Lifetime

The product is designed for a lifetime of 3 years when used as intended and assembled professionally.

Qualification

Patients may be fitted with the product only by trained qualified personnel. The qualified personnel must be familiar with the handling of the various techniques, materials, machines and tools.

Combination possibilities

The 17PA1* orthotic ankle joints can be combined with the 17PK1* orthotic knee joints.

Safety

Explanation of warning symbols

CAUTION Warning regarding possible risks of accident or injury.

NOTICE Warning regarding possible technical damage.

Safety instructions

CAUTION

Excessive strain on load-bearing components

Injuries due to changes in or loss of functionality

Only use the product for the defined area of application.
If the product has been exposed to extreme strain (e.g. due to falling), take any necessary measures (e.g. repair, replacement, inspection by the manufacturer’s customer service, etc.).

CAUTION

Mechanical damage to the product

Injuries due to changes in or loss of functionality

Use caution when working with the product.
Check the product for proper function and readiness for use.
In case of changes in or loss of functionality, discontinue use of the product and have it checked by authorised, qualified personnel.

CAUTION

Excessive strain due to use on more than one patient

Risk of injury and loss of functionality as well as damage to the product

Use the product on only one patient.
Observe the maintenance recommendations.

CAUTION

Unallowable use of lubricants

Risk of injury and loss of functionality as well as damage to the product

The product is designed to be free of lubricants. Avoid contact with lubricants (e.g. grease, oil).
After contact with lubricants, promptly clean the product or parts of the product with a degreasing cleaning agent (e.g. acetone or isopropyl alcohol).

NOTICE

Contact with saltwater or water containing chlorine/soap, fresh water or abrasive substances (e.g. sand)

Damage and premature product wear

Following any contact with the substances identified above, promptly clean the product in accordance with the section “Cleaning”.

NOTICE

Exposure of the product to unsuitable environmental conditions

Damage, brittleness or destruction due to improper handling

Avoid storage in condensing ambient humidity.
Avoid contact with abrasive substances (e.g. sand, dust).
Do not expose the product to temperatures below -10 °C (14 °F) or above +60 °C (140 °F) (e.g. sauna, excessive sunlight, drying on a radiator).

Preparing the product for use

INFORMATION

Check that the orthotic joints are aligned in the parallel position before delivering the orthosis.

INFORMATION

An adjustment aid is included with each pair of orthotic joints so the orthotic joints can be aligned parallel to one another. The adjustment aid consists of two screws, one parallel alignment tube and, depending on the size of the orthotic joints, two adapter pieces.

INFORMATION

The instructions for fabricating an orthosis with orthotic joints made of plastic are included in the 646T546 technical information. The thermoplastic technology described here is a recommendation from Ottobock and must be adjusted to the needs of the patient.

Mounting the foot stirrup

Slide the bearing bushings onto the orthotic joint.
Secure the foot stirrup with the joint bolt and joint nut.
Screw the joint nut together with the joint screw.
Clean the threads of the screw connections using a degreasing cleaner and secure them with Loctite 241.

Mounting the compression spring

Prerequisite: The foot stirrup is mounted.

Insert the ball, compression spring and cylinder pin into the threaded hole (see fig. 2, see fig. 3).
Screw the set screw into the threaded hole and set the spring force of the ankle joint.
Clean the threads of the screw connections using a degreasing cleaner and secure them with Loctite 241.

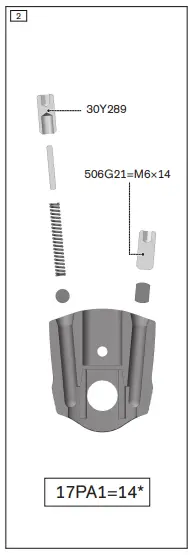

Figure: 2

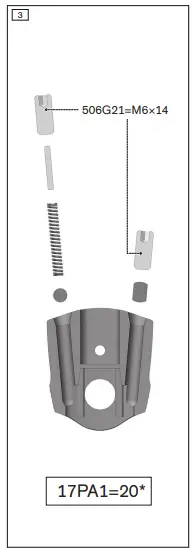

Figure: 3

Mounting the stop pin

Prerequisite: The foot stirrup is mounted.

Insert the stop pin into the threaded hole (see fig. 2, see fig. 3).
Screw the set screw into the threaded hole and set the angle of the orthotic joint.
Clean the threads of the screw connections using a degreasing cleaner and secure them with Loctite 241.

Mounting the bar

Required tools: 624S14=4 drill bit, 726S9=90×11.5 counterbore.

Insert the bar into the insertion zone of the orthotic joint and mark the position of the bore hole.
Use the 624S14* drill bit to make the bore hole.
Deburr the bore with the 726S9* counterbore.
Secure the bar in the insertion zone with the 506G21* set screw.

INFORMATION: The bars are glued in the insertion zone to complete the assembly.

Gluing in bars

Required materials: 636W28* special adhesive, degreasing cleaner The bars must be glued in the insertion zones to ensure stability. ‘

Clean the connecting surfaces with a degreasing cleaner.
Apply the special adhesive to the connecting surfaces.
Insert the bars.
Secure with the enclosed screws.
Allow to cure for at least 4 hours.
INFORMATION: Final bonding strength will be reached after 16 hours.

Removing the bar

Unscrew the set screw.
Tap out and remove the bar.

17PA1*
The 17PA1* orthotic ankle joints are adapted to the needs of the patient through the individual combination of the ball, stop pin and compression spring with the set screws.

Cleaning

Promptly clean the product after contact with:

Water containing salt, chlorine or soap, perspiration, urine or splashed water (e.g. after rain) and soiling.

Rinse the product with clear fresh water.
Dry the product with a cloth or allow it to air dry. Avoid exposure to direct heat (e.g. from an oven or radiator).

Clean the product immediately after contact with:

Lubricants (e.g. oil and grease)

Wet a cloth with a degreasing cleaner.
Wipe the orthotic joints or components with the cloth.

Maintenance

INFORMATION

The product may be exposed to increased loads by the patient.

Shorten the maintenance intervals according to the expected loads.

The manufacturer requires at least a semi-annual inspection of the product to verify functionality and check for wear.
Spare parts are listed in the section “Components/design”.

Replacing the bushing

Loosen the joint screw and remove the joint bolt and joint nut from the orthotic joint.
Disassemble the orthotic joint.
Insert the new bushing into the orthotic joint.
Assemble the orthotic joint with the joint bolt, joint nut and joint screw
Clean the threads of the screw connections using a degreasing cleaner and secure them with Loctite 241.

Disposal

Dispose of the product in accordance with national regulations.

Legal information

All legal conditions are subject to the respective national laws of the country of use and may vary accordingly.

Liability

The manufacturer will only assume liability if the product is used in accordance with the descriptions and instructions provided in this document. The manufacturer will not assume liability for damage caused by disregarding the information in this document, particularly due to improper use or unauthorised modification of the product.

CE conformity

The product meets the requirements of Regulation (EU) 2017/745 on medical devices. The CE declaration of conformity can be downloaded from the manufacturer’s website.
