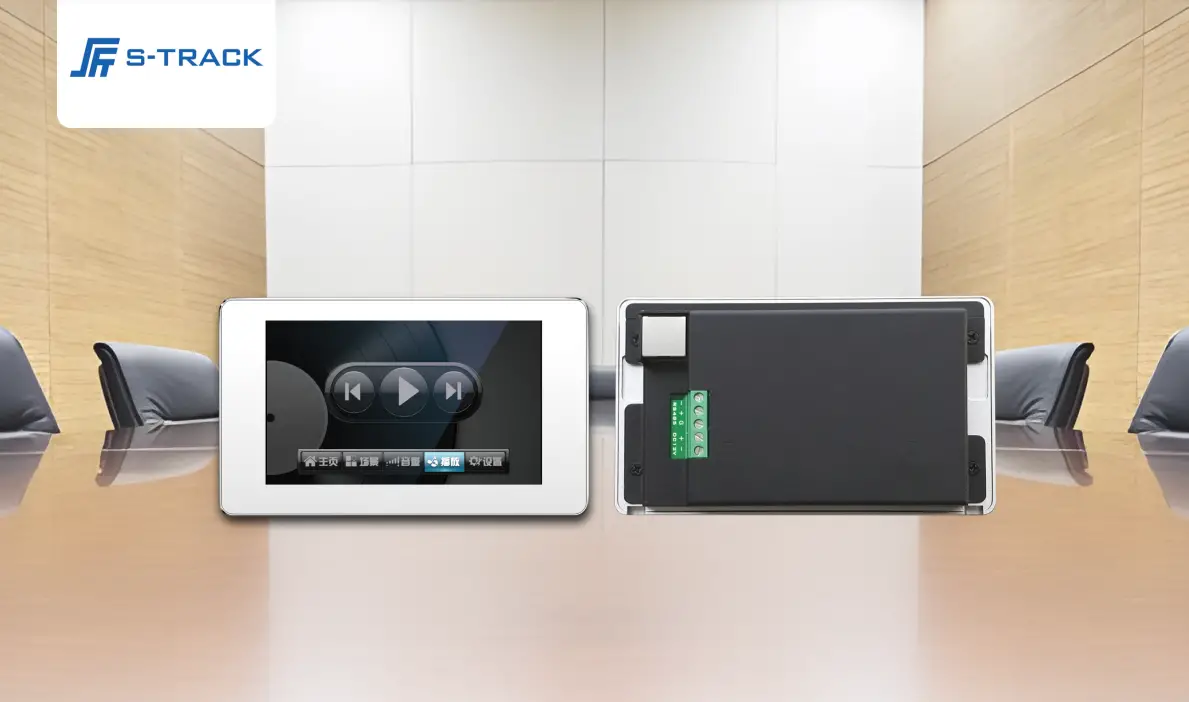

Control Panel P5
1. Core processor: CORTEX-M3 core + high-speed FPGA.
★2. Capacitive touch screen control, standard tcp/ip protocol transmission, no need to set up the panel at the PC side.
★3. PoE or 12V adapter power supply, hot backup.
★4. Network control processor, no distance limitation.
★5. 5- inch capacitive touch screen operation.
★6. Support fast scene control switching, volume control, playback control, richer custom settings, easy to use.
7.Desktop/wall mounting.
Size | 5.5” |
| Resolution | 800*480px |
Color | 64K colors, 16-bit RGB |
| Communication interface | RJ45 |
Touch | Capacitive |
| Input Voltage | 5~15V |
Product Size (L*W*H) | 146.0mm*86.0mm*27.0mm |
| Effective Display Size of Screen (L*W) | 108mm*65mm |
Power Consumption (Backlight On) | 170mA@5V |
| Power Consumption (Backlight Off) | 71mA@5V |
Product Net Weight | 130g |
| Full-screen Picture Update Time | 19ms |
Single Color Clear Screen Time | 2.5ms |
| Display Type | TFT LCD |
Brightness (cd/㎡) | 300 |
| Backlight Life (average) | >30,000 hours |
