BALLISTA WIRELESS
WIRELESS MOBA/MMO GAMING MOUSE
CHARGING THE MOUSE
IMPORTANT: The BALLISTA RGB mouse must be fully charged before its first use.
Connect the mouse to an available USB 2.0 or 3.0 port on your PC with the USB charging / data cable (W).
The battery & wireless status LED indicator (C) on the mouse will begin pulsing green to denote battery charging and will turn solid when charging is complete.

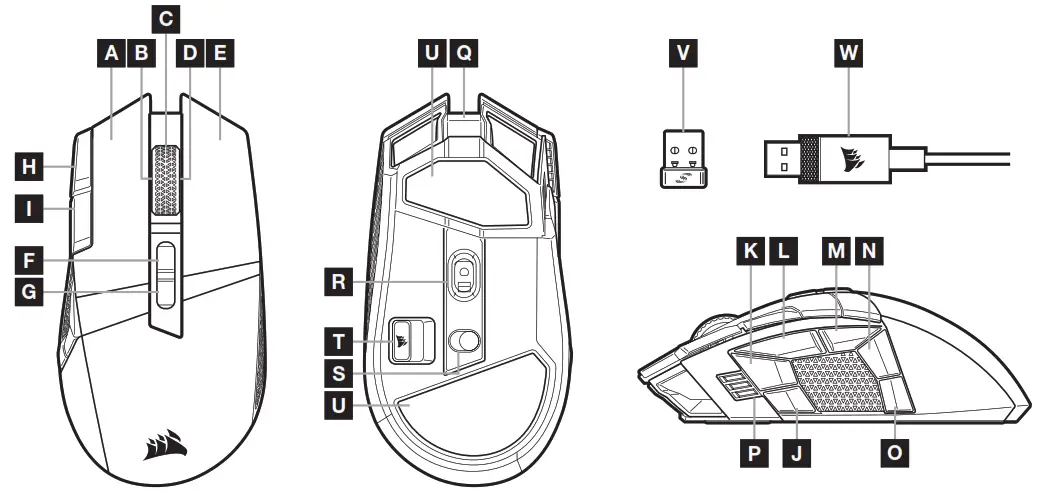

GETTING TO KNOW YOUR MOUSE
| A. QUICKSTRIKE LEFT CLICK BUTTON | M. SIDE BUTTON 4 (BACK) |
| B. TILT LEFT CLICK / SCROLL WHEEL | N. SIDE BUTTON 5 |
| C. MIDDLE CLICK / SCROLL WHEEL / BATTERY & WIRELESS STATUS LED INDICATOR | O. SIDE BUTTON 6 |
| D. TILT RIGHT CLICK / SCROLL WHEEL | P. DPI STAGE / PROFILE LED INDICATOR |
| E. QUICKSTRIKE RIGHT CLICK BUTTON | Q. USB CHARGING / DATA PORT |
| F. PROFILE UP BUTTON | R. MARKSMAN OPTICAL GAMING SENSOR |
| G. PROFILE DOWN BUTTON | S. POWER / WIRELESS MODE SWITCH |
| H. DPI UP BUTTON | T. USB WIRELESS RECEIVER STORAGE |
| I. DPI DOWN BUTTON | U. PTFE GLIDE PADS |
| J. SIDE BUTTON 1 | V. SLIPSTREAM WIRELESS USB RECEIVER |
| K. SIDE BUTTON 2 | W. USB CHARGING / DATA CABLE |
| L. SIDE BUTTON 3 (FORWARD) |
SETTING UP 2.4GHz SLIPSTREAM WIRELESS
Hyper-fast sub-1ms wireless connection is designed for no-compromise gaming grade performance.
> Toggle power / wireless mode switch (S) to “2.4GHz” position to turn on your mouse.
> Connect the USB wireless receiver (V) to an available USB 2.0 or 3.x port located on the front panel of your PC or nearby USB port. (e.g. on CORSAIR MM700, MM800, MM1000 mousepads).
> The battery & wireless LED indicator (C) will turn solid white when connected.
> Download the iCUE software from www.corsair.com/downloads.
> Run the installer program and follow instructions for installation. If reconnection is required, initiate USB wireless receiver pairing via the iCUE software settings menu.
SETTING UP BLUETOOTH® WIRELESS
Bluetooth wireless is best for everyday computing tasks, productivity, and office applications.
> Initiate Bluetooth pairing on your Bluetooth 4.0 or higher enabled device.
> Press and hold DPI UP button.
> Toggle power / wireless mode switch (S) to “BT” position to turn on your mouse.
> Follow the instructions to successfully connect your device.
> The battery & wireless LED indicator (C) will turn solid blue when connected.
ON-THE-FLY DPI TUNING
The mouse has a unique feature where you can adjust the current onboard DPI stage setting in 50 DPI increments without the software, so you can jump right into the action while you find the perfect sensitivity setting.
| FUNCTION | SHORTCUT | MULTI-PURPOSE LED INDICATOR |
| Increase DPI by 50 | Hold DPI up button (H) and press forward button (L) | Blinks green |
| Decrease DPI by 50 | Hold DPI up button (H) and press back button (M) | Blinks red |
| Reset DPI Stage | Hold DPI up (H) then both forward (L) and back (M) buttons for 2 seconds | Blinks yellow |
On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE software. If iCUE is running, then changes are saved to the software profile directly.
MOUSE STATUS, DPI SETTINGS AND INDICATIONS
Wireless connection and battery status are communicated through BATTERY & WIRELESS STATUS LED INDICATOR (C). The mouse comes preloaded with common competitive DPI settings which can be selected by pressing the DPI Up (H) or DPI Down button (I) with DPI stage LED indicator (P) backlighting to reflect the current stage.
| BATTERY STATUS | BATTERY & WIRELESS STATUS LED INDICATOR |
| Battery charging | Pulsing green |
| Battery critical, recharge required | Pulsing red |
| Battery low, recharge soon | Blinking red |
| Battery medium | Blinking amber |
| Battery high | Blinking green |
| Battery charged | Green |
| WIRELESS STATUS | |
| 2.4GHz wireless mode – pairing | Blinking white |
| 2.4GHz wireless mode – paired | White |
| 2.4GHz wireless mode – pairing failed | Pulsing white |
| BT wireless mode – pairing | Blinking blue |
| BT wireless mode – paired | Blue |
| BT wireless mode – pairing failed | Pulsing blue |
| DPI STAGE STATUS | DPI STAGE LED INDICATOR |
| Stage #1 – 400 DPI |  |
| Stage #2 – 800 DPI |  |
| Stage #3 – 1200 DPI |  |
| Stage #4 – 1600 DPI |  |
| Stage #5 – 3200 DPI |  |
BATTERY REMOVAL INFORMATION
This product uses a rechargeable battery and safety guidelines must be followed in the event that the product is disabled for disposal and recycling. To safely remove the battery for disposal and recycling, follow the numbered steps with the below diagrams.
CORSAIR MEMORY, Inc. encourages customers to recycle used electronic hardware and rechargeable batteries in accordance with local laws and regulations.
FCC ID: 2AAFMRGP0126 (Mouse)
FCC ID: 2AAFMRGP0119 (Dongle)
IC: 10954A-RGP0126 (Mouse)
IC: 10954A-RGP0119 (Dongle)
Web: corsair.com
Phone: (888) 222-4346
Warranty: corsair.com/support/warranty
Support: support.corsair.com
Blog: corsair.com/blog
Forum: forum.corsair.com
YouTube: youtube.com/corsairhowto
© 2022 CORSAIR MEMORY, Inc. All rights reserved. CORSAIR and the sails logo are registered
trademarks of CORSAIR in the United States and/or other countries. All other trademarks are the
property of their respective owners. Product may vary slightly from those pictured.
49-002523 AA
