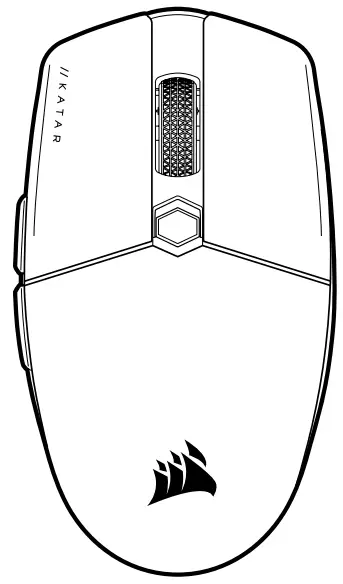

CORSAIR Katar Elite Wireless Slipstream Wireless Gaming Mouse

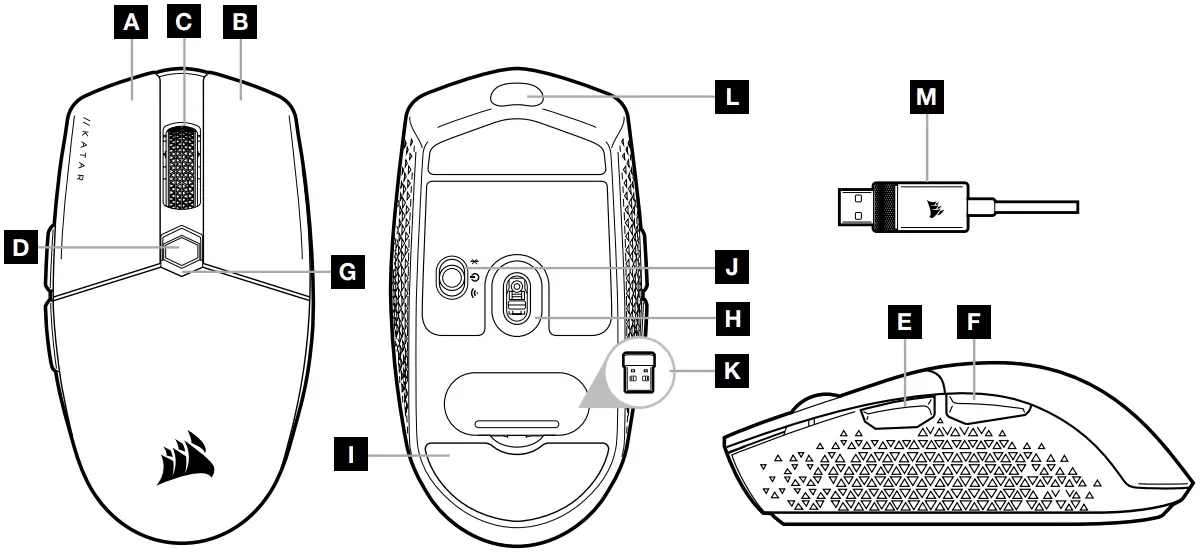

GETTING TO KNOW YOUR MOUSE
A LEFT CLICK BUTTON
B RIGHT CLICK BUTTON
C MIDDLE CLICK BUTTON
D DPI CYCLE BUTTON
E FORWARD BUTTON
F BACKWARD BUTTON
G MULTI-PURPOSE LED INDICATOR
H OPTICAL GAMING SENSOR
I PTFE GLIDE PADS
J POWER/WIRELESS MODE SWITCH
K USB WIRELESS RECEIVER
L USB CHARGING/DATA PORT
M USB CHARGING/DATA CABLE
SETTING UP 2.4GHz SLIPSTREAM WIRELESS
Hyper-fast sub-1ms wireless connection is designed for no-compromise gaming grade performance.
- Toggle power/wireless mode switch to “2.4GHz” position to turn on your mouse.
- Connect the USB wireless receiver to an available USB 2.0 or 3.x port located on the front panel of your PC or nearby USB port (e.g. on CORSAIR MM700, MM800, MM1000 mousepads).
- The battery/wireless LED indicator will turn solid white when connected.
- Download the iCUE software from www.corsair.com/downloads.
- Run the installer program and follow instructions for installation.
- If reconnection is required, initiate USB wireless receiver pairing via the iCUE software settings menu.
SETTING UP BLUETOOTH® WIRELESS
Bluetooth wireless is best for everyday computing tasks, productivity, and office applications.
- Initiate Bluetooth pairing on your Bluetooth 4.0 or higher enabled device.
- Press and hold DPI CYCLE button.
- Toggle power/wireless mode switch to “BT” position to turn on your mouse.
- Follow the instructions to successfully connect your device.
- The battery/wireless LED indicator will turn solid blue when connected.
ON-THE-FLY DPI TUNING
The mouse has a unique feature where you can adjust the current onboard DPI stage setting in 50 DPI increments without the software, so you can jump right into the action while you find the perfect sensitivity setting.
FUNCTION | SHORTCUT | DPI INDICATOR |
Increase DPI by 50 | Hold DPI cycle button (D) and press forward button (E) | Blinks green |
Decrease DPI by 50 | Hold DPI cycle button (D) and press backward button (F) | Blinks red |
Reset DPI stage | Hold DPI cycle button (D) then both forward (E) and backward buttons (F) for 2 seconds | Blinks yellow |
On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE. If iCUE is running, then changes are saved to the software profile directly.
MOUSE STATUS LED INDICATORS
Various aspects of mouse operation are communicated through the status LED indicators located behind the scroll wheel and the bottom of the mouse.
| BATTERY STATUS | MULTI-PURPOSE LED INDICATOR |
Battery charging | Pulsing green |
| Battery critical, recharge required | Pulsing red |
Battery low, recharge soon | Blinking red |
| Battery medium | Blinking amber |
Battery high | Blinking green |
| Battery charged | Green |
| WIRELESS STATUS | |
2.4GHz wireless mode – pairing | Blinking white |
| 2.4GHz wireless mode – paired | White |
2.4GHz wireless mode – pairing failed | Pulsing white |
| BT wireless mode – pairing | Blinking blue |
BT wireless mode – paired | Blue |
| BT wireless mode – pairing failed | Pulsing blue |
| DPI STAGE STATUS | |
Stage #1 – 400 DPI | Red |
Stage #2 – 800 DPI | White |
| Stage #3 – 1200 DPI | Green |
Stage #4 – 1600 DPI | Purple |
| Stage #5 – 3000 DPI | Capri |

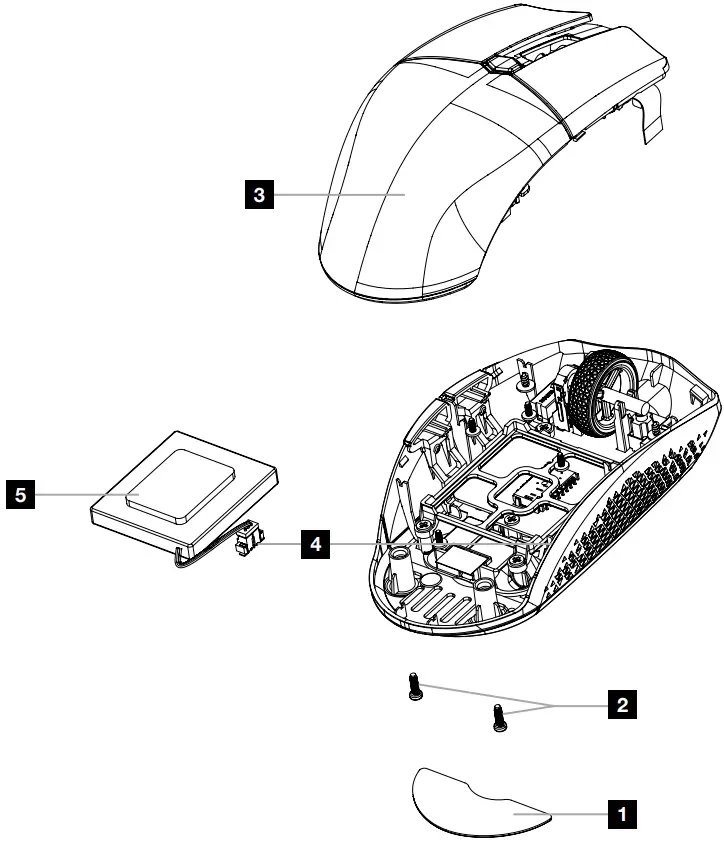

BATTERY REMOVAL INFORMATION
This product uses a rechargeable battery and safety guidelines must be followed in the event that the product is disabled for disposal and recycling. To safely remove the battery for disposal and recycling, follow the numbered steps with the below diagrams.
CORSAIR MEMORY, Inc. encourages customers to recycle used electronic hardware and rechargeable batteries in accordance with local laws and regulations.
FCC ID: 2AAFMRGP0131 (Mouse)
FCC ID: 2AAFMRGP0119 (Dongle)
IC: 10954A-RGP0131 (Mouse)
IC: 10954A-RGP0119 (Dongle)
Web: corsair.com
Phone: (888) 222-4346
Warranty: corsair.com/support/warranty
Support: support.corsair.com
Blog: corsair.com/blog
Forum: forum.corsair.com
YouTube: youtube.com/corsairhowto
© 2022 CORSAIR MEMORY, Inc. All rights reserved. CORSAIR and the sails logo areregistered trademarks of CORSAIR in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured. 49-002426 AA
