BORA PORTAMATE PM-3245 Mobile Base Extension
Congratulations
You have just purchased a Mobile Base Extension For the Bora Tool PM-3500 Mobile base. This product has been specifically designed to expand the size of your Bora Tool PM-3500 Mobile Base.

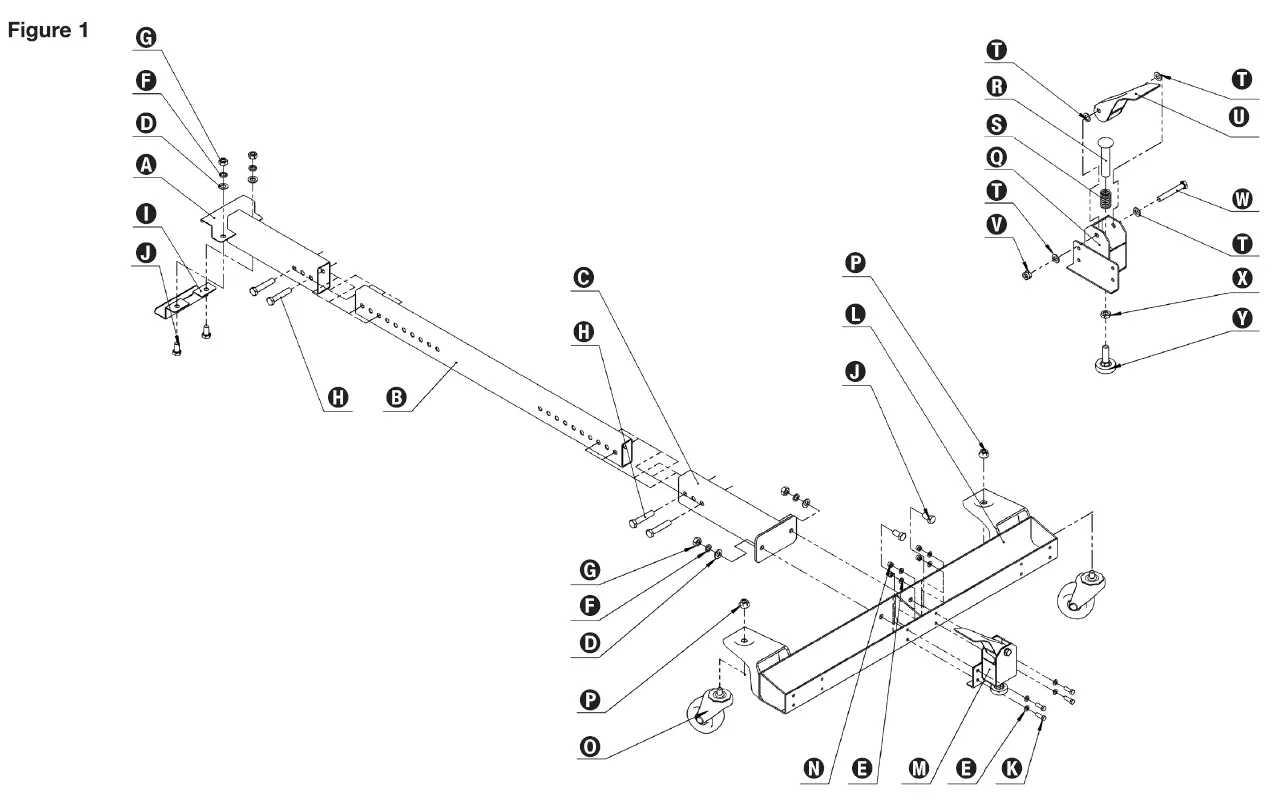

Parts
| Description Part No. Qty, | ||
| A Bar with tube hook | 5265 | |
| B 31″ Extension bar | 5266 | |
| C Bar with bolt-on plate | 5267 | 1 |
| D M10 flat washer | 5250 | 4 |
| E M6 flat washer | 5268 | 8 |
| F M10 lock washer | 5269 | 2 |
| G M10 hex nut | 5251 | 4 |
| H ID M10x20 Flanged Hex Bolt | 5246 | 4 |
| I Tube hook | 5270 | 1 |
| J M10x20 Hex Bolt | 5271 | 4 |
| K M6 Hex Bolt | 5272 | 4 |
| L 31″ Tray | 5273 | |
| M Foot Lever Assembly | 5274 | |
| N M6 nyloc nut | 5275 | 4 |
| O 3″ Swivel Caster Wheel | G714 | 2 |
| P M12 Flange Nut | B307 | 2 |
| Description Part No. Qty, | ||
| Foot Lever Assembly | ||
| Q Foot lever bracket | 5276 | |
| R Foot lever plunger | 5247 | |
| S Foot lever spring | 5248 | |
| T M8 Flat washer | 5277 | 4 |
| U Foot lever | 5204 | |
| V M8 Nyloc nut | 5278 | |
| W M8x60 Hex bolt | 5279 | |
| X M10 Jam nut | 5251 | |
| Y Rubber foot | G209A | |
Assembly Instructions

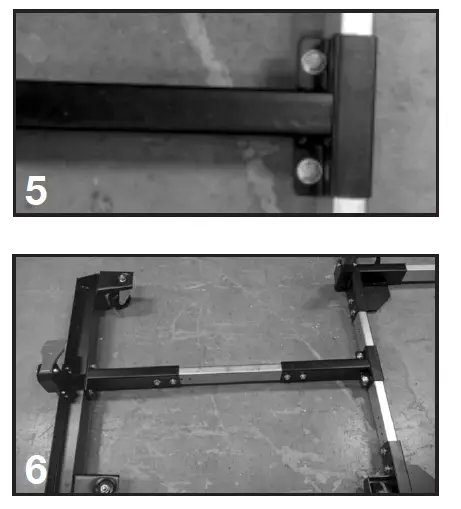

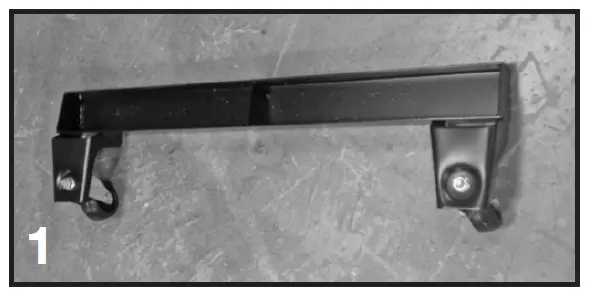

- Install the wheels in the wheel brackets, use the flange nuts.
- Install the foot lever in one of three positions based on your personal preference. Use the 4 M6 bolts and nyloc nuts.
- Install the t-bracket using the (2) M10 hex bolts, flat washers, and hex nuts.

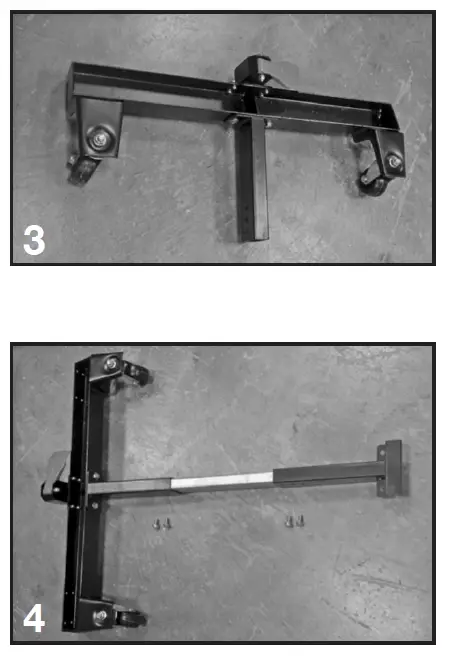

- Slide the extension bar into place, do not bolt it in at this point.
- Bolt the bracket to the PM-3500 mobile base using the (2) M10 hex bolts, flat washers, lock washers and hex nuts.
- Adjust the extension bar to the correct length and bolt it into place using the M10 flanged hex bolts.
