ASSEMBLY INSTRUCTION
MODEL#EMO-5407-MG
EMO-5407-MG Emory 6-Light Modern Gold Chandelier
WARNING:
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 6- Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE This fixture is Damp rated

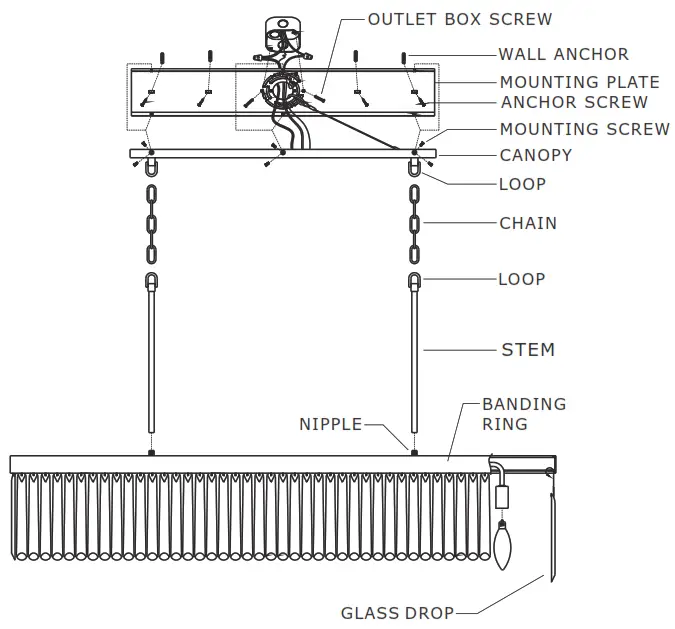

How to install
- Feed the wires through the stem. Slip the down rod along wire and thread it onto the nippleon top of frame.
- Place the mounting plate over the outlet box. Mark four points on the ceiling at the center of the keyhole on the mounting plate.
- Drill four holes at the marked points and insert the wall anchors.
- Place the mounting plate over the outlet box and secure it with two outlet box screws. Insert the anchor screws into the wall anchors (Installed in step #3) and tighten..
- Determine the preferred hanging height and adjust to the chain required.
- Install canopy onto the mounting plate, and secure with the mounting screws.
- Hang glass drop to the banding ring.
- Install the bulbs(not included) into the socket.

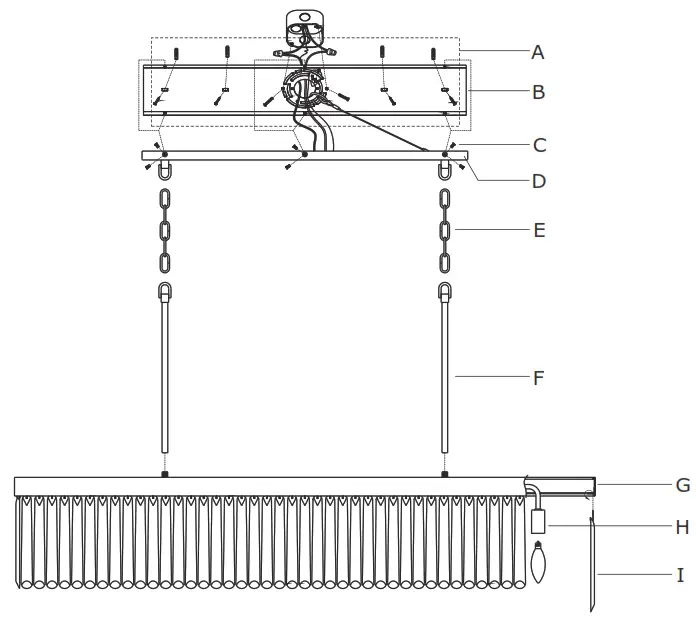

Part Number
A. (1)-Mounting hardware
B. (1)-Mounting plate
C. (6)-Mounting screw

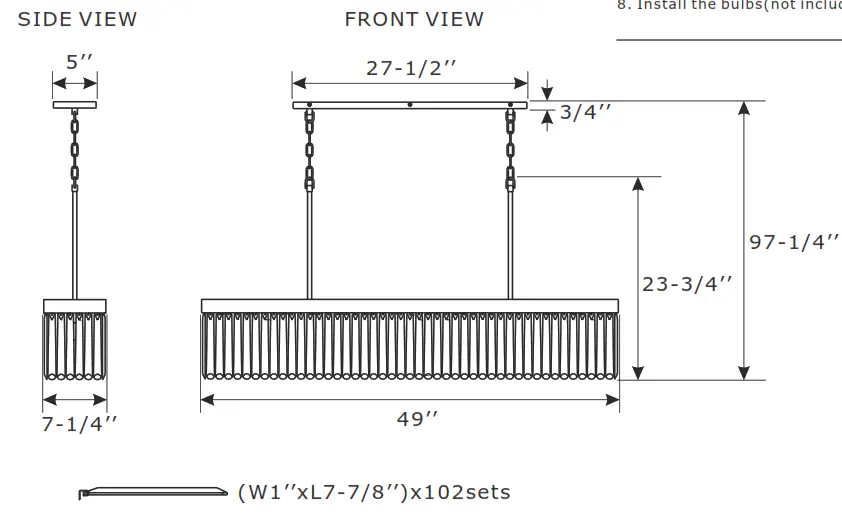

D. (1)-Canopy W5’’xL27-1/2’’xH3/4’’ #XRF5407MGCAN5IN
E. (1)-Chain -L72’’, 3.8mm thick #XRF5407MGCHA3.8MM
F. (2)-Stem W1/2’’xL12-3/4’’ #XRF5407MGROD12.75IN
G. (1)-Banding ring #XRF5407MGRING
H. (6)-Socket
I. (102)-Glass drop W1’’xL7-7/8’’
