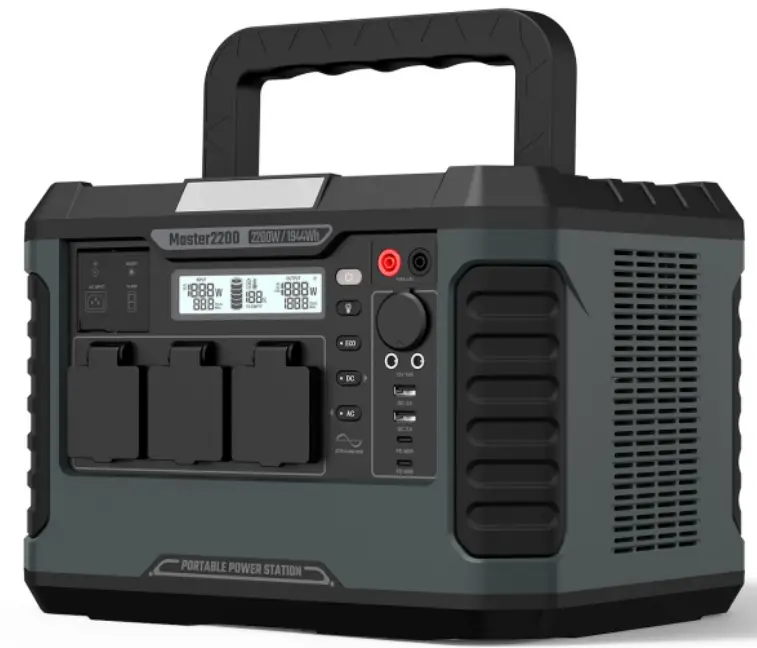

PORTABLE POWER STATION
PLUSMASTER2200W
Feature:
- Inverter Parallel Management System
- EPS Management System, Eco mode.
- Real-time LCD Display shows power watts, remaining time and charging status.
- Overcharging, Overload and Short Circuit Protection
- Low Battery Alarm and Constant power control
- Foldable handle with LED light for easy carry
- One year warranty
| Electrical | Description |
| Rated capacity | 1944Wh, 45Ah/43.2V |
| Type | Lithum-ion battery |
| Rated voltage | 43.2V |
| Power Input | Description |
| AC input | Max. 1000W |
| Solar panel input | Solar panel: 12V to 60V |
| Charging Time | 1000W AC Wall Charger about 2 Hours |
| Power Output | Description |
| Output Wave | Pure Sine Wave |
| Output Power | 2200W |
| Peak Power | 4400W |
| Wireless Charging | 10W |
| DC Output | 2x DC5525，Total 12V 10A |
| Car cigarette lighter Output USB Output | 1x 12V/10A |
| USB Output | 2x QC3.0, 5V 9V 12V, up to 3A, total max 36W |
| Type C Output | 2x PD 60W/PD 3.0 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A |
| General | Description |
| Casing material | UL-94V0 PC+ABS |
| Net Weight | 14.90kgs |
| Dimensions | 350*260*225 mm |
| Operating temperature | -10~40℃ |
| Charging temperature | 0~40℃ |
| Number of Cells | 12S9P(108) |
| Anderson Input | YES(PV Anderson12-60V) |
| Package details | 1pc 16.10kgs 475mm*375mm*375mm |
For more details, please refer to the user manual.

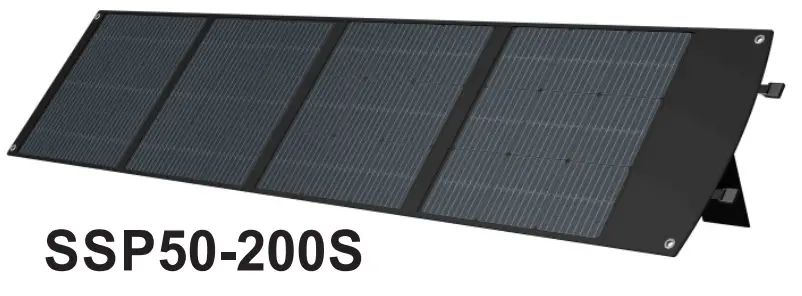

SSP50-200S
| General Power | Description 200w |
| Solar Cell | Monocrystalline silicon |
| DC(Anderson) output | 18V/11.12A |
| USB A output | QC3.0 24W(5V3A / 9V2.5A/ 12V2A) |
| Type C output | PD 45W( 5V3A/ 9V3A/ 12V3A/ 15V3A) |
| Net weight | 6.90kgs |
| Folded Dimension | 540mm*605mm’60mm |
| Unfolded Dimension | 2290mm*605mm*25mm |
| Package details | 1pc 7.50kgs 555mm*615mm*90mm |
200w Foldable Solar Panel, sell as optional part.
