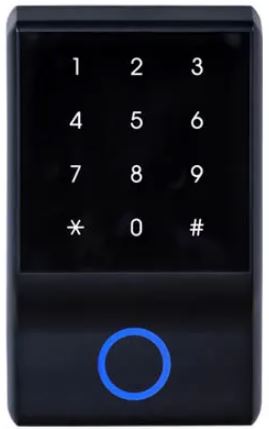

Indonesia SI-FP-05 Access Control Reader
Package content
- Controller x 1,
- Wall hanger × 1,
- Kit pack × 1 (screw anchors × 4, screw × 4,
- diode 1N4004 × 1),
- Cable (2 pin x 1, 5 pin x 1, 6 pin x 1, 8 pin with RJ45 x 1)
Specification
- Power input: 9-24V DC
- Recommended power: 12VDC / 500 mA or more
- Wiegand range: Max 100M
- RS485 range: Max 1000M
- Relay: DC30V-2A
- Default IP: 192.168.0.66
- Dimension: 78.5 x 129 × 23 (mm)
Recommend
- Shielded cable, DC power supply, Network cable.
Note
- Do not connect other cable to the power except the power cable.
- Do not apply any unverified power supply, otherwise system may be damaged or have an unstable condition.

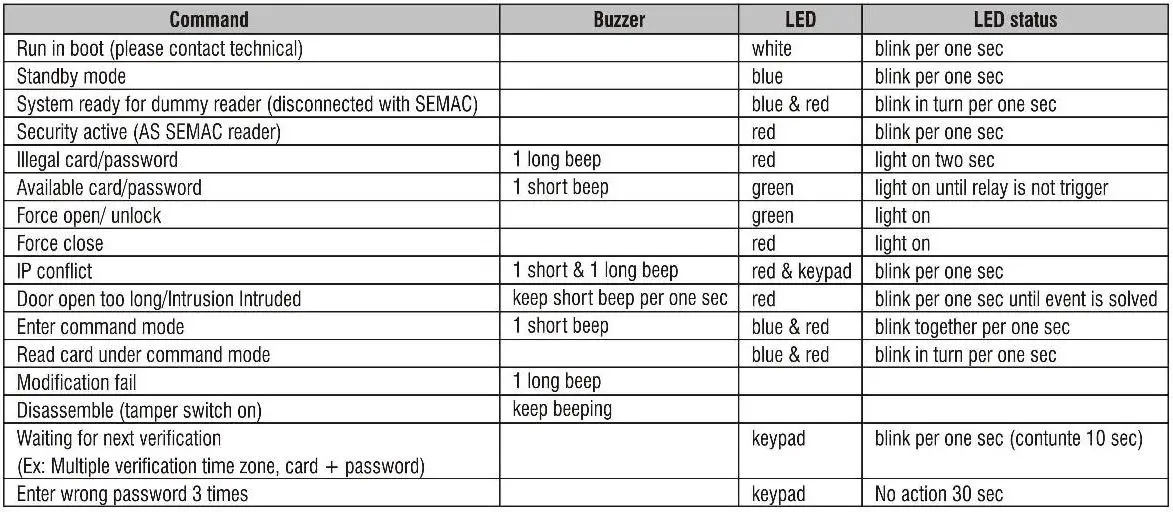

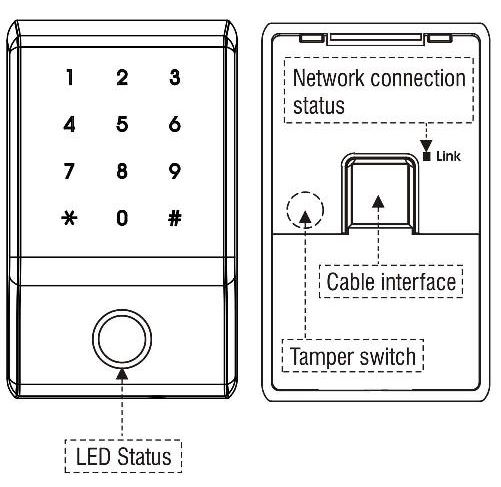

Buzzer & LED Description

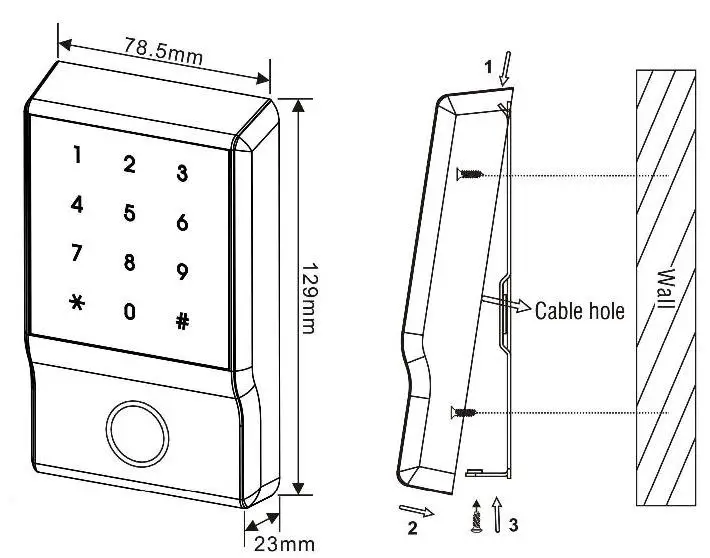

Installation
Wiring Instructions
SI-FP-05+POE (Secure I/O)

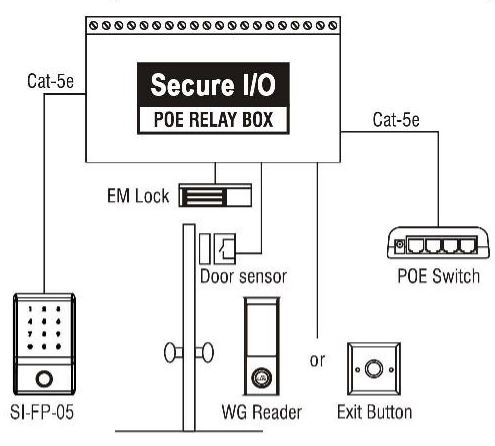

- Structure (Standalone + POE version RELAY BOX)

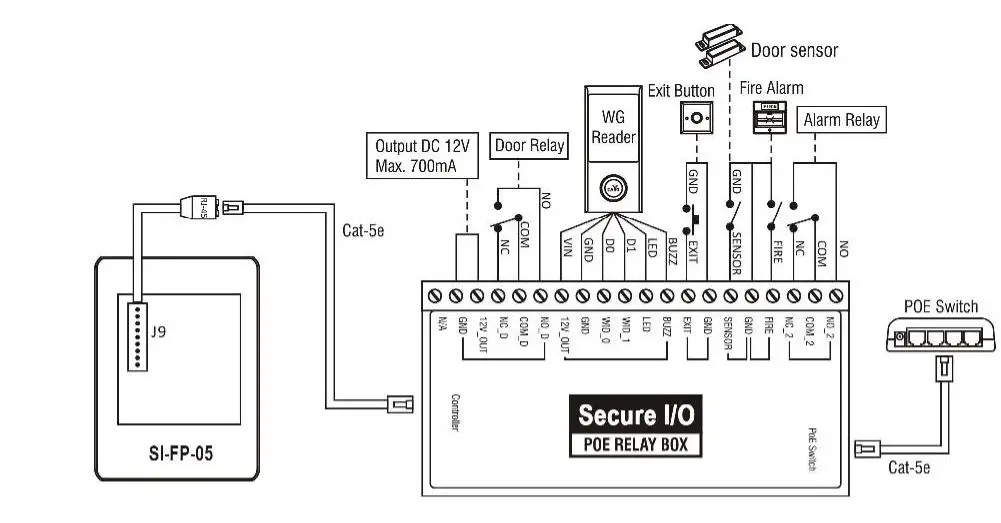

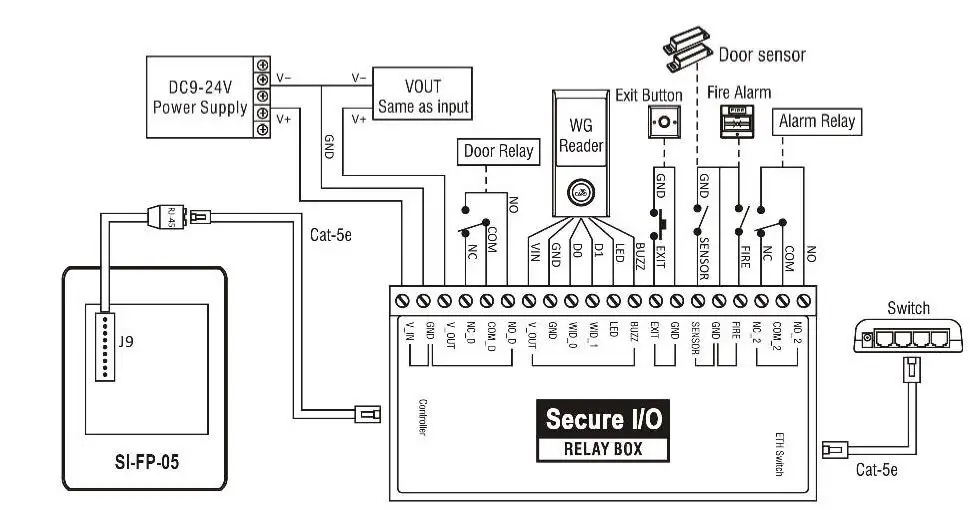

- Wiring diagram
SI-FP-05+RELAY BOX (Secure 1/0)
- Structure (Standalone + Non POE version RELAY BOX)

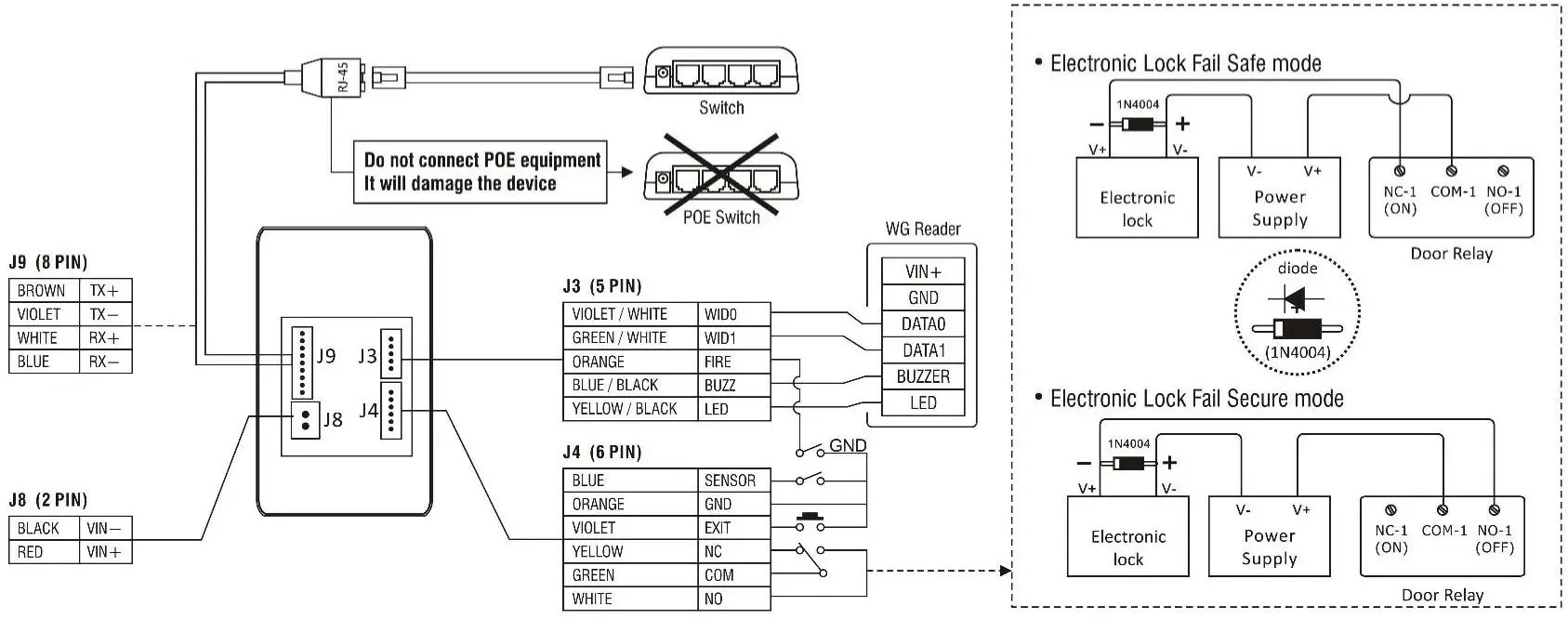

- Wiring diagram

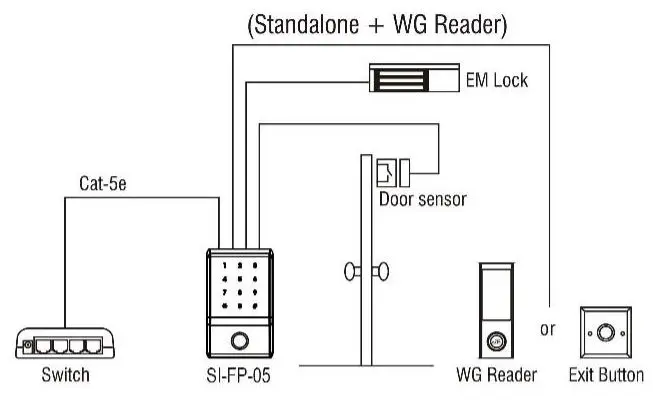

Application

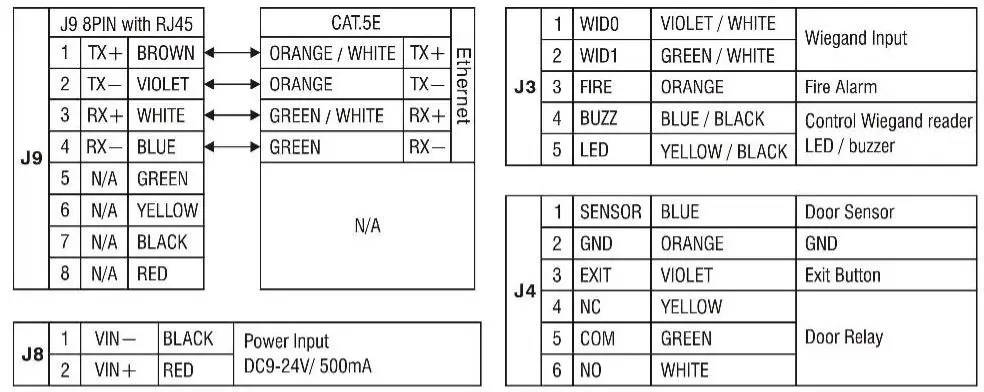

Cable description
Cable diagram

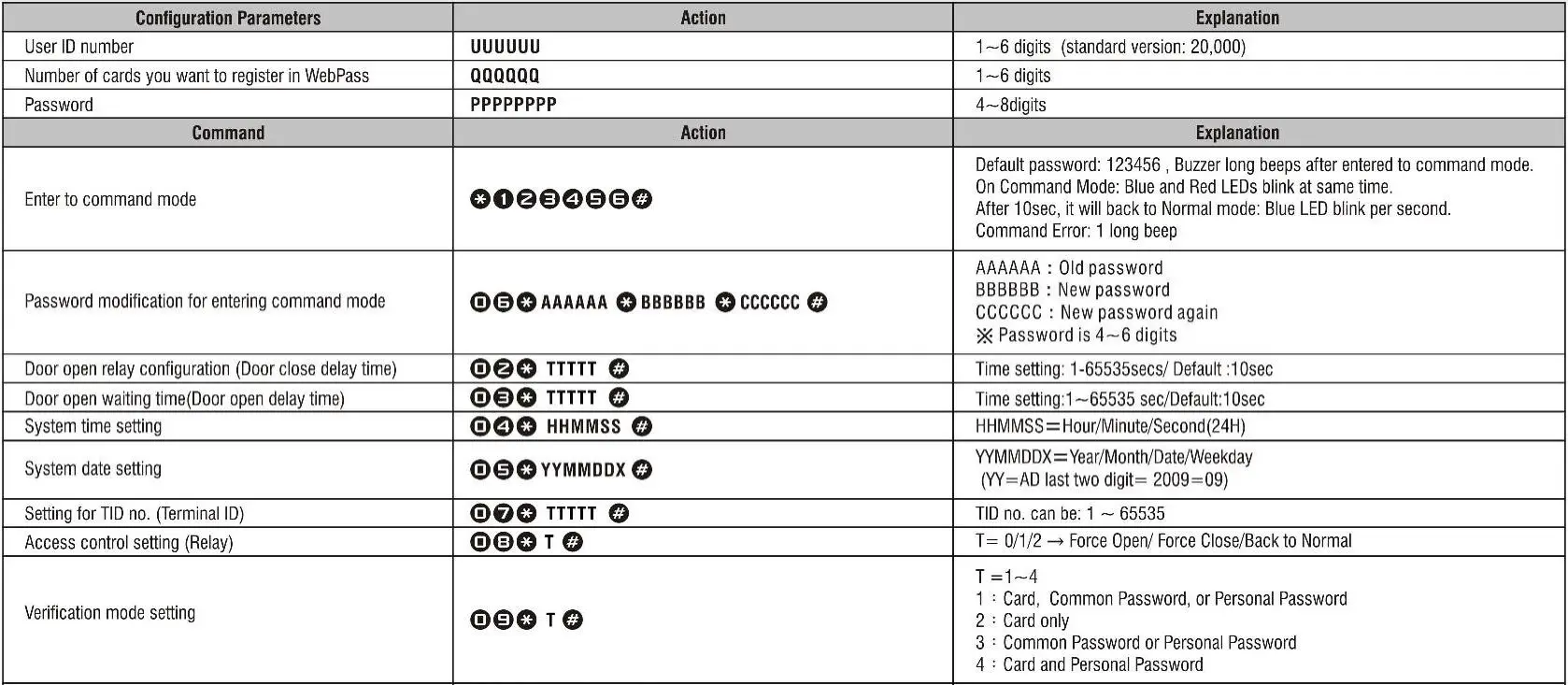

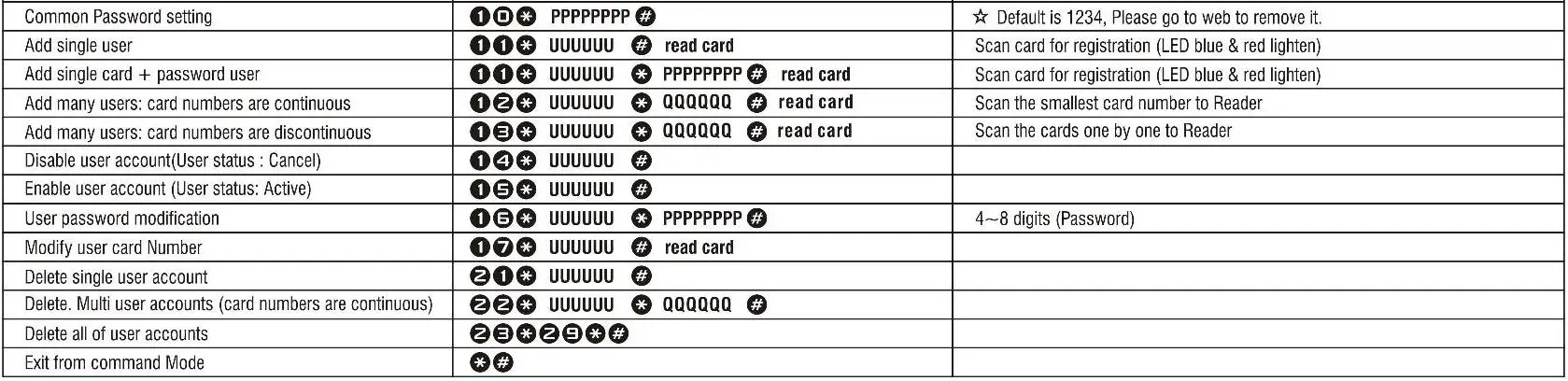

Command instructions
