LED driver and LED strip removal instruction manual
( BeBa_27590/ BeBa_27591/ BeBa_27592)

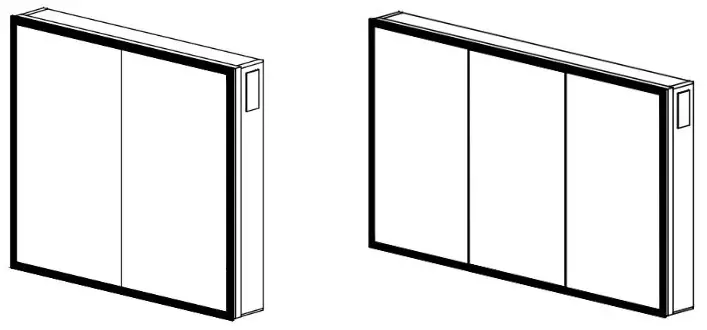

Silver 2 Door Mirrored Bathroom Cabinet with Lights Bluetooth and Demister
1. LED driver removal step: Please Turn off the electrical supply firstly before all these operation.

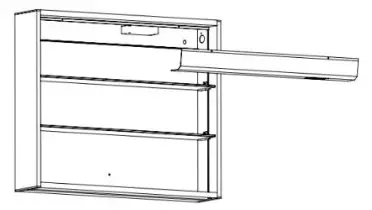

 1. Firstly unscrew the electrical box of the cabinet |  2. Remove the cover of the electrical box |
 3. unscrew the led driver |  4. Remove the led driver and replace it |

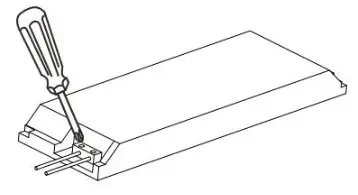

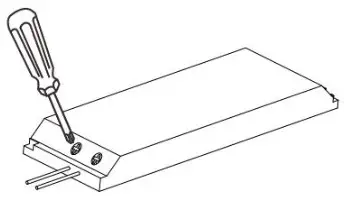

 5. Unscrew both ends of the led driver cover. |  5. Remove the wires at both ends of the led driver, Unscrew the led driver base. |
2. LED strip removal step:
1. Turn off the electrical supply. Then remove the door of cabinet firstly;

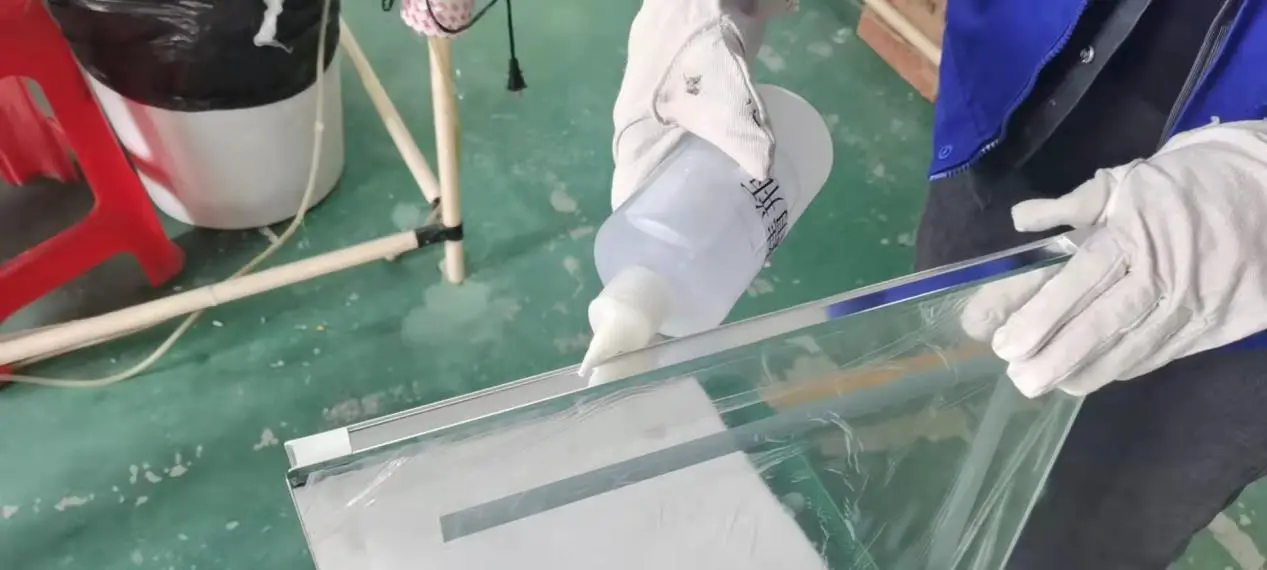

2. Apply four edges (four edges) with industrial alcohol along the mirror and aluminum profile fitting line, wait for about 1-2 minutes;
3. Use a blade to cut into the bonding surface of the mirror and aluminum frame (cutting depth 35mm), and cut vertically from top to bottom.

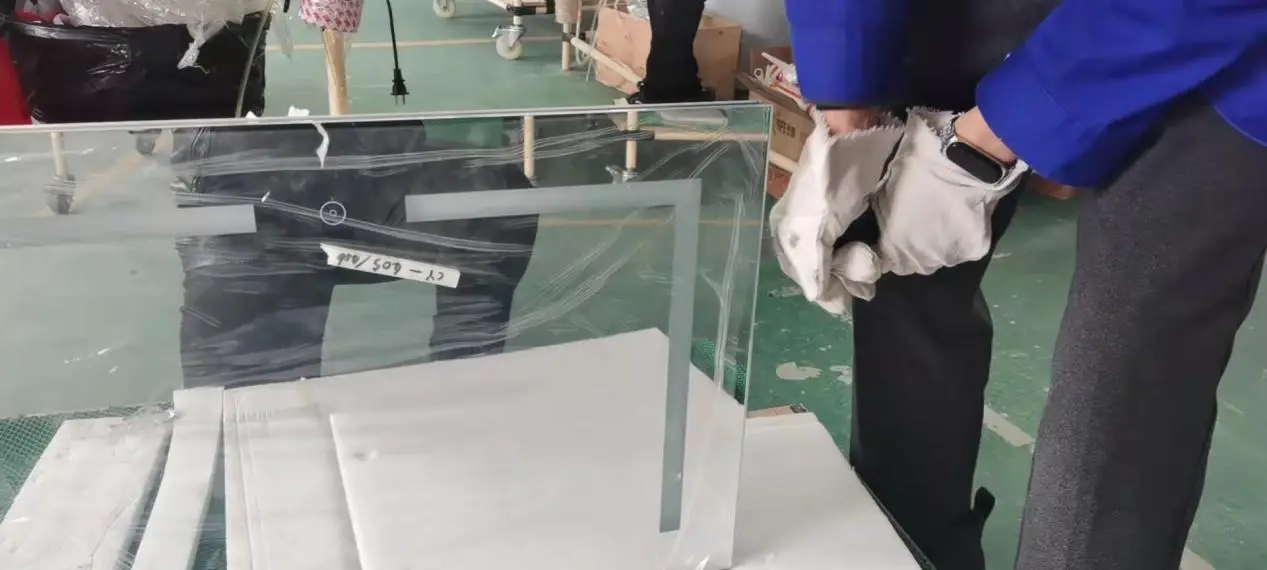

4. Cut all the 4 adhesive edges, and separate the mirror from the aluminum frame

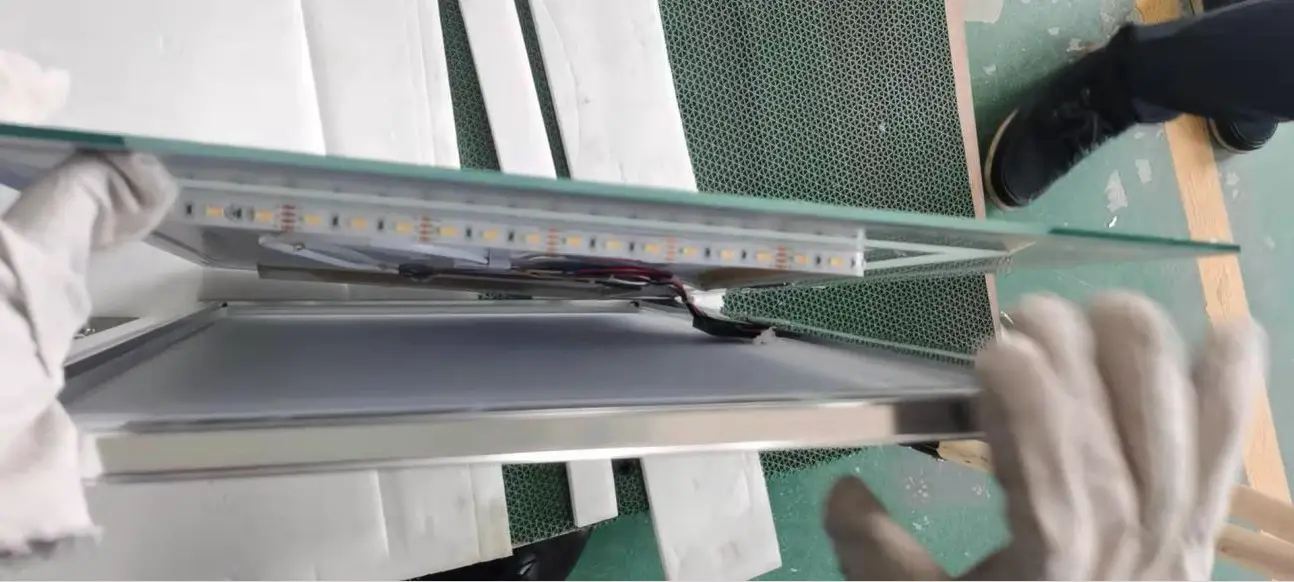

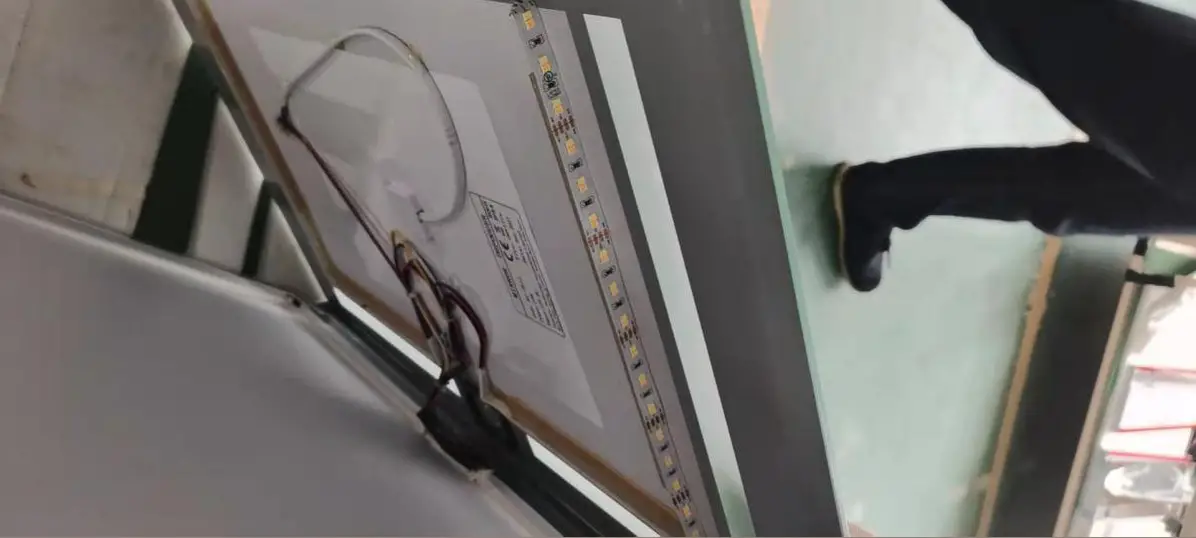

5. The LED strip is pasted along the inner of the door frame in the picture. Take out the whole led strip with a shovel knife.
